4-36 — POWER STEERING CONTROL; ENGINE SIDE (#72084) — 84 parça

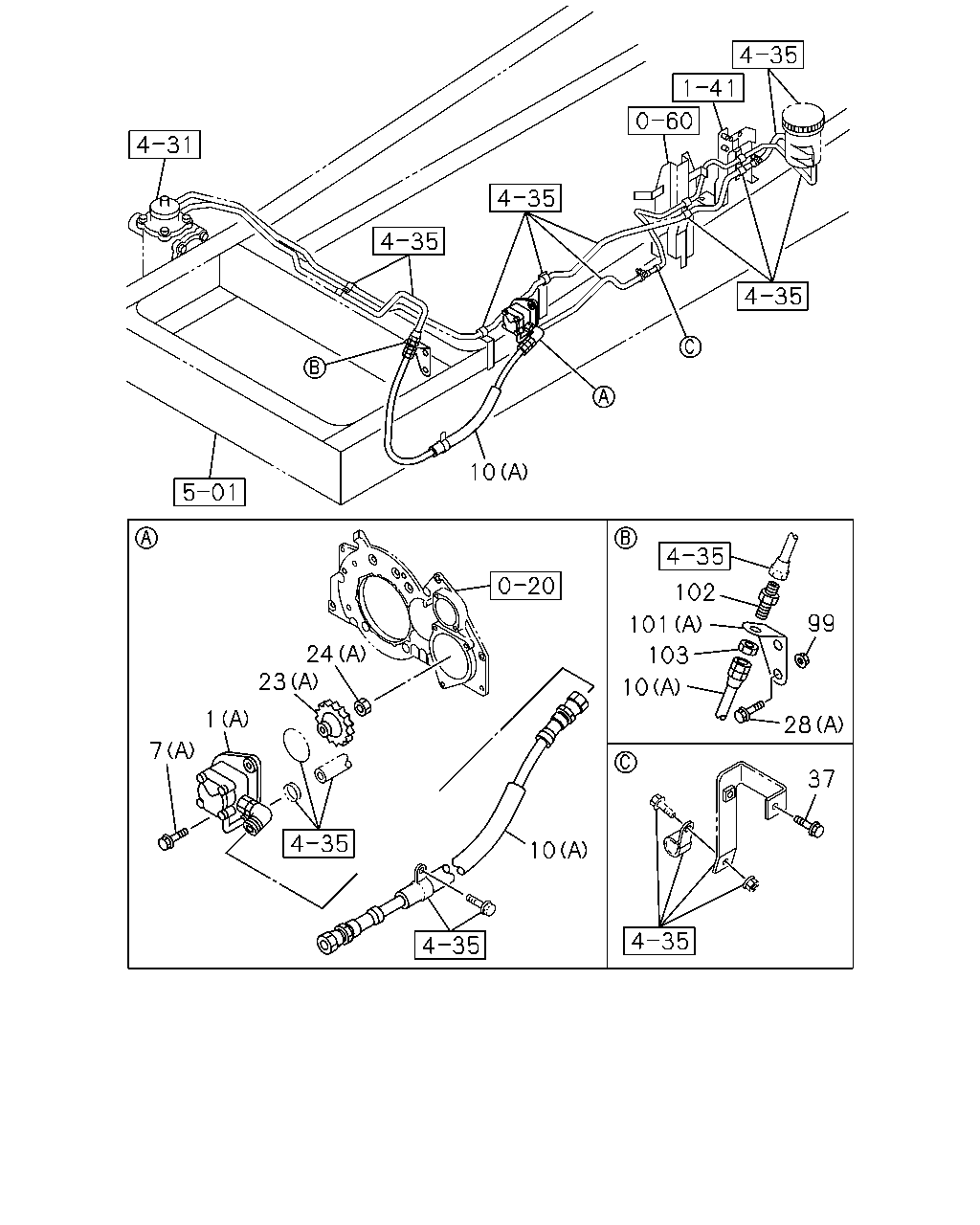

çizim 124189
10 102 99 101 24 23 103 10 1 28 7 37 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		1-19500-636-1 01 1 1103- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-627-1 01 1 1010-1102 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 		1-19500-627-1 01 1 1103- ● ●
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1103- ●
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1010-1102 ● ●
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1103- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) L=460 		1-09365-026-0 01 1 1103- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) L=500 		1-09364-957-2 01 1 1103- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) L=820 		1-09365-224-0 01 1 1010- ● ●
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) (B) Z=30 		8-94390-842-1 01 1 1103- ●
23 GEAR; OIL PUMP
(A) Z=30 		8-94396-957-3 01 1 1010-1102 ● ●
23 GEAR; OIL PUMP
6HK1-TCN ENG(82L) (A) Z=30 		8-94396-957-3 01 1 1103- ● ●
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1103- ●
24 NUT; GEAR,P/S PUMP
(A) M14 FLANGE 		0-91180-114-0 01 1 1010-1102 ● ●
24 NUT; GEAR,P/S PUMP
6HK1-TCN ENG(82L) (A) M14 FLANGE 		0-91180-114-0 01 1 1103- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
37 BOLT; P/S PUMP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
101 BRACKET; UNION
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 		8-98175-719-0 01 1 1103- ●
101 BRACKET; UNION
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) 		8-98175-720-0 01 1 1103- ●
101 BRACKET; UNION
(A) 		8-98050-832-0 01 1 1010- ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1010-1102 ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1103- ●
102 UNION
4HK1-TCS ENG(RJS) M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1103- ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1010-1102 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1103- ●
103 NUT; UNION
4HK1-TCS ENG(RJS) M22 		0-91111-522-0 01 1 1103- ●

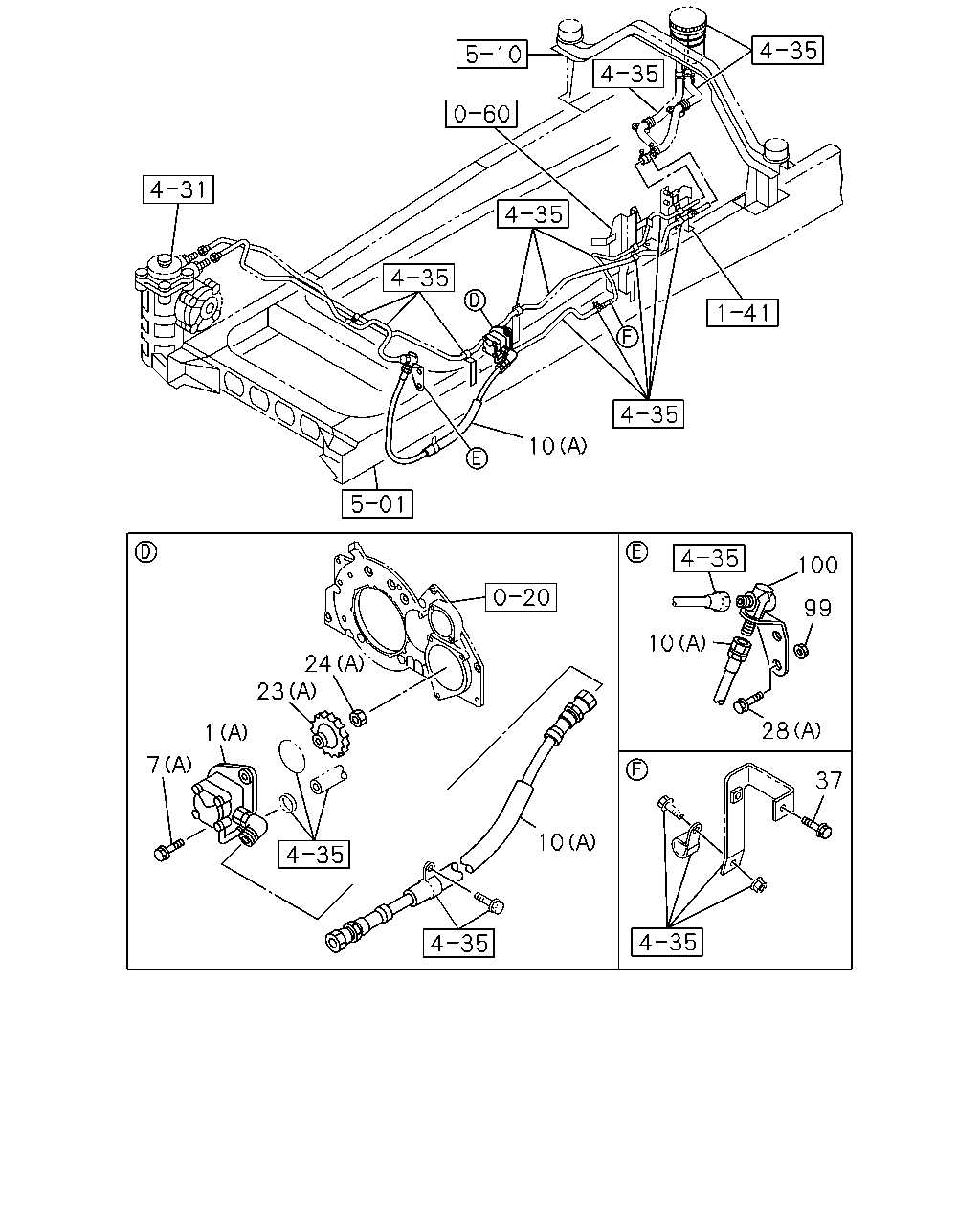

çizim 124190
10 100 99 10 24 23 28 1 7 37 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		1-19500-636-1 01 1 1103- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-627-1 01 1 1010-1102 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 		1-19500-627-1 01 1 1103- ● ●
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1103- ●
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1010-1102 ● ●
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1103- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) L=460 		1-09365-026-0 01 1 1103- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) L=500 		1-09364-957-2 01 1 1103- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) L=820 		1-09365-224-0 01 1 1010- ● ●
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) (B) Z=30 		8-94390-842-1 01 1 1103- ●
23 GEAR; OIL PUMP
(A) Z=30 		8-94396-957-3 01 1 1010-1102 ● ●
23 GEAR; OIL PUMP
6HK1-TCN ENG(82L) (A) Z=30 		8-94396-957-3 01 1 1103- ● ●
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1103- ●
24 NUT; GEAR,P/S PUMP
(A) M14 FLANGE 		0-91180-114-0 01 1 1010-1102 ● ●
24 NUT; GEAR,P/S PUMP
6HK1-TCN ENG(82L) (A) M14 FLANGE 		0-91180-114-0 01 1 1103- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
37 BOLT; P/S PUMP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
100 UNION; FLEX HOSE
6HK1-TCN ENG(82L) 		8-98101-859-0 01 1 1010- ●

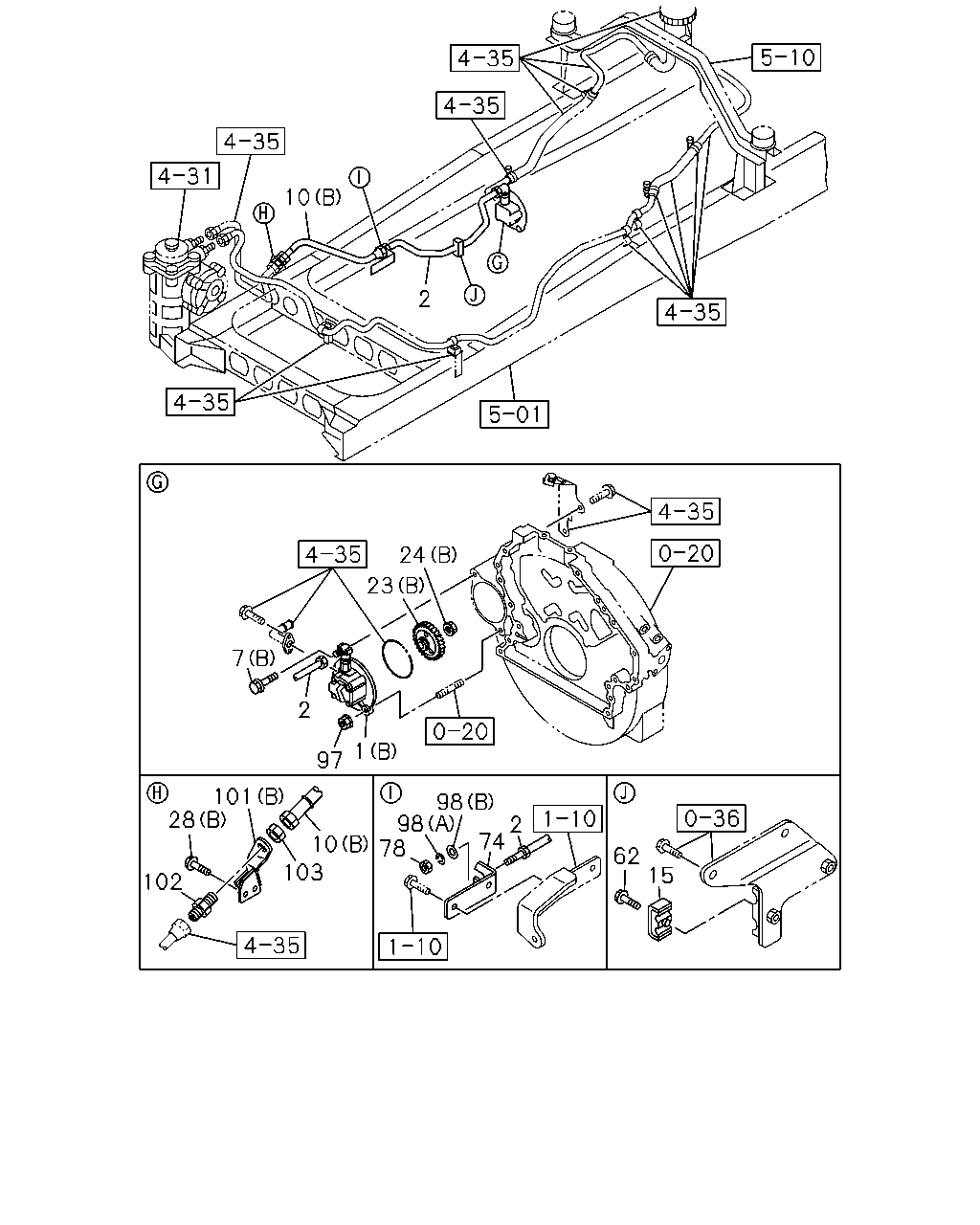

çizim 124324
10 2 24 23 7 2 1 97 101 28 98 98 78 2 74 10 62 103 15 102
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		1-19500-636-1 01 1 1103- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-627-1 01 1 1010-1102 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 		1-19500-627-1 01 1 1103- ● ●
2 PIPE ASM; OIL,SUCTION
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) 		8-98086-995-0 01 1 1103- ●
2 PIPE ASM; OIL,SUCTION
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) 		8-98086-746-0 01 1 1103- ●
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1103- ●
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1010-1102 ● ●
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1103- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) L=460 		1-09365-026-0 01 1 1103- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) L=500 		1-09364-957-2 01 1 1103- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) L=820 		1-09365-224-0 01 1 1010- ● ●
15 CLIP; OIL PIPE SUCTION
4HK1-TCS ENG(RJS) ID=9 & 9 L=25 		1-09701-212-2 01 1 1103- ●
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) (B) Z=30 		8-94390-842-1 01 1 1103- ●
23 GEAR; OIL PUMP
(A) Z=30 		8-94396-957-3 01 1 1010-1102 ● ●
23 GEAR; OIL PUMP
6HK1-TCN ENG(82L) (A) Z=30 		8-94396-957-3 01 1 1103- ● ●
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1103- ●
24 NUT; GEAR,P/S PUMP
(A) M14 FLANGE 		0-91180-114-0 01 1 1010-1102 ● ●
24 NUT; GEAR,P/S PUMP
6HK1-TCN ENG(82L) (A) M14 FLANGE 		0-91180-114-0 01 1 1103- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
62 BOLT; CLIP
4HK1-TCS ENG(RJS) M6X30 FLANGE 		0-28650-630-0 01 1 1103- ●
74 BRACKET; PIPE
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) 		8-98073-737-0 01 1 1103- ●
74 BRACKET; PIPE
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) 		8-98060-044-1 01 1 1103- ●
78 NUT; BRKT
4HK1-TCS ENG(RJS) M20 		0-91111-520-0 01 1 1103- ●
97 NUT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-110-0 01 1 1103- ●
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (A) ID=20.2 		0-91510-620-0 01 1 1103- ●
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (B) ID=21 		0-91610-520-0 01 1 1103- ●
101 BRACKET; UNION
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 		8-98175-719-0 01 1 1103- ●
101 BRACKET; UNION
4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) 		8-98175-720-0 01 1 1103- ●
101 BRACKET; UNION
(A) 		8-98050-832-0 01 1 1010- ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1010-1102 ●
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1103- ●
102 UNION
4HK1-TCS ENG(RJS) M20 & M22 STRAIGHT 		1-09654-167-1 01 1 1103- ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1010-1102 ●
103 NUT; UNION
M22 		0-91111-522-0 01 1 1103- ●
103 NUT; UNION
4HK1-TCS ENG(RJS) M22 		0-91111-522-0 01 1 1103- ●
