Sayfa 4-35 - Isuzu EPC

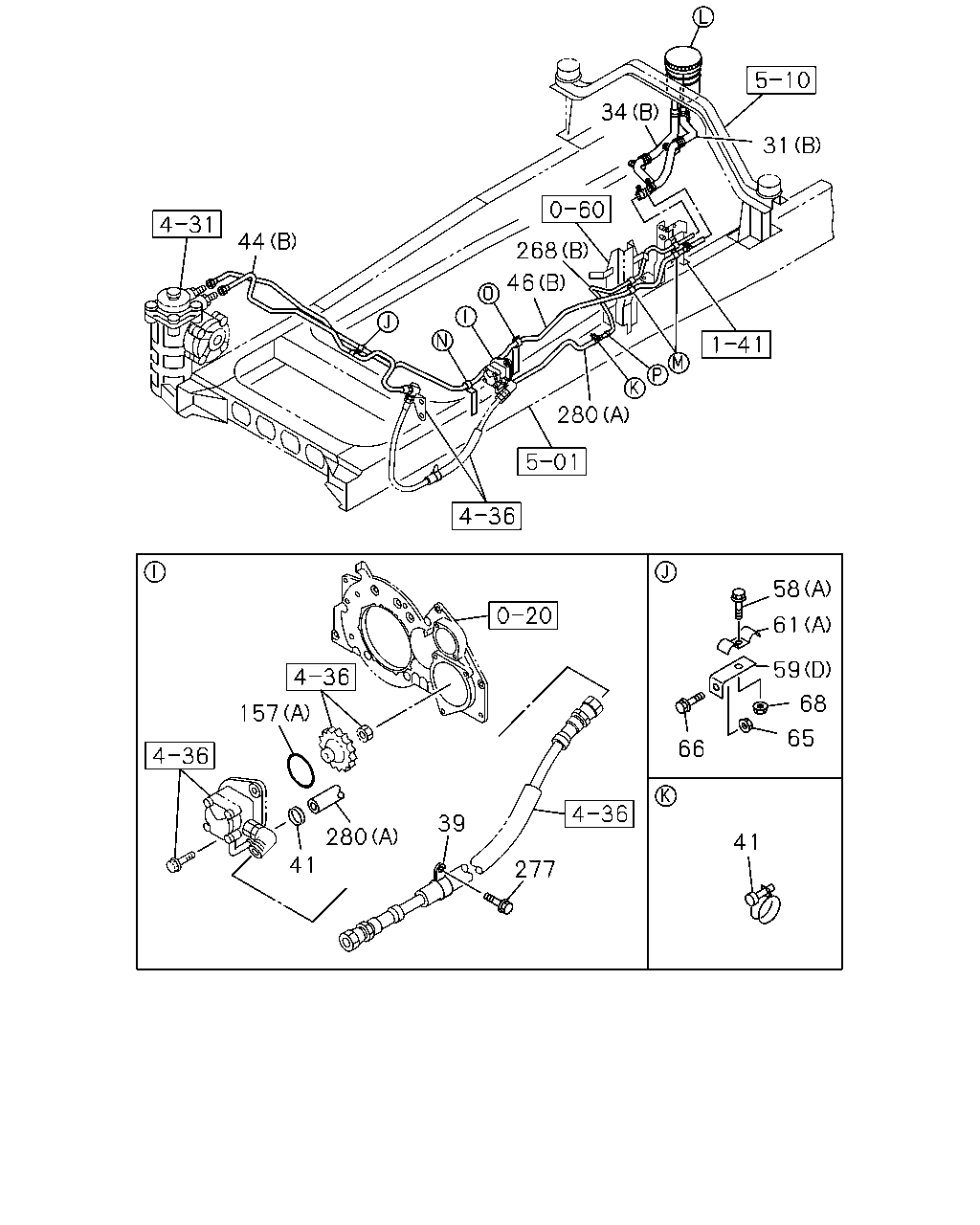

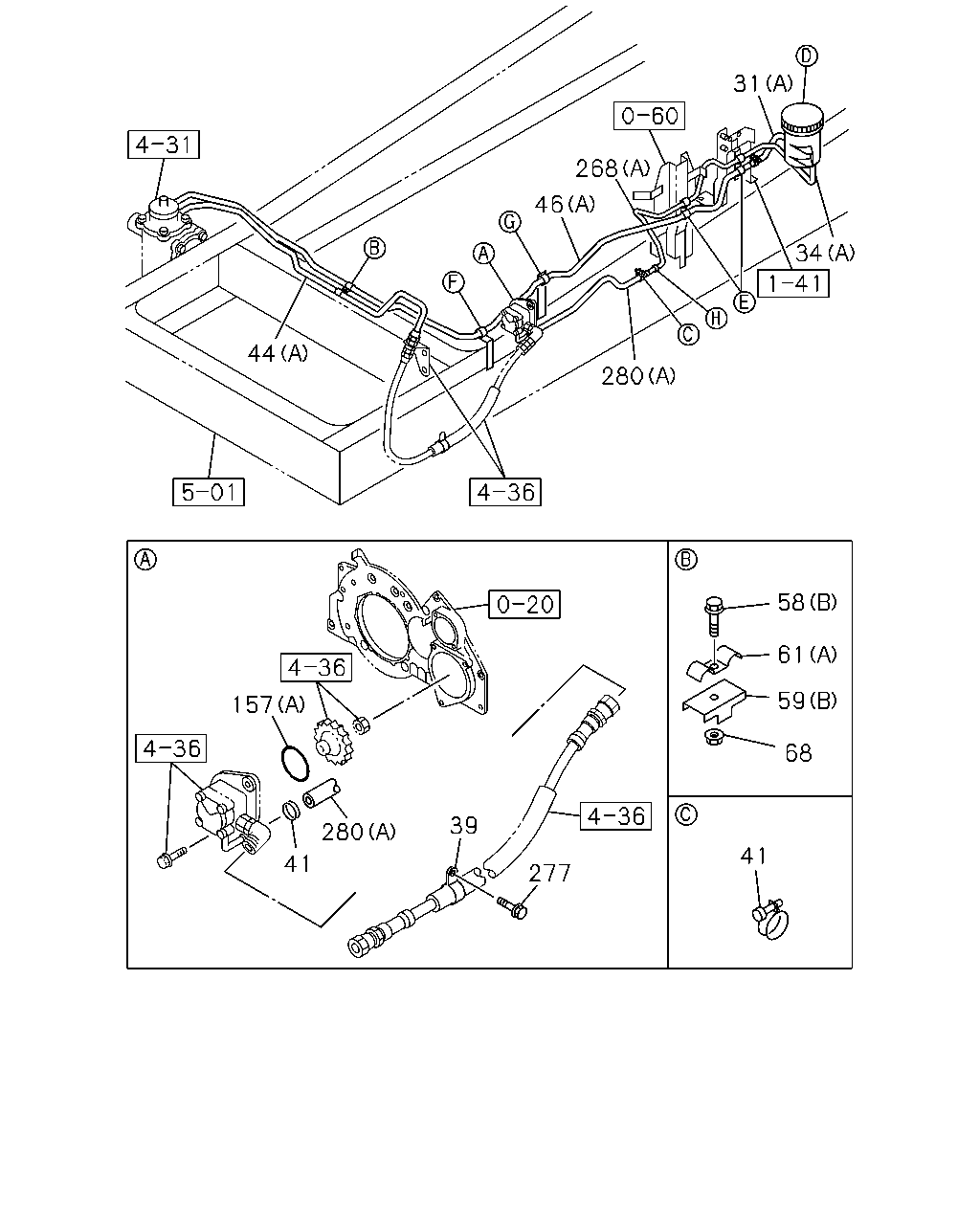

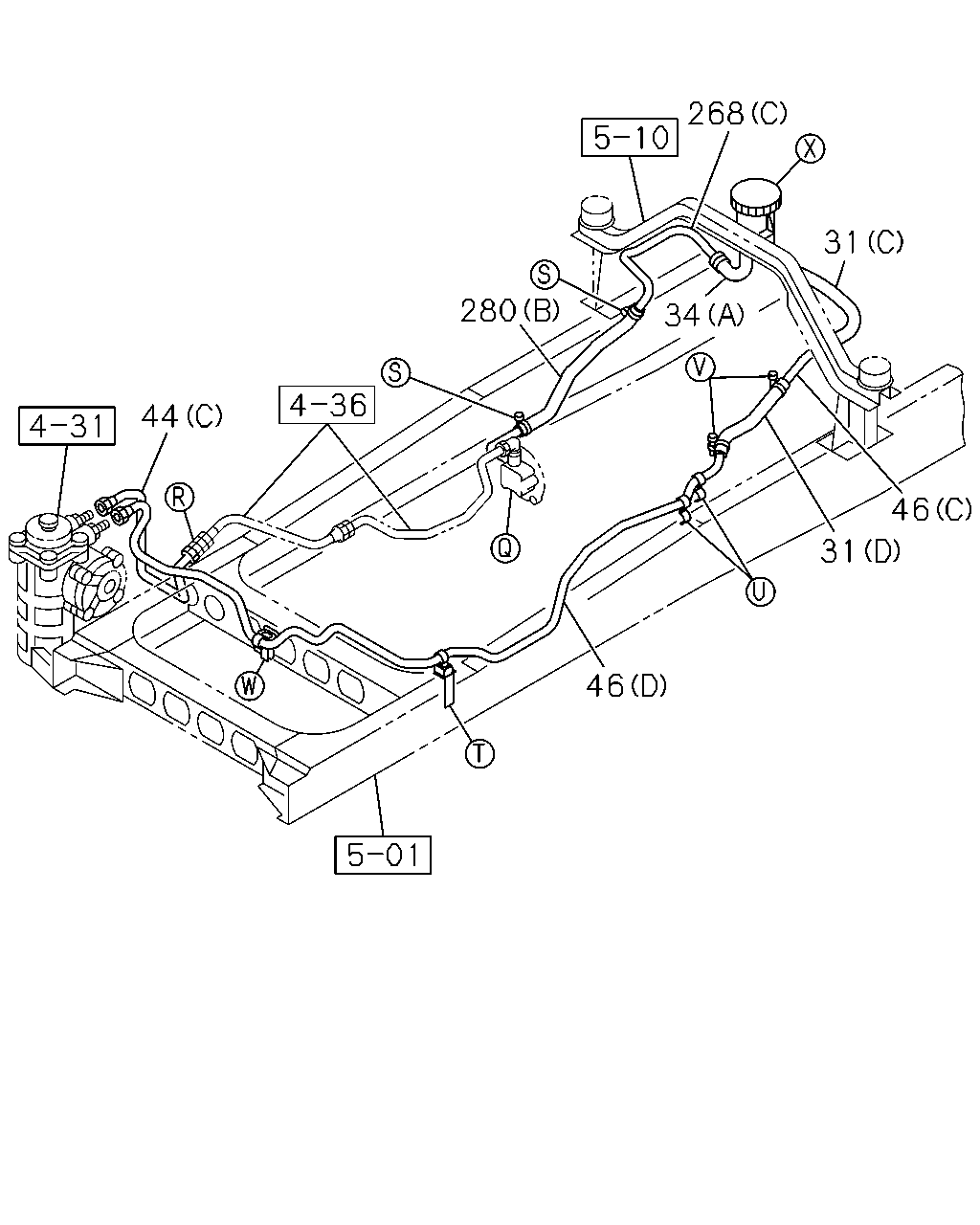

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#72083) — 351 parça

63 66 157 163 371 41 44 65 61 65 153 61 58 153 59 65 61 79 65 65 65 153 37 61 65

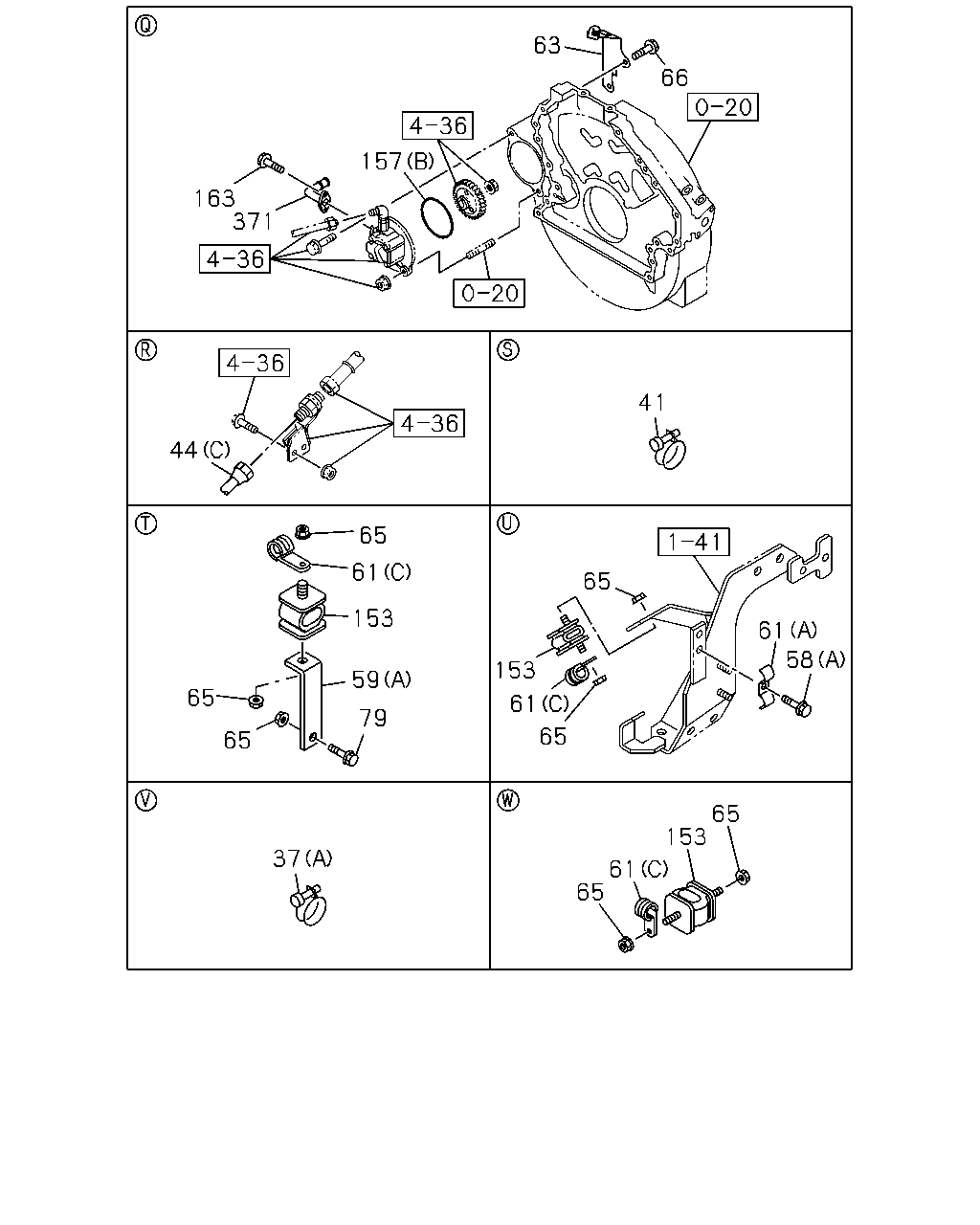

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1103-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1010-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1010-	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1010-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1010-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1010-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C)	8-98077-661-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1010-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1010-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1010	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1010-1102	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1010-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-98075-954-0	01	1	1103-	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●
66	BOLT; BRKT,OIL PIPE 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS)	8-94158-156-1	03	1	1103-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1103-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1010-1102	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1103-	●	●
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1103-	●

2 3 1 5 19 12 15 19 25 15 23 1 25 54 37 264 26 54 31 37 284 268 37 46 34 37 67 79 58 61 65 59

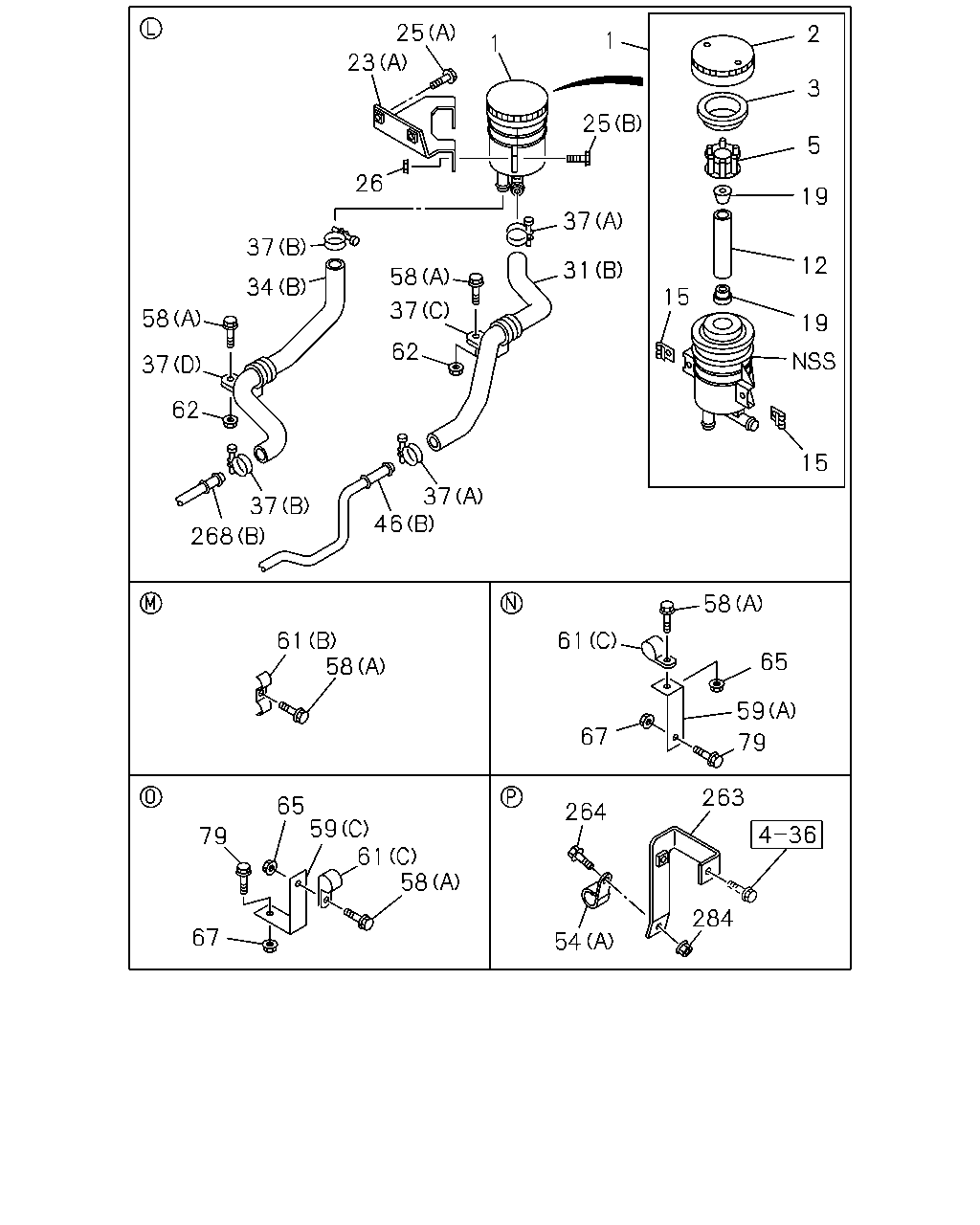

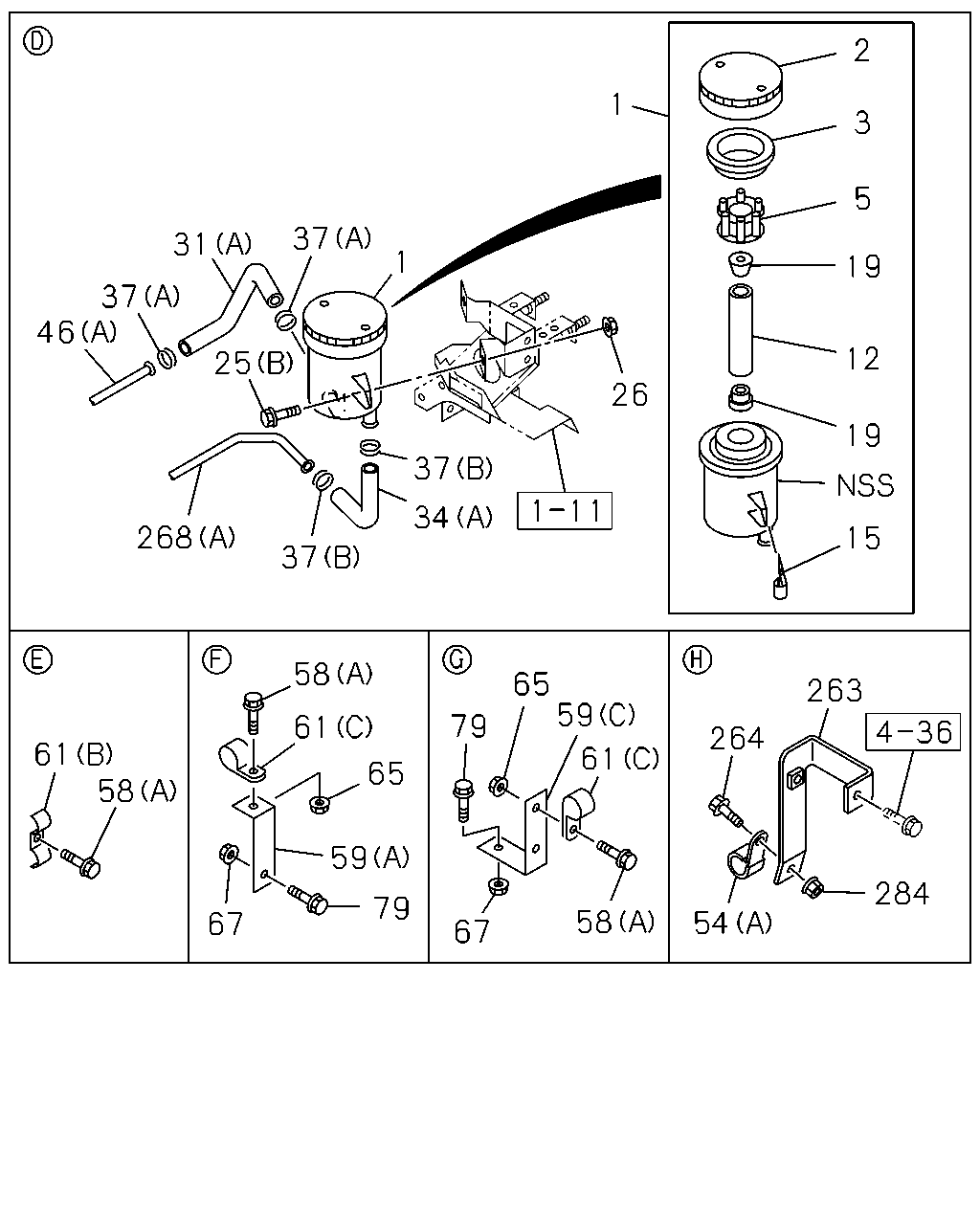

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1010-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1010-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1010-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1010-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1010-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1010-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1010-	●	●
23	BRACKET; OIL TANK,P/S 4HK1-TCS ENG(RJS) (B)	8-98060-024-0	01	1	1103-	●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (A)	8-98125-268-0	01	1	1010-	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1010-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1010-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1010-1102		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1103-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1103-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1010-	●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1103-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1010-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1010-	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1010-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1010-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1010-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1010-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=19 L=39 H=21	1-09700-972-1	02	1	1103-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1010-	●	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1010	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1010-1102	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1010-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1103-	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-1010	●	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1010-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1010-	●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1103-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●

34 31 44 268 46 280 58 61 59 68 157 65 66 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1010-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1010-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1010-1102		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1103-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1103-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1010-	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1010-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1010-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C)	8-98077-661-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1010-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1010-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1010-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1010	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1010-1102	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1010-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1103-	●
66	BOLT; BRKT,OIL PIPE 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1103-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1010-1102	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1103-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1010-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1010-	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	1103-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1010-	●	●

31 268 46 34 44 280 58 61 59 157 68 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1010-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1010-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1010-1102		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1103-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1103-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1010-	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1010-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1010-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C)	8-98077-661-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1010-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1010-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1010-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1010	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1010-1102	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1010-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1103-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	1010-1102	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1103-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1010-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1010-	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	1103-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1010-	●	●

25 2 1 1 23 3 25 5 26 19 37 37 12 31 58 34 15 37 58 19 62 37 62 15 37 46 37 268 58 61 58 61 65 59 67 79 263 65 59 61 58 264 79 284 67 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1010-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1010-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1010-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1010-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1010-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1010-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1010-	●	●
23	BRACKET; OIL TANK,P/S 4HK1-TCS ENG(RJS) (B)	8-98060-024-0	01	1	1103-	●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (A)	8-98125-268-0	01	1	1010-	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1010-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1010-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1010-1102		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1103-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1103-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1010-	●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1103-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1010-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1010-	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1010-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1010-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1010-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1010-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=19 L=39 H=21	1-09700-972-1	02	1	1103-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1010-	●	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1010	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1010-1102	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1010-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
62	NUT; CLIP FIX 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1103-	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-1010	●	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1010-	●	●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1010-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1010-	●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1103-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●

2 1 3 5 37 31 1 19 37 46 25 12 26 19 37 34 268 15 37 58 65 59 263 79 61 264 61 58 61 65 59 284 79 58 54 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1010-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1010-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1010-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1010-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1010-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1010-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1010-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1010-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1010-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1010-1102		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1103-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1103-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1010-	●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1103-	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1010-		●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1010-	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1010-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1010-	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1010-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1010-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=19 L=39 H=21	1-09700-972-1	02	1	1103-	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1010-	●	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1010	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1010-		●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1010-1102	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1103-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1010-		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1010-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1010-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1103-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1103-	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1010-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1010-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1010-	●	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1103-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1103-	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1010-1010	●	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1011-	●	●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1010-	●	●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1010-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1010-	●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1103-	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●

268 31 280 34 44 46 31 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C)	0-09814-400-0	01	1	1103-	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1010-		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1010-	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1010-1102		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1103-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1103-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1010-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C)	8-98077-661-0	01	1	1103-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1010-		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1010-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1103-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1010-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1010-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1103-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1010-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1010-	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	1103-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
