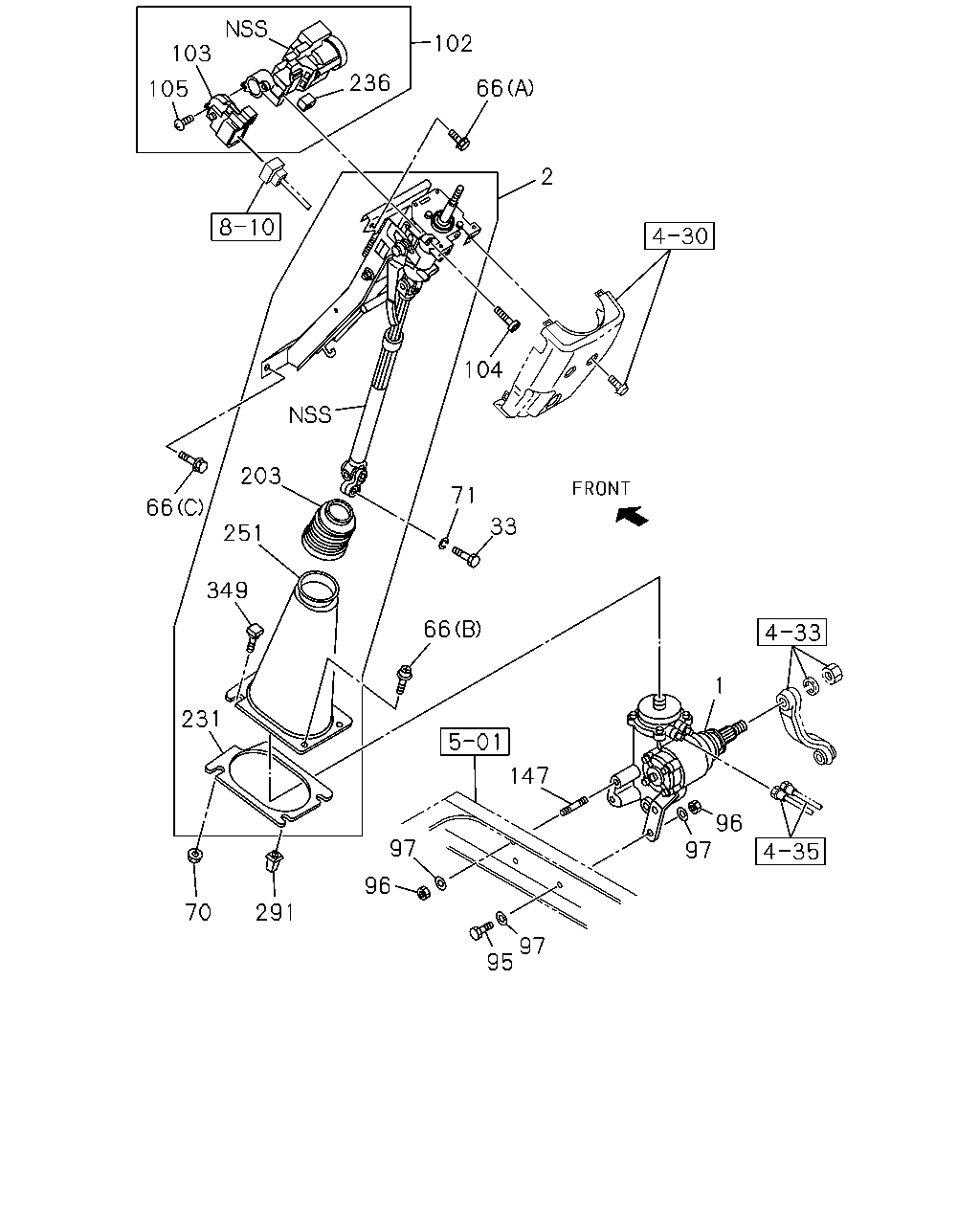

4-31 — STEERING COLUMN AND SHAFT (#72081) — 22 parça

102 103 236 66 105 2 104 203 71 66 33 251 349 66 1 231 147 96 97 97 96 291 70 97 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-951-1	01	1	1010-	●	●
2	SHAFT ASM; STRG BLACK	8-97415-620-2	01	1	1010-	●	●
33	BOLT; STRG SHAFT TO UNIT M10X35	1-09009-126-1	01	1	1010-	●	●
66	BOLT; STRG COLUMN (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
66	BOLT; STRG COLUMN (B) M5X18 TAPPING	0-72180-518-0	02	1	1010-	●	●
66	BOLT; STRG COLUMN (C) M8X25 W/LK&PL WASHER	8-98018-439-0	02	1	1010-	●	●
70	NUT; STRG COLUMN M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1010-	●	●
71	WASHER; LK,SHAFT TO UNIT ID=10.2	0-91510-810-0	01	1	1010-	●	●
95	BOLT; STRG UNIT M14X50	1-09000-787-1	04	1	1010-	●	●
96	NUT; STRG UNIT M14	1-09440-097-0	05	1	1010-	●	●
97	WASHER; PL,STRG UNIT ID=15	8-98010-627-1	09	1	1010-	●	●
102	LOCK ASM; STRG	8-97387-036-0	01	1	1010-	●	●
103	SWITCH; IGNITION	8-98045-349-0	01	1	1010-	●	●
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT	8-97321-385-0	02	1	1010-	●	●
105	SCREW; IGN SW	8-98045-346-0	02	1	1010-	●	●
147	STUD; STRG UNIT M14X37 L=66	1-09300-125-0	01	1	1010-	●	●
203	BOOT; STRG COLUMN LWR	8-98137-333-0	01	1	1010-	●	●
231	SEAL; RUBBER,STRG COLUMN	8-98137-330-0	01	1	1010-	●	●
236	SWITCH; DOOR WARNING,STRG LOCK	8-98045-350-0	01	1	1010-	●	●
251	COVER; LWR BLACK	8-97417-050-0	01	1	1010-	●	●
291	GROMMET; STRG SHAFT COVER D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1010-	●	●
349	BOLT; COVER	8-98137-334-0	02	1	1010-	●	●
