4-10 — FRONT AXLE (#72076) — 100 parça

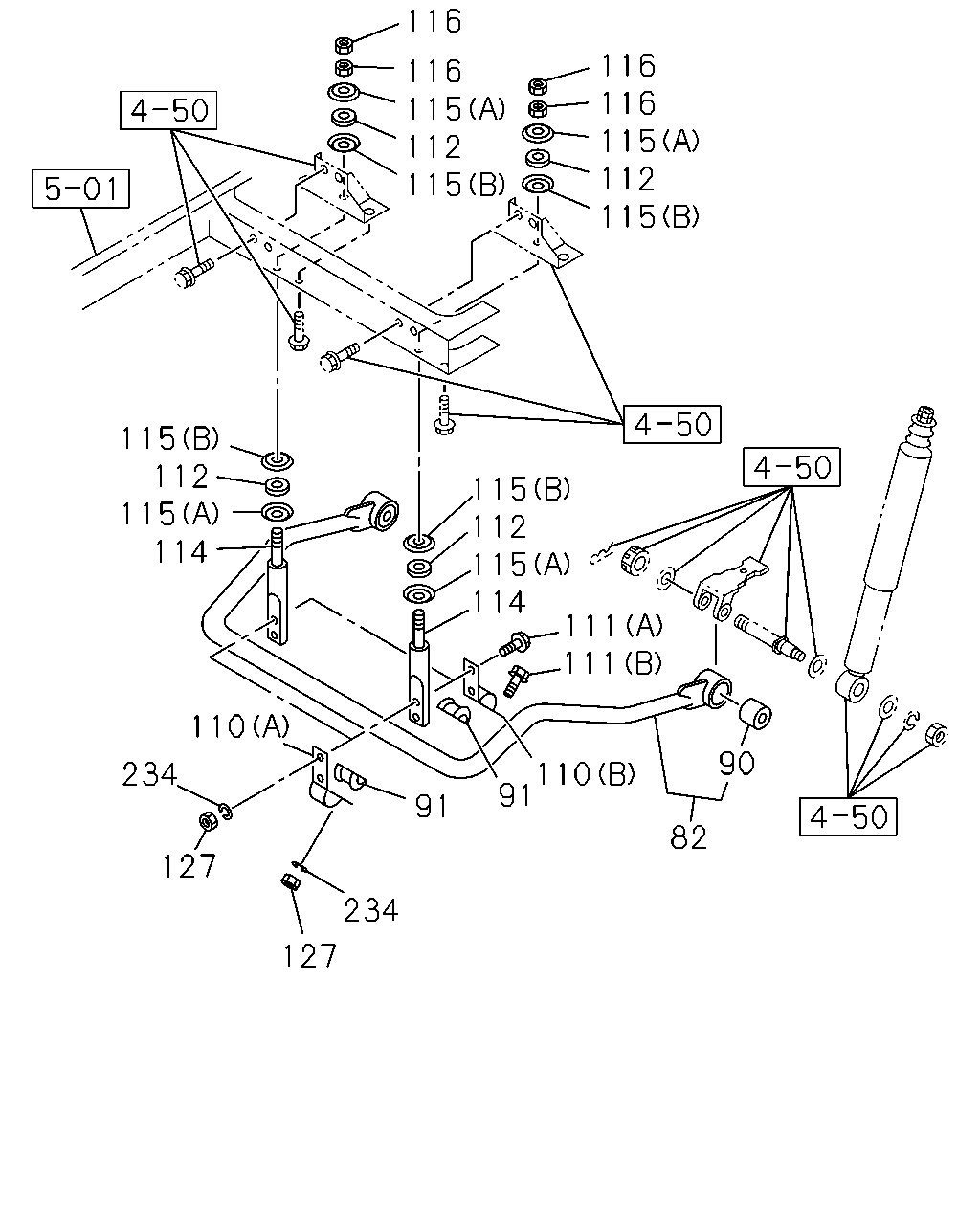

çizim 122903
116 116 116 115 112 115 116 115 112 115 115 112 115 114 112 115 114 111 111 110 90 234 110 91 91 82 127 234 127 115
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51770-114-0 01 1 1010- ● ●
90 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-066-0 02 1 1010- ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1010- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1010- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1010- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE 		0-28051-230-0 02 1 1010- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE 		0-28051-250-0 04 1 1010- ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 1010- ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-082-0 02 1 1010- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 1010- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 1010- ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1010- ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1010- ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1010- ● ●
çizim 189999
105
BalonParca AdiParca NoAdetTipApplied Date A B
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 04 1 1010- ● ●

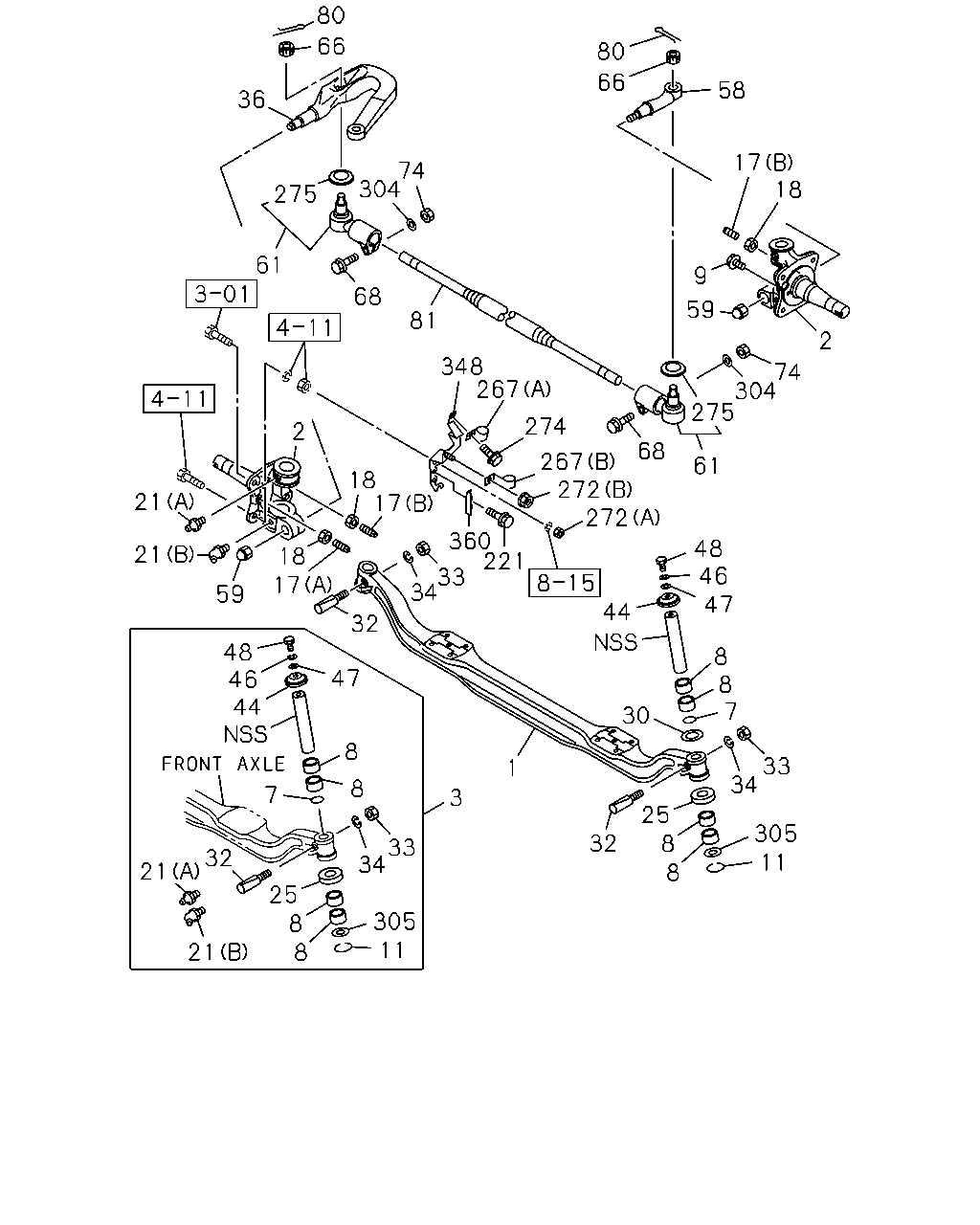

çizim 190007
11 305 34 33 25 8 8 32 30 7 8 8 1 3 33 34 305 11 8 8 25 21 32 21 7 8 8 48 46 44 47 32 34 44 47 46 48 33 221 360 17 59 18 17 18 2 21 21 272 272 267 274 68 61 267 348 81 68 61 304 275 74 36 66 80 80 66 58 17 9 59 18 2 74 304 275
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 8-98057-479-2 01 1 1010- ● ●
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1010- ● ●
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1010- ● ●
3 KING PIN SET 1-87831-295-2 01 1 1010- ● ●
3 KING PIN SET 1-87831-296-2 01 1 1010- ● ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1010- ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1010- ● ●
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1010- ● ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1010- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1010- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1010- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1010- ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1010- ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1010- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1010- ● ●
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1010- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1010- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1010- ● ●
36 ARM; KNUCKLE 8-98037-304-1 01 1 1010- ● ●
44 COVER; KING PIN 1-43175-031-0 02 1 1010- ● ●
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1010- ● ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1010- ● ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1010- ● ●
58 ARM; TIE ROD 8-98037-296-2 01 1 1010- ● ●
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1010- ● ●
61 ROD END; TIE ROD 1-43150-748-1 01 1 1010- ● ●
61 ROD END; TIE ROD 1-43150-749-1 01 1 1010- ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1010- ● ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1010-1106 ● ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1107- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1010-1106 ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1107- ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1010- ● ●
81 ROD; TIE 8-98038-703-1 01 1 1010- ● ●
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 1010- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1010- ● ●
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 1010- ● ●
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1010- ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1010- ● ●
305 COVER; KNUCKLE 1-43175-030-0 02 1 1010- ● ●
348 BRACKET; CLIP 8-98055-138-1 01 1 1010- ● ●
348 BRACKET; CLIP 8-98055-137-1 01 1 1010- ● ●
360 COVER; SENSOR 8-98018-401-0 01 1 1010- ● ●
360 COVER; SENSOR 8-98018-400-0 01 1 1010- ● ●
