3-70 — BRAKE PIPING; AIR,AIR MASTER (#72071) — 169 parça

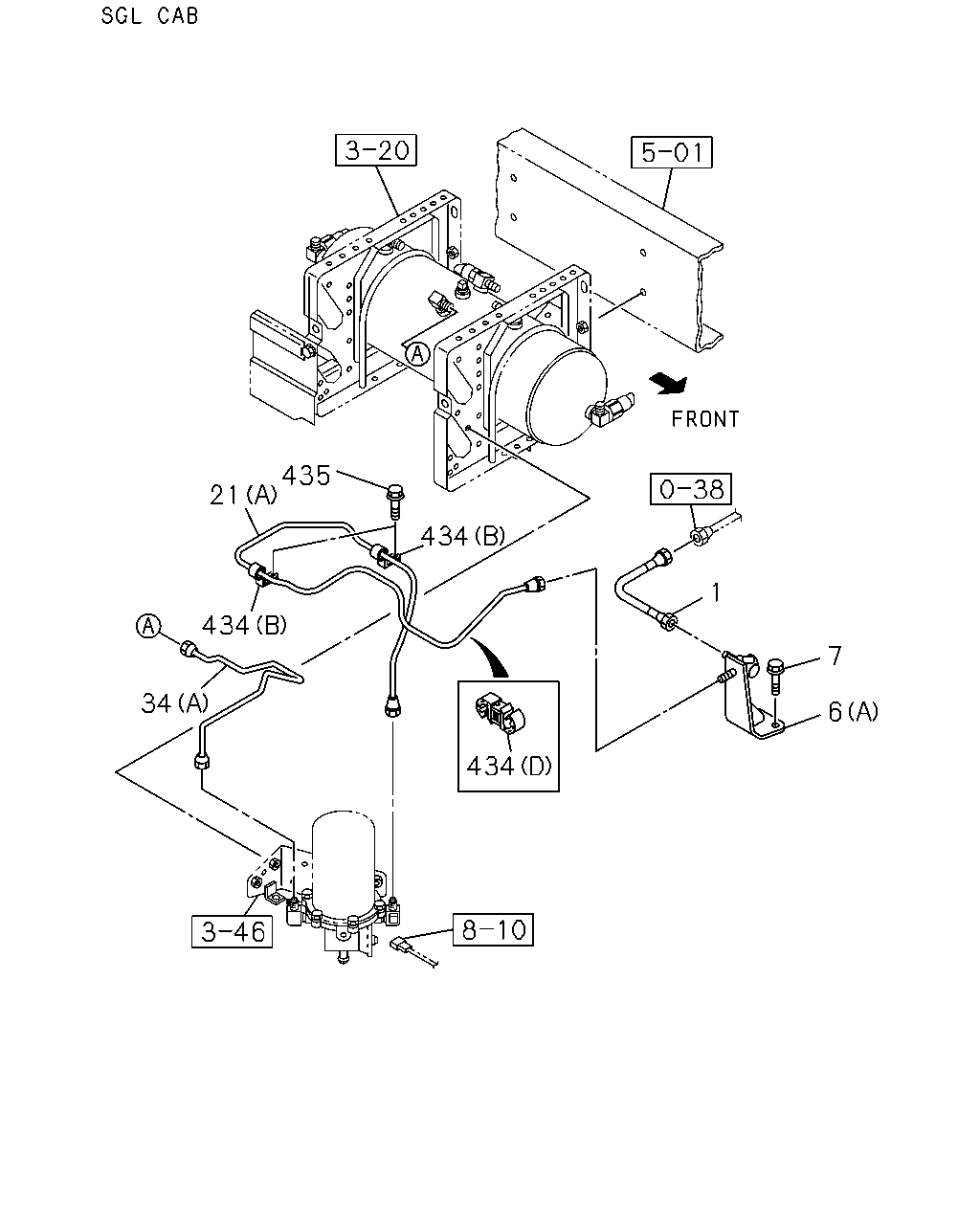

435 21 434 1 434 7 34 6 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS)	8-98087-669-0	01	1	1103-	●
1	HOSE; FLEX,AIR TANK	1-09363-958-0	01	1	1010-		●
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L)	8-98079-973-0	01	1	1010-	●
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) (B)	8-98087-689-0	01	1	1103-	●
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (A)	8-98079-987-1	01	1	1010-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (B) L=1222	8-98084-698-0	01	1	1103-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1816	8-98083-100-0	01	1	1010-		●
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) (B) L=1701	8-98101-764-0	01	1	1010-	●
34	PIPE; AIR (A) L=676 SERVICED BY L=700	1-49115-481-0	01	1	1010-		●
34	PIPE; AIR (B) L=869 SERVICED BY L=900	1-49115-484-0	01	1	1010-	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	12	1	1110-	●
434	CLIP 4HK1-TCS ENG(RJS) (F) ID=16 L=20	0-95235-536-0	01	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (E) ID=35 H=45 L=33	1-09700-947-0	01	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (A) L=350	1-09707-183-0	09	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (A) L=350	1-09707-183-0	05	1	1103-	●
434	CLIP 6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1010-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	12	1	1010-1109	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1110-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	02	1	1010-	●	●
434	CLIP (A) L=350	1-09707-183-0	04	1	1010-	●	●
434	CLIP 6HK1-TCN ENG(82L) (D) ID=10 & 15	1-09709-279-1	01	1	1010-	●	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1010-	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1010-1109	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	01	1	1010-1109		●
434	CLIP (A) L=350	1-09707-183-0	13	1	1110-		●
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1103-	●
435	BOLT; CLIP 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1010-1102	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●

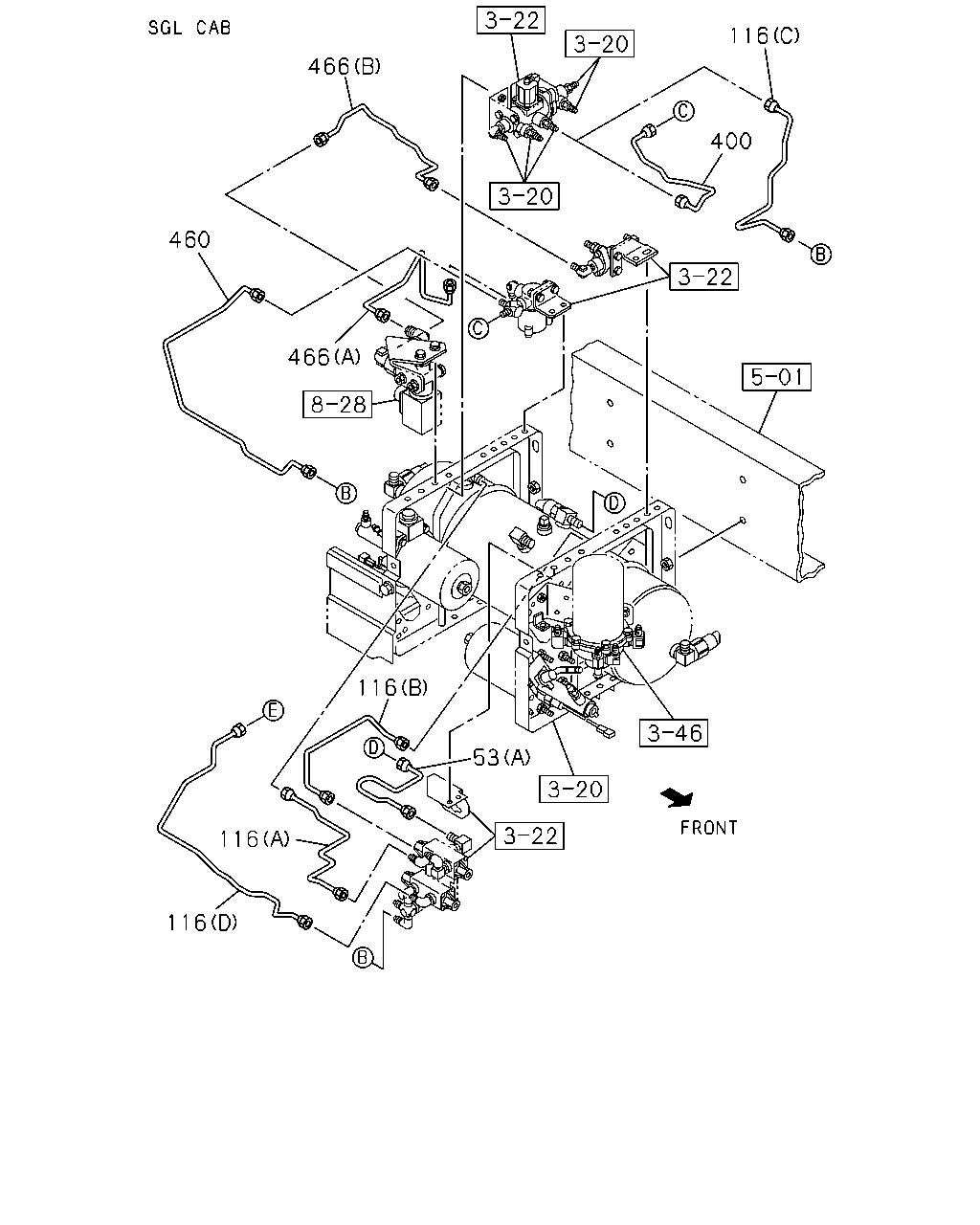

116 466 400 460 466 116 53 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	PIPE; AIR,AIR TANK TO VALVE (A)	8-98061-086-0	01	1	1010-		●
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98087-332-0	01	1	1010-	●
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1010-		●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1010-		●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1010-		●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1010-	●	●
116	PIPE; AIR,PROTECTION VLV (D) L=1291 SERVICED BY L=1370	1-47428-818-0	01	1	1010-	●
116	PIPE; AIR,PROTECTION VLV (E)	8-98087-333-0	01	1	1010-	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> (C) L=533 SERVICED BY L=550	1-47428-808-0	01	1	1010-	●
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1010-		●
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	1010-		●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	1010-		●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1010-		●

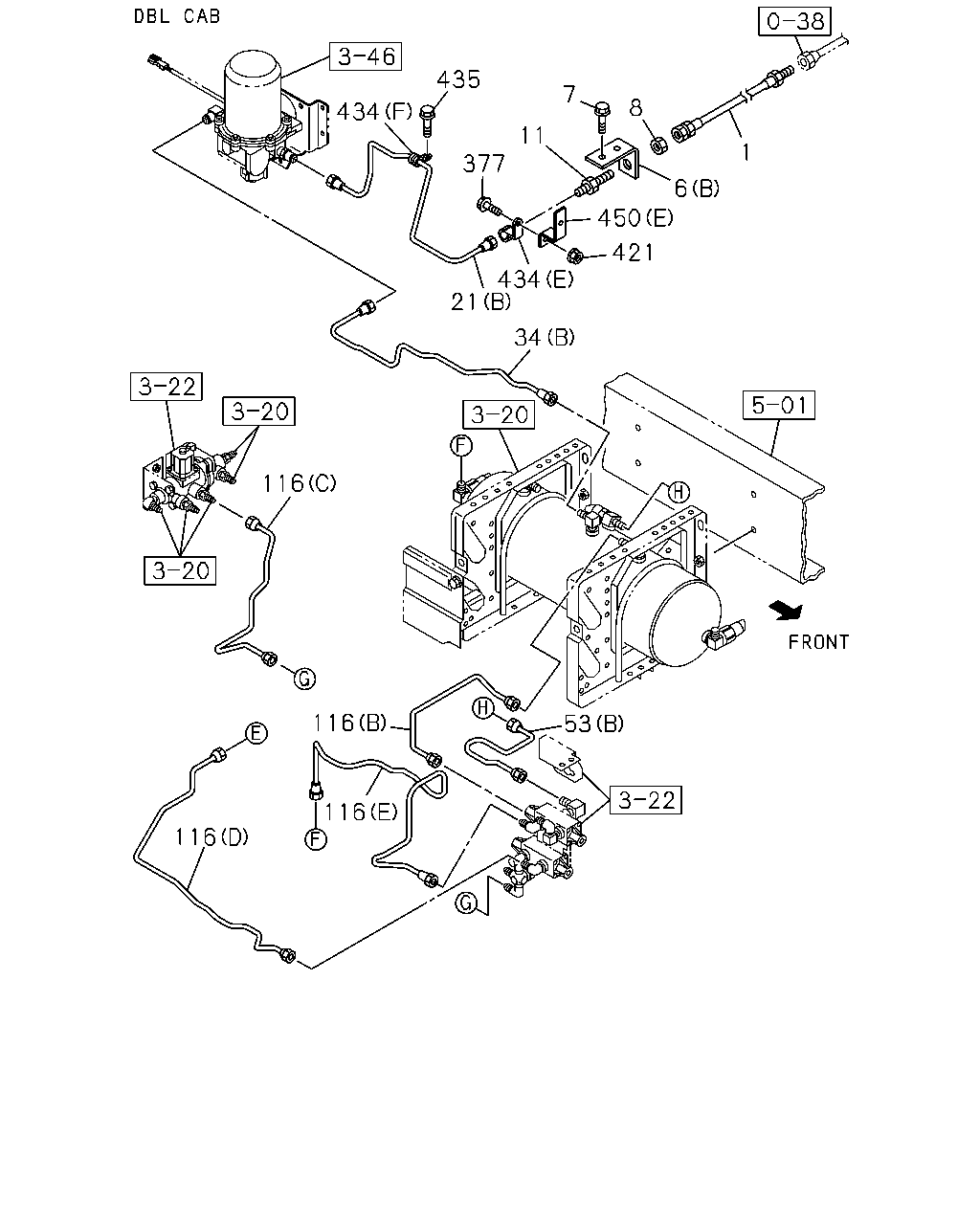

435 7 8 434 11 1 377 6 450 421 434 21 34 116 116 53 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS)	8-98087-669-0	01	1	1103-	●
1	HOSE; FLEX,AIR TANK	1-09363-958-0	01	1	1010-		●
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L)	8-98079-973-0	01	1	1010-	●
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) (B)	8-98087-689-0	01	1	1103-	●
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (A)	8-98079-987-1	01	1	1010-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) M22	0-91111-522-0	01	1	1103-	●
11	UNION; AIR PIPE 4HK1-TCS ENG(RJS) M22 L=77 STRAIGHT	0-92123-115-0	01	1	1103-	●
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) (B) L=1222	8-98084-698-0	01	1	1103-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1816	8-98083-100-0	01	1	1010-		●
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) (B) L=1701	8-98101-764-0	01	1	1010-	●
34	PIPE; AIR (A) L=676 SERVICED BY L=700	1-49115-481-0	01	1	1010-		●
34	PIPE; AIR (B) L=869 SERVICED BY L=900	1-49115-484-0	01	1	1010-	●
53	PIPE; AIR,AIR TANK TO VALVE (A)	8-98061-086-0	01	1	1010-		●
53	PIPE; AIR,AIR TANK TO VALVE (B)	8-98087-332-0	01	1	1010-	●
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1010-		●
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1010-		●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1010-		●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1010-	●	●
116	PIPE; AIR,PROTECTION VLV (D) L=1291 SERVICED BY L=1370	1-47428-818-0	01	1	1010-	●
116	PIPE; AIR,PROTECTION VLV (E)	8-98087-333-0	01	1	1010-	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> (C) L=533 SERVICED BY L=550	1-47428-808-0	01	1	1010-	●
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	04	1	1103-	●
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1103-	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	1010-	●	●
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	1010-	●	●
421	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1103-	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	12	1	1110-	●
434	CLIP 4HK1-TCS ENG(RJS) (F) ID=16 L=20	0-95235-536-0	01	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (E) ID=35 H=45 L=33	1-09700-947-0	01	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (A) L=350	1-09707-183-0	09	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (A) L=350	1-09707-183-0	05	1	1103-	●
434	CLIP 6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1010-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	12	1	1010-1109	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1110-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	02	1	1010-	●	●
434	CLIP (A) L=350	1-09707-183-0	04	1	1010-	●	●
434	CLIP 6HK1-TCN ENG(82L) (D) ID=10 & 15	1-09709-279-1	01	1	1010-	●	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1010-	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1010-1109	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	01	1	1010-1109		●
434	CLIP (A) L=350	1-09707-183-0	13	1	1110-		●
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1103-	●
435	BOLT; CLIP 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1010-1102	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98087-848-0	01	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C)	8-98117-686-0	04	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47479-693-0	01	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (A)	8-98100-216-1	03	1	1103-	●
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98100-216-1	01	1	1010-	●	●
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98117-686-0	03	1	1010-	●	●
450	BRACKET; CLIP (D)	1-47477-694-0	01	1	1010-	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1010-	●	●

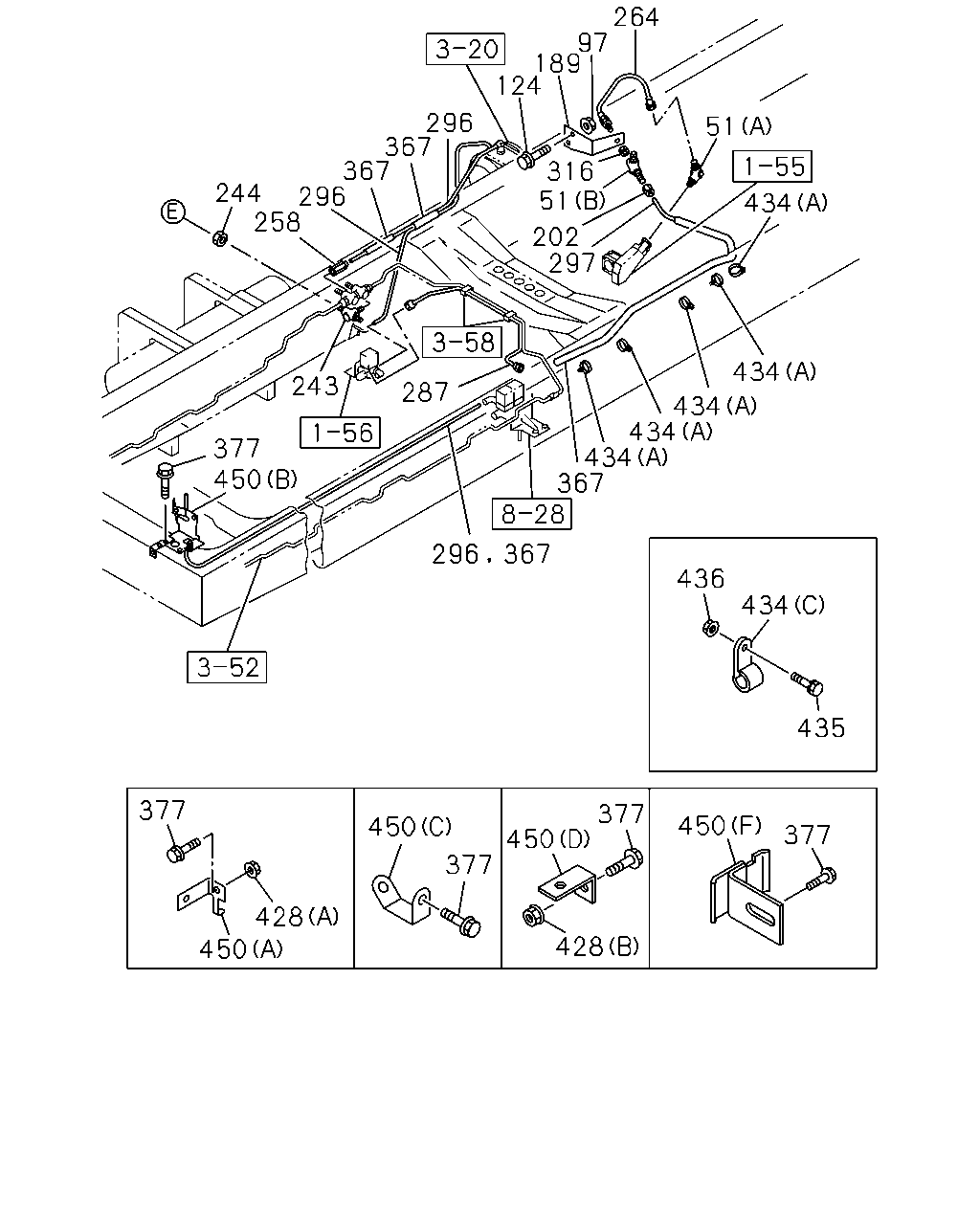

264 97 189 124 296 367 367 244 296 258 51 316 51 434 202 297 434 243 287 434 434 434 367 377 450 367 296 436 434 435 377 377 450 450 450 377 377 428 428 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	UNION 4HK1-TCS ENG(RJS) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-	●
51	UNION 6HK1-TCN ENG(82L) (A) M12 ELBOW	0-92125-006-0	01	1	1010-	●	●
51	UNION 6HK1-TCN ENG(82L) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1010-	●	●
97	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1103-	●
97	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
124	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	02	1	1103-	●
124	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
189	BRACKET; FLEX HOSE 4HK1-TCS ENG(RJS)	8-98054-640-0	01	1	1103-	●
189	BRACKET; FLEX HOSE 6HK1-TCN ENG(82L)	1-47479-914-0	01	1	1010-	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1010-	●	●
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	1010-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1010-	●	●
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1010-	●	●
264	HOSE; FLEX 4HK1-TCS ENG(RJS) L=220	1-09363-627-0	01	1	1103-	●
264	HOSE; FLEX 6HK1-TCN ENG(82L) L=240	1-09363-671-0	01	1	1010-	●	●
287	PIPE; AIR,MAG VLV 4HK1-TCS ENG(RJS) L=912 SERVICED BY L=1000	1-47428-814-0	01	1	1103-	●
287	PIPE; AIR,MAG VLV 6HK1-TCN ENG(82L) L=862 SERVICED BY L=900	1-47428-813-0	01	1	1010-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1010-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1010-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1010-	●	●
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1010-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	1010-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1010-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1010-	●	●
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	04	1	1103-	●
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1103-	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	1010-	●	●
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	1010-	●	●
428	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	03	1	1103-	●
428	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1010-1102	●	●
428	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
428	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M8 FLANGE	0-91180-108-0	01	1	1103-	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	12	1	1110-	●
434	CLIP 4HK1-TCS ENG(RJS) (F) ID=16 L=20	0-95235-536-0	01	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (E) ID=35 H=45 L=33	1-09700-947-0	01	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (A) L=350	1-09707-183-0	09	1	1103-	●
434	CLIP 4HK1-TCS ENG(RJS) (A) L=350	1-09707-183-0	05	1	1103-	●
434	CLIP 6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1010-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	12	1	1010-1109	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1110-	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	02	1	1010-	●	●
434	CLIP (A) L=350	1-09707-183-0	04	1	1010-	●	●
434	CLIP 6HK1-TCN ENG(82L) (D) ID=10 & 15	1-09709-279-1	01	1	1010-	●	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1010-	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1010-1109	●	●
434	CLIP 6HK1-TCN ENG(82L) (A) L=350	1-09707-183-0	01	1	1010-1109		●
434	CLIP (A) L=350	1-09707-183-0	13	1	1110-		●
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1103-	●
435	BOLT; CLIP 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1010-1102	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●
435	BOLT; CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1010-1102	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
436	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98087-848-0	01	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (C)	8-98117-686-0	04	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	1-47479-693-0	01	1	1103-	●
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (A)	8-98100-216-1	03	1	1103-	●
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-98100-216-1	01	1	1010-	●	●
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98117-686-0	03	1	1010-	●	●
450	BRACKET; CLIP (D)	1-47477-694-0	01	1	1010-	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
