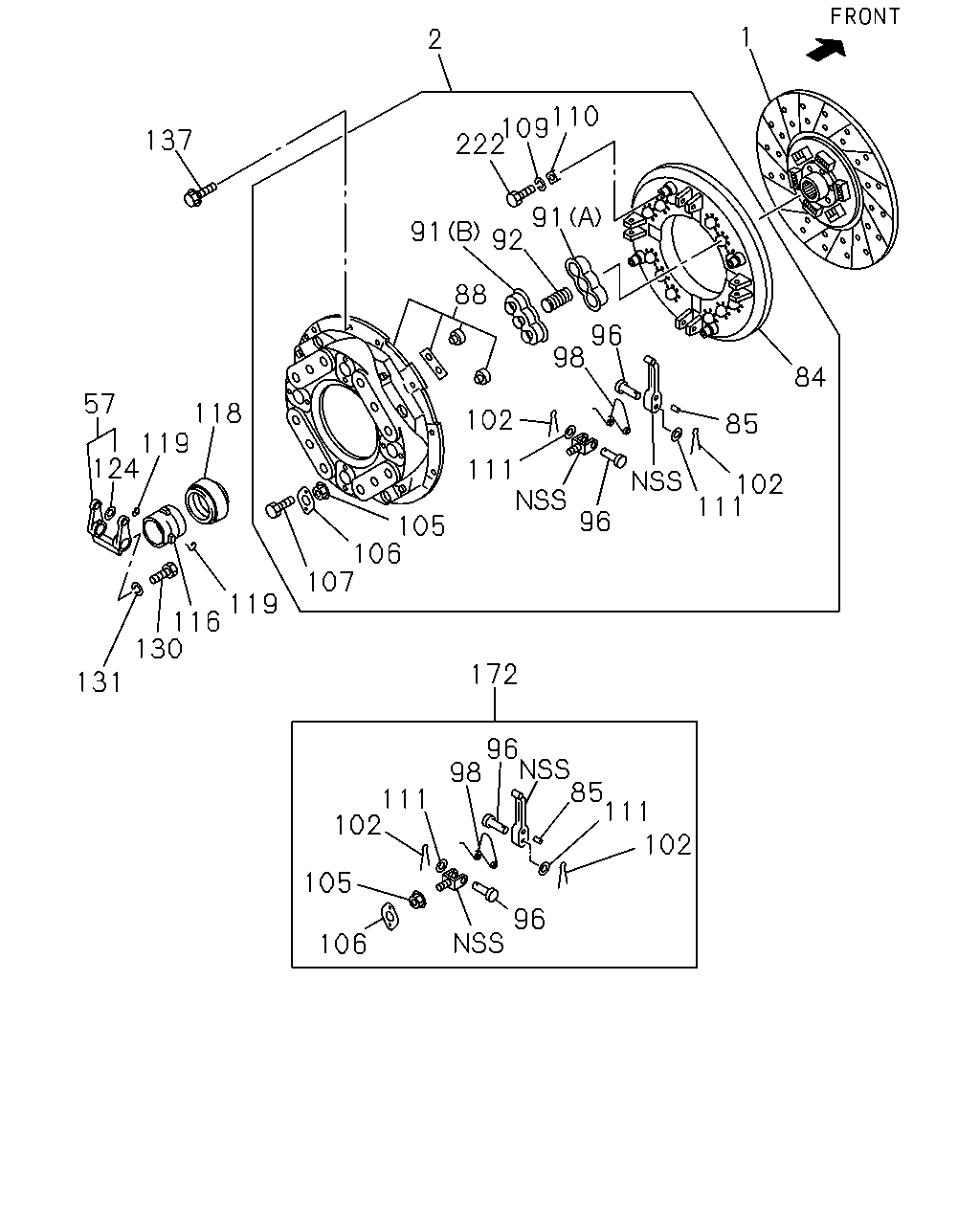

2-01 — CLUTCH (#7207) — 81 parça

1 2 110 109 222 137 91 92 91 88 96 98 84 57 118 119 124 102 85 111 102 111 96 105 106 107 119 116 130 172 131 96 98 85 111 102 111 102 105 96 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 17"	1-31240-773-1	01	1	9906-9908	●	●
1	DISC; CLUTCH 17"	1-31240-824-0	01	1	9909-0106	●	●
1	DISC; CLUTCH 17"	1-31240-876-0	01	1	0107-	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-321-1	01	1	9906-	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9906-9906		●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9907-	●	●
84	PLATE; PRESSURE	1-31221-083-1	01	1	9906-0206	●	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0207-	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	9906-	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9906-0206	●	●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0207-	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	9906-	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	9906-	●	●
92	SPRING; CLU	1-31214-040-0	12	1	9906-	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	9906-	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	9906-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9906-	●	●
105	NUT; SUPPORT	1-31235-009-0	04	1	9906-0206	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0207-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9906-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9906-0206	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0207-	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9906-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9906-	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9906-	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9906-9906		●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9907-	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9906-9906		●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9907-0003	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-0110	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0111-0111		●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0111-0111	●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0112-	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9906-9906		●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9907-	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9906-9906		●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9907-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9906-9906		●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9907-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9906-9906		●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9907-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9906-9906		●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9907-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9906-	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-885-2	01	1	9906-	●	●
222	BOLT; STRAP	1-09040-102-0	04	1	9906-	●	●

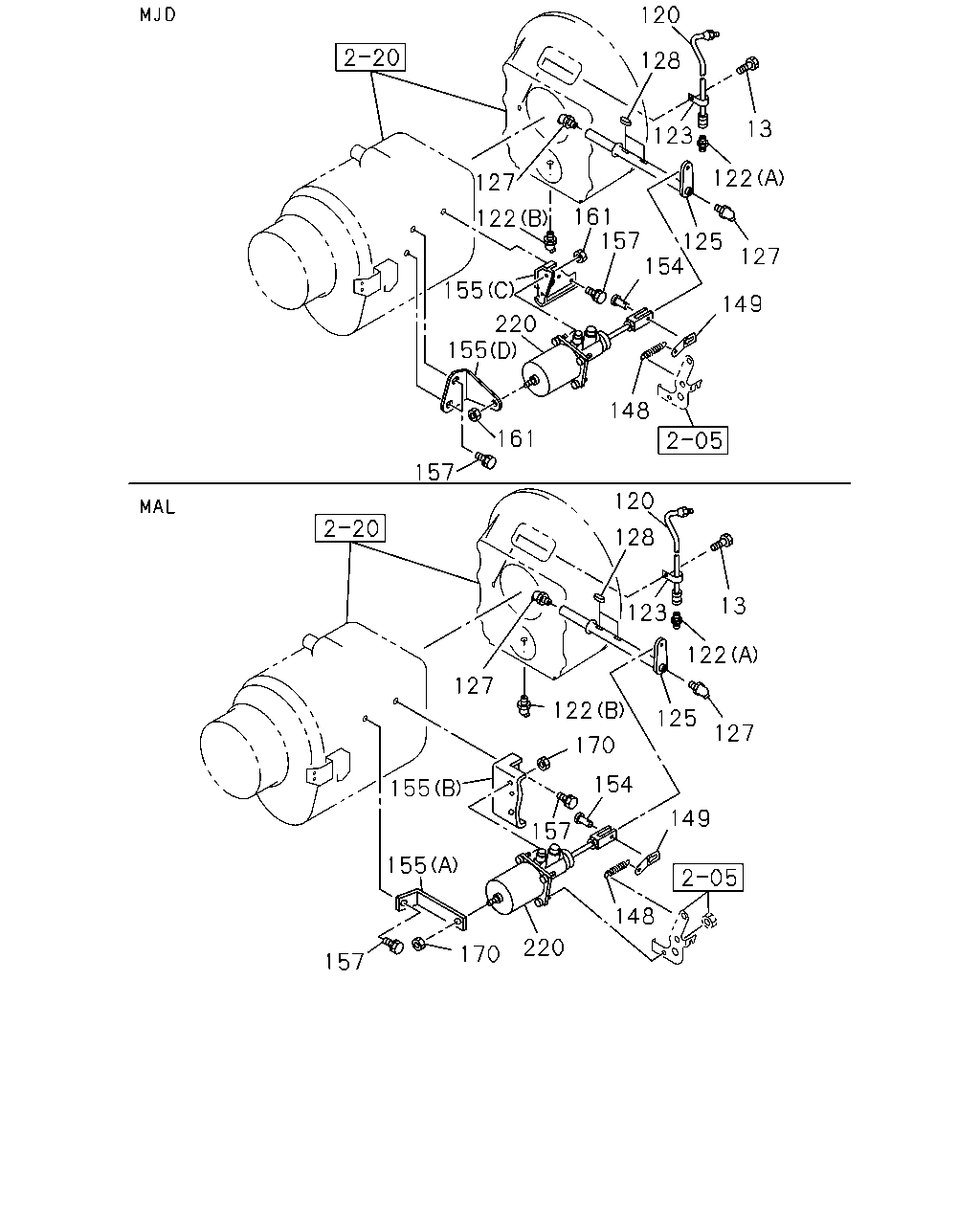

120 128 13 123 122 127 122 161 157 125 154 127 155 149 220 148 161 157 120 128 13 123 122 127 122 125 127 170 154 155 149 157 155 148 220 170 157 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9906-9906		●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9907-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9906-9906		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9907-0003	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 L=23	1-09660-710-0	01	1	9906-9906		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 L=23	1-09660-710-0	01	1	9907-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5	9-09031-110-0	01	1	9906-9906		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5	9-09031-110-0	01	1	9907-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9906-9906		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9907-	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	9906-9906		●
125	SHAFT; CLU	1-31342-305-0	01	1	9907-	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9906-9906		●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9907-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9906-9906		●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9907-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9906-9906		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9907-	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9906-9906		●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9907-	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9906-9906		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9907-	●	●
155	BRACKET; MINIPACK (D)	1-31429-350-0	01	1	9906-		●
155	BRACKET; MINIPACK (C)	1-31429-402-0	01	1	9906-		●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	9907-	●
155	BRACKET; MINIPACK (B)	1-31429-400-0	01	1	9907-0006	●
155	BRACKET; MINIPACK (B)	1-31429-444-1	01	1	0007-	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9906-9906		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9907-	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9906-		●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	9907-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-382-1	01	1	9906-0011		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-0	01	1	0012-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-385-2	01	1	9907-	●
