◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#72058) — 82 parça

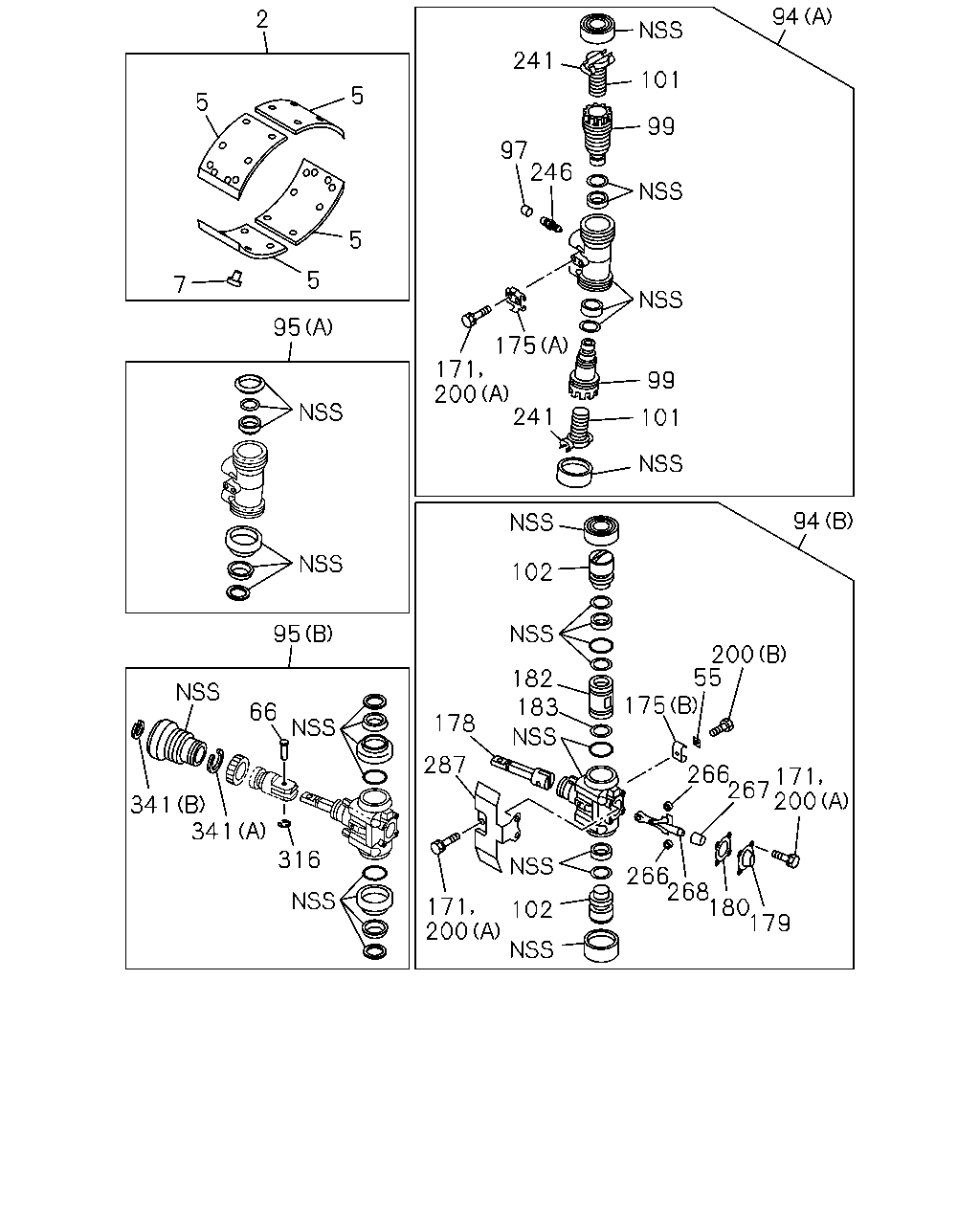

çizim 190116
2 5 5 5 5 7 95 66 341 341 316 287 171 200 102 178 183 182 102 175 55 200 266 267 200 171 94 101 99 179 180 268 266 95 241 200 171 175 246 97 241 101 99 94
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING SET; RR BRK,STANDARD 1-88311-387-0 02 1 1010- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1010- ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1010- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47622-073-0 02 1 1010- ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 1010- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 1010- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1010- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1010- ● ●
95 CUP SET; RR WHEEL CYL
(A) FORWARD 		1-87831-324-0 02 1 1010- ● ●
95 CUP SET; RR WHEEL CYL
(B) BACKWARD 		1-87831-325-0 02 1 1010- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1010- ● ●
99 PISTON; RR WHEEL CYL 1-47620-240-0 04 1 1010- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 1010- ● ●
102 PISTON; REAR WHEEL CYL 1-47620-241-0 02 1 1010- ● ●
171 BOLT; RR WHEEL CYL 1-47622-071-0 10 1 1010- ● ●
175 HANGER; RR WHEEL BRK
(A) 		1-47619-187-0 02 1 1010- ● ●
175 HANGER; RR WHEEL BRK
(B) 		1-47619-188-0 02 1 1010- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-013-0 02 1 1010- ● ●
179 COVER; WEDGE,RR WHEEL CYL 1-47649-045-0 02 1 1010- ● ●
180 GASKET; COVER,RR WHEEL CYL 1-47619-013-0 02 1 1010- ● ●
182 TAPPET; RR WHEEL CYL 1-47629-280-0 04 1 1010- ● ●
183 GASKET; TAPPET,WHEEL CYL 1-09623-690-0 02 1 1010- ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 1010- ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 1010- ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 1010- ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 1010- ● ●
241 HOLDER 1-47619-097-0 04 1 1010- ● ●
246 BLEEDER 1-47615-018-1 02 1 1010-1406 ● ●
246 BLEEDER 1-47615-009-0 02 1 1407- ● ●
266 ROLLER; WEDGE 1-47643-003-0 04 1 1010- ● ●
267 CAGE; WEDGE 1-47649-004-0 02 1 1010- ● ●
268 RETAINER; WEDGE 1-47649-003-0 02 1 1010- ● ●
287 COVER 1-47619-186-0 02 1 1010- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1010- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1010- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1010- ● ●

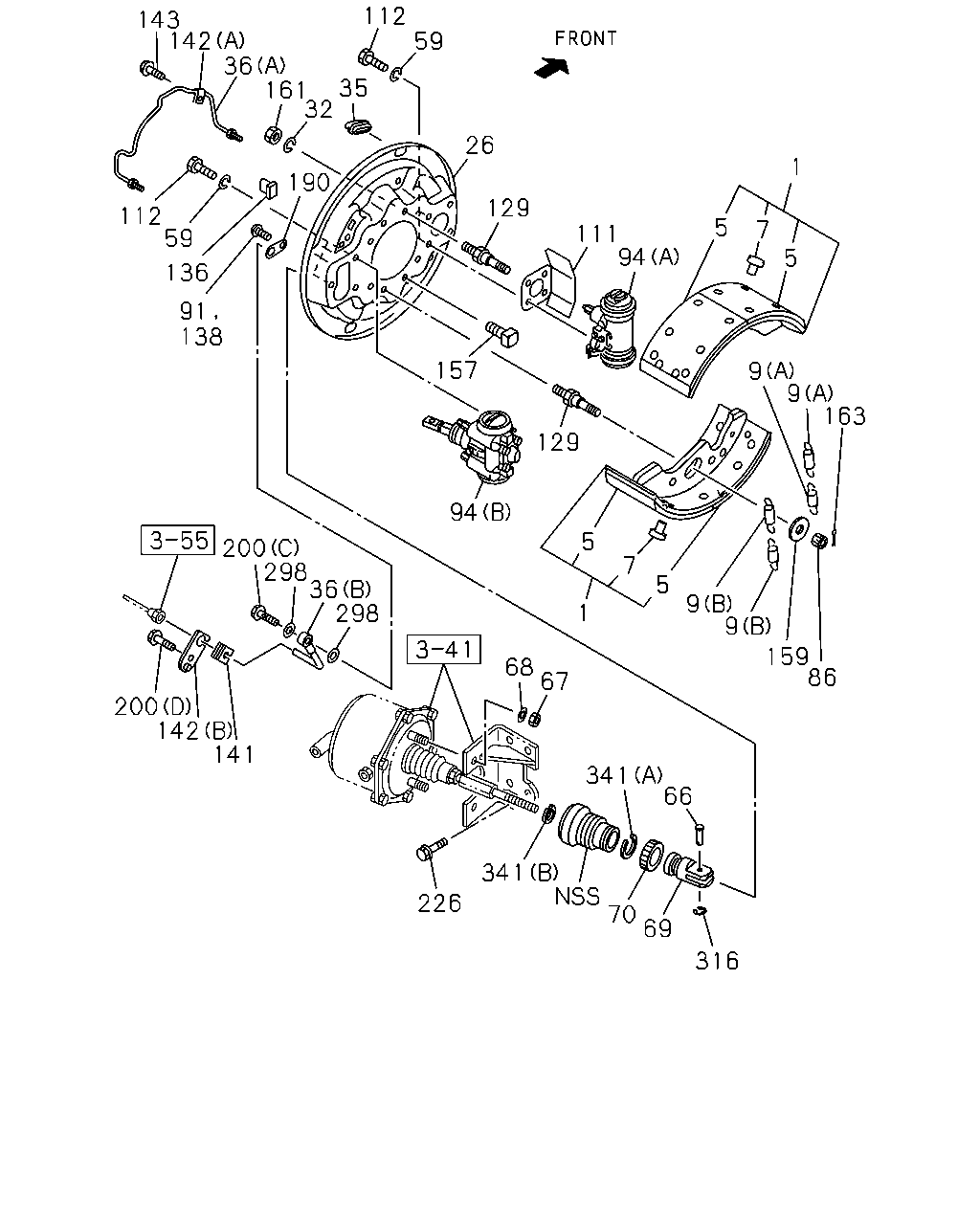

çizim 190118
316 69 70 341 226 68 67 341 66 5 7 5 9 9 159 86 163 9 9 129 94 157 129 26 111 1 5 7 5 94 59 112 35 32 190 138 91 136 59 112 36 161 142 143 141 298 36 298 200 200 142 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47170-485-1 04 1 1010- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1010- ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1010- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-381-1 04 1 1010- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-382-0 04 1 1010- ● ●
26 PLATE; BACK,RR BRK 1-47150-712-2 01 1 1010- ● ●
26 PLATE; BACK,RR BRK 1-47150-713-2 01 1 1010- ● ●
32 WASHER; LK 1-47159-110-0 04 1 1010- ● ●
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 1010- ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-857-0 01 1 1010- ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-858-0 01 1 1010- ● ●
36 PIPE; OIL,RR BRK
(B) 		1-49167-905-0 02 1 1010- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=12.2 		0-91510-612-0 14 1 1010- ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 1010- ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 1010- ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 1010- ● ●
69 JOINT; JAW 1-09768-106-1 02 1 1010- ● ●
70 NUT; LK,JAW JOINT
M18 		0-91111-518-0 02 1 1010- ● ●
86 NUT; FLANGE 1-09440-101-0 04 1 1010- ● ●
91 BOLT; CHAMBER
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1010- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 1010- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1010- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1010- ● ●
111 COVER; WHEEL CYL 1-47159-230-0 02 1 1010- ● ●
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 14 1 1010- ● ●
129 PIN; SHOE HOLD 1-47162-044-0 04 1 1010- ● ●
136 GROMMET 1-09333-138-0 04 1 1010- ● ●
138 SCREW; LOCK PLATE
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1010- ● ●
141 PROTECTOR; RR BRK PIPE 1-09332-133-0 02 1 1010- ● ●
142 CLAMP; OIL PIPE
(A) 		1-09701-322-0 02 1 1010- ● ●
142 CLAMP; OIL PIPE
(B) 		1-47619-189-0 02 1 1010- ● ●
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 1010- ● ●
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 1010- ● ●
159 WASHER; SHOE HOLD 1-47169-037-0 04 1 1010- ● ●
161 NUT; SHOE HOLD LOCK 1-47159-111-0 04 1 1010- ● ●
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 1010- ● ●
190 PLATE; LK,CONNECTOR 1-47619-032-0 04 1 1010- ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 1010- ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 1010- ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 1010- ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 1010- ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 1010- ● ●
298 GASKET 1-47616-115-0 04 1 1010- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1010- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1010- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1010- ● ●
