2-85 — POWER TAKE OFF CONTROL (#72056) — 6 parça

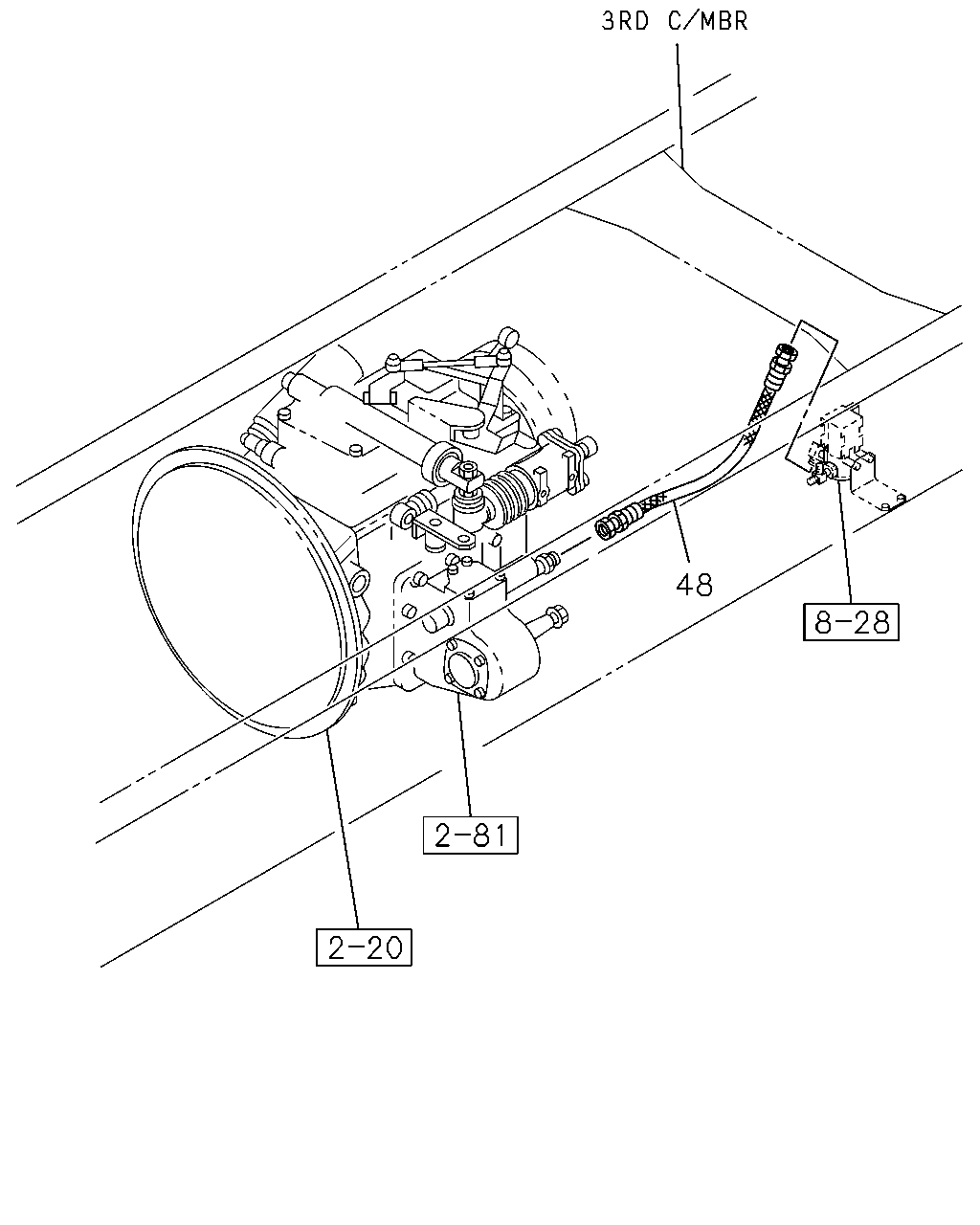

çizim 114535

48

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	48	HOSE; FLEX,PTO 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=340	1-09363-617-0	01	1	1103-	●
	48	HOSE; FLEX,PTO 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=430	1-09363-677-0	01	1	1103-	●
	48	HOSE; FLEX,PTO 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330	1-09363-636-0	01	1	1010-	●	●
	48	HOSE; FLEX,PTO 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410	1-09363-895-0	01	1	1010-	●	●

çizim 190104

3 3 15

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1010-	●	●
	15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	1-79996-092-0	01	1	1010-	●	●
