Sayfa 2-53 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶

2-53 — TRANSMISSION OIL COOLER SYSTEM (#72054) — 128 parça

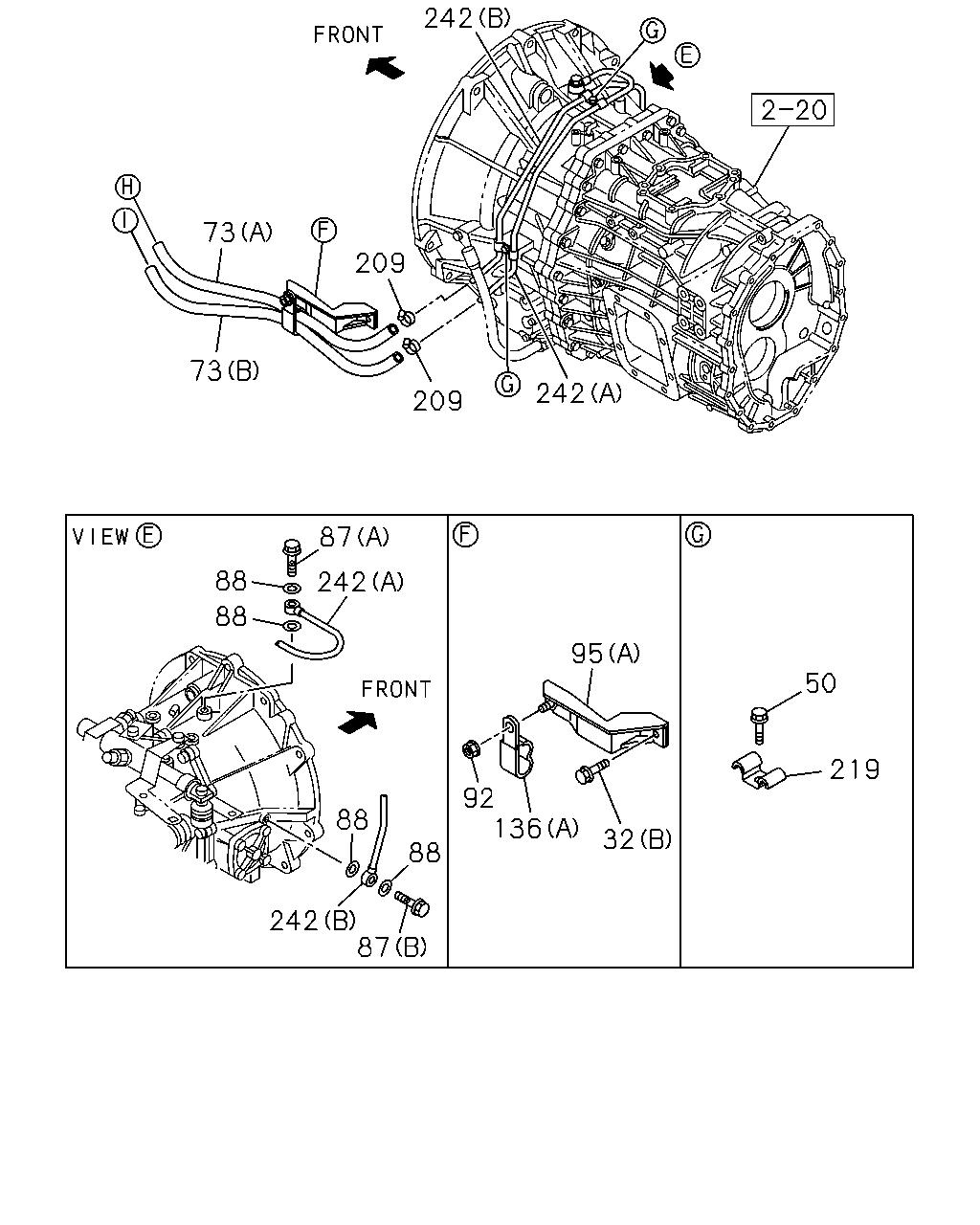

242 73 209 73 242 209 87 88 242 88 95 50 219 92 136 88 32 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1103-	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1103-	●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1103-	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1010-	●	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1010-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1010-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1010-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1010-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1103-	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1103-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1010-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1010-	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1103-	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1010-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1010-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1010-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

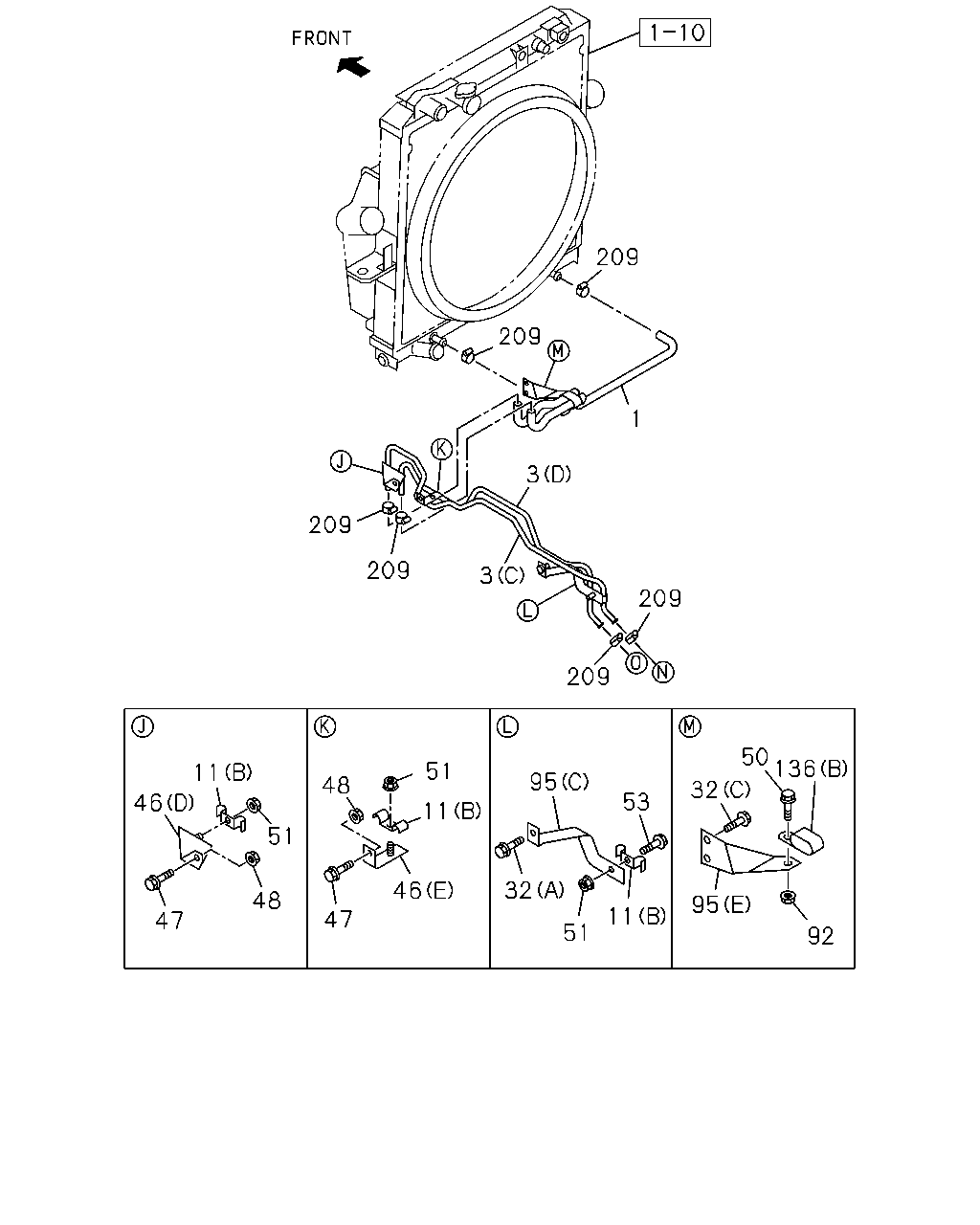

209 209 1 3 209 209 3 209 209 50 136 51 11 95 48 32 53 46 11 51 32 46 48 95 11 47 47 51 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	1103-	●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=989	8-98065-879-2	01	1	1103-	●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=881	8-98065-880-2	01	1	1103-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1010-	●	●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1103-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1010-	●	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1010-	●	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1010-	●	●
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1103-	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98045-565-0	01	1	1103-	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98081-044-0	01	1	1103-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1010-	●	●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1103-	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1103-	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1010-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1010-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1103-	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1103-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1010-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1010-	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1103-	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1010-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1010-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●

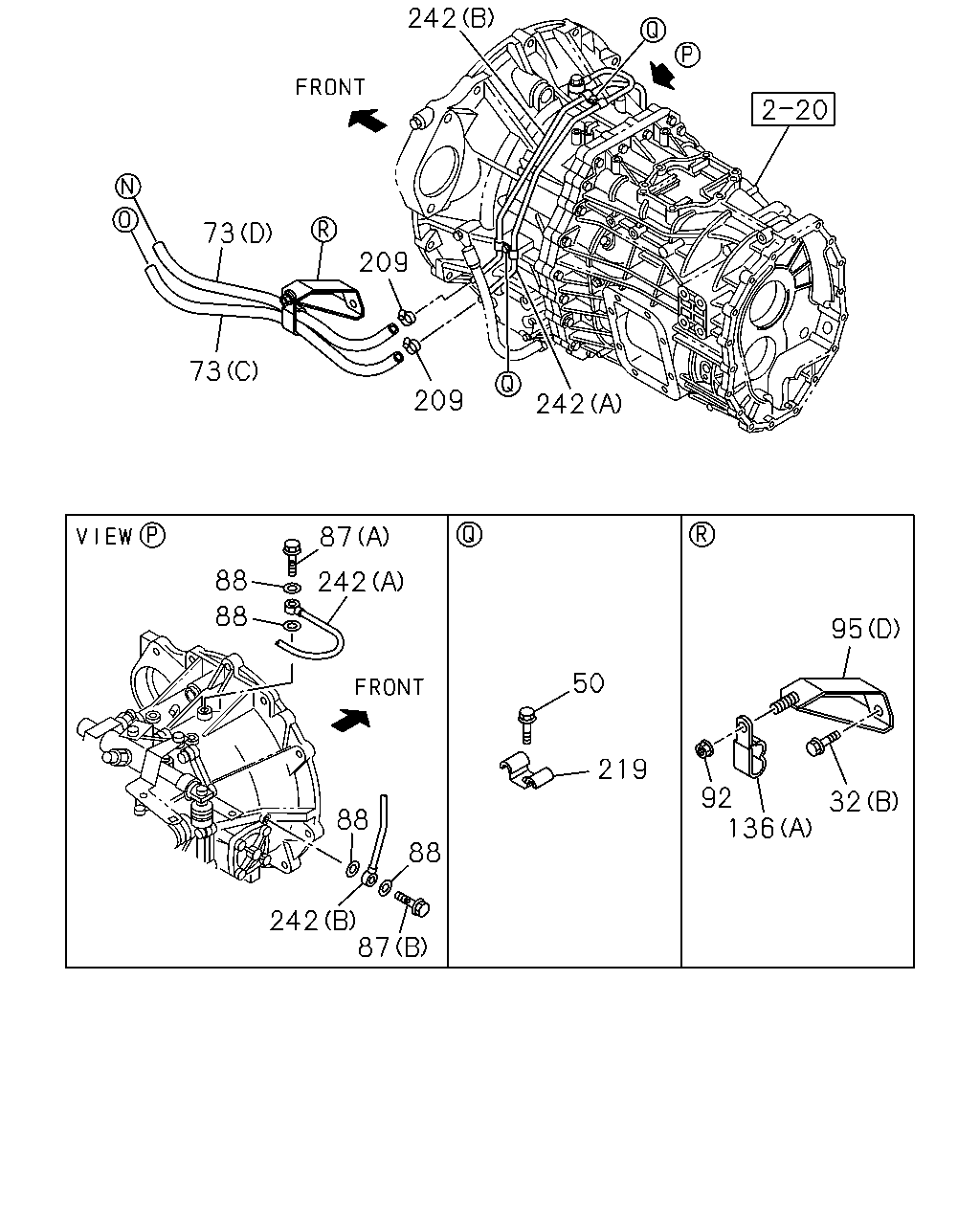

242 73 209 73 209 242 87 88 242 88 95 50 219 92 136 32 88 88 242 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1103-	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1103-	●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1103-	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1010-	●	●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1010-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1010-	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1010-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1010-	●	●
92	NUT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1103-	●
92	NUT; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1103-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1010-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1010-	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1103-	●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1010-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1010-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1010-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1010-1507	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●

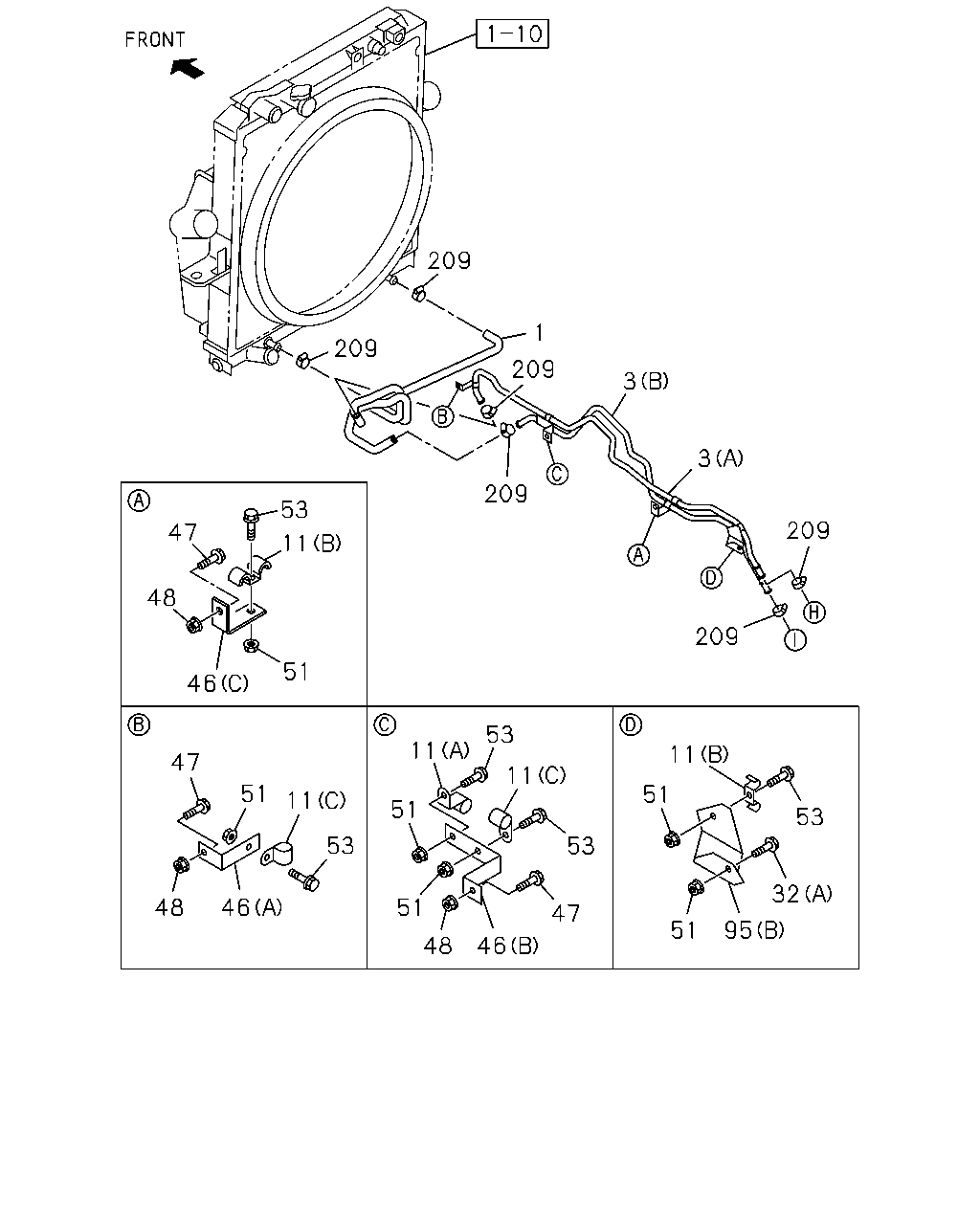

209 1 209 209 3 3 209 53 209 47 11 48 209 51 46 53 11 11 47 11 51 51 11 51 53 53 53 32 48 46 51 47 51 95 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	1103-	●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=989	8-98065-879-2	01	1	1103-	●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=881	8-98065-880-2	01	1	1103-	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1010-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1010-	●	●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1103-	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1010-	●	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1010-	●	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1010-	●	●
32	BOLT; BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1103-	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98045-565-0	01	1	1103-	●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98081-044-0	01	1	1103-	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1010-	●	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1010-	●	●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	02	1	1103-	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1103-	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1010-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	05	1	1010-	●	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1103-	●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98065-886-0	01	1	1103-	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1010-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1010-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11-17	8-98173-762-0	08	1	1010-1106	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-447-0	08	1	1107-	●	●

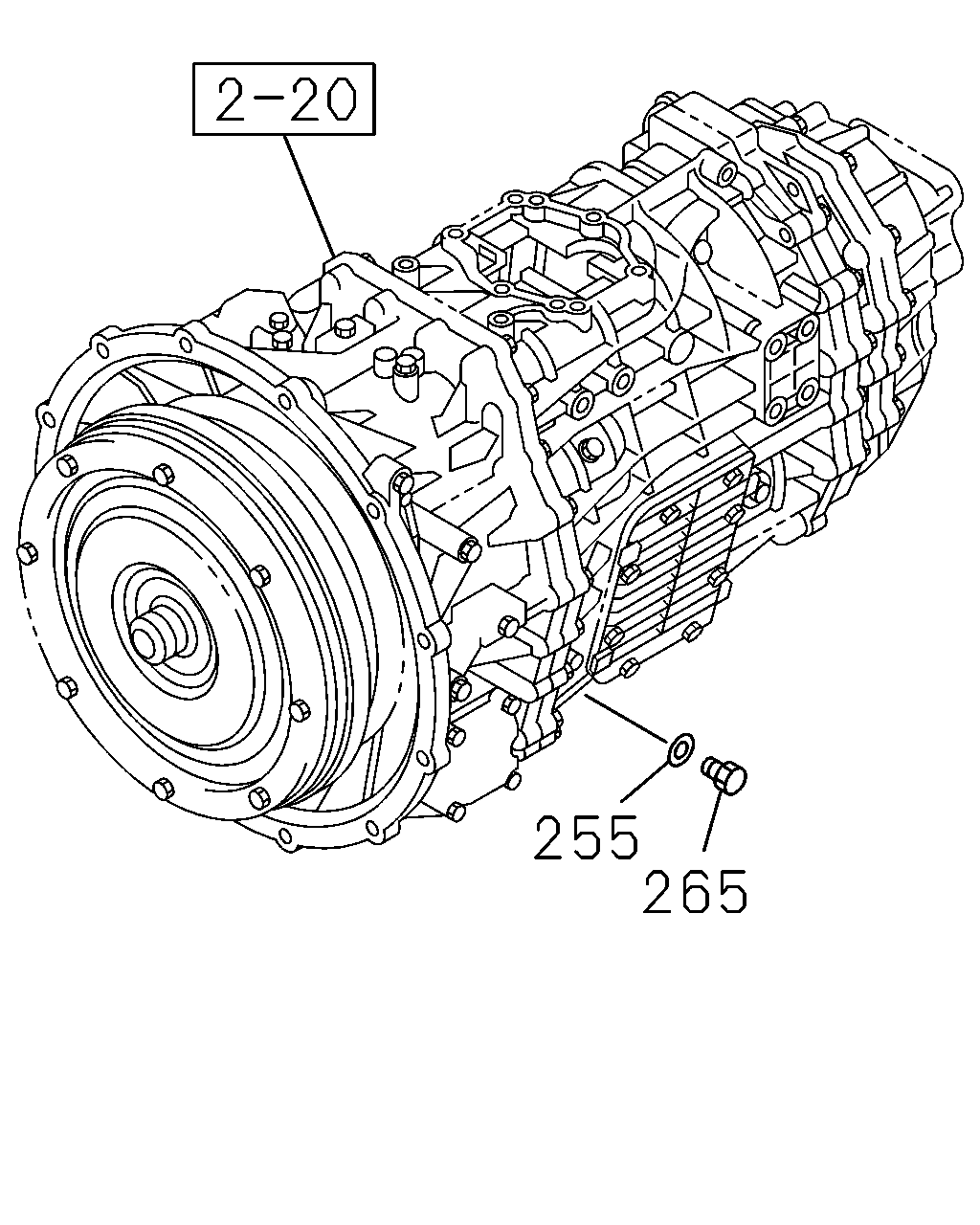

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE M12X9	0-92002-412-0	01	1	1405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
