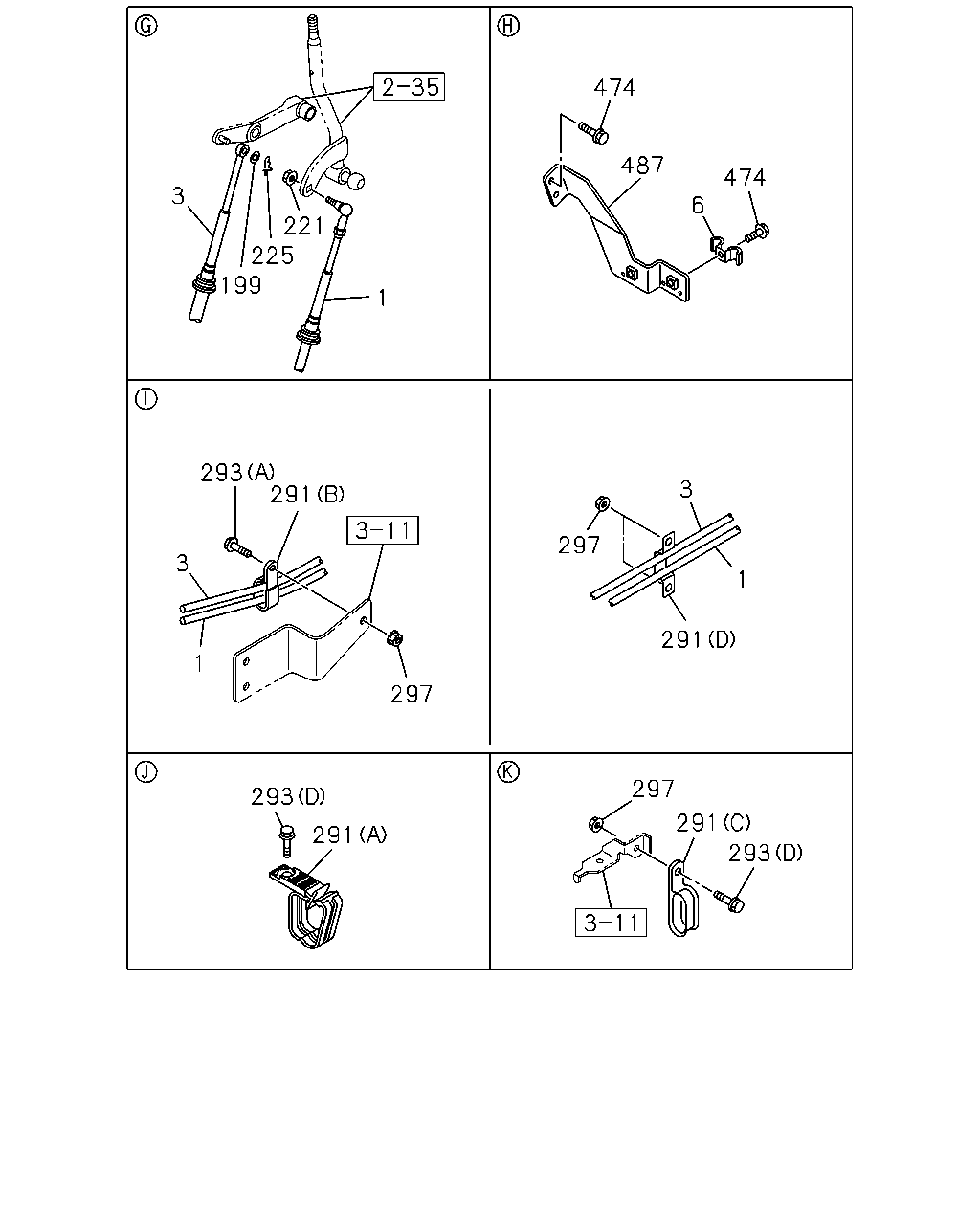

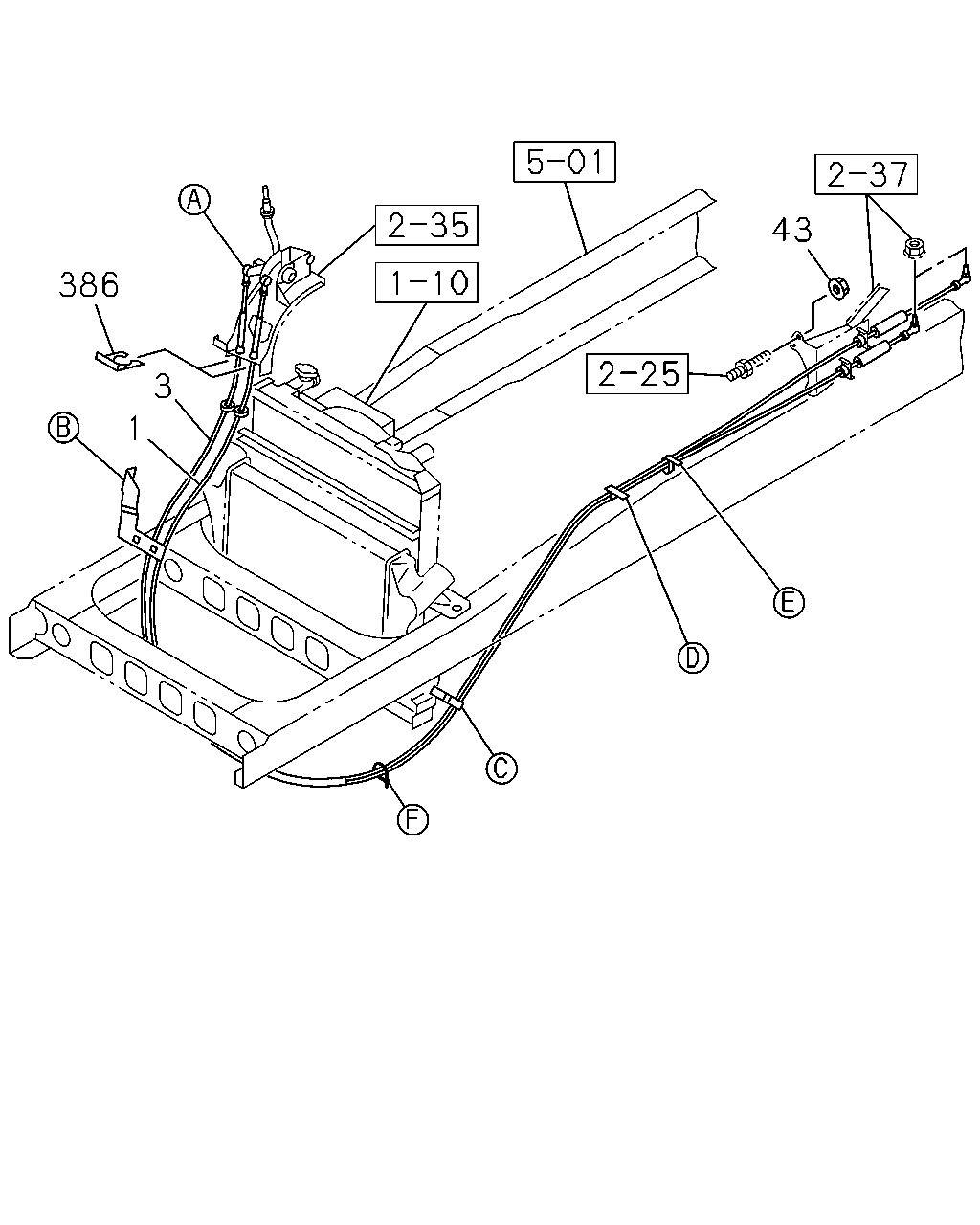

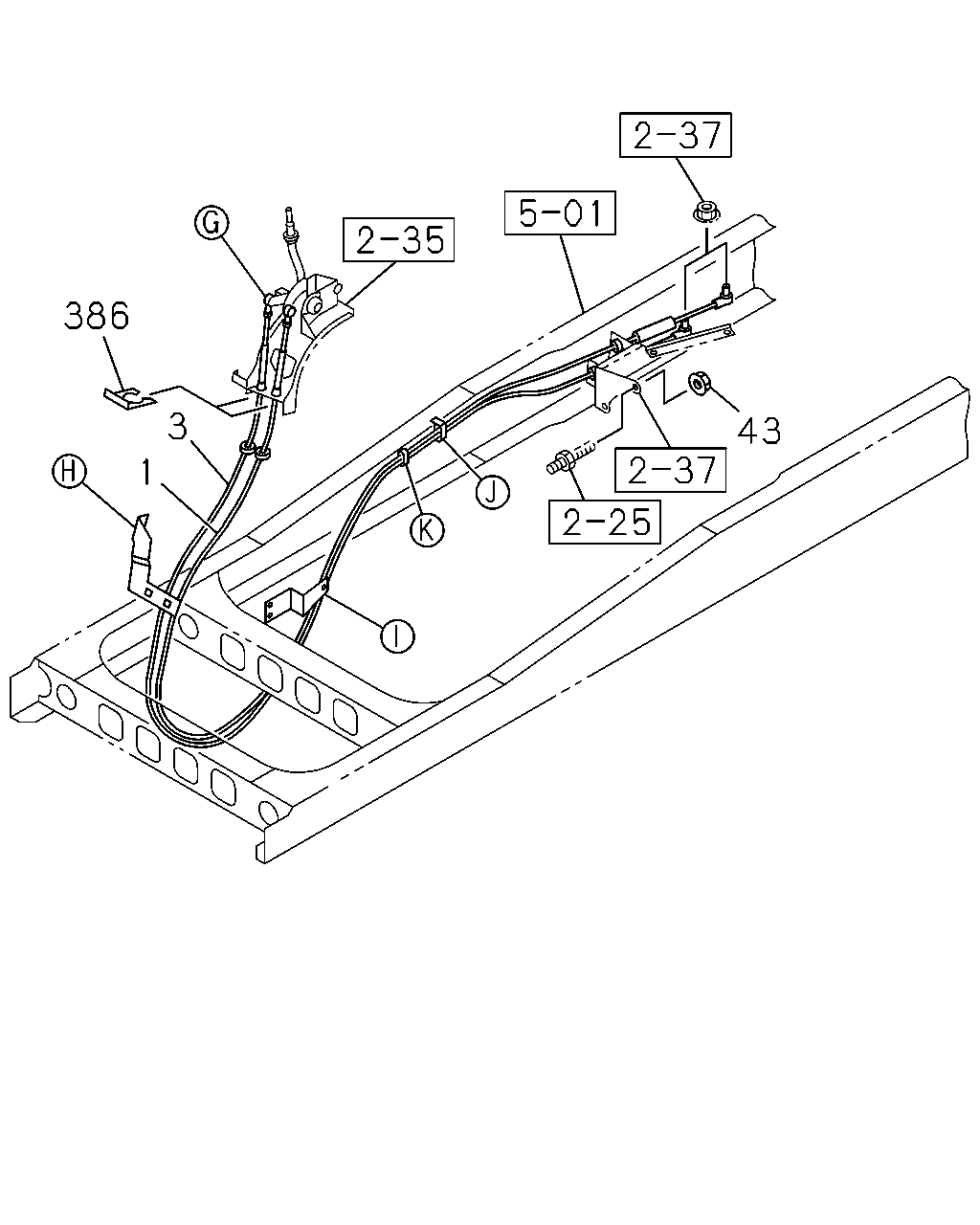

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#72050) — 99 parça

474 487 474 3 6 221 225 199 1 293 291 3 297 3 1 291 1 297 297 293 291 291 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090	8-98177-669-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3075	8-98177-670-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3020	8-98177-697-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500	8-98071-386-3	01	1	1010-	●	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530	8-98017-489-5	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215	8-98177-671-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3180	8-98177-672-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3105	8-98177-701-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725	8-98071-388-2	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725	8-98017-510-4	01	1	1010-	●	●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1010-	●	●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	1010-	●	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-049-0	01	1	1010-1011	●	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	1010-	●	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32	8-97389-264-0	02	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98080-966-0	01	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (B) ID=11X2 L=16	0-95325-026-0	01	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16	0-95325-026-0	02	1	1010-	●	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1010-1504	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1505-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	01	1	1010-1102	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE	0-28050-820-0	01	1	1010-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
297	NUT; CLIP 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1103-	●
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	01	1	1010-	●	●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	02	1	1010-	●	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-920-2	01	1	1010-1012	●	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98183-009-0	01	1	1101-	●	●

43 386 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090	8-98177-669-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3075	8-98177-670-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3020	8-98177-697-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500	8-98071-386-3	01	1	1010-	●	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530	8-98017-489-5	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215	8-98177-671-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3180	8-98177-672-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3105	8-98177-701-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725	8-98071-388-2	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725	8-98017-510-4	01	1	1010-	●	●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	1010-	●	●

386 3 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090	8-98177-669-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3075	8-98177-670-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3020	8-98177-697-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500	8-98071-386-3	01	1	1010-	●	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530	8-98017-489-5	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215	8-98177-671-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3180	8-98177-672-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3105	8-98177-701-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725	8-98071-388-2	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725	8-98017-510-4	01	1	1010-	●	●
43	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09700-966-1	02	1	1010-	●	●

474 487 3 474 221 6 225 199 1 293 291 297 293 201 291 291 282 281 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090	8-98177-669-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3075	8-98177-670-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3020	8-98177-697-1	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500	8-98071-386-3	01	1	1010-	●	●
1	CABLE; SHIFT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530	8-98017-489-5	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215	8-98177-671-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3180	8-98177-672-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3105	8-98177-701-1	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725	8-98071-388-2	01	1	1010-	●	●
3	CABLE; SELECT,TRANS CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725	8-98017-510-4	01	1	1010-	●	●
6	CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1010-	●	●
199	WASHER; PL,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16	0-91614-508-0	01	1	1010-	●	●
201	BOLT; BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-049-0	01	1	1010-1011	●	●
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
225	PIN; SELECT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7	8-94111-137-0	01	1	1010-	●	●
281	CLIP; BAND 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300	1-09707-001-1	01	1	1010-	●	●
282	BRACKET; TRANS SIDE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-418-0	01	1	1010-	●	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32	8-97389-264-0	02	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98080-966-0	01	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (B) ID=11X2 L=16	0-95325-026-0	01	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1103-	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16	0-95325-026-0	02	1	1010-	●	●
291	CLIP; SHIFT TO SELECT,FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1010-1504	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1505-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (D) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
293	BOLT; CLIP,SHIFT TO SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	01	1	1010-1102	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE	0-28050-820-0	01	1	1010-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
297	NUT; CLIP 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1103-	●
297	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	01	1	1010-	●	●
474	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER	0-51640-825-0	02	1	1010-	●	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-920-2	01	1	1010-1012	●	●
487	BRACKET; CONT CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98183-009-0	01	1	1101-	●	●
