Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#72048) — 518 parça

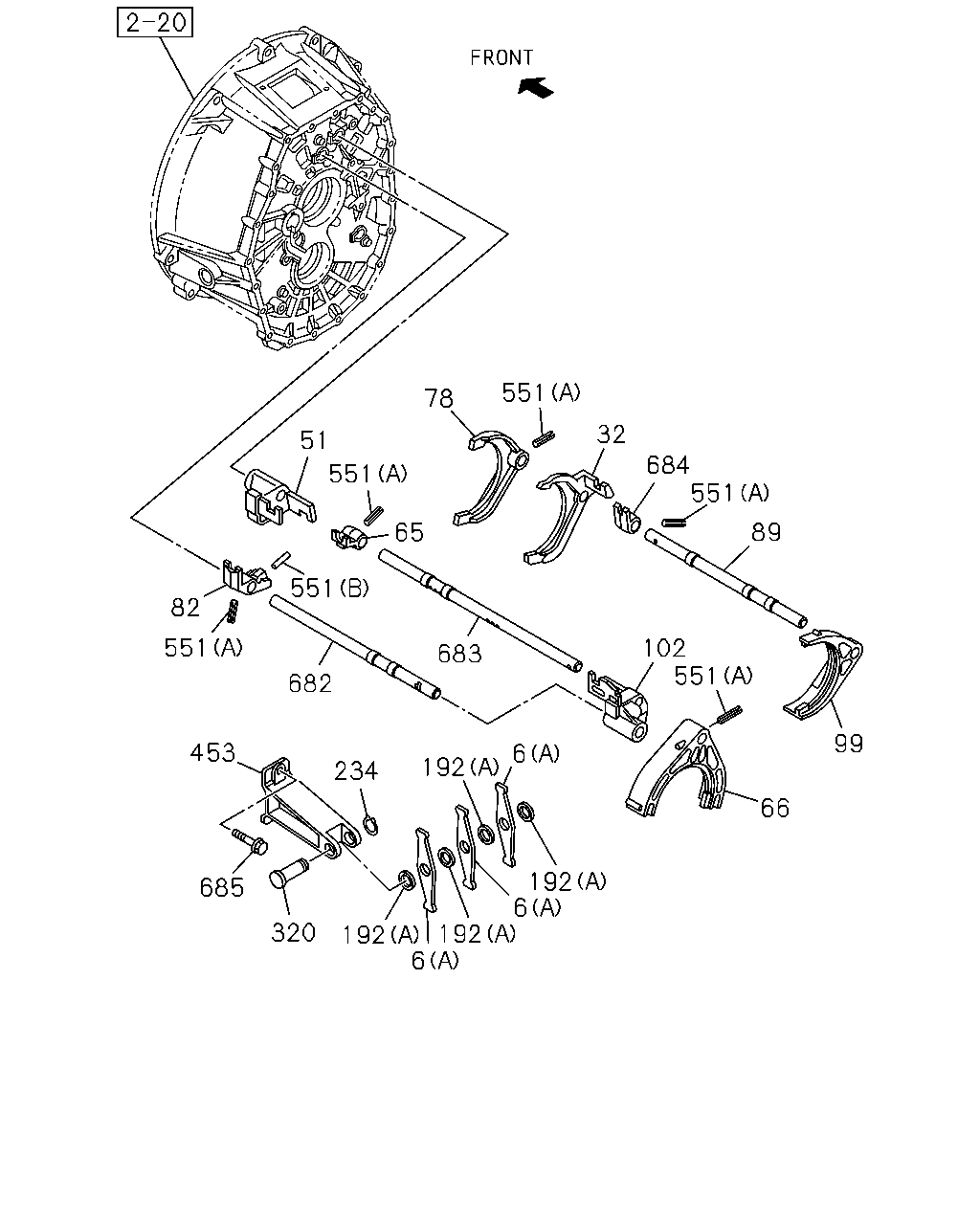

551 78 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98014-157-1	01	1	1103-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1010-1102
6	LEVER; RELAY 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1103-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1010-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1010-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1010-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1010-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1010-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1010-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1010-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1010-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1010-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1010-1102
192	WASHER; PL 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1103-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1010-
320	SHAFT; LEVER	8-97377-928-0	01	1	1010-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1010-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1010-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1010-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1010-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1010-

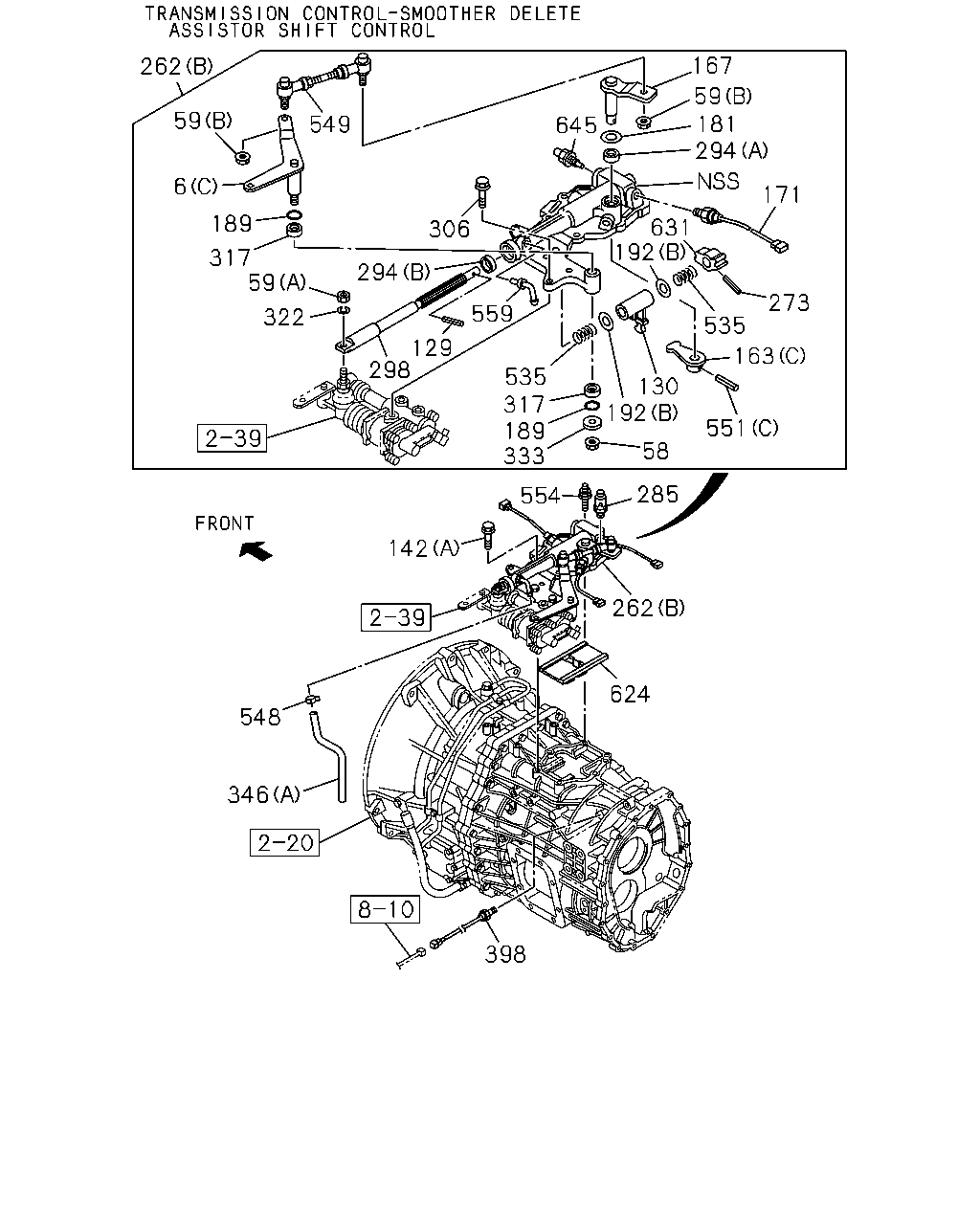

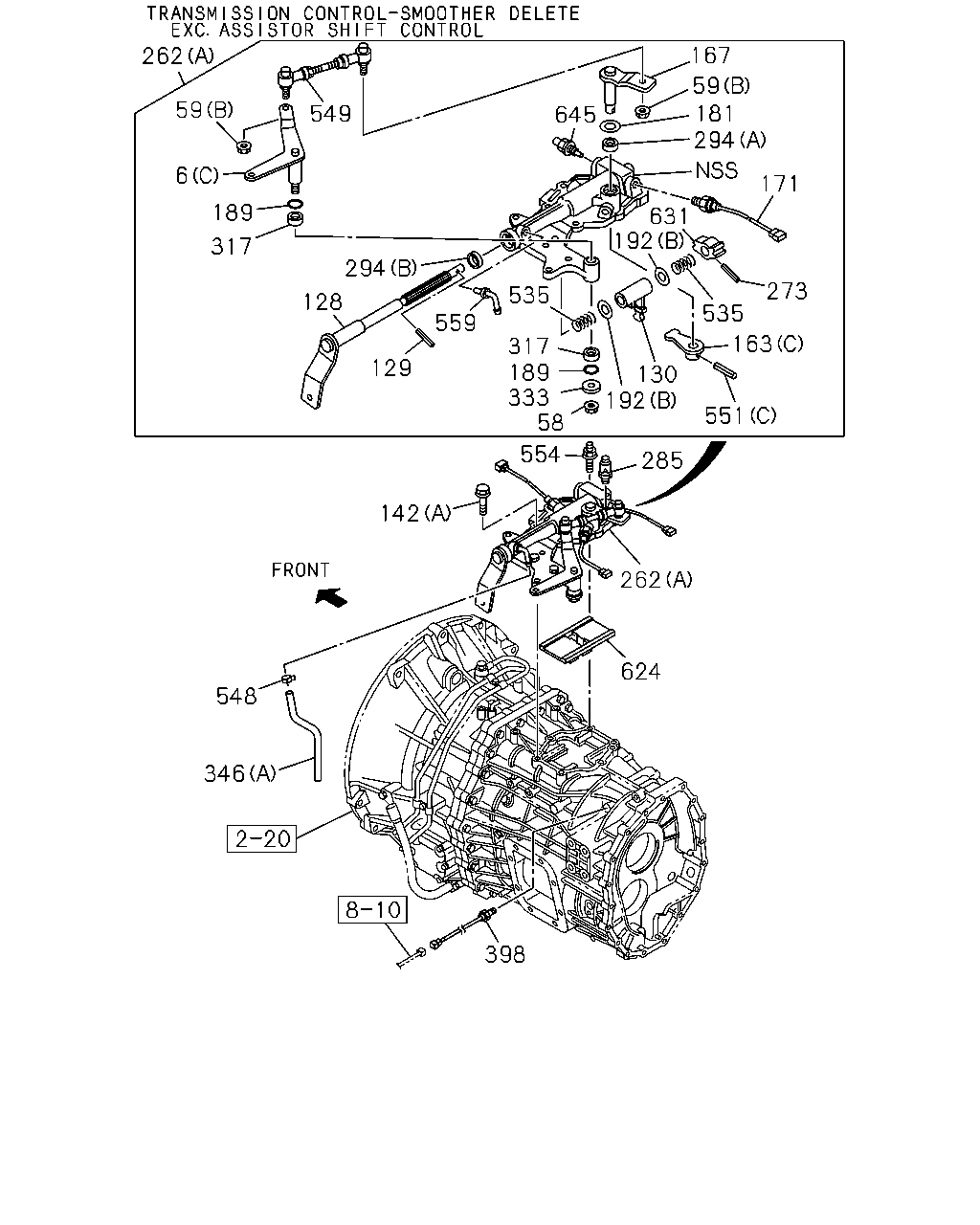

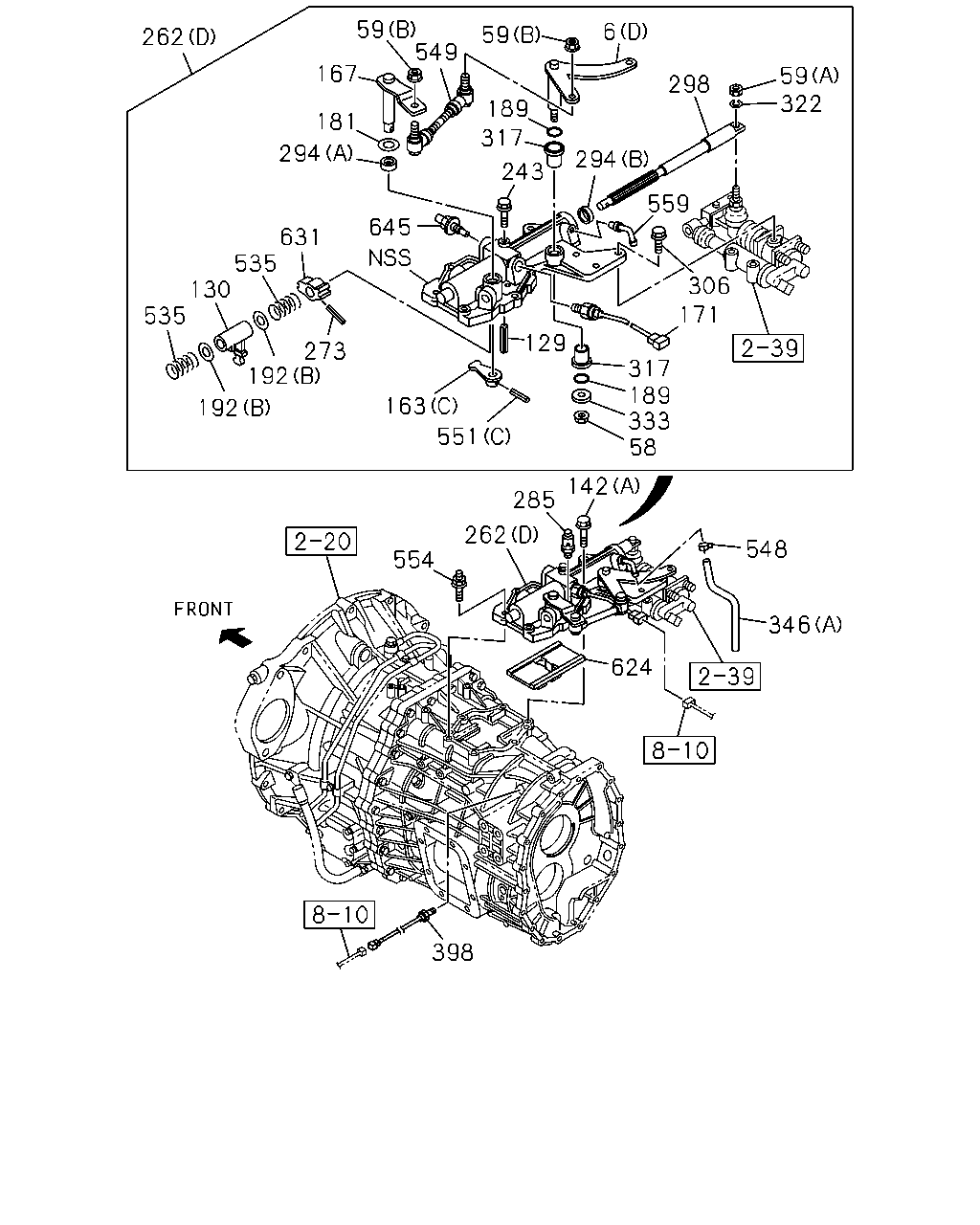

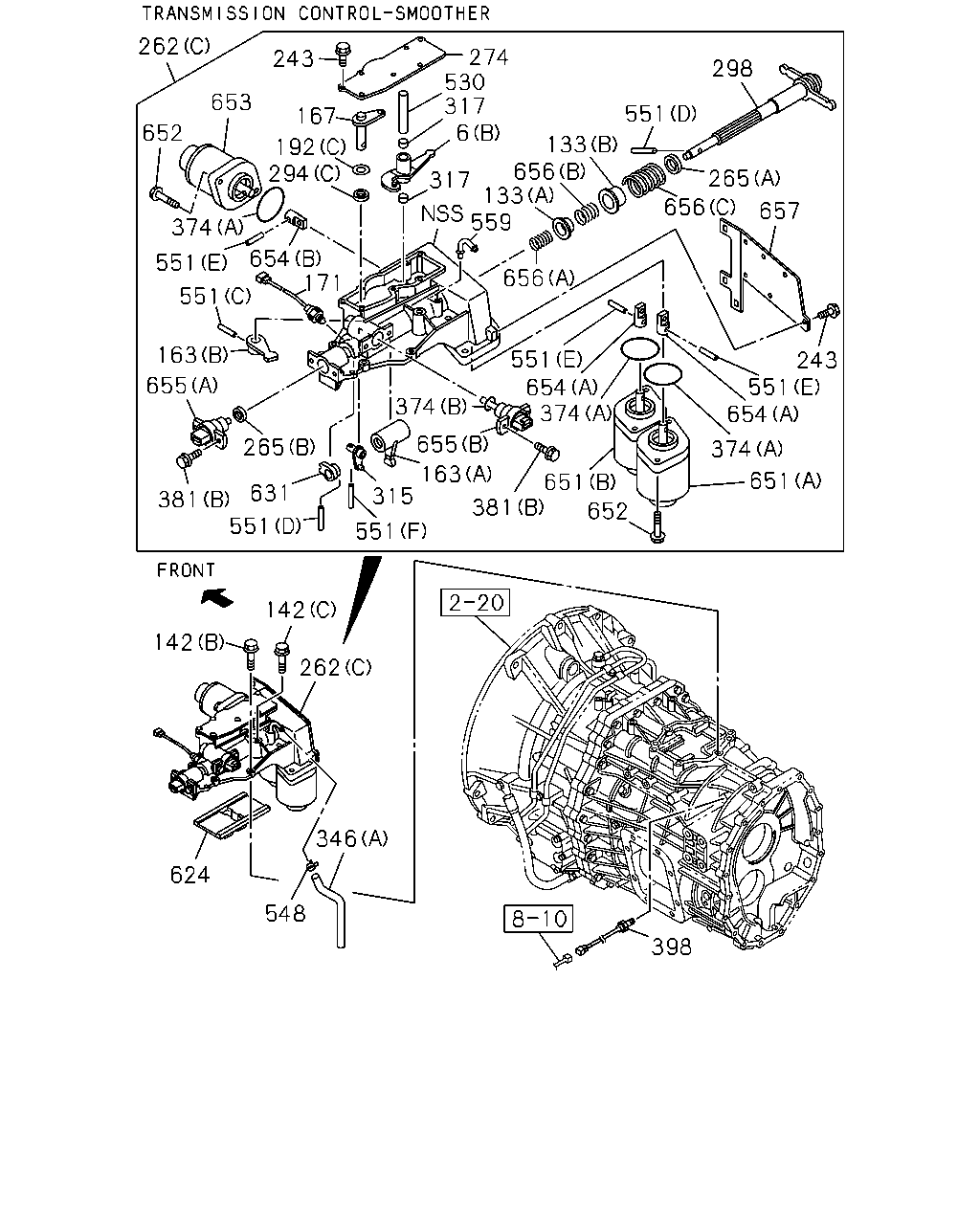

262 167 59 181 294 59 549 645 6 171 89 631 192 317 294 273 535 128 535 559 163 317 189 333 58 129 130 192 551 554 285 142 262 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98014-157-1	01	1	1103-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1010-1102
6	LEVER; RELAY 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1103-
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	1010-1102
58	NUT 15" CLUTCH(RE9),14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	1103-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1010-
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	1010-1102
59	NUT 15" CLUTCH(RE9),14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	1103-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1010-
128	LEVER; SHIFT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1010-1102
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1103-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	1010-1102
129	PIN; SPR,SHIFT 15" CLUTCH(RE9),14" CLUTCH(WF6) L=30 OD=4	1-09748-031-0	01	1	1103-
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	1010-1102
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97306-647-0	01	1	1103-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1010-
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	1010-1102
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9),14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1010-1102
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-98022-857-0	01	1	1103-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1010-1306
171	SWITCH; NEUTRAL 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	1010-1102
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97367-327-0	01	1	1103-
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	1010-1102
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-09623-594-0	02	1	1103-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1010-1102
192	WASHER; PL 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1103-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98004-473-4	01	1	1103-1204
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98207-563-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98048-495-4	01	1	1010-1010
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98107-814-1	01	1	1011-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98296-530-0	01	1	1412-
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	1010-1102
273	PIN; SPR,STOPPER 15" CLUTCH(RE9),14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	1103-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207
285	BREATHER; AIR,QUAD BOX 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-33149-003-0	01	1	1208-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1103-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1103-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1010-
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	1010-1102
317	BUSHING; LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-09330-119-0	02	1	1103-
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	1010-1102
333	WASHER; PL,LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	1103-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1010-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	1010-1102
535	SPRING; LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97385-713-0	02	1	1103-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1010-1204
549	ROD; LINK 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-095-0	01	1	1103-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1010-1102
549	ROD; LINK 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-98022-841-0	01	1	1103-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1010-1102
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1103-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1010-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	1103-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1010-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1010-1102
631	STOPPER; SPRING 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-97305-666-0	01	1	1103-
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	1010-1102
645	DETENT ASM 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-98019-536-0	01	1	1103-

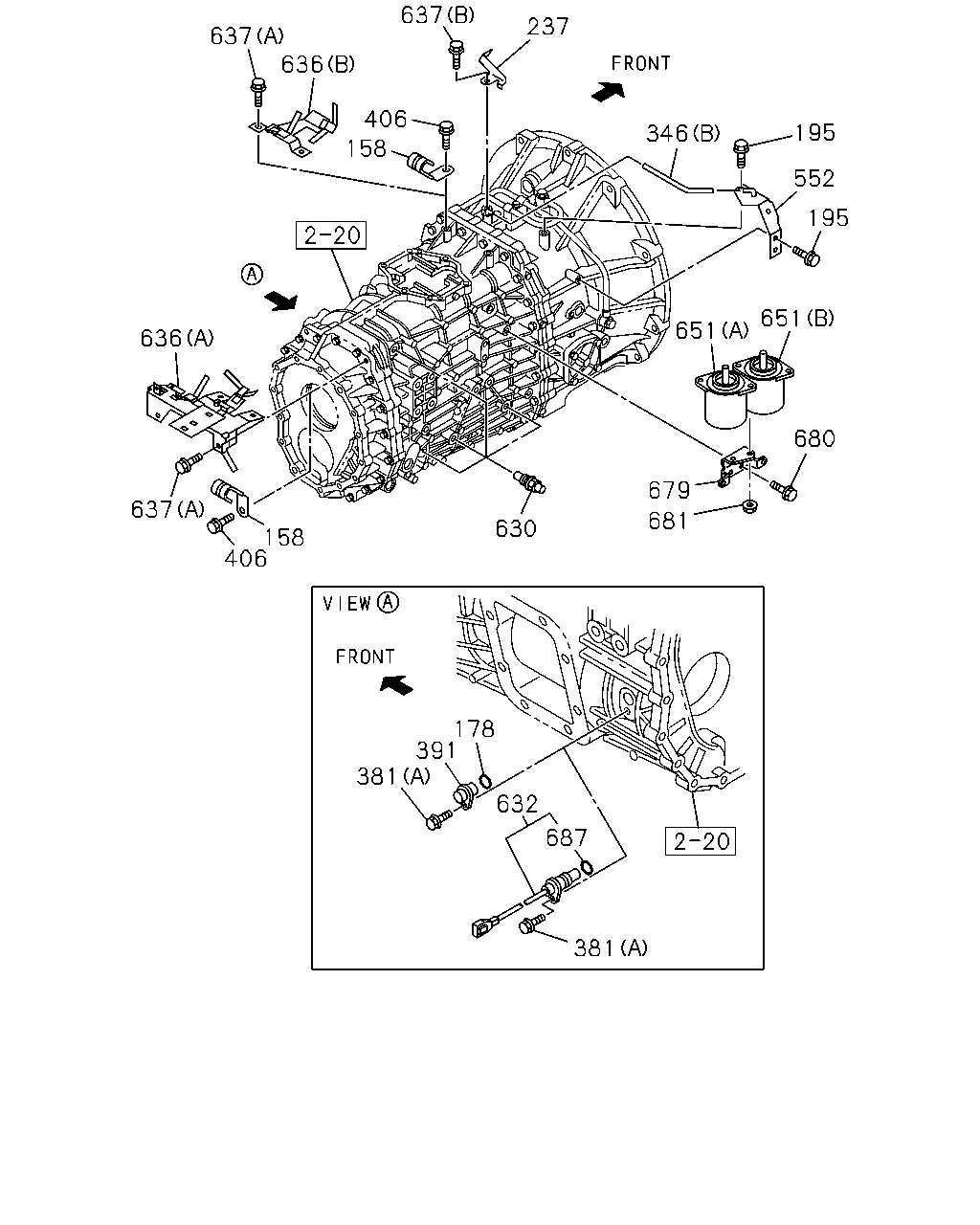

637 237 637 636 406 195 346 158 552 195 651 651 636 680 679 637 681 630 158 406 178 391 381 632 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1010-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1010-
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1010-
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	1010-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1010-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1010-
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1010-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1010-
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	1010-
630	DETENT ASM	8-98019-536-0	04	1	1010-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1010-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97610-092-1	01	1	1103-1502
636	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97610-093-1	01	1	1103-
636	BRACKET; CLIP (A)	8-97610-096-2	01	1	1010-1102
636	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-97610-096-2	01	1	1103-
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	1010-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1010-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1010-
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	1010-
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1010-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	1010-
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	1010-

262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 551 654 374 243 551 654 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 142 142 262 346 624 548 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98014-157-1	01	1	1103-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1010-1102
6	LEVER; RELAY 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1103-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	1010-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1010-
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	1010-1102
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9),14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1010-1102
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-98022-857-0	01	1	1103-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1010-1306
171	SWITCH; NEUTRAL 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1010-1102
192	WASHER; PL 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1103-
243	BOLT; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	01	1	1103-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1010-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98004-473-4	01	1	1103-1204
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98207-563-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98048-495-4	01	1	1010-1010
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98107-814-1	01	1	1011-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98296-530-0	01	1	1412-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	1010-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	1010-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1103-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1103-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98097-117-0	01	1	1103-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1010-1102
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1103-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1010-
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	1010-1411
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1010-
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	1010-1102
317	BUSHING; LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-09330-119-0	02	1	1103-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	1010-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	1010-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1010-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1010-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1010-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	1010-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1010-1204
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1010-1102
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1103-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1010-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	1103-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1010-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1010-1102
631	STOPPER; SPRING 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-97305-666-0	01	1	1103-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1010-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1010-
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	1010-
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	1010-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	1010-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	1010-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	1010-1010
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1011-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	1010-1010
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1011-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	1010-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	1010-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	1010-
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	1010-

167 262 59 181 294 59 549 645 6 171 89 631 192 306 317 59 294 273 559 322 535 129 298 163 535 317 189 333 130 192 551 58 285 554 142 262 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98014-157-1	01	1	1103-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1010-1102
6	LEVER; RELAY 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1103-
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	1010-1102
58	NUT 15" CLUTCH(RE9),14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	1103-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1010-
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	1010-1102
59	NUT 15" CLUTCH(RE9),14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	1103-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1010-
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	1010-1102
129	PIN; SPR,SHIFT 15" CLUTCH(RE9),14" CLUTCH(WF6) L=30 OD=4	1-09748-031-0	01	1	1103-
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	1010-1102
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97306-647-0	01	1	1103-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1010-
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	1010-1102
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9),14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1010-1102
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-98022-857-0	01	1	1103-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1010-1306
171	SWITCH; NEUTRAL 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	1010-1102
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97367-327-0	01	1	1103-
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	1010-1102
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-09623-594-0	02	1	1103-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1010-1102
192	WASHER; PL 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1103-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98004-473-4	01	1	1103-1204
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98207-563-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98048-495-4	01	1	1010-1010
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98107-814-1	01	1	1011-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98296-530-0	01	1	1412-
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	1010-1102
273	PIN; SPR,STOPPER 15" CLUTCH(RE9),14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	1103-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207
285	BREATHER; AIR,QUAD BOX 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-33149-003-0	01	1	1208-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1103-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1103-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98097-117-0	01	1	1103-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1010-1102
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1103-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1010-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1010-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1010-
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	1010-1102
317	BUSHING; LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-09330-119-0	02	1	1103-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1010-
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	1010-1102
333	WASHER; PL,LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	1103-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1010-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	1010-1102
535	SPRING; LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97385-713-0	02	1	1103-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1010-1204
549	ROD; LINK 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-095-0	01	1	1103-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1010-1102
549	ROD; LINK 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-98022-841-0	01	1	1103-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1010-1102
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1103-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1010-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	1103-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1010-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1010-1102
631	STOPPER; SPRING 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-97305-666-0	01	1	1103-
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	1010-1102
645	DETENT ASM 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-98019-536-0	01	1	1103-

59 549 6 59 262 167 59 322 298 189 181 317 294 294 243 559 645 631 535 130 535 306 171 129 273 192 317 189 333 58 163 192 551 142 285 262 548 554 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98014-157-1	01	1	1103-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1010-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1010-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1010-1102
6	LEVER; RELAY 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1103-
58	NUT 15" CLUTCH(RE9) M10 FLANGE	0-91180-110-0	01	1	1010-1102
58	NUT 15" CLUTCH(RE9),14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	1103-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1010-
59	NUT 15" CLUTCH(RE9) (B) M8 FLANGE	0-91180-108-0	02	1	1010-1102
59	NUT 15" CLUTCH(RE9),14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	1103-
129	PIN; SPR,SHIFT 15" CLUTCH(RE9) L=30 OD=4	1-09748-031-0	01	1	1010-1102
129	PIN; SPR,SHIFT 15" CLUTCH(RE9),14" CLUTCH(WF6) L=30 OD=4	1-09748-031-0	01	1	1103-
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9)	8-97306-647-0	01	1	1010-1102
130	LEVER; SHIFT,INTERNAL 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97306-647-0	01	1	1103-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1010-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1010-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1010-
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9) (C)	8-97305-663-0	01	1	1010-1102
163	LEVER; SELECT,INTERNAL 15" CLUTCH(RE9),14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98021-489-0	01	1	1103-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1010-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1010-1102
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-98022-857-0	01	1	1103-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1010-1306
171	SWITCH; NEUTRAL 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-98023-050-0	01	1	1307-1312
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9)	8-97367-327-0	01	1	1010-1102
181	WASHER; PL,SELECT LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97367-327-0	01	1	1103-
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9)	1-09623-594-0	02	1	1010-1102
189	GASKET; SELECT LEVER,CONT BOX 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-09623-594-0	02	1	1103-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1010-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1010-
192	WASHER; PL 15" CLUTCH(RE9) (B)	8-97305-661-0	02	1	1010-1102
192	WASHER; PL 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1103-
243	BOLT; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	01	1	1103-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1010-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98004-473-4	01	1	1103-1204
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98207-563-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98305-333-0	01	1	1508-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-476-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1010-1102
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-477-0	01	1	1103-1204
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-0	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98048-495-4	01	1	1010-1010
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98107-814-1	01	1	1011-1306
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98296-530-0	01	1	1412-
273	PIN; SPR,STOPPER 15" CLUTCH(RE9) D=4.2 L=25	8-97103-142-0	01	1	1010-1102
273	PIN; SPR,STOPPER 15" CLUTCH(RE9),14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	1103-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1207
285	BREATHER; AIR,QUAD BOX 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-33149-003-0	01	1	1208-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1010-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (A)	8-97305-662-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1103-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9) (B)	8-97363-225-0	01	1	1010-1102
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 15" CLUTCH(RE9),14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1103-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98097-117-0	01	1	1103-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1010-1102
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1103-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1010-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1010-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1010-
317	BUSHING; LEVER 15" CLUTCH(RE9)	1-09330-119-0	02	1	1010-1102
317	BUSHING; LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	1-09330-119-0	02	1	1103-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1010-
333	WASHER; PL,LEVER 15" CLUTCH(RE9) ID=10.5	0-91610-710-0	01	1	1010-1102
333	WASHER; PL,LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	1103-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1208-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1010-1204
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1010-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1010-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER 15" CLUTCH(RE9)	8-97385-713-0	02	1	1010-1102
535	SPRING; LEVER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97385-713-0	02	1	1103-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1208-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1010-1204
549	ROD; LINK 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-095-0	01	1	1103-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1010-1102
549	ROD; LINK 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-98022-841-0	01	1	1103-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1010-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1010-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1010-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1010-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1010-
559	PIPE; BREATHER 15" CLUTCH(RE9)	8-97358-318-0	01	1	1010-1102
559	PIPE; BREATHER 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-97358-318-0	01	1	1103-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1010-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98014-158-0	01	1	1103-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1010-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1010-1102
631	STOPPER; SPRING 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	8-97305-666-0	01	1	1103-
645	DETENT ASM 15" CLUTCH(RE9)	8-98019-536-0	01	1	1010-1102
645	DETENT ASM 15" CLUTCH(RE9),14" CLUTCH(WF6)	8-98019-536-0	01	1	1103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
