◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#72047) — 170 parça

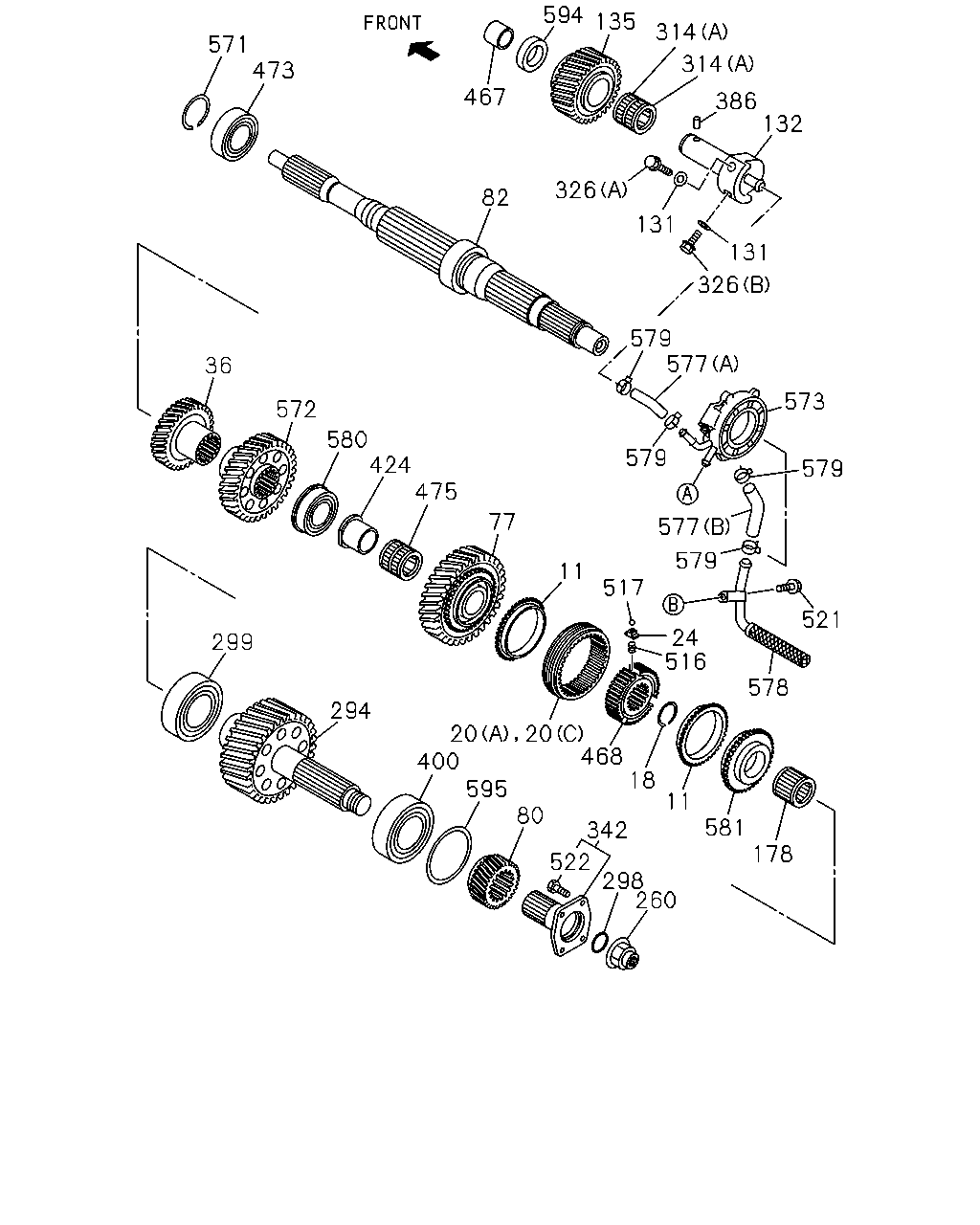

çizim 190099
260 298 522 178 581 11 18 342 468 80 595 400 20 20 294 299 578 516 517 24 11 77 475 424 580 572 36 579 521 577 579 573 577 579 579 326 131 132 386 131 326 82 473 571 467 594 314 314 135
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1010-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1010-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-97241-296-1 02 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1010-1210
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-97241-296-1 03 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1010-1210
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1211-1308
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1010-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-97377-696-0 01 1 1010-1010
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1011-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98049-406-1 01 1 1010-1203
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1204-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1010-
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26 		8-98140-881-0 01 1 1010-1308
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26 		8-98245-058-0 01 1 1309-1507
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26 		8-98292-396-0 01 1 1508-
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26 		8-98140-880-0 01 1 1010-1308
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26 		8-98245-057-0 01 1 1309-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010-
132 SHAFT; REV 8-98009-372-0 01 1 1010-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1010-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1010-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1010-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1010-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1010-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1010-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1010-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1010-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1010-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1010-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1010-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1010-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1010-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1010-
467 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 1010-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1010-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1010-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1010-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1010-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-981-0 09 1 1010-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1010-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 10 1 1010-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1010-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1010-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1010-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1010-
572 GEAR; 4TH,INPUT
Z=37 		8-97377-697-0 01 1 1010-1010
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1011-
573 PUMP ASM; OIL 8-98044-683-0 01 1 1010-1205
573 PUMP ASM; OIL 8-98212-241-0 01 1 1206-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1010-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1010-
578 SCREEN; OIL PUMP 8-98009-345-0 01 1 1010-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 06 1 1010-1205
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1206-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1010-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1010-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1010-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1010-
çizim 190107
174 582 105 104 582 241 20 20 93 84 517 24 516 584 585 58 57 314 95 241 563 582 561 106 582 586 39 579 577 589 588 590 108 579 517 24 516 592 587 320 596 223 398 506 325 593 15 174 118 20 20
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1010-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45 		8-97241-296-1 02 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1010-1210
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-97241-296-1 03 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1010-1210
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1211-1308
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45 		8-98034-769-0 01 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1010-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1010-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1010-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1010-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1010-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1010-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1010-
104 GEAR; 4TH,COUNTER
Z=29 		8-97377-682-0 01 1 1010-1010
104 GEAR; 4TH,COUNTER
Z=29 		8-98168-502-0 01 1 1011-1203
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1204-
105 GEAR; 3RD,COUNTER
Z=35 		8-97377-704-0 01 1 1010-1010
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1011-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1010-
108 SHAFT; COUNTER
Z=27-42-26 		8-98160-120-0 01 1 1010-1209
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1210-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1010-
174 SYNCHRONIZER ASM; 2ND-3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98315-823-2 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1010-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1010-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1010-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1010-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1010-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98075-733-0 01 1 1010-1501
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1502-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1010-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1010-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1010-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1010-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-981-0 09 1 1010-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1010-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 10 1 1010-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1010-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1010-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1010-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1010-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1010-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 06 1 1010-1205
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1206-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1010-
584 RING; BLOCK,2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-98223-605-1 01 1 1211-1308
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1010-1210
584 RING; BLOCK,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-98034-770-0 01 1 1211-1308
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1309-1508
584 RING; BLOCK,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-98034-770-0 01 1 1509-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1010-1508
585 RING; OUTSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-309-1 01 1 1509-
586 RING; INSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-606-1 01 1 1211-1308
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1010-1210
586 RING; INSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1211-1308
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1309-1508
586 RING; INSIDE,2ND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1509-
587 CASE; PUMP,COUNTER 8-97377-959-0 01 1 1010-1205
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1206-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-98223-605-1 01 1 1210-1308
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1010-1209
588 RING; BLOCK,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-306-1 01 1 1210-1308
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1309-1508
588 RING; BLOCK,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-306-1 01 1 1509-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1010-1508
589 RING; OUTSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-309-1 01 1 1509-
590 RING; INSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98223-606-1 01 1 1210-1308
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1010-1209
590 RING; INSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1210-1308
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1309-1508
590 RING; INSIDE,3RD
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 1509-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1010-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1010-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1010-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
