Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#72045) — 166 parça

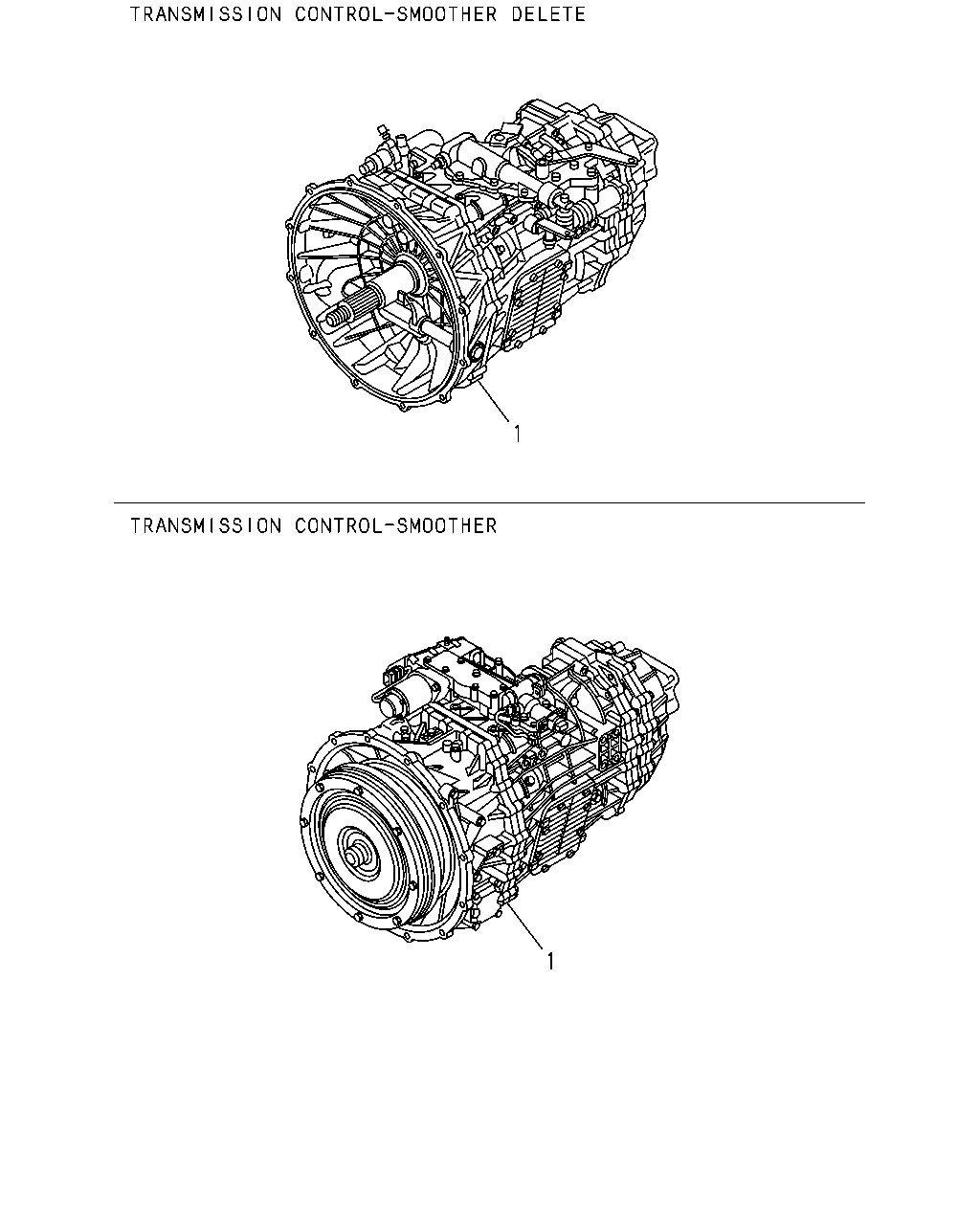

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-586-0	01	1	1103-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-617-0	01	1	1103-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1103-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-617-0	01	1	1103-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1010-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1010-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	1010-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1010-
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-568-0	01	1	1010-
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-568-0	01	1	1010-
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-569-0	01	1	1010-
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-569-0	01	1	1010-

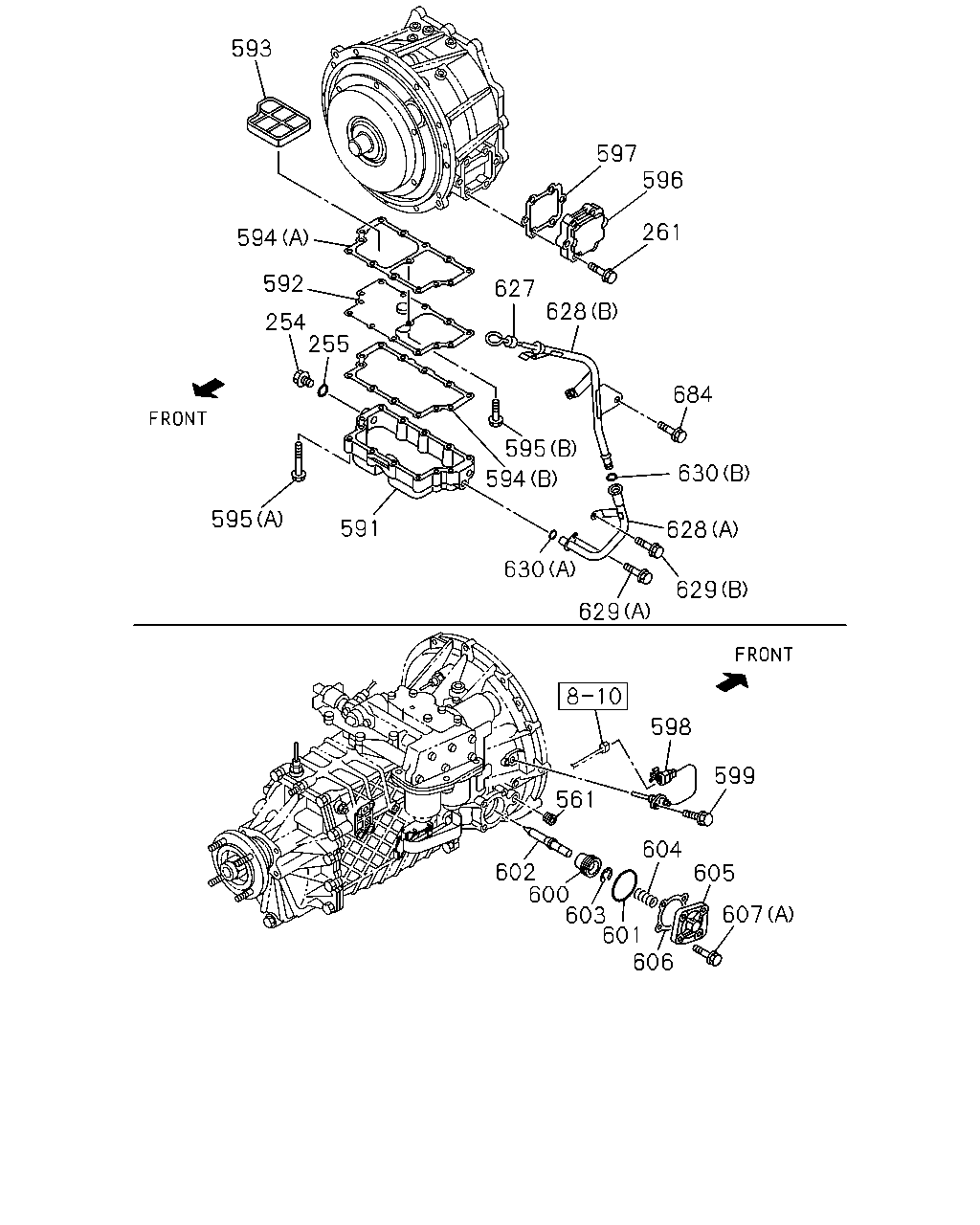

593 597 596 261 594 592 627 628 254 255 684 595 630 594 595 591 628 630 629 629 561 599 604 602 600 603 601 606 605 607 598

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	1010-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	1010-
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	1010-
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	1010-
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	1010-
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	1010-
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	1010-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	1010-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	1010-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	1010-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	1010-
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	1010-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	1010-
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	1010-
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	1010-
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	1010-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	1010-
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	1010-
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	1010-
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	1010-
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	1010-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	1010-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1010-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1010-
627	GAUGE; OIL LEVEL SGL CAB(FC*M) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	1010-
627	GAUGE; OIL LEVEL DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-240-0	01	1	1010-
628	TUBE; OIL FILLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-867-0	01	1	1103-
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	1010-
628	TUBE; OIL FILLER SGL CAB(FC*M) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	1010-
628	TUBE; OIL FILLER DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-328-0	01	1	1010-1102
628	TUBE; OIL FILLER DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-328-0	01	1	1103-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE	0-28151-016-0	01	1	1010-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE	0-28650-616-0	01	1	1010-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	1010-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	1010-
684	BOLT; OIL FILLER TUBE SGL CAB(FC*M) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	1010-
684	BOLT; OIL FILLER TUBE DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	01	1	1010-

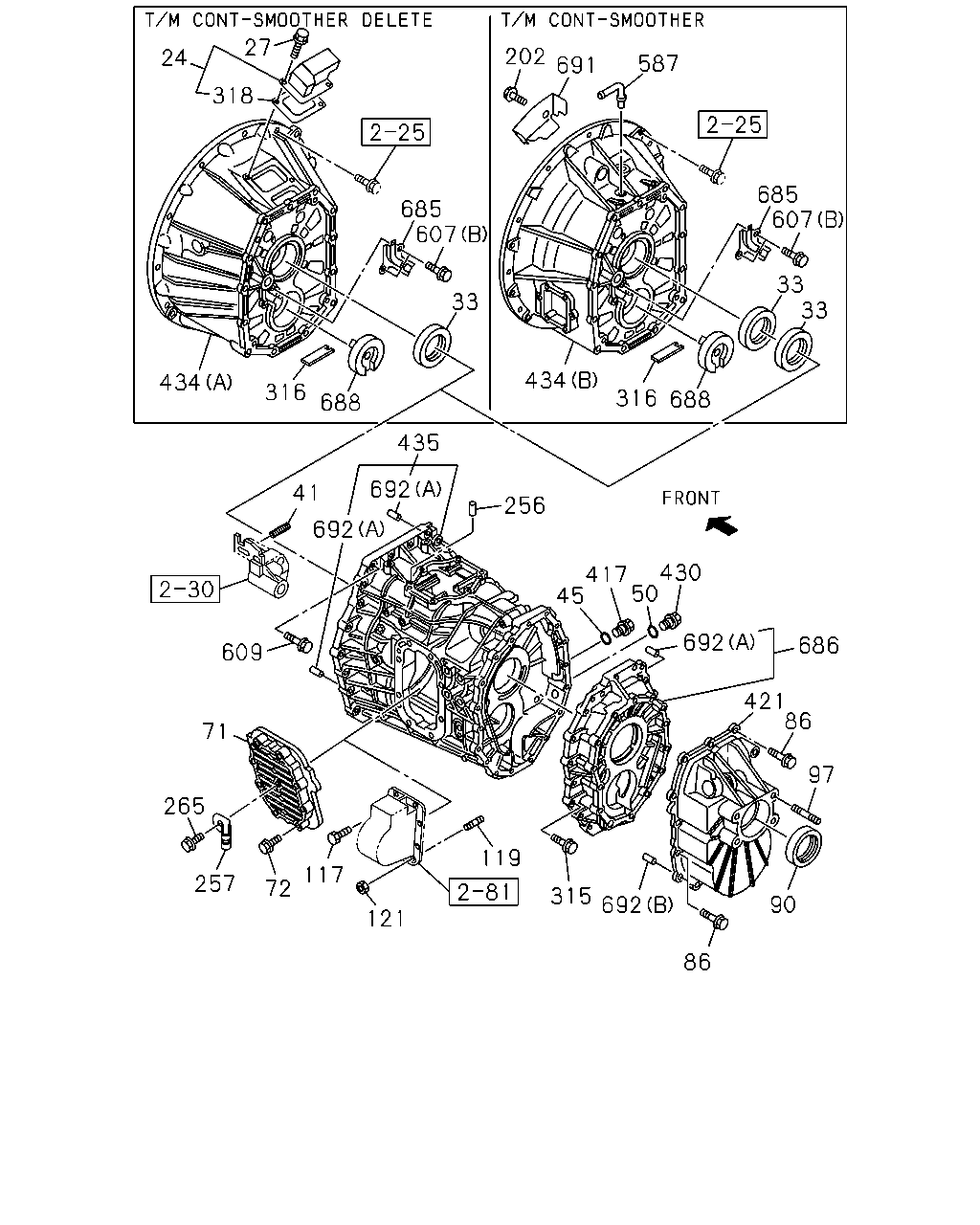

202 587 691 27 24 607 685 607 685 33 33 434 33 434 688 316 688 316 435 692 41 256 692 417 430 45 50 692 686 609 421 86 71 265 692 119 117 97 90 257 315 72 121 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98284-107-0	01	1	1411-
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	1010-1410
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98283-062-0	01	1	1411-
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1010-1410
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1010-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	1010-
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	1010-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1010-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1010-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1010-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1010-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1010-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1010-1103
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1010-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1010-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1010-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1010-
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1010-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1010-
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1010-
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1010-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1010-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1010-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1010-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	1103-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1010-1102
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1103-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1010-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98004-507-2	01	1	1103-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98100-981-1	01	1	1103-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	1010-1102
434	HOUSING; CLU 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	1103-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	1010-1102
434	HOUSING; CLU 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	1103-
435	CASE; TRANS	8-98123-098-1	01	1	1010-1108
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	1010-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1010-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1010-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1010-
685	COVER; OIL PORT	8-98018-864-1	01	1	1010-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1010-
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	1010-1110
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	1010-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1010-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1010-

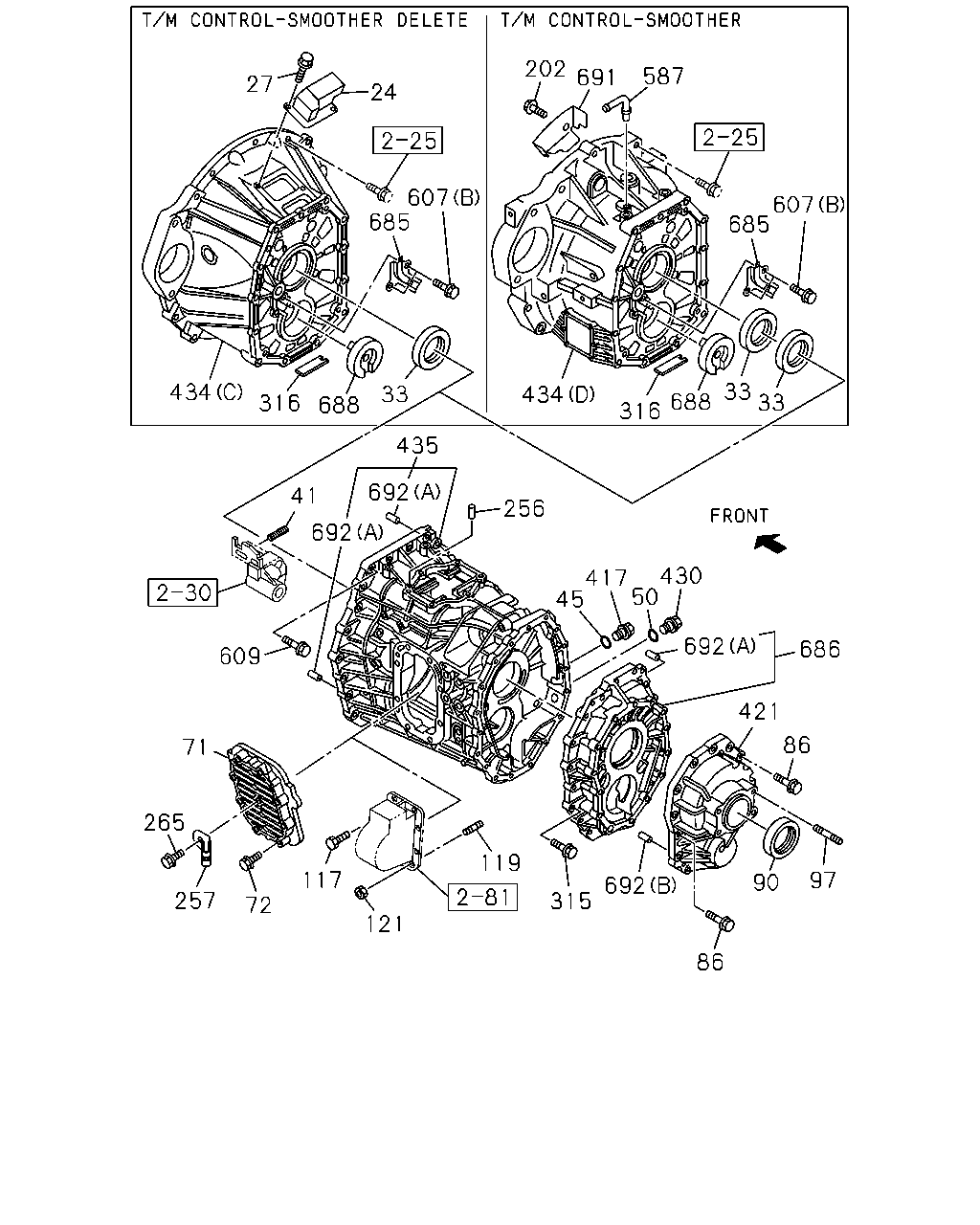

86 90 97 86 421 686 692 430 50 417 45 256 435 692 692 41 609 71 265 257 72 117 121 119 315 692 688 316 434 33 33 607 685 587 691 202 33 607 685 688 316 434 318 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98284-107-0	01	1	1411-
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	1010-1410
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98283-062-0	01	1	1411-
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1010-1410
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1010-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	1010-
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	1010-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1010-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1010-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1010-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1010-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1010-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1010-1103
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1010-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1010-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1010-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1010-
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1010-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1010-
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1010-
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1010-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1010-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1010-
318	GASKET; COVER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31139-023-0	01	1	1411-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1010-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	1103-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1010-1102
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1103-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1010-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98004-507-2	01	1	1103-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98100-981-1	01	1	1103-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	1010-1102
434	HOUSING; CLU 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	1103-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	1010-1102
434	HOUSING; CLU 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	1103-
435	CASE; TRANS	8-98123-098-1	01	1	1010-1108
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	1010-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1010-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1010-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1010-
685	COVER; OIL PORT	8-98018-864-1	01	1	1010-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1010-
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	1010-1110
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	1010-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1010-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1010-

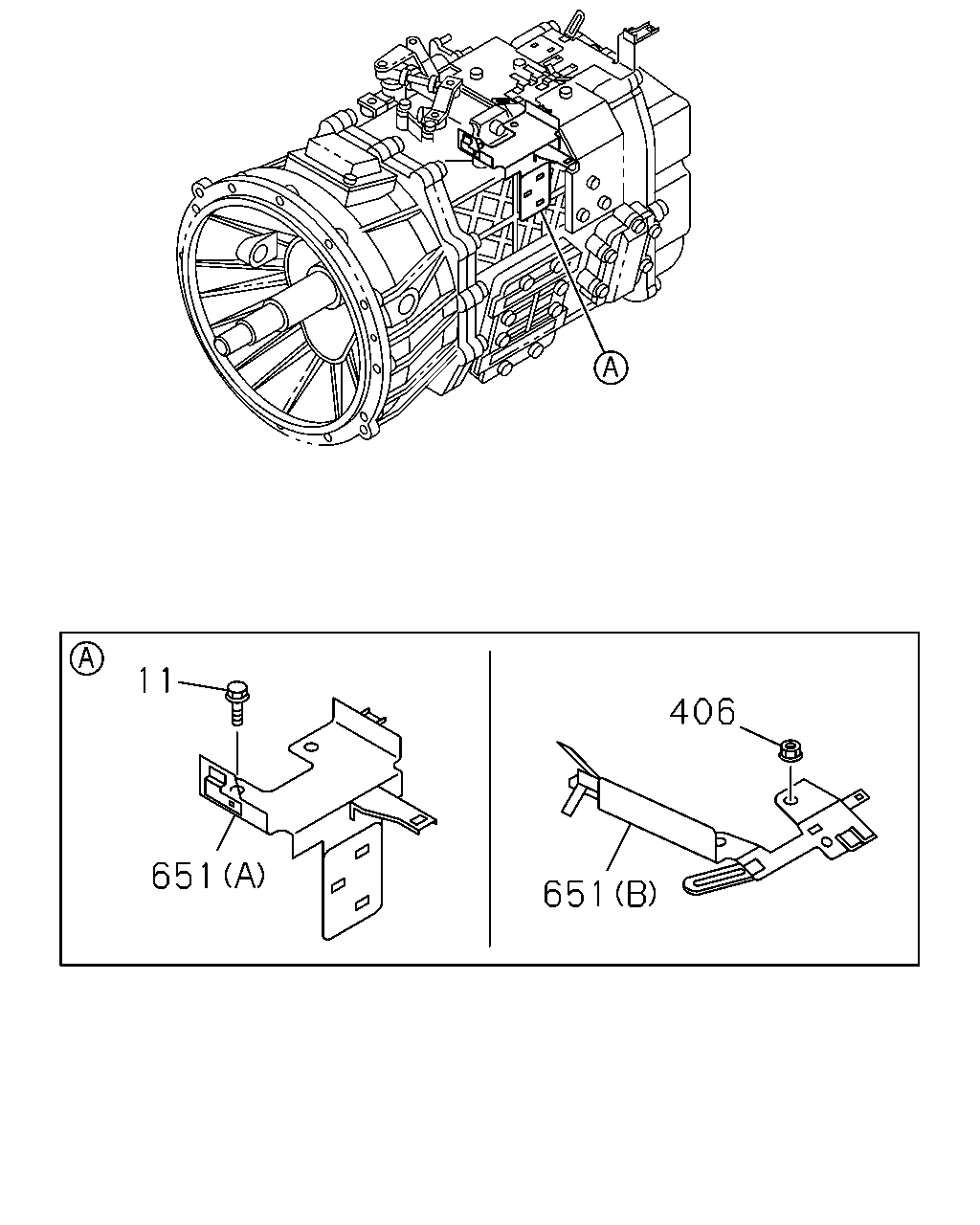

11 406 651 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT DBL CAB(FC*W) 4HK1-TCS ENG(RJS) M12X25 FLANGE	0-28151-225-0	02	1	1309-
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	1010-
406	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1103-
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97609-800-3	01	1	1103-
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	1010-

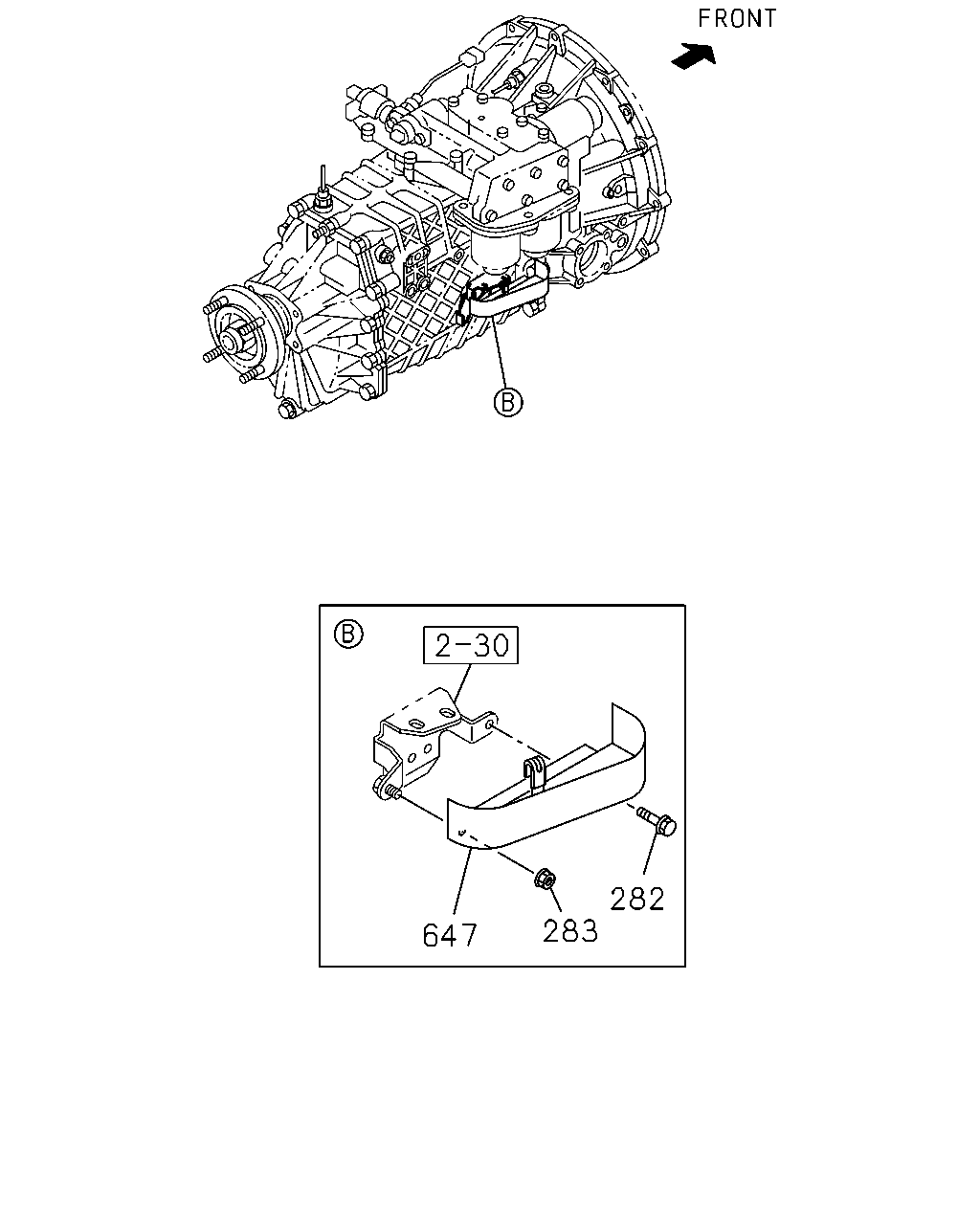

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1010-
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1010-
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1010-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
