◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#72041) — 82 parça
çizim 101689
48 101 50 106 184 239 23 104 50
BalonParca AdiParca NoAdetTipApplied Date A B
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1010- ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1010- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2532 		8-98101-087-0 01 1 1103- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1010- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 1010- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SERVICED BY L=2650 		1-47428-743-0 01 1 1010- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 1010- ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1010- ● ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1010- ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 1010- ● ●

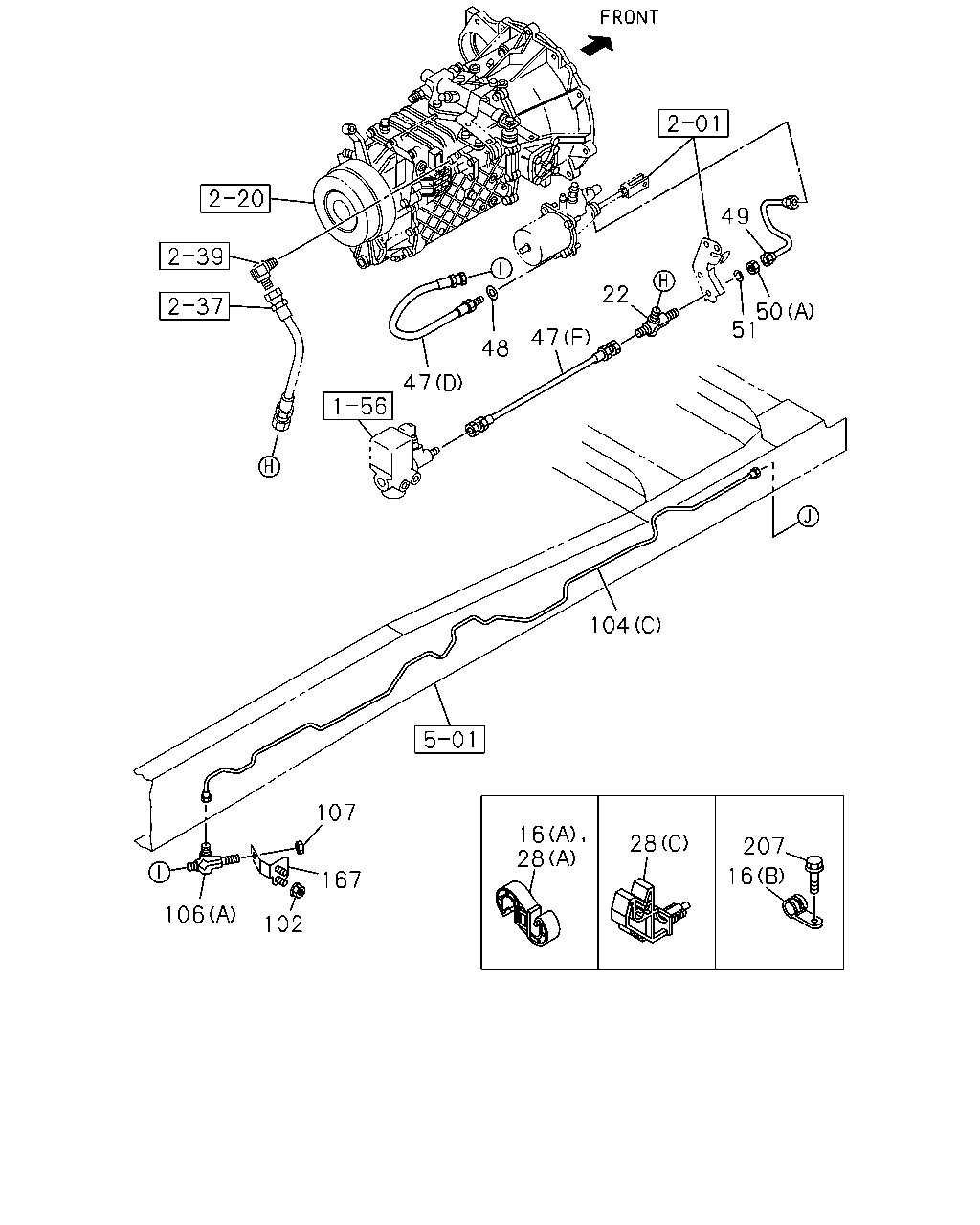

çizim 101746
49 22 50 51 47 48 47 104 107 16 28 28 207 16 167 106 102
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28 		1-09701-216-0 01 1 1103- ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1010- ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1010- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1010-1102 ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1103- ●
28 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1103- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1010- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1010- ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.76 & 6.35 		1-09709-304-0 01 1 1010- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 02 1 1010- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=660 		1-09363-971-0 01 1 1103- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=550 		8-98080-979-0 01 1 1103- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) L=540 		1-09363-612-1 01 1 1010- ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1010- ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1010- ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1103- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
51 WASHER; LK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1010- ● ●
102 NUT; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		0-91180-210-0 02 1 1103- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2532 		8-98101-087-0 01 1 1103- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1010- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 1010- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SERVICED BY L=2650 		1-47428-743-0 01 1 1010- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 1010- ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1010- ● ●
107 NUT; UNION,OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1010- ● ●
167 BRACKET; UNION
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98086-811-1 01 1 1103- ●
207 BOLT; CLIP
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1103- ●

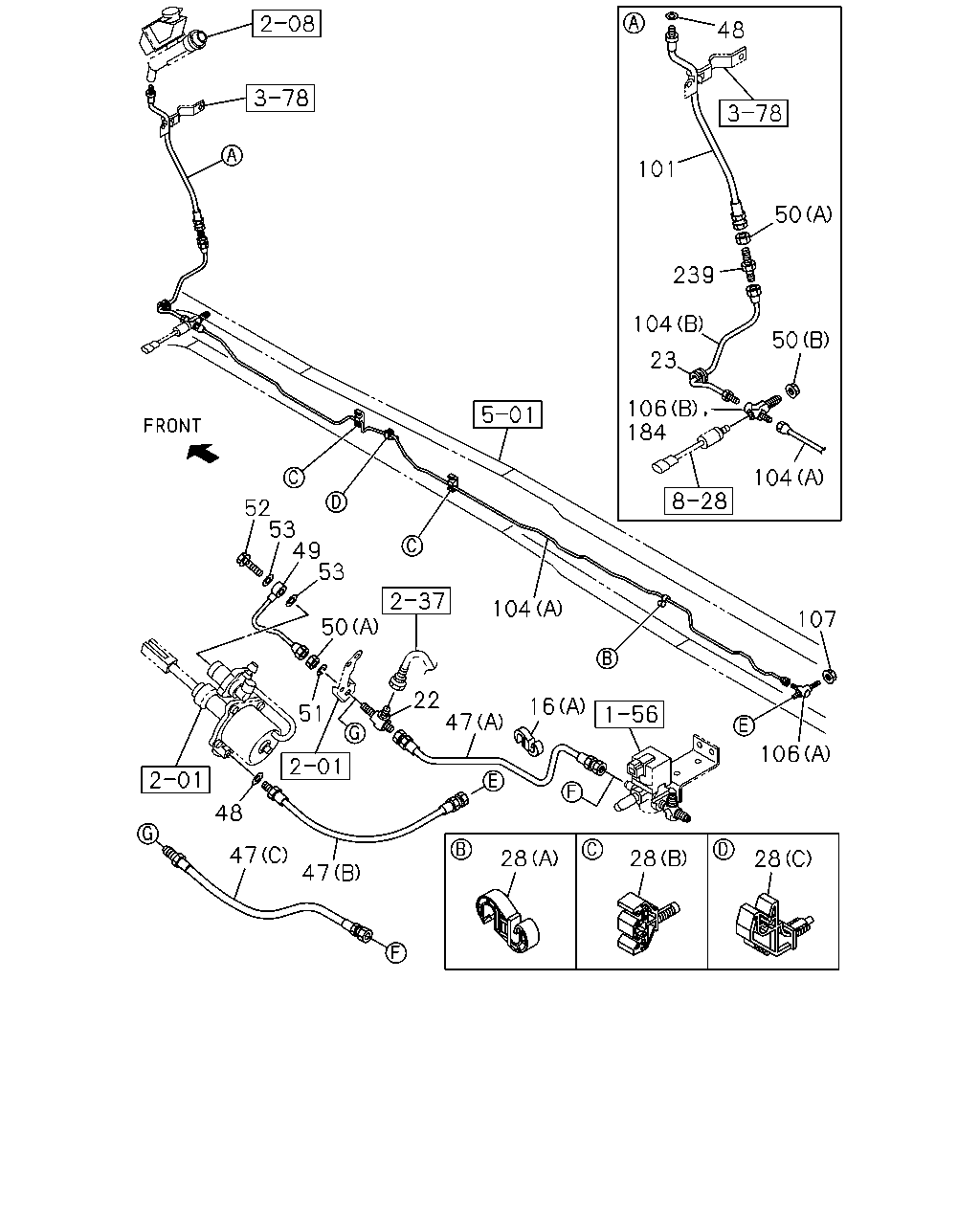

çizim 102616
48 101 50 239 104 50 23 106 184 104 52 53 49 53 104 107 50 22 47 16 51 106 48 47 28 28 28 47
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=15 L=28 		1-09701-216-0 01 1 1103- ●
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1010- ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1010- ● ●
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1010- ● ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1010-1102 ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1103- ●
28 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=6.35 		1-09701-247-1 01 1 1103- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 01 1 1010- ●
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1010- ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.76 & 6.35 		1-09709-304-0 01 1 1010- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98012-254-1 02 1 1010- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=660 		1-09363-971-0 01 1 1103- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=550 		8-98080-979-0 01 1 1103- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) L=540 		1-09363-612-1 01 1 1010- ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=640 		1-09363-974-0 01 1 1010- ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470 		8-98072-353-0 01 1 1010- ● ●
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1103- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1010- ● ●
51 WASHER; LK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-512-0 01 1 1010- ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1010- ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1010-1312 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=500 		8-98072-350-0 01 1 1010- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=2532 		8-98101-087-0 01 1 1103- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2695 		8-98078-148-2 01 1 1010- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 1010- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SERVICED BY L=2650 		1-47428-743-0 01 1 1010- ●
106 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 2WAY 		1-09654-059-2 01 1 1010- ● ●
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1010- ● ●
107 NUT; UNION,OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1010- ● ●
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1010- ● ●
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
