Isuzu WW
▶
TRUCKS
▶
FRR
▶
11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

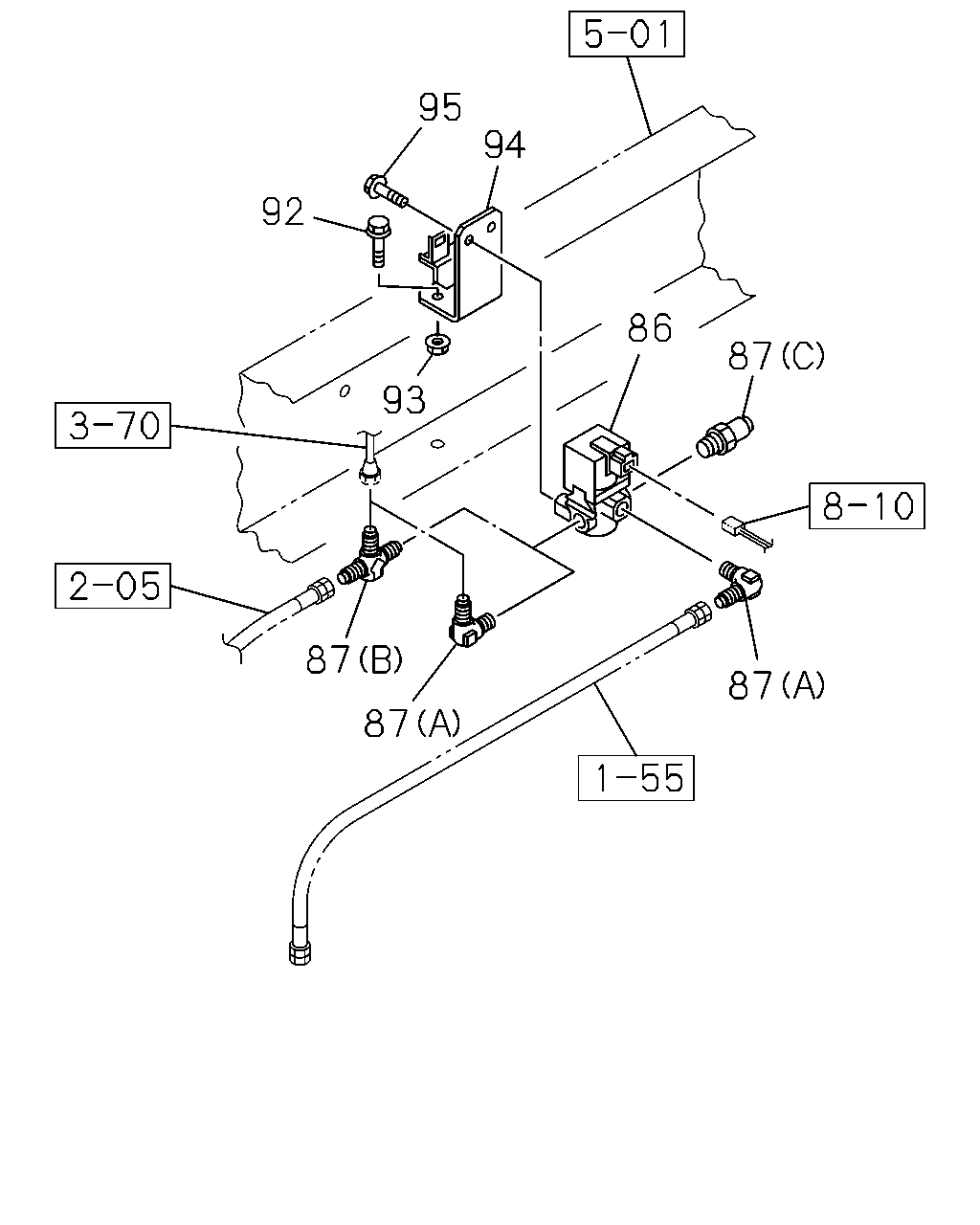

1-56 — EXHAUST BRAKE SYSTEM
(#72038) — 18 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
95
94
92
86
87
93
87
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
1010-1102
●
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
1103-
●
●
87
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
1103-
●
87
CONNECTOR
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1010-1102
●
87
CONNECTOR
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1103-
●
●
87
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1010-1102
●
87
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1103-
●
87
CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1103-
●
87
CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1010-1102
●
87
CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1103-
●
87
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1103-
●
87
CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1010-
●
92
BOLT; MAG VLV
M8X30 FLANGE
0-28650-830-0
02
1
1010-
●
●
93
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
94
BRACKET; MAG VLV,EXH BRAKE
8-98067-005-0
01
1
1010-1102
●
94
BRACKET; MAG VLV,EXH BRAKE
8-98067-005-0
01
1
1103-
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28650-820-0
02
1
1010-1102
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28650-820-0
02
1
1103-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
