Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#72036) — 288 parça

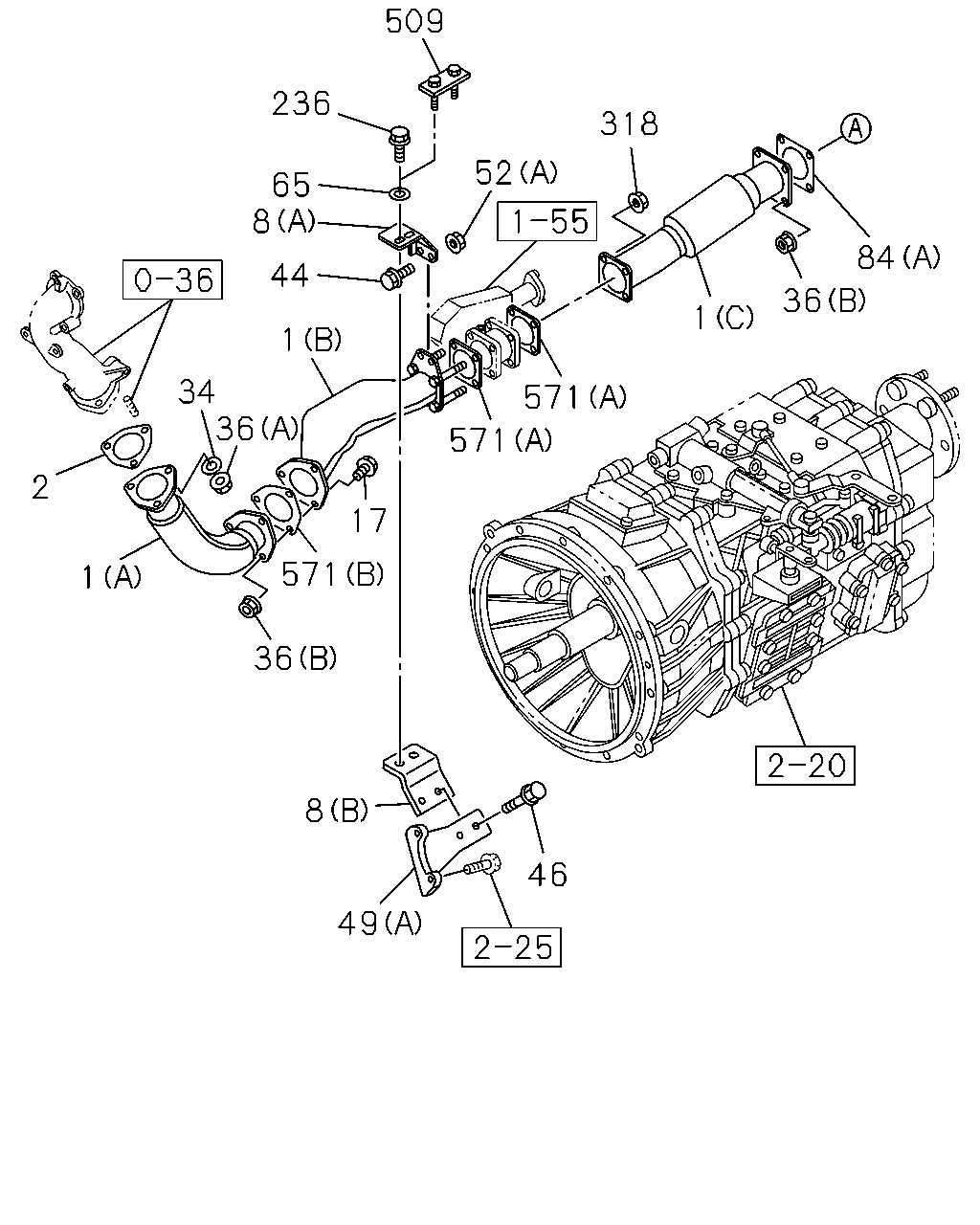

84 36 1 571 571 52 318 509 236 65 8 44 1 34 36 17 571 36 8 49 46 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98035-936-4	01	1	1103-1107	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98198-849-0	01	1	1108-	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98161-196-0	01	1	1103-1202	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98208-160-0	01	1	1203-1303	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98243-546-0	01	1	1304-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	1010-	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98056-496-1	01	1	1010-1209	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1210-	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98120-560-0	01	1	1010-1209	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1210-	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1103-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81	8-98043-481-0	01	1	1010-	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98122-677-0	01	1	1010-1301	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98233-626-0	01	1	1302-1310	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98259-870-0	01	1	1311-	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98122-679-1	01	1	1010-1301	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98233-627-0	01	1	1302-1404	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98275-817-0	01	1	1405-	●	●
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X35 FLANGE	0-28051-235-0	03	1	1010-	●	●
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1010-	●	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10	0-91110-510-0	04	1	1103-	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1103-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1010-	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1010-	●	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28651-035-0	02	1	1010-	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	1010-	●	●
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28051-030-0	02	1	1010-	●	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98042-786-0	01	1	1103-1301	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1010-	●	●
49	BRACKET; EXH PIPE TO TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-671-0	01	1	1010-	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1103-	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1010-	●	●
65	WASHER; PL 6HK1-TCN ENG(82L) ID=10.5	8-98073-091-0	02	1	1010-	●	●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1103-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1010-	●	●
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1103-	●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	1010-1301	●	●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1103-	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1010-	●	●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98233-625-0	01	1	1302-1311	●	●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98259-983-0	01	1	1312-	●	●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1103-	●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1010-	●	●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1010-	●	●

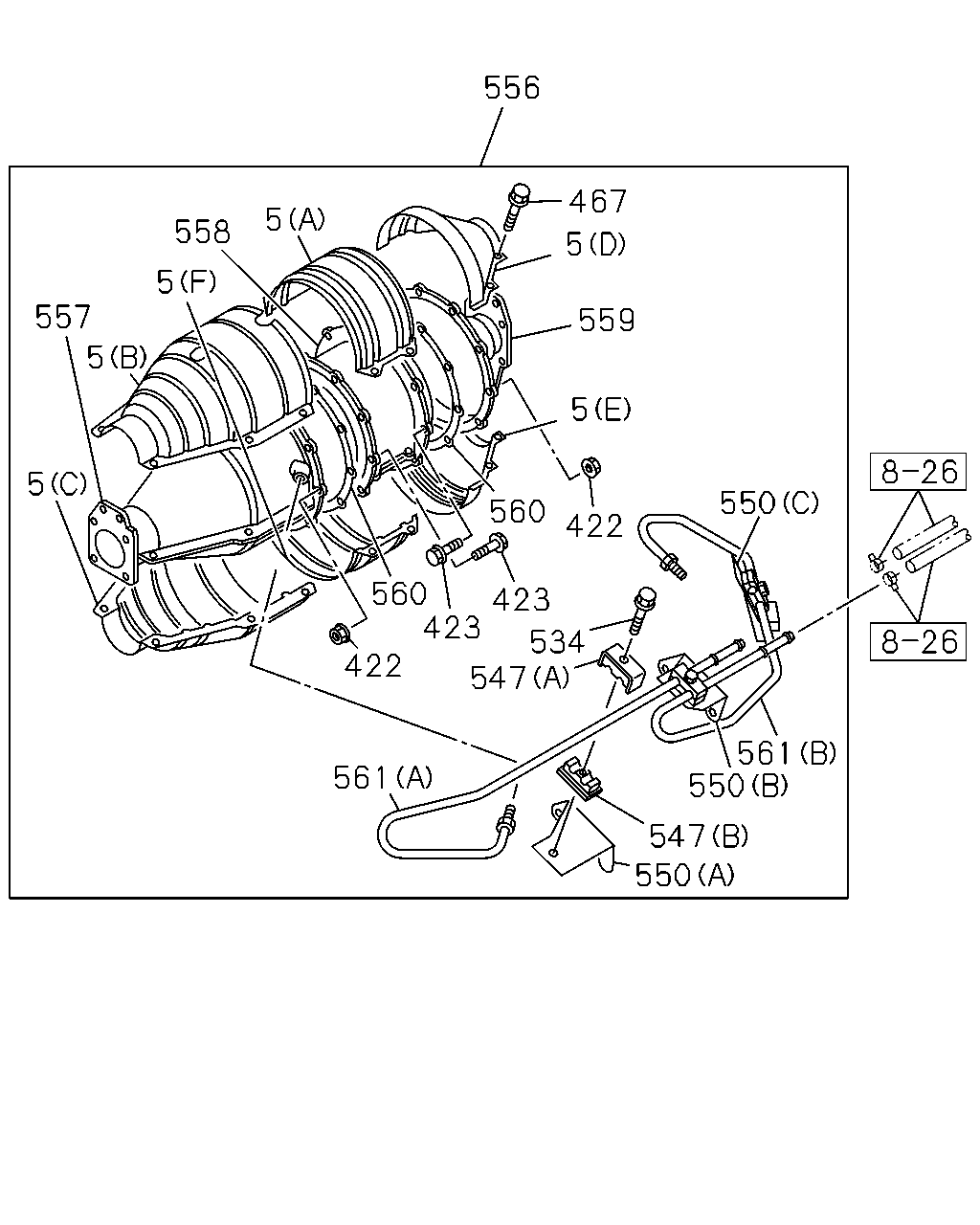

556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98044-122-0	01	1	1103-	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1010-	●	●
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	1010-	●	●
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	1010-	●	●
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1010-	●	●
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	1010-	●	●
547	CLIP; PIPE (A)	8-97381-635-0	03	1	1010-	●	●
547	CLIP; PIPE (B)	8-97381-636-0	03	1	1010-	●	●
550	BRACKET; DPD (A)	8-97611-083-0	01	1	1010-	●	●
550	BRACKET; DPD (B)	8-97611-084-0	01	1	1010-	●	●
550	BRACKET; DPD (C)	8-97611-085-0	01	1	1010-	●	●
556	DPD ASM	8-97613-331-6	01	1	1010-1010	●	●
556	DPD ASM	8-97622-883-4	01	1	1011-	●	●
557	CATALYST ASM	8-97608-055-8	01	1	1010-	●	●
558	FILTER ASM	8-97608-057-3	01	1	1010-	●	●
559	COVER; RR	8-97611-078-0	01	1	1010-1010	●	●
559	COVER; RR	8-97622-887-0	01	1	1011-	●	●
560	GASKET; DPD	8-97611-080-0	02	1	1010-	●	●
561	PIPE; DPD (A)	8-97611-081-0	01	1	1010-1010	●	●
561	PIPE; DPD (A)	8-97622-888-0	01	1	1011-	●	●
561	PIPE; DPD (B)	8-97611-082-0	01	1	1010-1010	●	●
561	PIPE; DPD (B)	8-97622-889-0	01	1	1011-	●	●

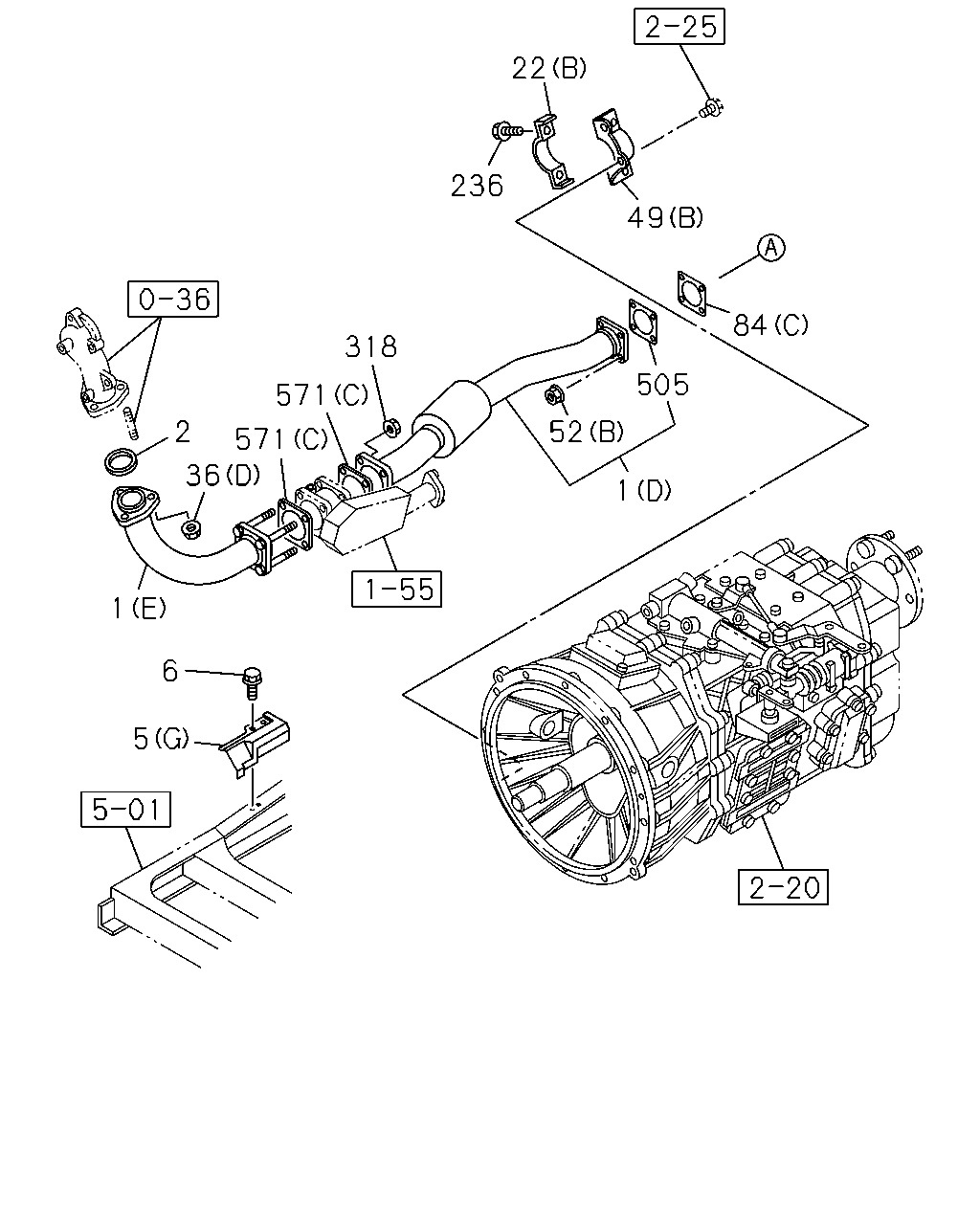

22 236 49 84 318 505 571 2 52 571 36 1 1 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98035-936-4	01	1	1103-1107	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98198-849-0	01	1	1108-	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98161-196-0	01	1	1103-1202	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98208-160-0	01	1	1203-1303	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98243-546-0	01	1	1304-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	1-22123-885-1	01	1	1010-	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98056-496-1	01	1	1010-1209	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98215-406-0	01	1	1210-	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98120-560-0	01	1	1010-1209	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98215-407-1	01	1	1210-	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1103-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81	8-98043-481-0	01	1	1010-	●	●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98044-122-0	01	1	1103-	●
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	1010-	●	●
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	1010-	●	●
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1010-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1103-1309	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1010-1102	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1103-1301	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1103-1301	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10	0-91110-510-0	04	1	1103-	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1103-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1010-	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1010-	●	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98042-786-0	01	1	1103-1301	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-673-0	01	1	1010-	●	●
49	BRACKET; EXH PIPE TO TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98122-671-0	01	1	1010-	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1103-	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1010-	●	●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1103-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1010-	●	●
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1103-	●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	1010-1301	●	●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1103-	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1010-	●	●
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS) ID=87	8-94394-391-0	01	1	1103-1107	●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1103-	●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1010-	●	●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1010-	●	●

81 75 62 56 75 60 81 107 118 107 226 70 81 105 70 94 22 22 121 226 62 56 60 105 22 22 94 56 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1010-1301	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1302-	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1103-1309	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1010-1102	●	●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1103-1301	●	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1103-1301	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98059-756-0	02	1	1010-1301	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (E)	8-98233-506-0	01	1	1302-	●	●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98059-755-0	01	1	1103-	●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98074-825-0	01	1	1103-	●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98074-826-1	01	1	1103-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	1010-	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	1010-	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1010-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	1103-1309	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98059-753-1	02	1	1010-1301	●	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1302-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	8-98061-138-1	01	1	1103-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	1-22152-274-1	01	1	1010-	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98059-712-1	01	1	1010-	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1010-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-	●	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	01	1	1302-	●	●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	03	1	1103-	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	02	1	1010-1301	●	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	02	1	1010-1301	●	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	02	1	1302-	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1010-	●	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	03	1	1103-	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	1010-1301	●	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	1010-1301	●	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1010-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1010-	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1010-1102	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1103-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	03	1	1103-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1010-1301	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1010-1301	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302		●
81	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10 FLANGE	0-91180-210-0	02	1	1302-1302	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
94	BOLT; CLAMP 6HK1-TCN ENG(82L) M10X40 FLANGE	0-28651-040-0	04	1	1010-1301	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1010-1102	●	●
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1103-1301	●	●
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) M10X40 FLANGE	0-28651-040-0	02	1	1103-1301	●
105	NUT; CLAMP 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1010-1301	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1010-1102	●	●
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1103-1301	●	●
105	NUT; CLAMP 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1103-1301	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1010-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	01	1	1010-	●	●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	03	1	1103-	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	02	1	1010-	●	●
126	PIPE; EXH,RR 6HK1-TCN ENG(82L)	8-98233-516-0	01	1	1302-	●	●
126	PIPE; EXH,RR	8-98043-365-2	01	1	1010-1301	●	●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98043-365-2	01	1	1302-1309	●
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS)	8-98245-503-0	01	1	1310-	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	01	1	1302-	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	01	1	1302-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	03	1	1103-	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	03	1	1103-	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	1302-	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	1302-	●	●

475 476 20 70 121 12 12 12 84 555 84 36 36 84 556 506 44 84 62 226 226 44 56 81 52 81 107 60 81 60 81 107 52 226 56 62 226 121 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98041-921-0	01	1	1103-	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98041-925-1	01	1	1010-1301	●	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (C)	8-98234-507-0	01	1	1302-	●	●
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-481-0	02	1	1302-	●	●
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-481-0	02	1	1302-	●	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10	0-91110-510-0	04	1	1103-	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1103-	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1010-	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1010-	●	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28651-035-0	02	1	1010-	●	●
44	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	08	1	1010-	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1103-	●
52	NUT; BRKT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	02	1	1010-	●	●
52	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	07	1	1010-	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98059-756-0	02	1	1010-1301	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (E)	8-98233-506-0	01	1	1302-	●	●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98059-755-0	01	1	1103-	●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-98074-825-0	01	1	1103-	●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98074-826-1	01	1	1103-	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	1010-	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (B)	8-98074-830-0	01	1	1010-	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	1-22131-584-0	01	1	1010-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (D)	8-98245-522-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98059-753-1	01	1	1103-1309	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (D)	8-98245-530-0	01	1	1310-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98059-753-1	02	1	1010-1301	●	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (D)	8-98233-509-0	01	1	1302-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (B)	8-98061-138-1	01	1	1103-	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (B)	1-22152-274-1	01	1	1010-	●	●
60	BRACKET; FRAME TO BRKT (A)	8-98059-712-1	01	1	1010-	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1010-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-	●	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	01	1	1302-	●	●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	03	1	1103-	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	02	1	1010-1301	●	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	02	1	1010-1301	●	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39	8-98060-852-0	02	1	1302-	●	●
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1010-	●	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	03	1	1103-	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	1010-1301	●	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	1010-1301	●	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1010-	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1302-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1010-1102	●	●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1103-	●	●
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	03	1	1103-	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1010-1301	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1010-1301	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-1302		●
81	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) M10 FLANGE	0-91180-210-0	02	1	1302-1302	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
84	GASKET; EXH PIPE 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1103-	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22116-040-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1010-	●	●
84	GASKET; EXH PIPE (B) ID=85.8	1-22116-043-0	01	1	1010-	●	●
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1010-	●	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	01	1	1010-	●	●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	03	1	1103-	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	02	1	1010-	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	01	1	1302-	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	01	1	1302-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	03	1	1103-	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	03	1	1103-	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-277-1	02	1	1302-	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	1010-1301	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-278-1	02	1	1302-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-479-0	01	1	1302-	●	●
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-98233-482-0	02	1	1302-	●	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1010-	●	●
555	PIPE; EXH,DPD 4HK1-TCS ENG(RJS)	8-98060-847-0	01	1	1103-	●
556	DPD ASM	8-97613-331-6	01	1	1010-1010	●	●
556	DPD ASM	8-97622-883-4	01	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
