Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#72034) — 322 parça

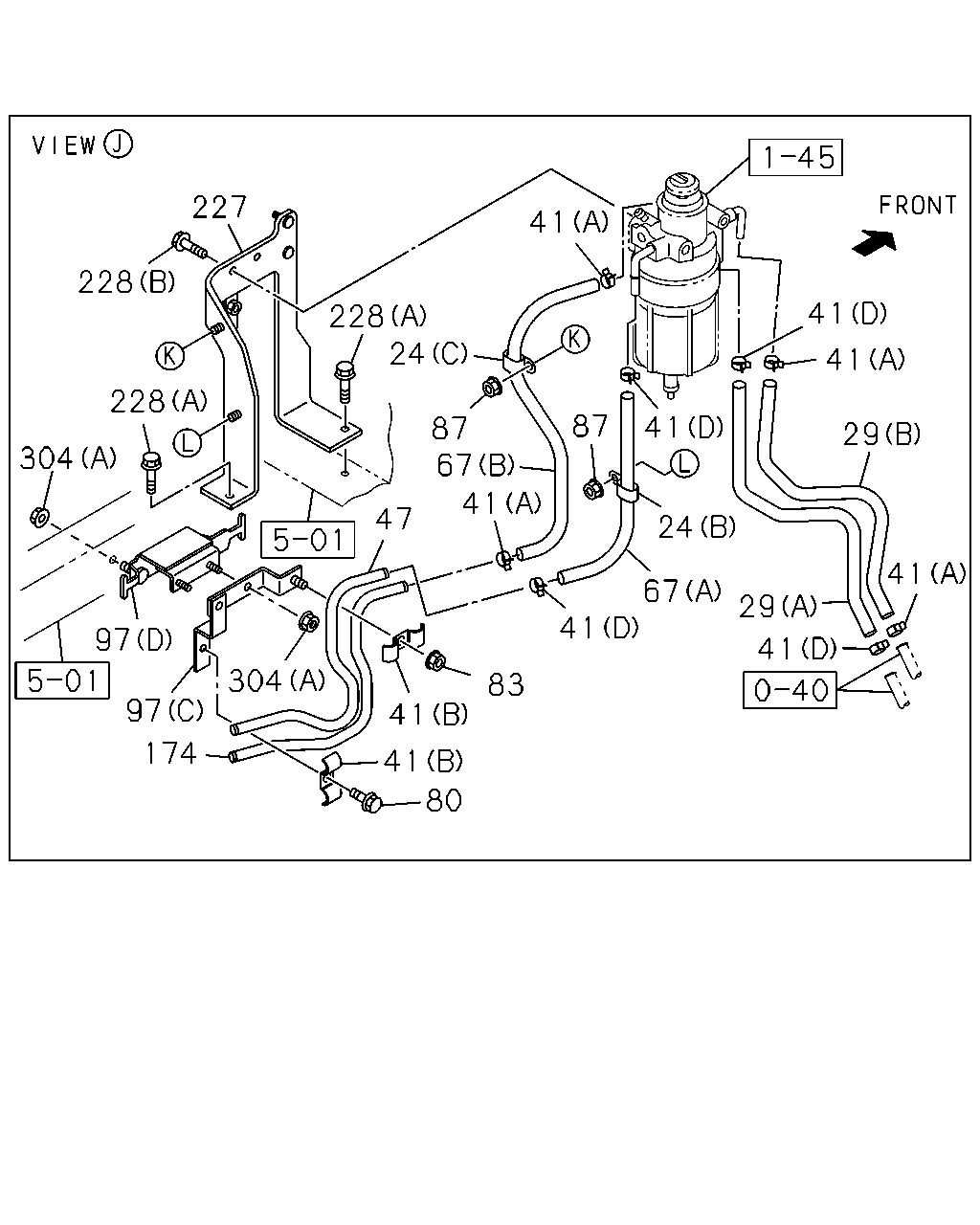

228 228 304 97 97 174 304 47 228 24 87 67 41 41 83 41 41 80 67 24 41 87 41 41 41 29 41 29 41 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=21 L=24	8-98019-191-0	02	1	1103-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1103-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) ID=21 L=24	8-98019-191-0	01	1	1010-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (D) ID=21 L=24	8-98019-191-0	01	1	1010-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-	●	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98178-769-0	01	1	1103-1202	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98192-966-0	01	1	1203-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98180-730-0	01	1	1103-1202	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98192-968-0	01	1	1203-	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1010-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	06	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1010-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1462	8-98178-521-0	01	1	1010-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=2307	8-98179-132-0	01	1	1010-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=2973	8-98179-252-0	01	1	1103-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2304	8-98170-453-0	01	1	1010-		●
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1010-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1103-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1103-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	03	1	1103-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	02	1	1010-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE	0-28050-850-0	04	1	1010-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8X50 FLANGE	0-28050-850-0	04	1	1010-	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	1103-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	03	1	1010-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	05	1	1010-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1010-	●
87	NUT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1103-	●
87	NUT; CLIP,FUEL HOSE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D) L=50	1-47475-299-2	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (A) L=55	1-47476-177-0	02	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98078-201-0	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	8-98083-537-0	01	1	1103-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=55	1-47476-177-0	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (A) L=55	1-47476-177-0	01	1	1010-	●
97	BRACKET; CLIP (B)	8-98109-768-0	01	1	1010-	●	●
97	BRACKET; CLIP (D)	8-98077-895-1	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98105-216-1	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98179-133-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98179-133-0	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS)	8-98179-254-0	01	1	1103-	●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98133-172-0	01	1	1103-	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1010-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1010-1102	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1103-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	03	1	1103-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●

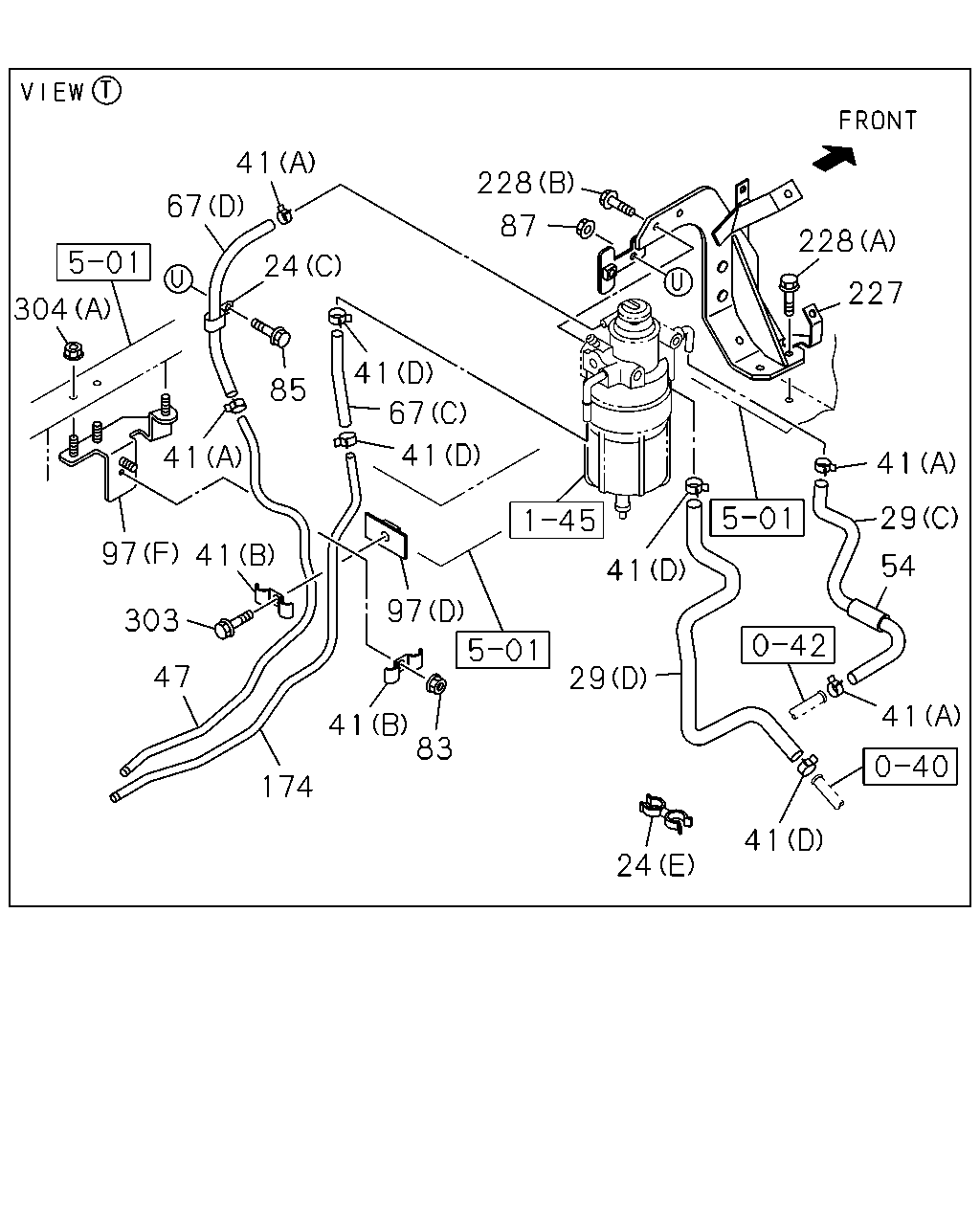

41 67 304 24 85 41 41 303 97 174 47 41 97 83 41 41 67 41 29 24 41 41 54 41 227 29 228 228 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=21 L=24	8-98019-191-0	02	1	1103-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1103-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) ID=21 L=24	8-98019-191-0	01	1	1010-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (D) ID=21 L=24	8-98019-191-0	01	1	1010-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-	●	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98178-769-0	01	1	1103-1202	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98192-966-0	01	1	1203-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98180-730-0	01	1	1103-1202	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98192-968-0	01	1	1203-	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1010-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	06	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1010-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1462	8-98178-521-0	01	1	1010-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=2307	8-98179-132-0	01	1	1010-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=2973	8-98179-252-0	01	1	1103-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2304	8-98170-453-0	01	1	1010-		●
54	SPACER; CLIP,FUEL PIPE 4HK1-TCS ENG(RJS)	8-98148-172-0	01	1	1103-1202	●
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG(82L) (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●	●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1010-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1103-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1103-	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	1103-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	03	1	1010-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	05	1	1010-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1010-	●
85	BOLT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●
87	NUT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1103-	●
87	NUT; CLIP,FUEL HOSE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D) L=50	1-47475-299-2	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (A) L=55	1-47476-177-0	02	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98078-201-0	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	8-98083-537-0	01	1	1103-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=55	1-47476-177-0	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (A) L=55	1-47476-177-0	01	1	1010-	●
97	BRACKET; CLIP (B)	8-98109-768-0	01	1	1010-	●	●
97	BRACKET; CLIP (D)	8-98077-895-1	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98105-216-1	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98179-133-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98179-133-0	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS)	8-98179-254-0	01	1	1103-	●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98133-172-0	01	1	1103-	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1010-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1010-1102	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1103-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	03	1	1103-	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10X30 FLANGE	0-28651-030-0	01	1	1010-		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	03	1	1103-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●

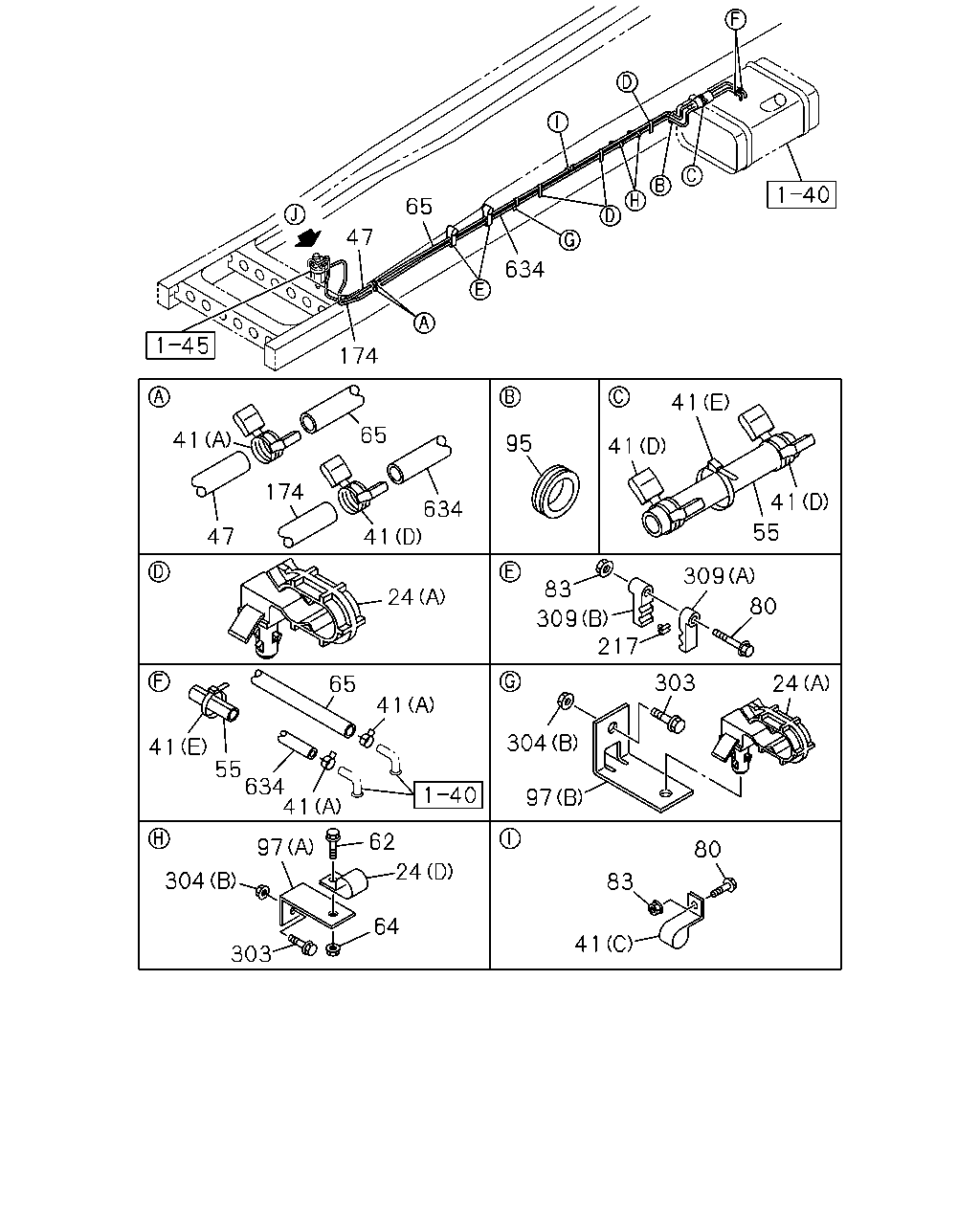

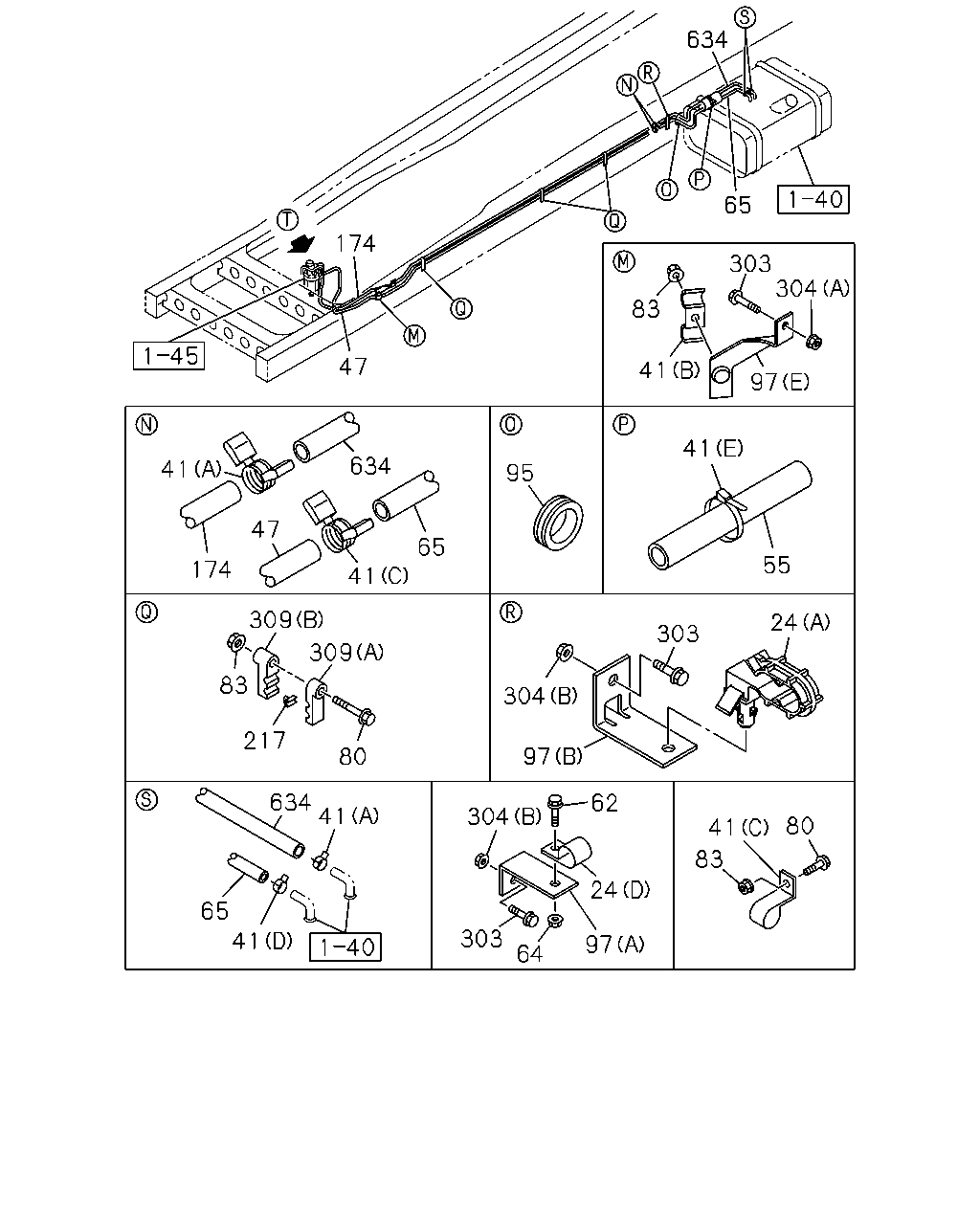

65 47 634 174 41 65 41 95 41 174 41 634 41 55 47 309 83 24 80 309 217 303 24 65 41 304 41 55 634 41 97 62 97 80 24 304 83 64 41 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=21 L=24	8-98019-191-0	02	1	1103-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1103-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) ID=21 L=24	8-98019-191-0	01	1	1010-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (D) ID=21 L=24	8-98019-191-0	01	1	1010-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	06	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1010-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1462	8-98178-521-0	01	1	1010-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=2307	8-98179-132-0	01	1	1010-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=2973	8-98179-252-0	01	1	1103-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2304	8-98170-453-0	01	1	1010-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1010-	●	●
62	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
62	BOLT; CLIP FIX WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	01	1	1010-		●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●
64	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1103-	●
64	NUT; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	1010-		●
64	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS)	8-98170-529-0	01	1	1103-1107	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS)	8-98183-317-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98170-530-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98183-318-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98170-531-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L)	8-98170-531-0	01	1	1010-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98183-319-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L)	8-98183-319-0	01	1	1108-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	03	1	1103-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	02	1	1010-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE	0-28050-850-0	04	1	1010-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8X50 FLANGE	0-28050-850-0	04	1	1010-	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	1103-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	03	1	1010-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	05	1	1010-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1010-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-	●	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D) L=50	1-47475-299-2	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (A) L=55	1-47476-177-0	02	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98078-201-0	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	8-98083-537-0	01	1	1103-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=55	1-47476-177-0	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (A) L=55	1-47476-177-0	01	1	1010-	●
97	BRACKET; CLIP (B)	8-98109-768-0	01	1	1010-	●	●
97	BRACKET; CLIP (D)	8-98077-895-1	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98105-216-1	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98179-133-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98179-133-0	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS)	8-98179-254-0	01	1	1103-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W) ID=8	1-47459-011-0	02	1	1010-		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=8	1-47459-011-0	04	1	1010-		●
217	COLLAR; FUEL PIPE FIX 6HK1-TCN ENG(82L) ID=8	1-47459-011-0	04	1	1010-	●
217	COLLAR; FUEL PIPE FIX 4HK1-TCS ENG(RJS) ID=8	1-47459-011-0	03	1	1103-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	03	1	1103-	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10X30 FLANGE	0-28651-030-0	01	1	1010-		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	03	1	1103-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (A) ID=10 & 10	1-09709-241-0	02	1	1010-		●
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (B) ID=10 & 10	1-09709-243-0	02	1	1010-		●
309	CLIP; PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=10 & 10	1-09709-241-0	04	1	1010-		●
309	CLIP; PIPE 6HK1-TCN ENG(82L) (A) ID=10 & 10	1-09709-241-0	04	1	1010-	●
309	CLIP; PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) ID=10 & 10	1-09709-243-0	04	1	1010-		●
309	CLIP; PIPE 6HK1-TCN ENG(82L) (B) ID=10 & 10	1-09709-243-0	04	1	1010-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (A) ID=10 & 10	1-09709-241-0	03	1	1103-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (B) ID=10 & 10	1-09709-243-0	03	1	1103-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=760 SERVICED BY L=3000	0-01558-300-0	01	1	1103-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=860 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●

634 65 174 303 304 83 47 41 97 41 634 41 95 47 65 41 55 174 309 24 303 309 83 304 217 97 80 634 41 62 304 80 41 83 24 65 303 41 97 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (D) ID=21 L=24	8-98019-191-0	02	1	1103-	●
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) (E) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1103-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1010-	●	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1010-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (D) ID=21 L=24	8-98019-191-0	01	1	1010-		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (D) ID=21 L=24	8-98019-191-0	01	1	1010-	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	06	1	1103-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1010-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W) L=1462	8-98178-521-0	01	1	1010-		●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=2307	8-98179-132-0	01	1	1010-	●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=2973	8-98179-252-0	01	1	1103-	●
47	PIPE; FUEL,RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=2304	8-98170-453-0	01	1	1010-		●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1010-	●	●
62	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●
62	BOLT; CLIP FIX WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X20 FLANGE	0-28650-820-0	01	1	1010-		●
62	BOLT; CLIP FIX 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●
64	NUT; CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1103-	●
64	NUT; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	01	1	1010-		●
64	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS)	8-98170-529-0	01	1	1103-1107	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS)	8-98183-317-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98170-530-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W)	8-98183-318-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98170-531-0	01	1	1010-1107		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L)	8-98170-531-0	01	1	1010-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98183-319-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L)	8-98183-319-0	01	1	1108-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	03	1	1103-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1103-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8X50 FLANGE	0-28050-850-0	02	1	1010-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X50 FLANGE	0-28050-850-0	04	1	1010-		●
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8X50 FLANGE	0-28050-850-0	04	1	1010-	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	08	1	1103-	●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	03	1	1010-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	05	1	1010-		●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1010-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-	●	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D) L=50	1-47475-299-2	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (A) L=55	1-47476-177-0	02	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98078-201-0	01	1	1103-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F)	8-98083-537-0	01	1	1103-	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1010-	●	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=55	1-47476-177-0	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (A) L=55	1-47476-177-0	01	1	1010-	●
97	BRACKET; CLIP (B)	8-98109-768-0	01	1	1010-	●	●
97	BRACKET; CLIP (D)	8-98077-895-1	01	1	1010-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98105-216-1	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W)	8-98178-520-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W)	8-98179-133-0	01	1	1010-		●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98179-133-0	01	1	1010-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS)	8-98179-254-0	01	1	1103-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W) ID=8	1-47459-011-0	02	1	1010-		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=8	1-47459-011-0	04	1	1010-		●
217	COLLAR; FUEL PIPE FIX 6HK1-TCN ENG(82L) ID=8	1-47459-011-0	04	1	1010-	●
217	COLLAR; FUEL PIPE FIX 4HK1-TCS ENG(RJS) ID=8	1-47459-011-0	03	1	1103-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	03	1	1103-	●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10X30 FLANGE	0-28651-030-0	01	1	1010-		●
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1010-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-210-0	03	1	1103-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	1010-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (A) ID=10 & 10	1-09709-241-0	02	1	1010-		●
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (B) ID=10 & 10	1-09709-243-0	02	1	1010-		●
309	CLIP; PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) ID=10 & 10	1-09709-241-0	04	1	1010-		●
309	CLIP; PIPE 6HK1-TCN ENG(82L) (A) ID=10 & 10	1-09709-241-0	04	1	1010-	●
309	CLIP; PIPE WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) ID=10 & 10	1-09709-243-0	04	1	1010-		●
309	CLIP; PIPE 6HK1-TCN ENG(82L) (B) ID=10 & 10	1-09709-243-0	04	1	1010-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (A) ID=10 & 10	1-09709-241-0	03	1	1103-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (B) ID=10 & 10	1-09709-243-0	03	1	1103-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=760 SERVICED BY L=3000	0-01558-300-0	01	1	1103-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=860 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) L=780 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
