◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

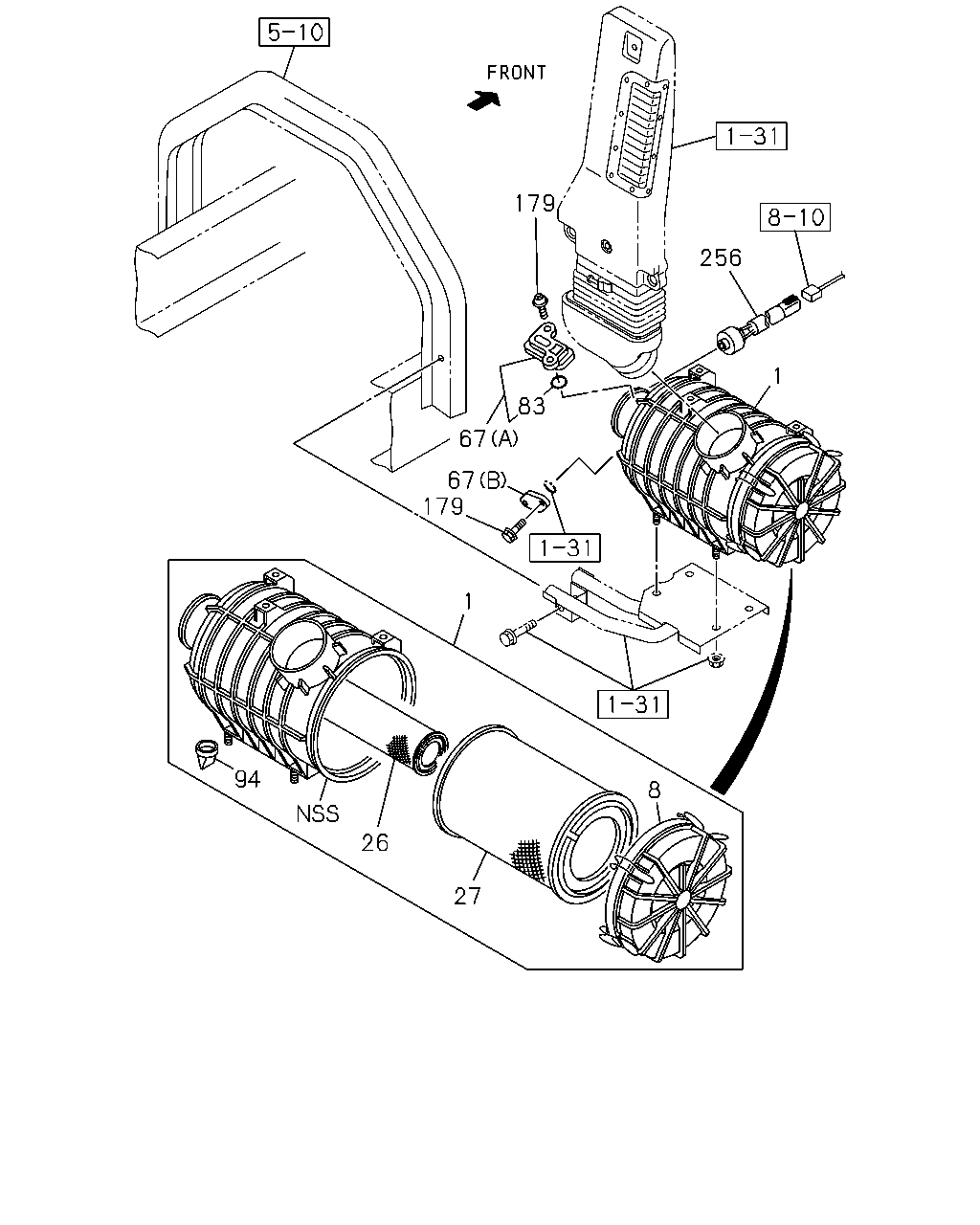

1-30 — AIR CLEANER (#72030) — 21 parça
çizim 90755
256 1 8 27 26 94 1 179 67 67 83 179
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 8-98082-165-1 01 1 1010-1102 ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 1103- ● ●
8 COVER ASM; ACL 8-98066-740-0 01 1 1010-1102 ●
8 COVER ASM; ACL 8-98066-740-0 01 1 1103- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 1010-1102 ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 1103- ● ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 1010-1102 ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 1103- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 1010-1102 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 1103- ● ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 1010-1102 ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 1103- ● ●
67 COVER; ACL
DBL CAB(FC**W*) (A) 		8-98078-789-0 01 1 1010- ● ●
67 COVER; ACL
DBL CAB(FC**W*) (B) 		8-98081-729-0 01 1 1010-1208 ● ●
67 COVER; ACL
DBL CAB(FC**W*) (B) 		8-98217-788-0 01 1 1209- ● ●
83 GASKET; COVER
DBL CAB(FC**W*) 		8-98071-416-0 01 1 1010- ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 1010-1102 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 1103- ● ●
179 BOLT; COVER,ACL
DBL CAB(FC**W*) M6X16 FLANGE 		0-28050-616-0 02 1 1010- ● ●
179 BOLT; COVER,ACL
DBL CAB(FC**W*) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1010- ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1010- ● ●
