◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#72028) — 191 parça

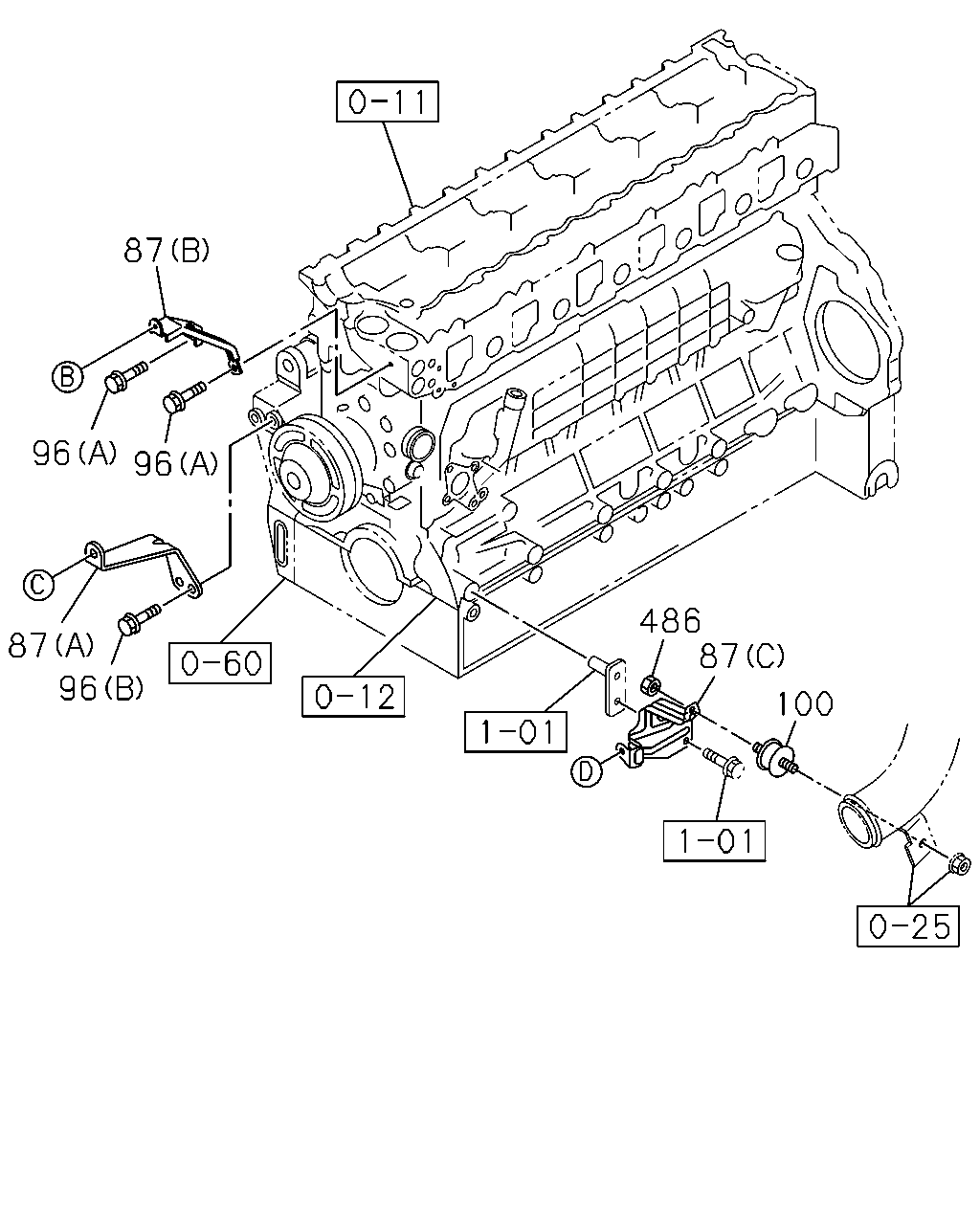

çizim 86020
87 96 96 486 87 87 96 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1010- ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1010- ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1010- ●
96 BOLT; STAY FIX
DBL CAB(FC**W*) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1103- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (D) M10X25 FLANGE 		0-28751-025-0 02 1 1103- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1010- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1010- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1010- ●

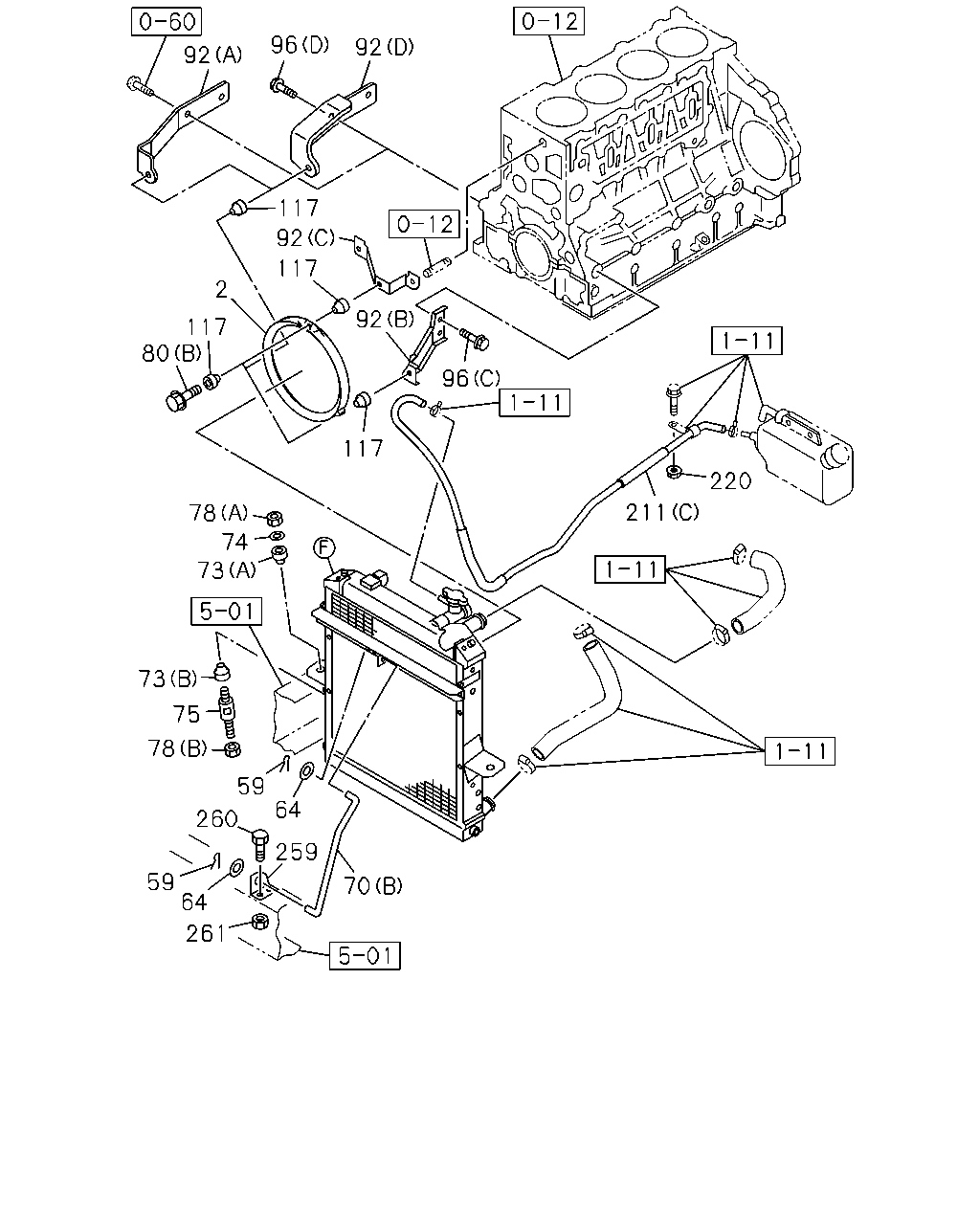

çizim 89190
92 96 92 117 117 92 92 2 117 80 117 96 220 211 78 73 73 75 78 59 64 259 70 260 59 64 261
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-97350-995-0 01 1 1103- ●
2 GUIDE; FAN 8-94393-779-1 01 1 1010- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1103- ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 1103- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1010- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1103- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1103- ●
70 STAY; RAD
SGL CAB(FC**M*) (A) 		8-98078-897-0 01 1 1010- ●
70 STAY; RAD
SGL CAB(FC**M*) (A) 		8-98078-896-0 01 1 1010- ●
70 STAY; RAD
DBL CAB(FC**W*) (A) 		8-98078-905-0 01 1 1010- ●
70 STAY; RAD
DBL CAB(FC**W*) (A) 		8-98078-903-0 01 1 1010- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1010- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1010- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1010- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1010- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1103- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1010-1102 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1103- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1010-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1103- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1103- ●
92 BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D) 		8-98032-526-0 01 1 1103- ●
92 BRACKET; FAN GUIDE
EXC. GENERATOR 24V90A(K44) (A) 		8-97350-997-0 01 1 1103- ●
96 BOLT; STAY FIX
DBL CAB(FC**W*) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1103- ●
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (D) M10X25 FLANGE 		0-28751-025-0 02 1 1103- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1010- ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1103- ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1010- ●
211 HOSE; RAD TO PIPE
(C) 		8-98178-700-2 01 1 1103- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1010- ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (A) L=560 		8-98119-375-0 01 1 1010- ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) L=1140 		8-98119-760-0 01 1 1010- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1103- ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
220 NUT; CLIP
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 1103- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1103- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103- ●

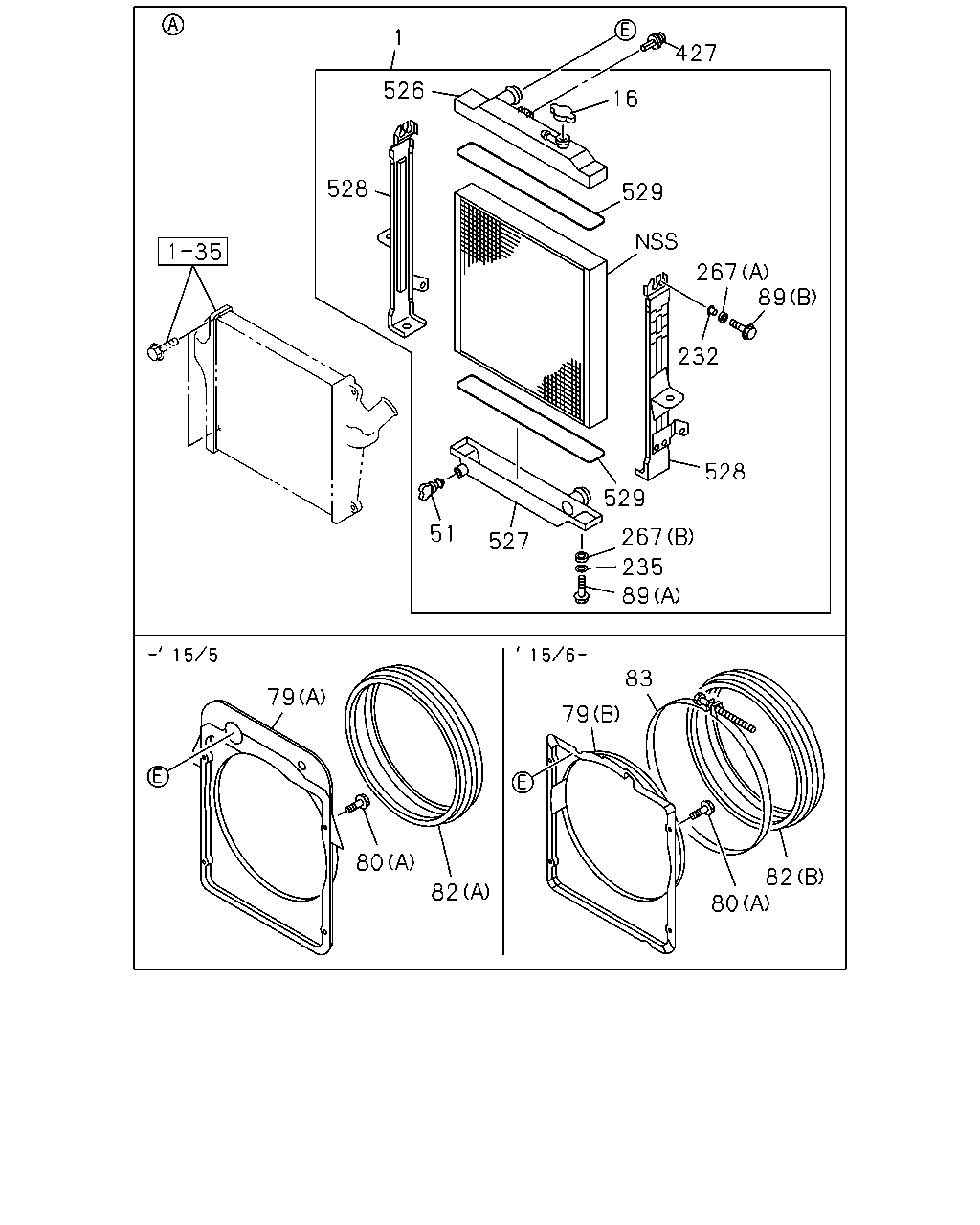

çizim 89315
427 16 1 526 528 529 267 232 89 528 529 267 235 89 527 51 83 79 82 80 82 80 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-307-0 01 1 1103- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-306-0 01 1 1103- ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-309-0 01 1 1010- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-308-0 01 1 1010- ●
16 CAP; RAD 8-98096-226-0 01 1 1010-1102 ●
16 CAP; RAD 8-98096-226-0 01 1 1103- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1010-1102 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1103- ● ●
79 GUIDE; FAN,RAD
(C) 		8-98010-297-0 01 1 1103- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1010-1505 ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1103- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1010-1102 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1103- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1010-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(C) 		8-98006-478-0 01 1 1103- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1010-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1103- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1103- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1010- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1010- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1103- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1010- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1010- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1103- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1010- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1010- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1010-1102 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1103-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 1103- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 1010- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-279-0 01 1 1103- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-433-1 01 1 1103- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1010- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1010- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 1103- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 1103- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 1010- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 1010- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1103- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1010- ●

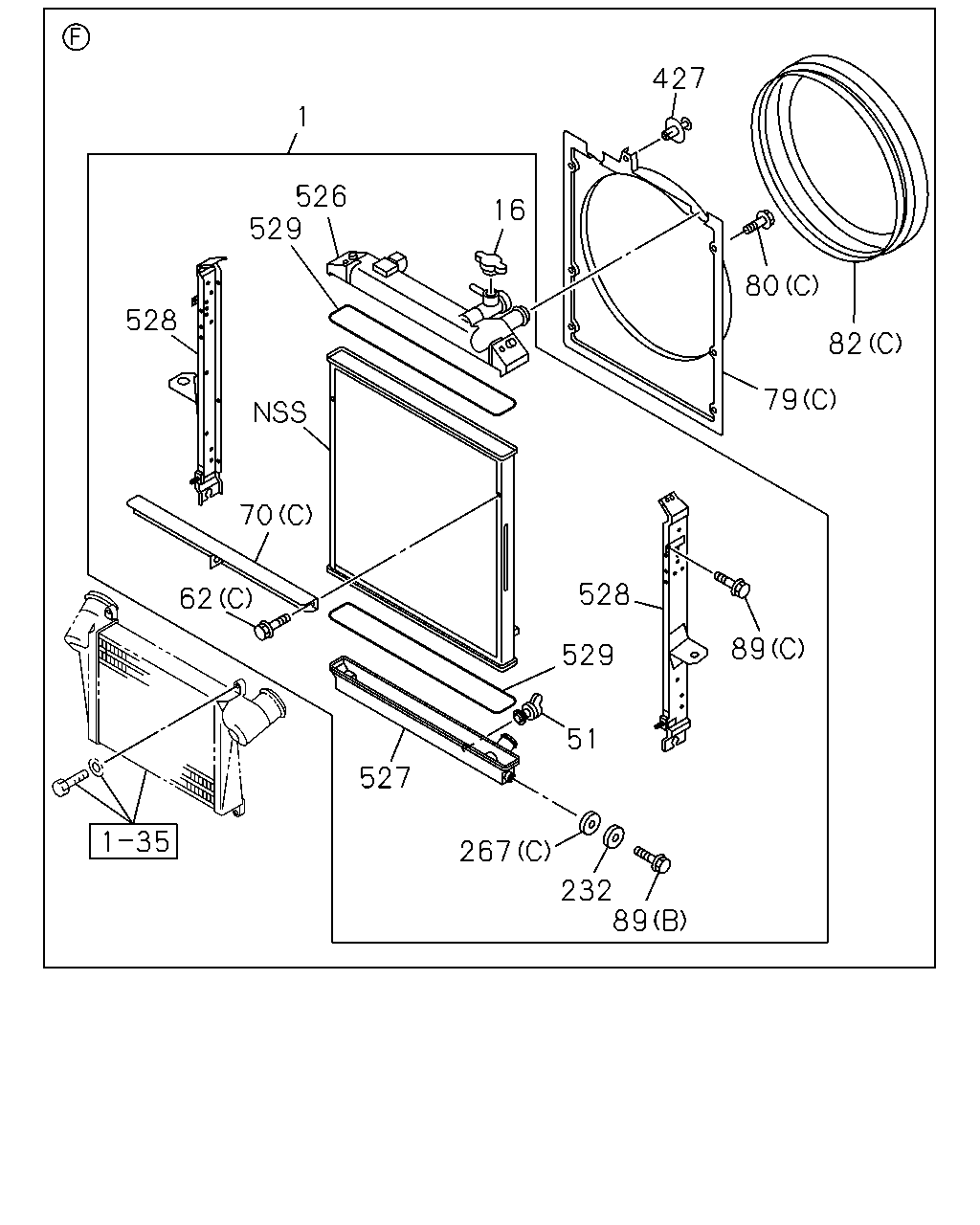

çizim 89367
1 526 529 528 70 62 527 267 232 89 51 529 528 89 79 82 80 427 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-307-0 01 1 1103- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-306-0 01 1 1103- ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-309-0 01 1 1010- ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-308-0 01 1 1010- ●
16 CAP; RAD 8-98096-226-0 01 1 1010-1102 ●
16 CAP; RAD 8-98096-226-0 01 1 1103- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1010-1102 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1103- ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1103- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1010- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1010- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1103- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1103- ●
70 STAY; RAD
SGL CAB(FC**M*) (A) 		8-98078-897-0 01 1 1010- ●
70 STAY; RAD
SGL CAB(FC**M*) (A) 		8-98078-896-0 01 1 1010- ●
70 STAY; RAD
DBL CAB(FC**W*) (A) 		8-98078-905-0 01 1 1010- ●
70 STAY; RAD
DBL CAB(FC**W*) (A) 		8-98078-903-0 01 1 1010- ●
79 GUIDE; FAN,RAD
(C) 		8-98010-297-0 01 1 1103- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1010-1505 ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1103- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1010-1102 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1103- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1010-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(C) 		8-98006-478-0 01 1 1103- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1010-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1103- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1103- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1010- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1010- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1103- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1010- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1103- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1010- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1010- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1010-1102 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1103-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 1103- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 1010- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-279-0 01 1 1103- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-433-1 01 1 1103- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1010- ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1010- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 1103- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 1103- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 1010- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 1010- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1103- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1010- ●

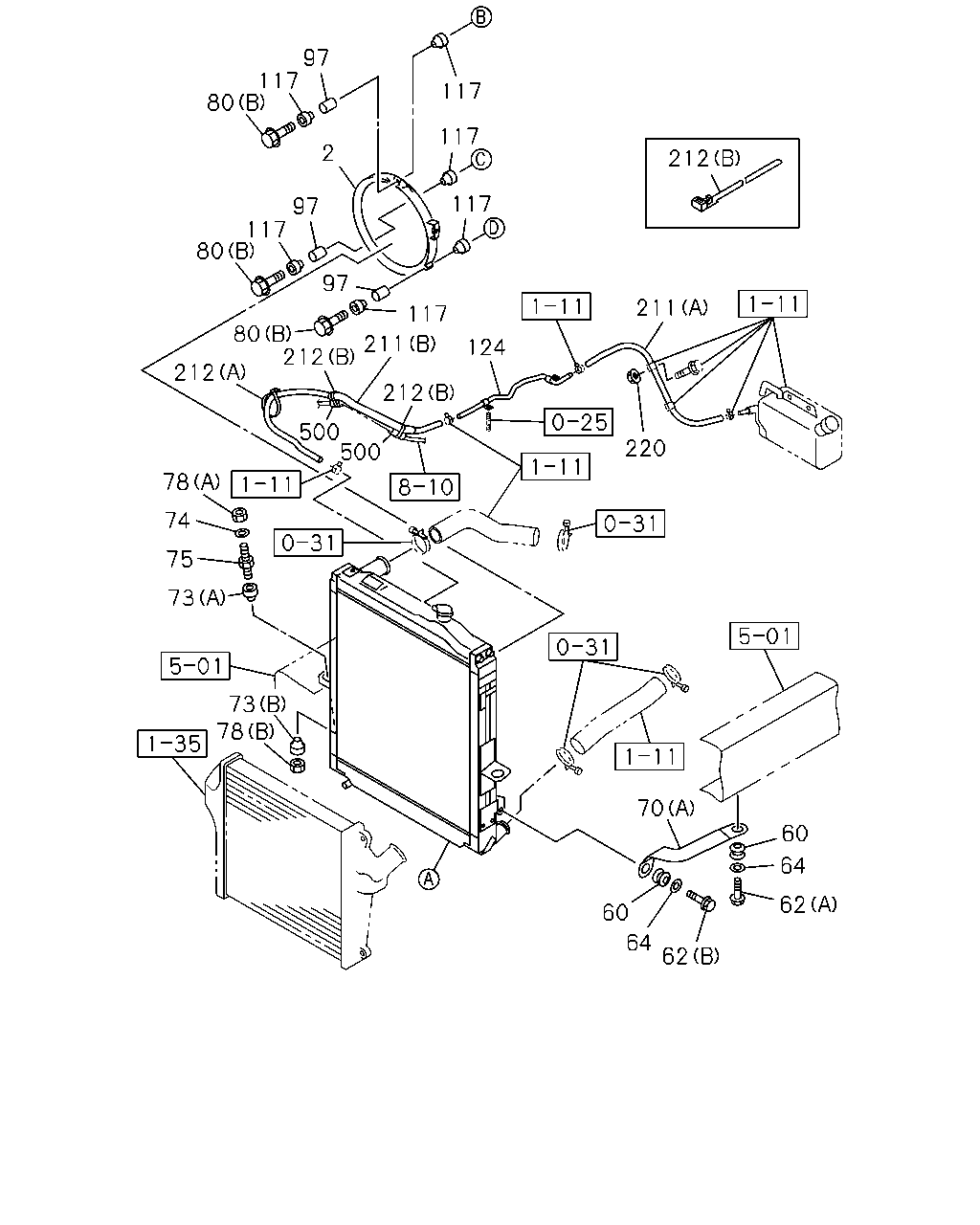

çizim 190089
97 117 80 117 117 2 212 117 97 117 80 97 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 70 60 64 62 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-97350-995-0 01 1 1103- ●
2 GUIDE; FAN 8-94393-779-1 01 1 1010- ●
60 GROMMET 1-09332-117-0 04 1 1010- ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1103- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1010- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1010- ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 1103- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1010- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1103- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1103- ●
70 STAY; RAD
SGL CAB(FC**M*) (A) 		8-98078-897-0 01 1 1010- ●
70 STAY; RAD
SGL CAB(FC**M*) (A) 		8-98078-896-0 01 1 1010- ●
70 STAY; RAD
DBL CAB(FC**W*) (A) 		8-98078-905-0 01 1 1010- ●
70 STAY; RAD
DBL CAB(FC**W*) (A) 		8-98078-903-0 01 1 1010- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1010- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1010- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1010- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1010- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1010- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1103- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1010-1102 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1103- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1010-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1010- ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1103- ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1010- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1010- ●
211 HOSE; RAD TO PIPE
(C) 		8-98178-700-2 01 1 1103- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1010- ●
211 HOSE; RAD TO PIPE
SGL CAB(FC**M*) (A) L=560 		8-98119-375-0 01 1 1010- ●
211 HOSE; RAD TO PIPE
DBL CAB(FC**W*) (A) L=1140 		8-98119-760-0 01 1 1010- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 1010-1102 ●
212 CLIP; HOSE
DBL CAB(FC**W*) (A) L=250 		5-09707-030-1 01 1 1010-1102 ●
212 CLIP; HOSE
DBL CAB(FC**W*) (A) L=250 		5-09707-030-1 01 1 1103- ● ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 1103- ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 1010- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1103- ●
220 NUT; CLIP
SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
220 NUT; CLIP
DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
