Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#72022) — 194 parça

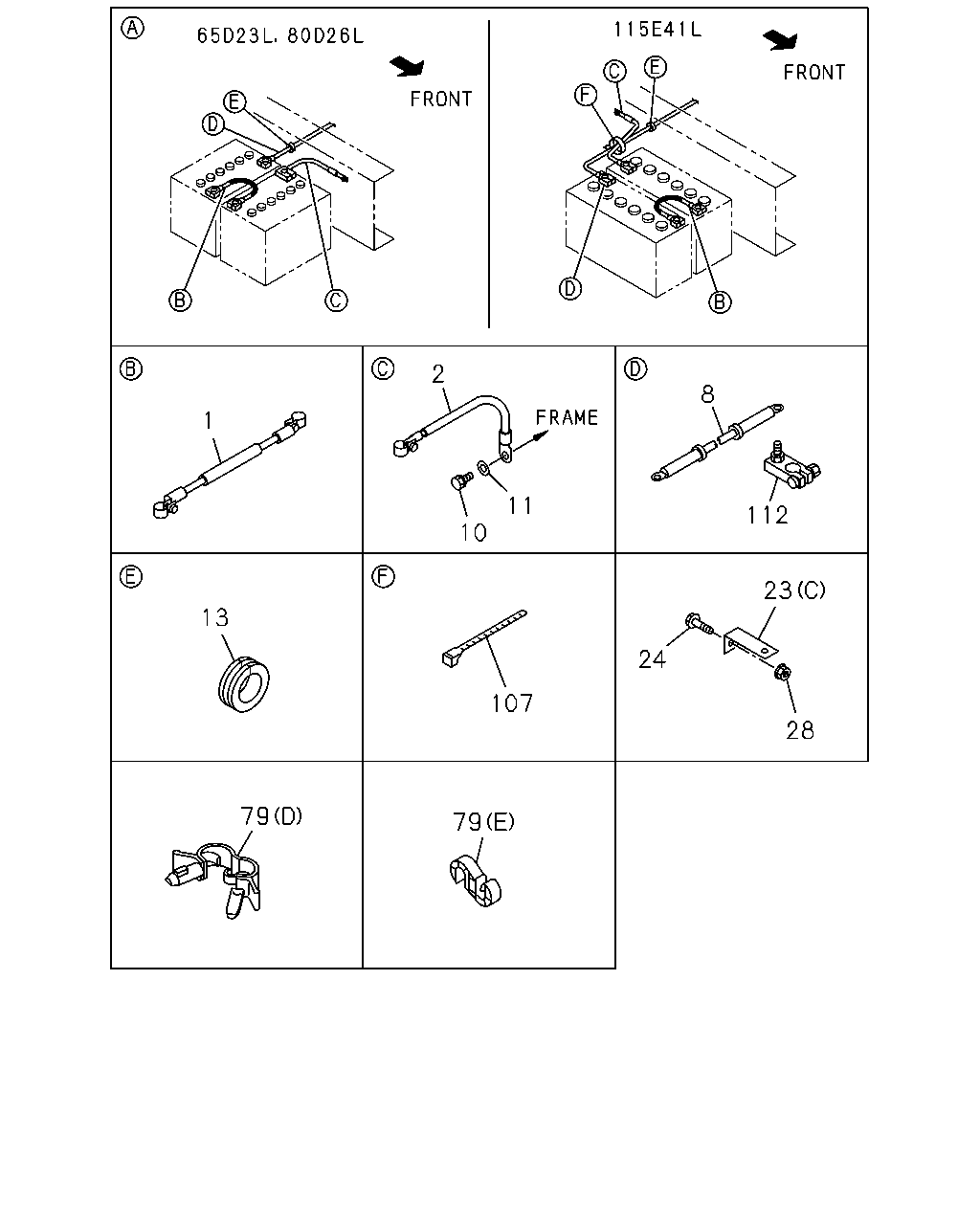

2 8 1 11 112 10 23 13 24 107 28 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1010-	●	●
2	CABLE; BATTERY 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240	8-97619-727-1	01	1	1103-		●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=400	8-97619-733-1	01	1	1010-	●	●
2	CABLE; BATTERY 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250	8-97619-729-2	01	1	1010-	●	●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2485	8-98085-325-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-392-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2280	8-98085-324-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-391-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2725	8-98085-327-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA>	8-98295-394-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2520	8-98085-326-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-393-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98295-450-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA> L=1990	8-98064-949-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA>	8-98295-403-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1750	8-98064-948-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-402-0	01	1	1503-		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1010-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1010-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-	●	●
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (C) L=95	1-82699-085-0	01	1	1103-		●
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (E)	8-98051-380-1	01	1	1103-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98147-440-0	01	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=65	1-47479-064-1	01	1	1010-		●
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (D)	8-98092-593-0	01	1	1010-		●
24	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	01	1	1103-		●
24	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	02	1	1103-		●
24	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1103-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1103-		●
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1103-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1010-1102	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1103-	●
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1103-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1010-		●
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (B) ID=21 L=24	8-98019-191-0	01	1	1103-		●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1010-	●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (C) ID=21 & 9.8	8-97309-945-0	01	1	1010-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	1010-	●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=14.5 L=40	1-09701-014-0	01	1	1010-		●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (F) L=350	1-09707-183-0	01	1	1010-		●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1010-		●
79	CLIP; BATTERY CABLE (E) ID=4.76 & 15	1-09709-307-0	01	1	1010-		●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1010-	●	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1010-1408	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-	●	●

44 23 44 12 28 23 28 12 79 36 8 79 226 217 23 79 225 82 23 79 8 33 61 79 80 76 56 57 33 55 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2485	8-98085-325-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-392-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2280	8-98085-324-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-391-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2725	8-98085-327-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA>	8-98295-394-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2520	8-98085-326-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-393-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98295-450-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA> L=1990	8-98064-949-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA>	8-98295-403-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1750	8-98064-948-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-402-0	01	1	1503-		●
12	NUT; BATTERY CABLE CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1103-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (C) L=95	1-82699-085-0	01	1	1103-		●
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (E)	8-98051-380-1	01	1	1103-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98147-440-0	01	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=65	1-47479-064-1	01	1	1010-		●
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (D)	8-98092-593-0	01	1	1010-		●
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1103-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1010-1102	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1103-	●
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1103-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1010-		●
33	CAP; INSULATOR 6HK1-TCN ENG(82L)	1-82699-431-0	01	1	1010-	●	●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1010-1502	●	●
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-	●	●
44	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1103-		●
44	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1010-1102	●	●
55	BOLT; CLIP,BATTERY CABLE 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1103-	●	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1010-1102	●	●
56	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) ID=16 L=28	1-09700-872-0	01	1	1103-	●	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1010-1102	●	●
57	WASHER; PL,BATTERY CABLE 6HK1-TCN ENG(82L) ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1103-	●	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1010-1102	●	●
61	BRACKET; BATTERY CABLE 6HK1-TCN ENG(82L)	8-98051-379-1	01	1	1103-	●	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1010-1102	●	●
76	NUT; BATTERY CABLE 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1103-	●	●
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (B) ID=21 L=24	8-98019-191-0	01	1	1103-		●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1010-	●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (C) ID=21 & 9.8	8-97309-945-0	01	1	1010-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	1010-	●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=14.5 L=40	1-09701-014-0	01	1	1010-		●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (F) L=350	1-09707-183-0	01	1	1010-		●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1010-		●
79	CLIP; BATTERY CABLE (E) ID=4.76 & 15	1-09709-307-0	01	1	1010-		●
80	BOLT; BATTERY CABLE CLIP 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1103-		●
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
82	PROTECTOR; HEAT,BATTERY CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=6 OD=10 L=70	1-09376-512-0	01	1	1010-	●
217	CLIP; BAND,CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=250	5-09707-030-1	01	1	1010-	●	●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1010-	●	●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1010-1502	●	●
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-	●	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1010-1502	●	●
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-	●	●

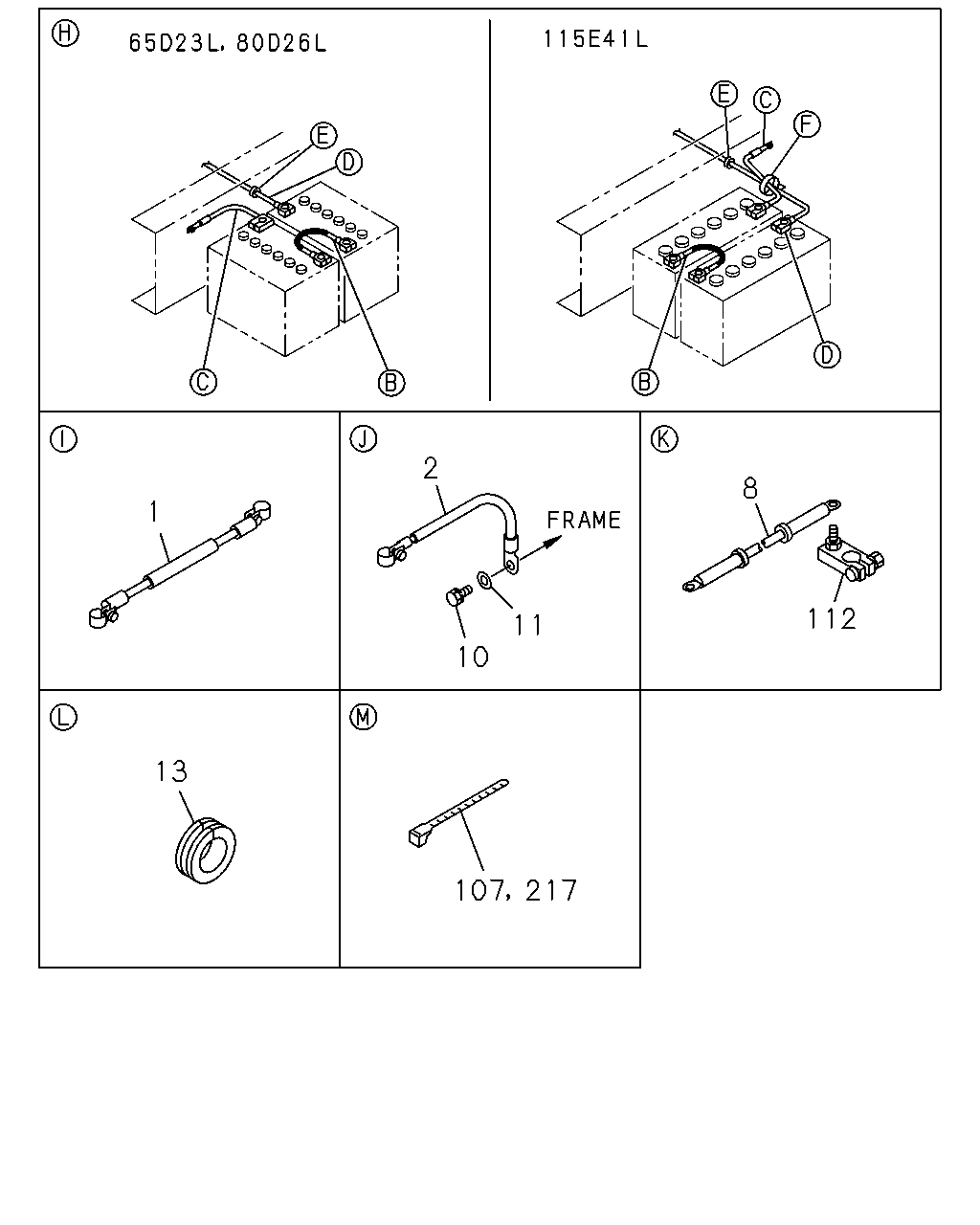

2 8 1 112 11 10 13 107 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1010-	●	●
2	CABLE; BATTERY 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240	8-97619-727-1	01	1	1103-		●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=400	8-97619-733-1	01	1	1010-	●	●
2	CABLE; BATTERY 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250	8-97619-729-2	01	1	1010-	●	●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2485	8-98085-325-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-392-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2280	8-98085-324-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-391-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2725	8-98085-327-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA>	8-98295-394-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2520	8-98085-326-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-393-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98295-450-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA> L=1990	8-98064-949-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA>	8-98295-403-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1750	8-98064-948-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-402-0	01	1	1503-		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1010-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1010-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	1010-	●	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1010-1408	●	●
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-	●	●
217	CLIP; BAND,CABLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=250	5-09707-030-1	01	1	1010-	●	●

12 24 24 23 44 79 8 36 225 226 23 28 80 79 37 79 30 31 24 87 223 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2485	8-98085-325-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-392-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2280	8-98085-324-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-391-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> L=2725	8-98085-327-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA>	8-98295-394-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2520	8-98085-326-1	01	1	1103-1502		●
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98295-393-1	01	1	1503-		●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98156-652-0	01	1	1010-1502	●
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1770	8-98295-450-1	01	1	1503-	●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA> L=1990	8-98064-949-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 115E41L<8MA>	8-98295-403-0	01	1	1503-		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1750	8-98064-948-2	01	1	1010-1502		●
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-402-0	01	1	1503-		●
12	NUT; BATTERY CABLE CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1103-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (C) L=95	1-82699-085-0	01	1	1103-		●
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (E)	8-98051-380-1	01	1	1103-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98147-440-0	01	1	1010-	●
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=65	1-47479-064-1	01	1	1010-		●
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (D)	8-98092-593-0	01	1	1010-		●
24	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	01	1	1103-		●
24	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	02	1	1103-		●
24	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1103-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1103-		●
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1103-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1010-1102	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1103-	●
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1103-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1010-		●
30	NUT; CABLE,STARTER TO BATTERY 4HK1-TCS ENG(RJS) M8	0-91110-508-0	01	1	1103-		●
31	WASHER; LK,CABLE,STARTER TO BATTERY 4HK1-TCS ENG(RJS) ID=8.2	0-91510-808-0	01	1	1103-		●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1010-1502	●	●
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-	●	●
37	CAP; TERMINAL,BATTERY CABLE 4HK1-TCS ENG(RJS)	8-98042-507-0	01	1	1103-		●
44	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1103-		●
44	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1010-	●	●
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (B) ID=21 L=24	8-98019-191-0	01	1	1103-		●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1010-	●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (C) ID=21 & 9.8	8-97309-945-0	01	1	1010-	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	1010-	●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=14.5 L=40	1-09701-014-0	01	1	1010-		●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (F) L=350	1-09707-183-0	01	1	1010-		●
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1010-		●
79	CLIP; BATTERY CABLE (E) ID=4.76 & 15	1-09709-307-0	01	1	1010-		●
80	BOLT; BATTERY CABLE CLIP 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1103-		●
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1010-	●	●
87	BRACKET; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-617-1	01	1	1103-		●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1010-	●	●
223	NUT; EARTH CABLE 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1103-		●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1010-1502	●	●
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-	●	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1010-1502	●	●
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
