Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#72021) — 197 parça

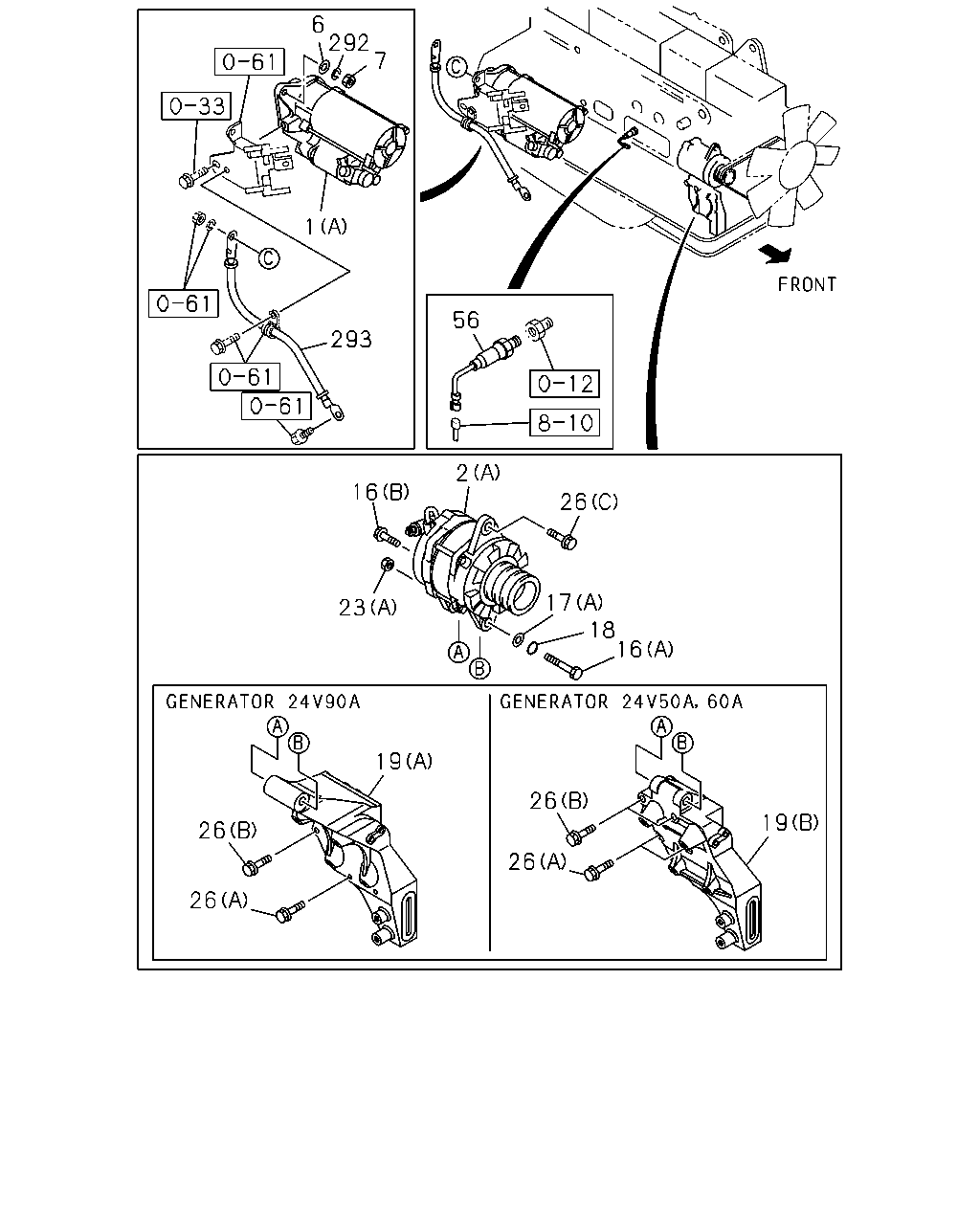

6 292 7 1 56 293 2 16 26 17 18 16 23 19 26 19 26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 24V 4.5KW HITACHI	8-98179-204-1	01	1	1103-1207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 24V 4.5KW HITACHI	8-98009-043-2	01	1	1103-1207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 24V 4.5KW HITACHI	8-98245-260-0	01	1	1312-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1010-1102	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1103-1409	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (B) 24V 60A NIKKO	8-98013-456-4	01	1	1103-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 24V 90A NIKKO	8-98013-459-3	01	1	1103-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (B) 24V 50A NIKKO	8-98013-455-4	01	1	1103-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) (A) 24V 50A NIKKO	8-98013-461-5	01	1	1010-1102	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A) 24V 50A NIKKO	8-98013-461-5	01	1	1103-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) (A) 24V 60A NIKKO	8-98013-462-5	01	1	1010-1102	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A) 24V 60A NIKKO	8-98013-462-5	01	1	1103-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98013-463-3	01	1	1010-1102	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98013-463-3	01	1	1103-	●	●
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	1010-1102	●	●
6	WASHER; PL,STARTER 6HK1-TCN ENG(82L) ID=15	0-91610-514-0	01	1	1103-	●	●
7	NUT; STARTER M14	0-91110-514-0	02	1	1010-1102	●	●
7	NUT; STARTER 6HK1-TCN ENG(82L) M14	0-91110-514-0	02	1	1103-	●	●
16	BOLT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10X45 FLANGE	0-28051-045-0	01	1	1103-	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	1010-1102		●
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	1103-	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1010-	●	●
16	BOLT; GEN HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	1010-1102	●	●
16	BOLT; GEN 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	1103-	●	●
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (B) ID=14.2	0-91510-814-0	01	1	1103-	●
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) ID=12.5	0-91610-712-0	01	1	1103-	●
17	WASHER; PL,GEN (A) ID=15	0-91610-514-0	01	1	1010-	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	1010-1102	●	●
18	WASHER; LK,GEN 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1103-	●	●
19	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98032-273-0	01	1	1103-	●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	1010-1102	●	●
19	BRACKET; GEN 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	1103-	●	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	1010-1102	●	●
19	BRACKET; GEN 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	1103-	●	●
23	NUT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1103-	●
23	NUT; GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1103-	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1010-	●	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) M10X50 FLANGE	0-28151-050-0	01	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) M10X70 FLANGE	0-28151-070-0	02	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (F) M8X70 FLANGE	0-28050-870-0	01	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (E) M10X60 FLANGE	0-28151-060-0	02	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D) M10X70 FLANGE	0-28151-070-0	01	1	1103-	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	02	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28151-040-0	02	1	1103-	●	●
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28151-025-0	01	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28151-025-0	01	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X135	8-94397-139-1	01	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (C) M10X135	8-94397-139-1	01	1	1103-	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	1010-1102	●	●
56	SWITCH; OIL PRESSURE WARNING 6HK1-TCN ENG(82L)	1-82410-170-1	01	1	1103-	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	1010-1102	●	●
292	WASHER; LK,STARTER 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1103-	●	●
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS) L=410	8-97620-375-0	01	1	1103-	●
293	CABLE; STARTER EARTH L=530	8-98097-226-0	01	1	1010-1102	●	●
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) L=530	8-98097-226-0	01	1	1103-	●	●

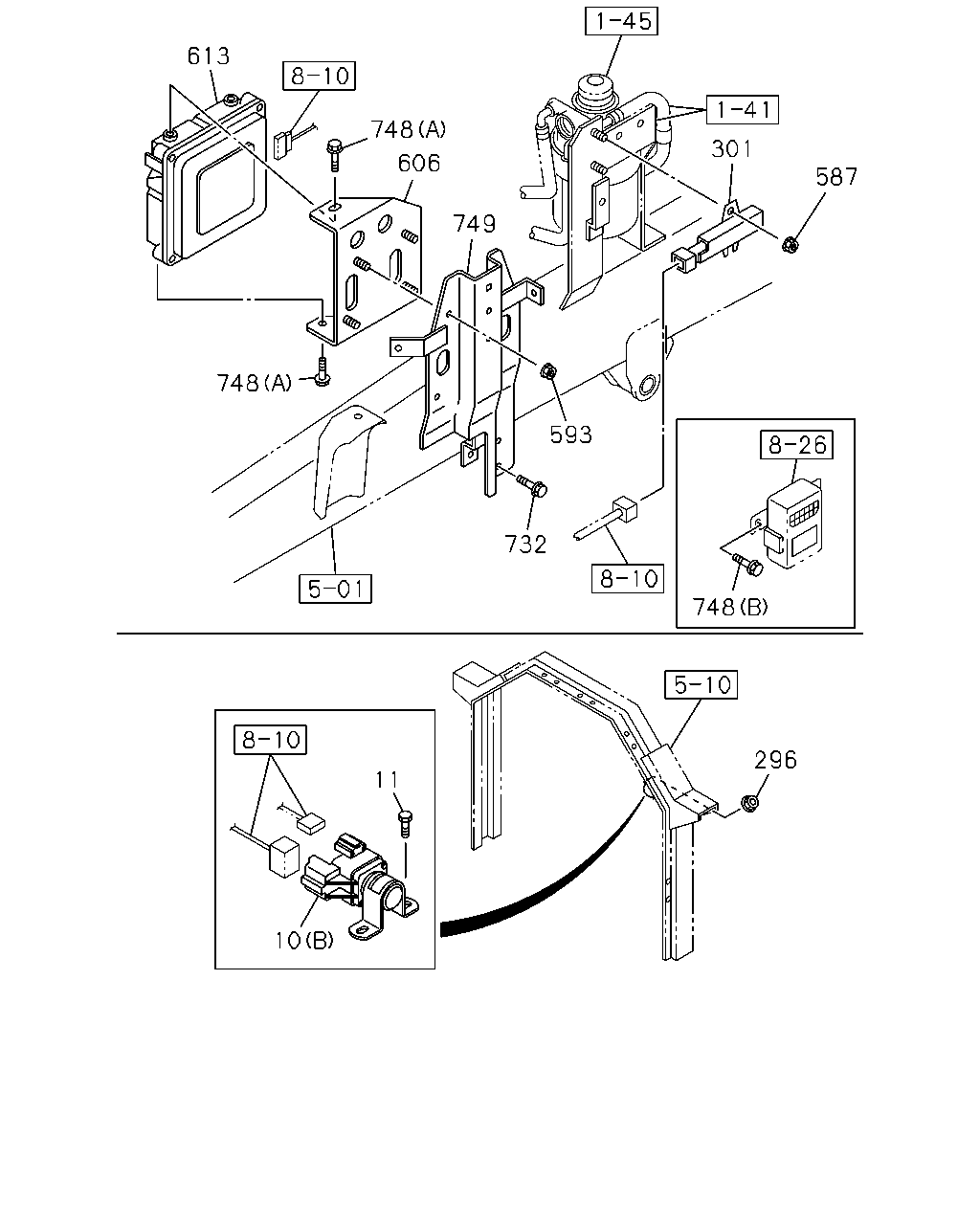

613 748 749 606 748 593 732 748 296 11 10 301 587

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

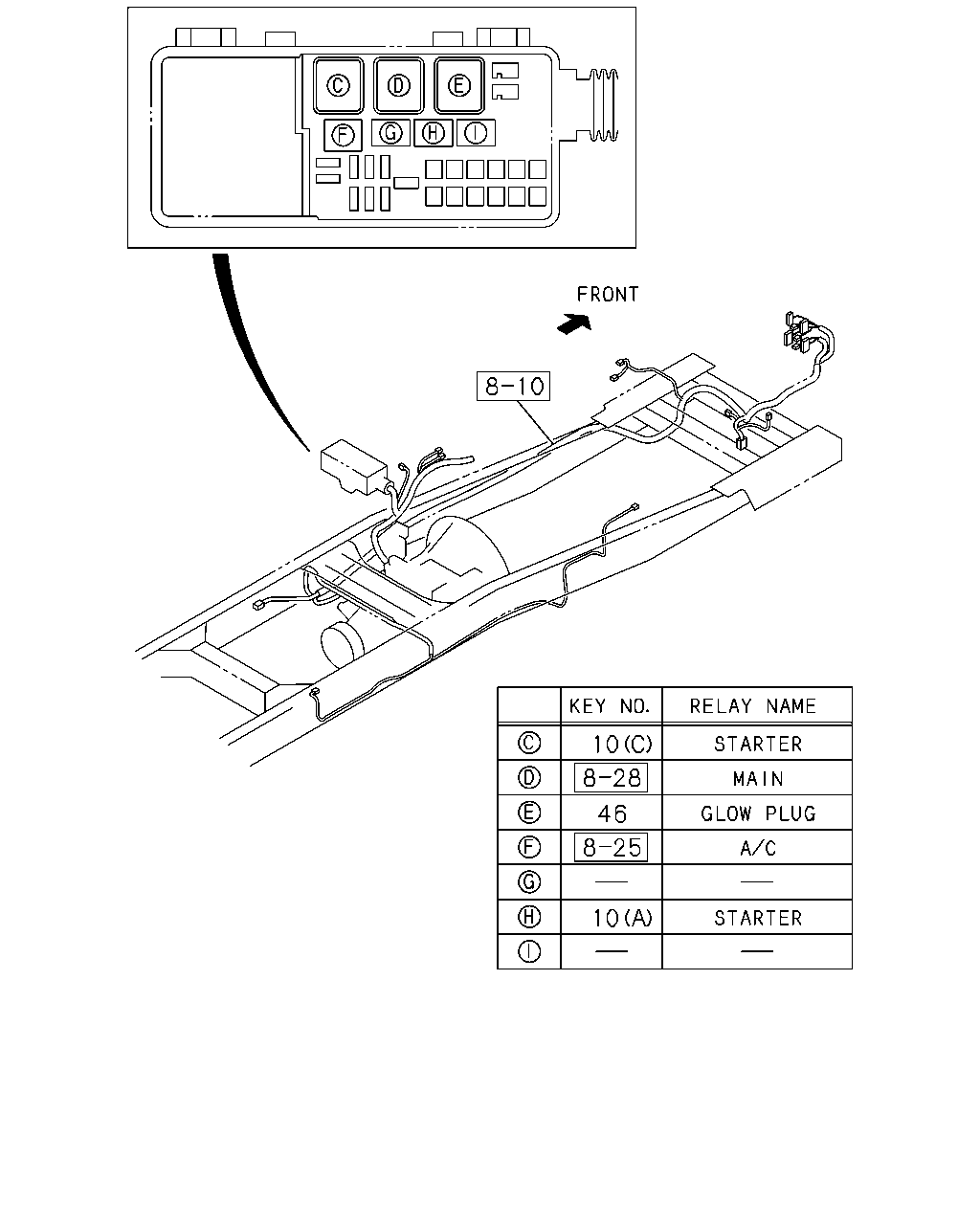

10	RELAY; STARTER 4HK1-TCS ENG(RJS) (C) 24V 50A	8-97264-947-0	01	1	1103-	●
10	RELAY; STARTER 6HK1-TCN ENG(82L) (B) 24V NIKKO	8-98005-631-1	01	1	1010-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1010-	●	●
11	BOLT; RELAY STARTER 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
296	NUT; RELAY,STARTER 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1010-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1010-	●	●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1010-	●	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98171-783-1	01	1	1103-	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98171-785-1	01	1	1103-	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98171-784-1	01	1	1103-	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98171-786-1	01	1	1103-	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98170-797-1	01	1	1010-		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98170-791-1	01	1	1010-		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98170-800-1	01	1	1010-		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98170-794-1	01	1	1010-		●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98170-796-1	01	1	1010-	●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98170-790-1	01	1	1010-	●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98170-799-1	01	1	1010-	●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98170-793-1	01	1	1010-	●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1010-	●	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1010-	●	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	1010-	●	●
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS)	1-53194-596-3	01	1	1103-	●
749	STAY; CONT UNIT 6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1010-	●	●

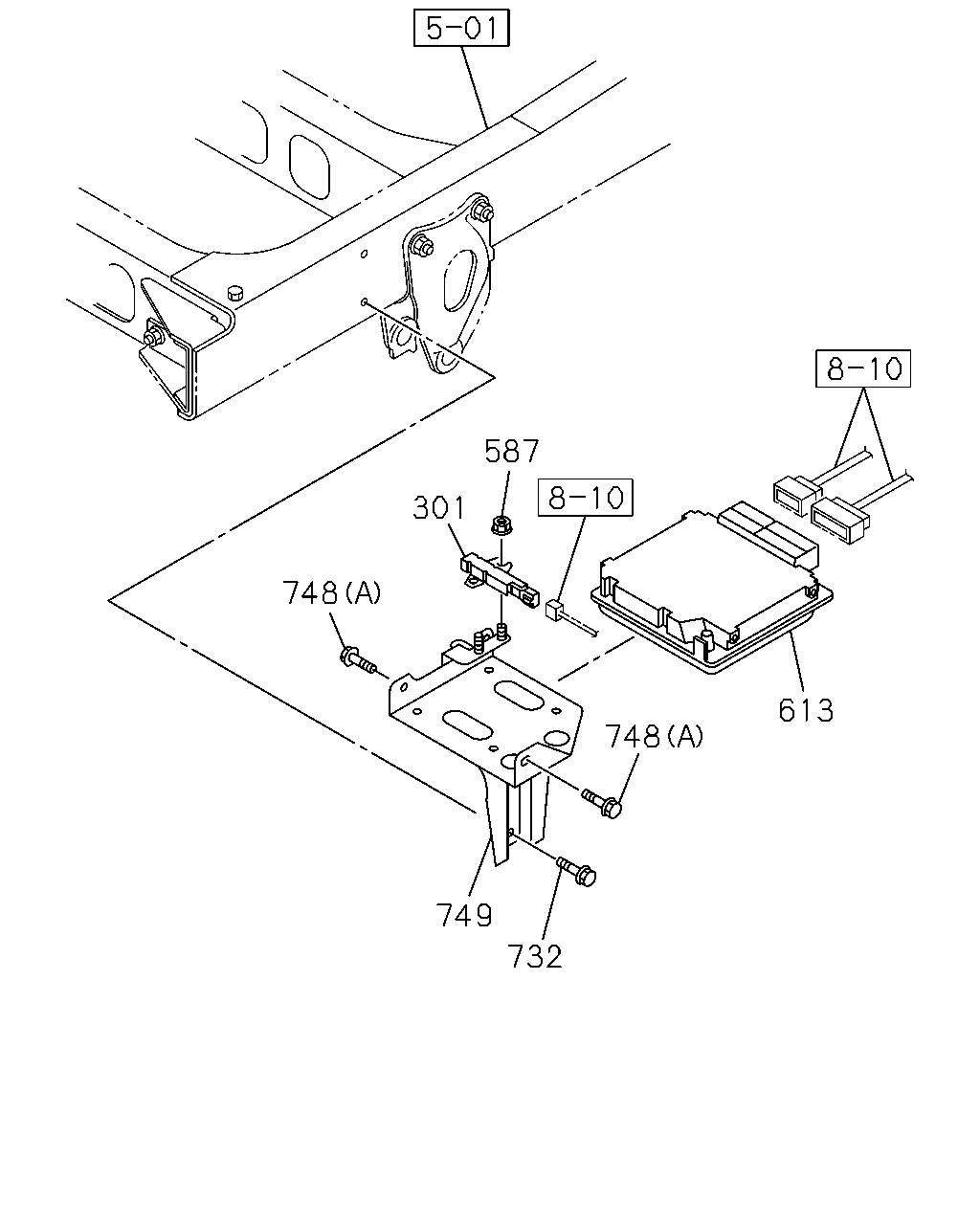

587 301 748 613 748 749 732

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1010-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1010-	●	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98171-783-1	01	1	1103-	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98171-785-1	01	1	1103-	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98171-784-1	01	1	1103-	●
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98171-786-1	01	1	1103-	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98170-797-1	01	1	1010-		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98170-791-1	01	1	1010-		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98170-800-1	01	1	1010-		●
613	CONTROL UNIT; ENG TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98170-794-1	01	1	1010-		●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98170-796-1	01	1	1010-	●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98170-790-1	01	1	1010-	●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98170-799-1	01	1	1010-	●
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>	8-98170-793-1	01	1	1010-	●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1010-	●	●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1010-	●	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	1010-	●	●
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS)	1-53194-596-3	01	1	1103-	●
749	STAY; CONT UNIT 6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1010-	●	●

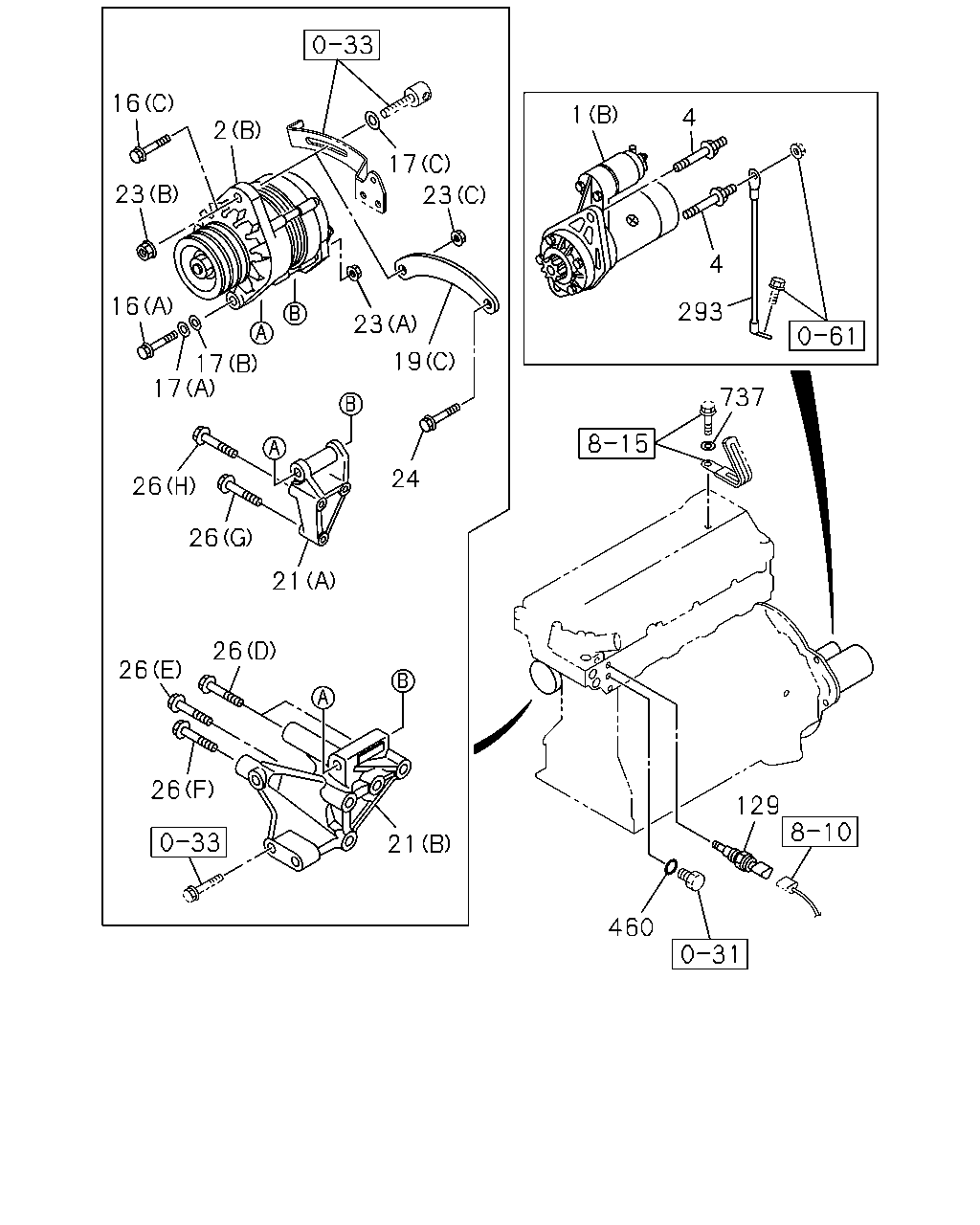

16 1 4 2 17 23 23 4 16 293 23 19 17 17 737 24 26 26 21 26 26 26 129 21 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 24V 4.5KW HITACHI	8-98179-204-1	01	1	1103-1207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 24V 4.5KW HITACHI	8-98009-043-2	01	1	1103-1207	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 24V 4.5KW HITACHI	8-98245-260-0	01	1	1312-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1010-1102	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1103-1409	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) (A) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (B) 24V 60A NIKKO	8-98013-456-4	01	1	1103-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 24V 90A NIKKO	8-98013-459-3	01	1	1103-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (B) 24V 50A NIKKO	8-98013-455-4	01	1	1103-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) (A) 24V 50A NIKKO	8-98013-461-5	01	1	1010-1102	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (A) 24V 50A NIKKO	8-98013-461-5	01	1	1103-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) (A) 24V 60A NIKKO	8-98013-462-5	01	1	1010-1102	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (A) 24V 60A NIKKO	8-98013-462-5	01	1	1103-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98013-463-3	01	1	1010-1102	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A) 24V 90A NIKKO	8-98013-463-3	01	1	1103-	●	●
4	BOLT; STARTER 4HK1-TCS ENG(RJS) M10X15,M14X82 L=110	8-98029-095-0	02	1	1103-	●
16	BOLT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10X45 FLANGE	0-28051-045-0	01	1	1103-	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	1010-1102		●
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	1103-	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1010-	●	●
16	BOLT; GEN HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	1010-1102	●	●
16	BOLT; GEN 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	1103-	●	●
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (B) ID=14.2	0-91510-814-0	01	1	1103-	●
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) ID=12.5	0-91610-712-0	01	1	1103-	●
17	WASHER; PL,GEN (A) ID=15	0-91610-514-0	01	1	1010-	●	●
19	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98032-273-0	01	1	1103-	●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	1010-1102	●	●
19	BRACKET; GEN 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	1103-	●	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	1010-1102	●	●
19	BRACKET; GEN 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	1103-	●	●
21	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1103-	●
21	BRACKET; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1103-	●
23	NUT; GEN 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1103-	●
23	NUT; GEN 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1103-	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1010-	●	●
24	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) M10X50 FLANGE	0-28151-050-0	01	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) M10X70 FLANGE	0-28151-070-0	02	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (F) M8X70 FLANGE	0-28050-870-0	01	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (E) M10X60 FLANGE	0-28151-060-0	02	1	1103-	●
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D) M10X70 FLANGE	0-28151-070-0	01	1	1103-	●
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	02	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28151-040-0	02	1	1103-	●	●
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28151-025-0	01	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (C) M10X25 FLANGE	0-28151-025-0	01	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M10X135	8-94397-139-1	01	1	1010-1102	●	●
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) GENERATOR 24V90A(K44) (C) M10X135	8-94397-139-1	01	1	1103-	●	●
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) MITSUBISHI	8-98023-883-0	01	1	1103-1503	●
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) NISHIDA	8-98260-257-0	01	1	1504-	●
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS) L=410	8-97620-375-0	01	1	1103-	●
293	CABLE; STARTER EARTH L=530	8-98097-226-0	01	1	1010-1102	●	●
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) L=530	8-98097-226-0	01	1	1103-	●	●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) ID=16.2	1-09630-086-0	01	1	1103-	●
737	WASHER; PL 4HK1-TCS ENG(RJS) ID=6.4 OD=18	0-91610-706-0	02	1	1103-	●

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (C) 24V 50A	8-97264-947-0	01	1	1103-	●
10	RELAY; STARTER 6HK1-TCN ENG(82L) (B) 24V NIKKO	8-98005-631-1	01	1	1010-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1010-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1010-	●	●

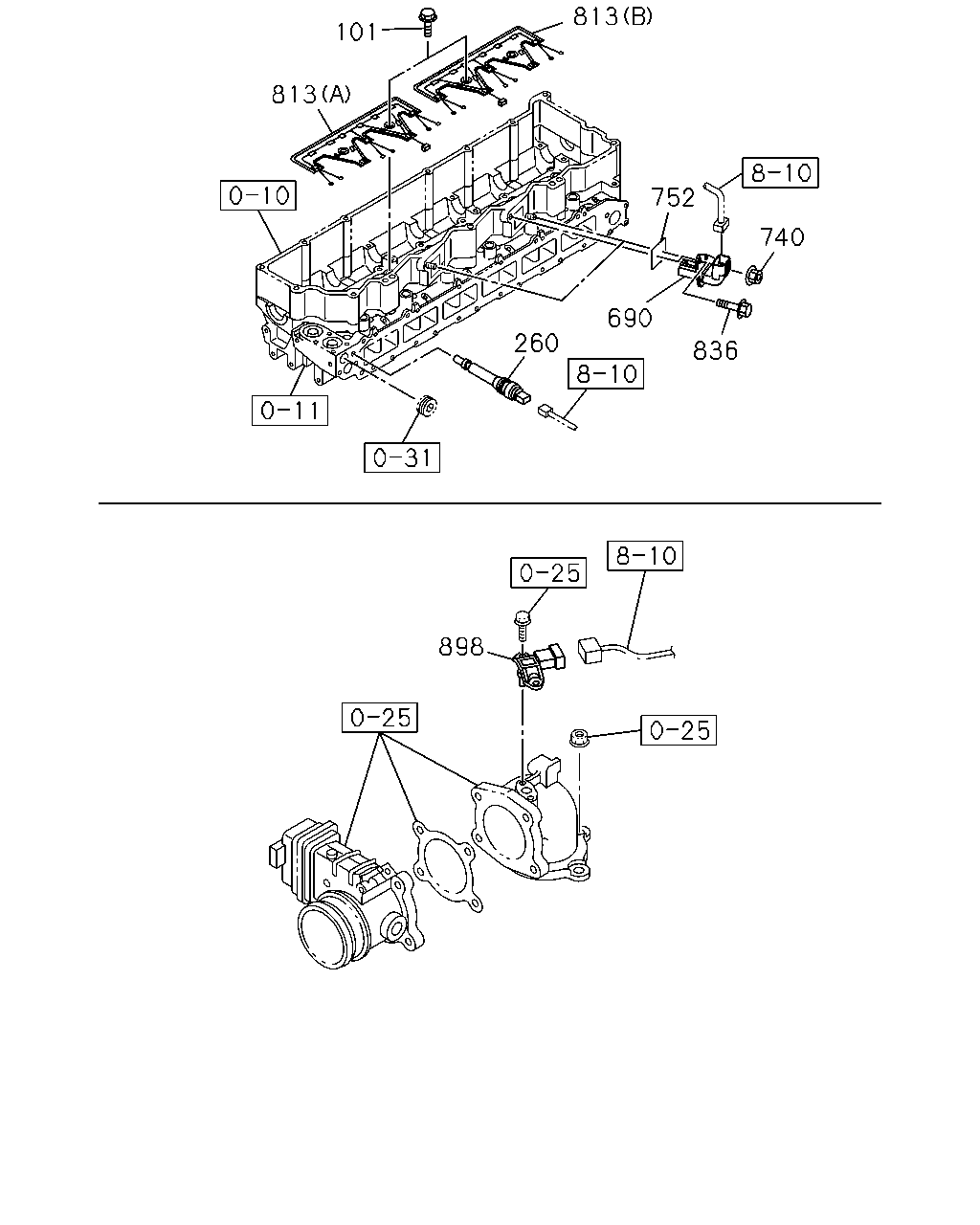

813 101 813 752 740 690 260 836 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	1010-1102	●	●
101	BOLT; HARNESS 6HK1-TCN ENG(82L) M8X40 FLANGE	0-28650-840-0	04	1	1103-	●	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	1010-1102	●	●
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) MITSUBISHI	8-98023-883-0	01	1	1103-1503	●	●
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) NISHIDA	8-98260-257-0	01	1	1504-	●	●
690	CONNECTOR	8-94390-858-1	02	1	1010-1102	●	●
690	CONNECTOR 6HK1-TCN ENG(82L)	8-94390-858-1	02	1	1103-	●	●
740	NUT M8 FLANGE	0-91180-108-0	04	1	1010-1011	●	●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-1102	●	●
740	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	1010-1102	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L)	8-94391-310-0	02	1	1103-	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1010-1102	●	●
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (A) FRONT	8-98177-447-0	01	1	1103-1112	●	●
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (A) FRONT	8-98204-717-0	01	1	1201-	●	●
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1010-1102	●	●
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (B) REAR	8-98177-448-0	01	1	1103-1112	●	●
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (B) REAR	8-98204-718-0	01	1	1201-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-1102	●	●
836	BOLT; CONNECTOR 6HK1-TCN ENG(82L) M8X12 FLANGE	0-28050-812-0	02	1	1103-	●	●
898	SENSOR; BOOST	8-98009-418-0	01	1	1010-1102	●	●
898	SENSOR; BOOST 6HK1-TCN ENG(82L)	8-98009-418-0	01	1	1103-	●	●

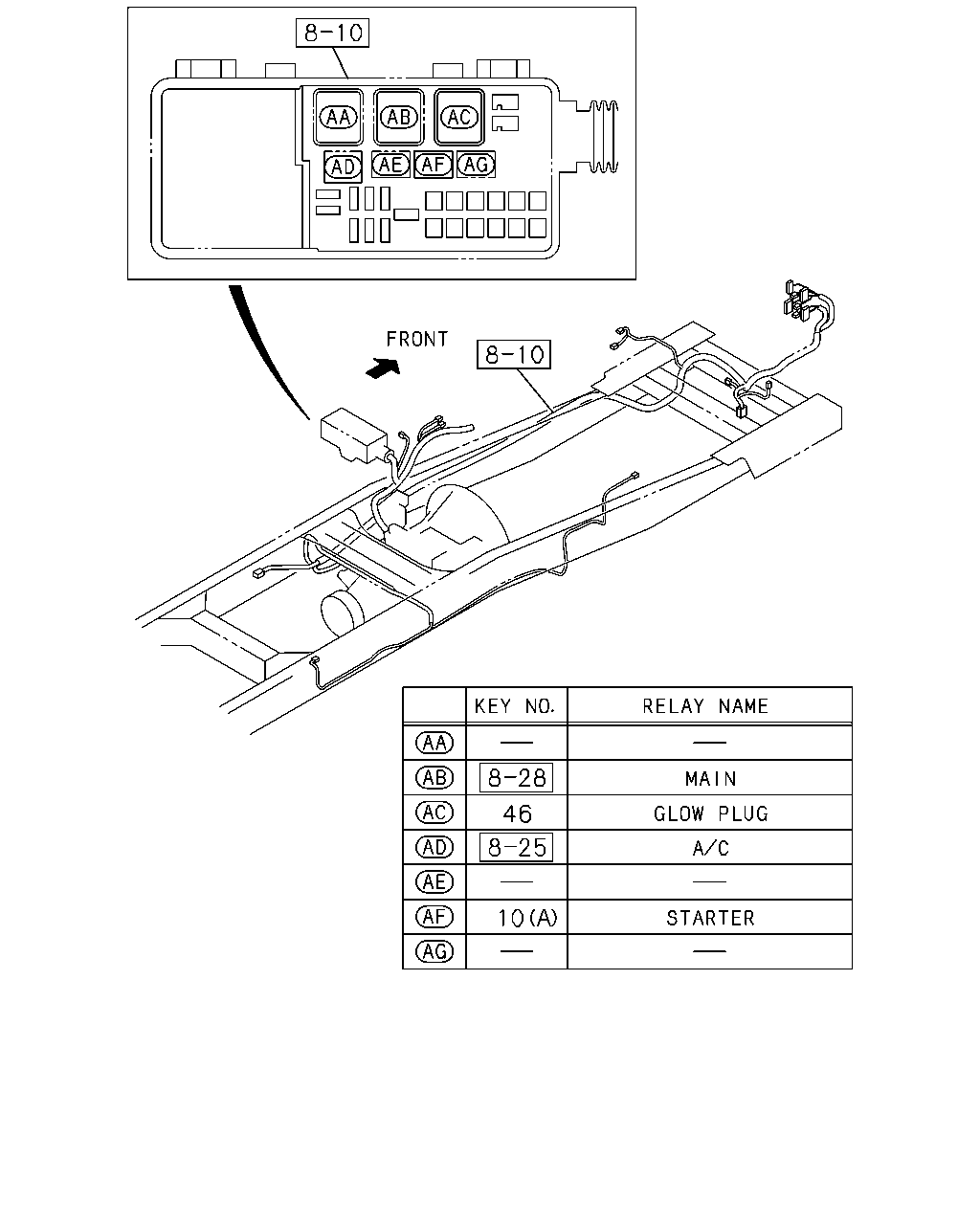

46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (C) 24V 50A	8-97264-947-0	01	1	1103-	●
10	RELAY; STARTER 6HK1-TCN ENG(82L) (B) 24V NIKKO	8-98005-631-1	01	1	1010-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1010-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1010-	●	●

748

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1010-	●	●
	748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
