0-57 — EMISSION PIPING (#72020) — 112 parça

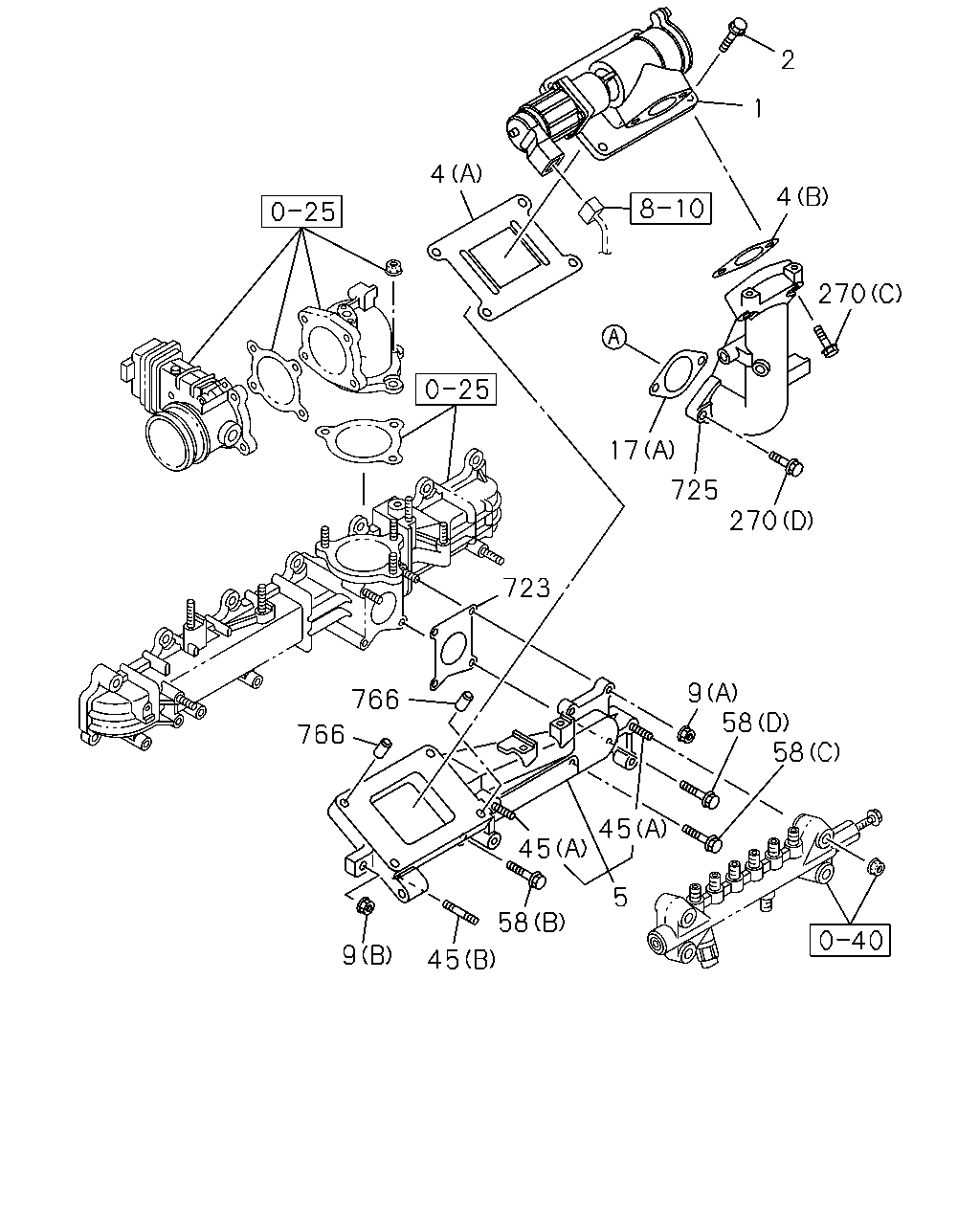

2 1 4 4 270 17 725 270 723 9 58 58 766 766 45 45 5 58 9 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-98098-257-5	01	1	1103-	●
1	VALVE; EGR	8-97383-005-9	01	1	1010-		●
2	BOLT; EGR VLV M8X25 FLANGE	0-28650-825-0	01	1	1103-	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	1010-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	1103-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98036-507-0	01	1	1103-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	1010-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1010-		●
5	ADAPTER ASM	8-97377-804-0	01	1	1103-	●
5	ADAPTER ASM	8-97606-201-3	01	1	1010-1305		●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-		●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	1010-		●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	1010-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=51.5	8-98046-192-1	01	1	1103-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55	8-97600-167-0	01	1	1010-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5	8-97601-144-0	02	1	1010-		●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	1010-		●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	1010-		●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1010-		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1010-		●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1010-		●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	04	1	1010-		●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1010-		●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	1010-		●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1010-		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	1010-		●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1010-		●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	1010-		●
725	DUCT; EGR VLV	8-97604-972-2	01	1	1010-1305		●
725	DUCT; EGR VLV	8-98240-120-0	01	1	1306-		●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	1010-		●

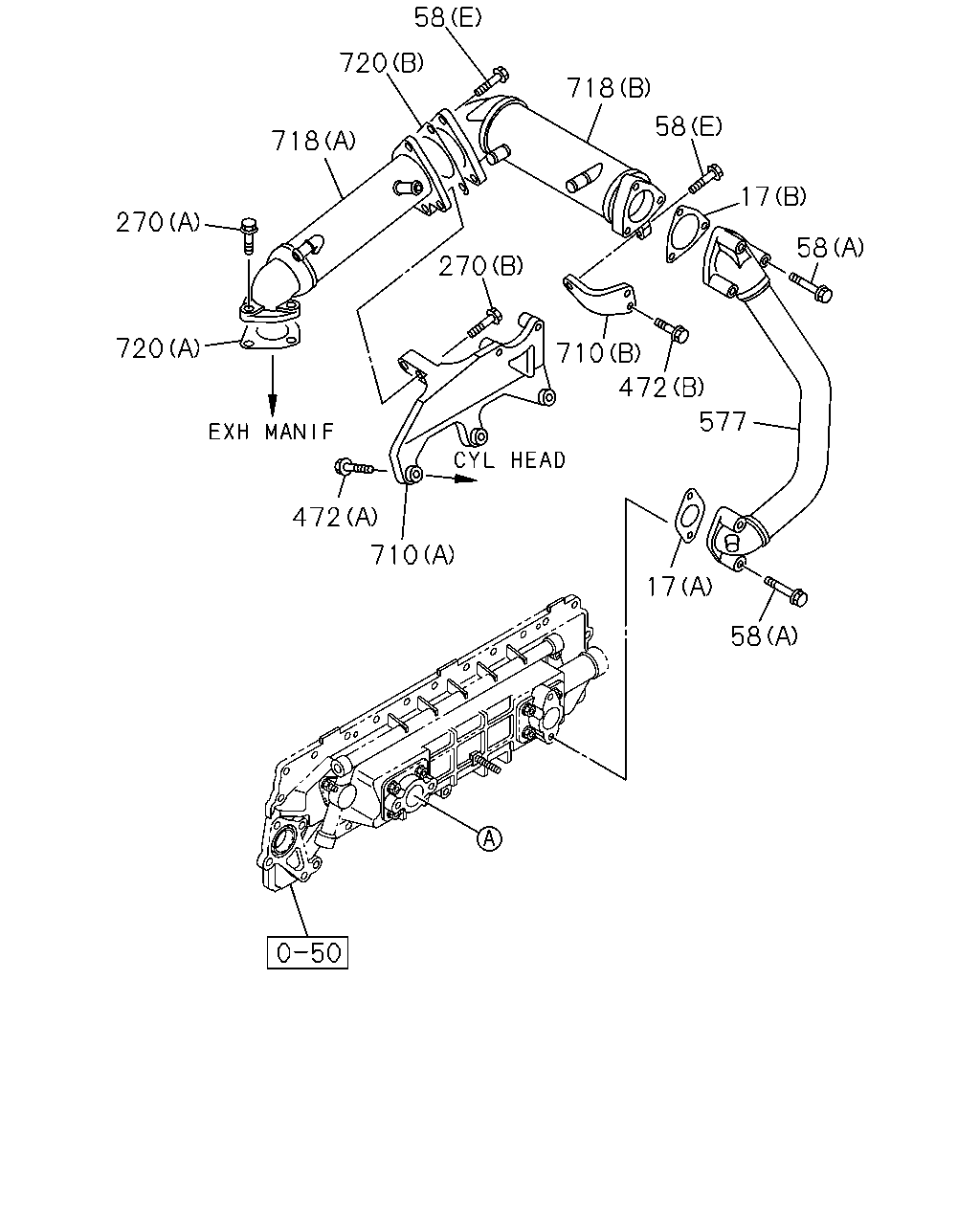

58 720 718 58 718 17 270 58 270 720 710 472 577 472 710 17 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=51.5	8-98046-192-1	01	1	1103-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55	8-97600-167-0	01	1	1010-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5	8-97601-144-0	02	1	1010-		●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1010-		●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1010-		●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1010-		●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	04	1	1010-		●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1010-		●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	1010-		●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1010-		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	1010-		●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1010-		●
472	BOLT; BRKT (C) M8X25 FLANGE	0-28660-825-0	02	1	1103-	●
472	BOLT; BRKT (D) M10X40 FLANGE	0-28751-040-0	02	1	1103-	●
472	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	02	1	1010-		●
472	BOLT; BRKT (A) M8X35 FLANGE	0-28060-835-0	03	1	1010-		●
577	PIPE; AIR,EGR	8-97604-968-1	01	1	1010-		●
710	BRACKET; EGR COOLER (D)	8-98025-253-2	01	1	1103-	●
710	BRACKET; EGR COOLER (E)	8-98025-254-1	01	1	1103-	●
710	BRACKET; EGR COOLER (C)	8-98055-940-1	01	1	1103-	●
710	BRACKET; EGR COOLER (B)	8-98030-584-0	01	1	1010-		●
710	BRACKET; EGR COOLER (A)	8-98125-359-0	01	1	1010-1202		●
710	BRACKET; EGR COOLER (A)	8-98186-437-0	01	1	1203-		●
718	COOLER; EGR (A)	8-98030-582-3	01	1	1010-1401		●
718	COOLER; EGR (A)	8-98250-860-0	01	1	1402-		●
718	COOLER; EGR (B)	8-98030-583-1	01	1	1010-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98149-353-0	03	1	1103-1302	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98200-753-0	03	1	1303-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	1010-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	1010-		●

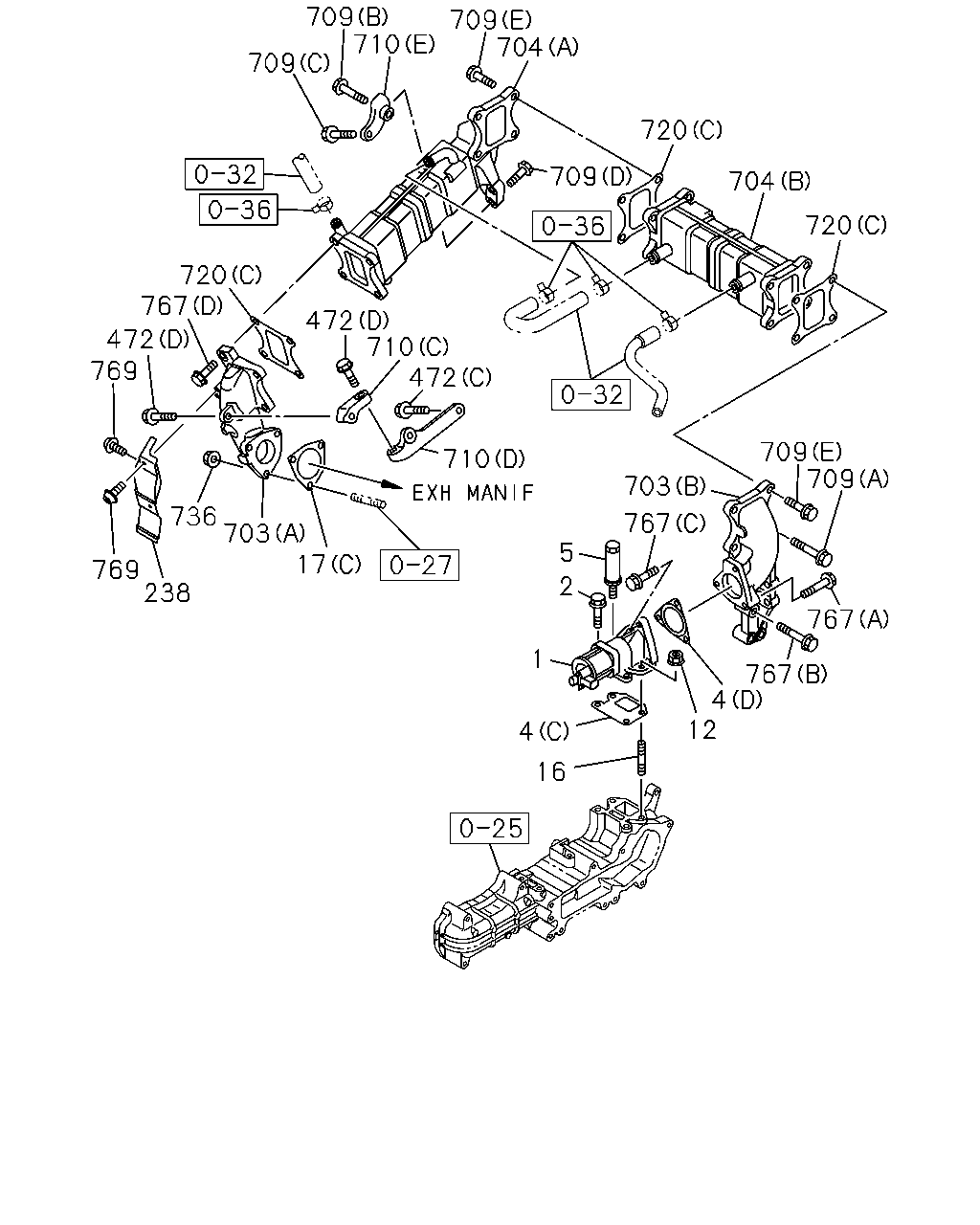

709 710 709 704 709 720 709 704 720 720 767 472 710 472 472 769 709 709 710 703 736 703 767 17 5 769 238 2 767 1 767 4 12 4 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-98098-257-5	01	1	1103-	●
1	VALVE; EGR	8-97383-005-9	01	1	1010-		●
2	BOLT; EGR VLV M8X25 FLANGE	0-28650-825-0	01	1	1103-	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	1010-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97306-040-0	01	1	1103-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-98036-507-0	01	1	1103-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	1010-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1010-		●
5	ADAPTER ASM	8-97377-804-0	01	1	1103-	●
5	ADAPTER ASM	8-97606-201-3	01	1	1010-1305		●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-		●
12	NUT; EGR VLV M8 FLANGE	0-91180-108-0	02	1	1103-	●
16	STUD; EGR VLV M8X20 L=32	0-41010-820-0	02	1	1103-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=51.5	8-98046-192-1	01	1	1103-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55	8-97600-167-0	01	1	1010-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5	8-97601-144-0	02	1	1010-		●
238	PROTECTOR; HEAT,EGR	8-98056-572-0	01	1	1103-1204	●
238	PROTECTOR; HEAT,EGR	8-98176-249-0	01	1	1205-	●
472	BOLT; BRKT (C) M8X25 FLANGE	0-28660-825-0	02	1	1103-	●
472	BOLT; BRKT (D) M10X40 FLANGE	0-28751-040-0	02	1	1103-	●
472	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	02	1	1010-		●
472	BOLT; BRKT (A) M8X35 FLANGE	0-28060-835-0	03	1	1010-		●
703	DUCT; EGR (A)	8-98115-663-0	01	1	1103-	●
703	DUCT; EGR (B)	8-98115-665-1	01	1	1103-	●
704	COOLER ASM; EGR (A)	8-98025-248-5	01	1	1103-	●
704	COOLER ASM; EGR (B)	8-98025-249-4	01	1	1103-1204	●
704	COOLER ASM; EGR (B)	8-98212-718-0	01	1	1205-	●
709	BOLT; EGR COOLER (E) M8X30 FLANGE	0-28660-830-0	04	1	1111-1111	●
709	BOLT; EGR COOLER (E) M8X30 FLANGE	0-28660-830-0	07	1	1111-	●
709	BOLT; EGR COOLER (A) M8X45 FLANGE	0-28060-845-0	01	1	1103-	●
709	BOLT; EGR COOLER (B) M12X60 FLANGE	0-28151-260-0	01	1	1103-	●
709	BOLT; EGR COOLER (C) M8X25 FLANGE	0-28660-825-0	01	1	1103-	●
709	BOLT; EGR COOLER (D) M10X40 FLANGE	0-28751-040-0	02	1	1103-	●
709	BOLT; EGR COOLER (E) M8X28 FLANGE	8-98043-528-0	07	1	1103-1110	●
709	BOLT; EGR COOLER (E) M8X28 FLANGE	8-98043-528-0	03	1	1111-1111	●
710	BRACKET; EGR COOLER (D)	8-98025-253-2	01	1	1103-	●
710	BRACKET; EGR COOLER (E)	8-98025-254-1	01	1	1103-	●
710	BRACKET; EGR COOLER (C)	8-98055-940-1	01	1	1103-	●
710	BRACKET; EGR COOLER (B)	8-98030-584-0	01	1	1010-		●
710	BRACKET; EGR COOLER (A)	8-98125-359-0	01	1	1010-1202		●
710	BRACKET; EGR COOLER (A)	8-98186-437-0	01	1	1203-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98149-353-0	03	1	1103-1302	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98200-753-0	03	1	1303-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	1010-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	1010-		●
736	NUT; DUCT,EGR VLV M8 FLANGE	8-97061-401-1	03	1	1103-	●
767	BOLT; DUCT,EGR (A) M8X45 FLANGE	0-28050-845-0	02	1	1103-	●
767	BOLT; DUCT,EGR (B) M12X50 FLANGE	0-28151-250-0	02	1	1103-	●
767	BOLT; DUCT,EGR (C) M8X30 FLANGE	0-28650-830-0	01	1	1103-	●
767	BOLT; DUCT,EGR (D) M8X28 FLANGE	8-98043-528-0	04	1	1103-	●
769	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	04	1	1103-	●
