Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

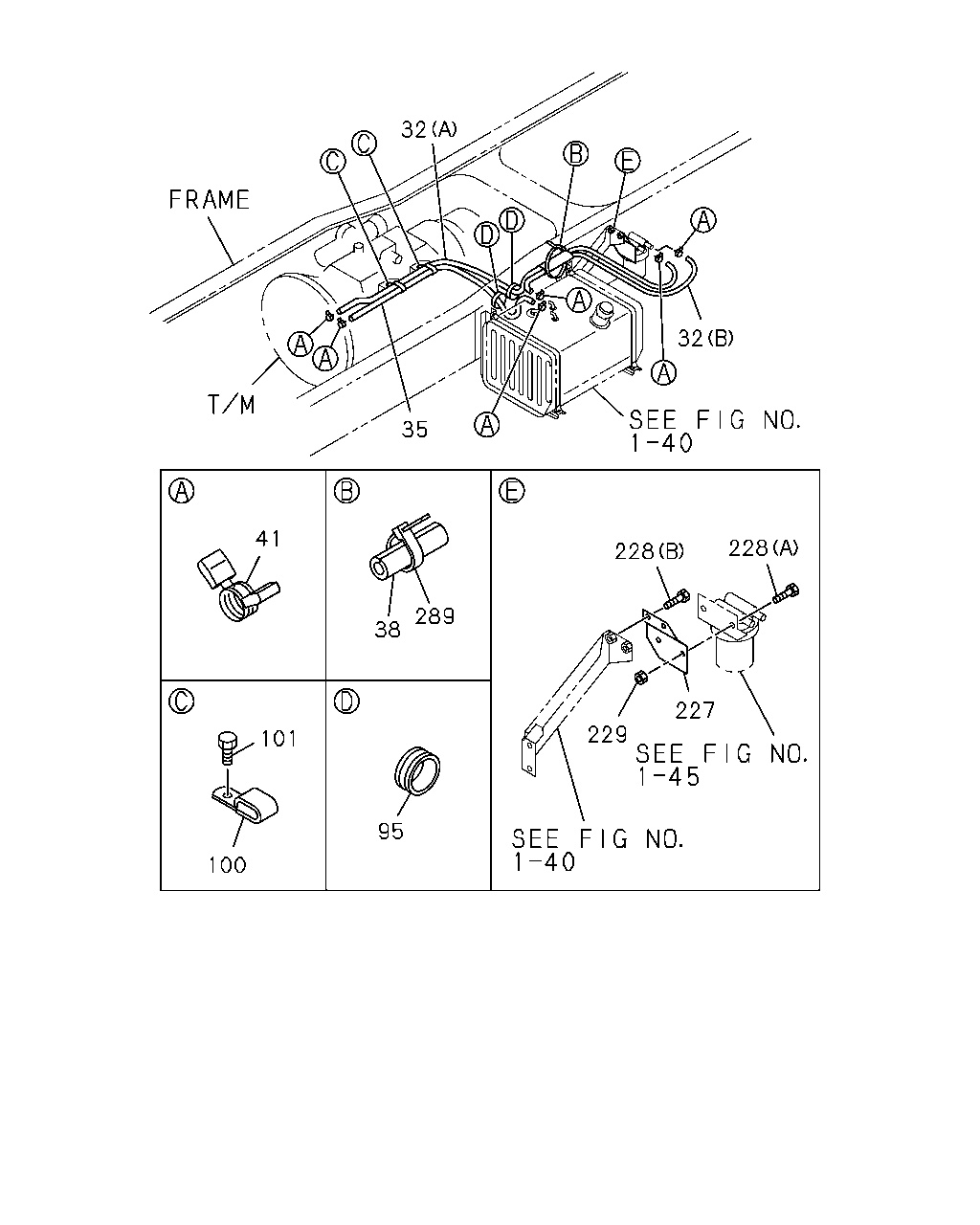

1-41 — FUEL PIPING; CHASSIS
(#7202) — 16 parça
32
35
38
289
41
32
228
228
227
229
95
101
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=980 SERVICED BY L=3000
0-01260-300-0
01
1
9906-
32
PIPE; DELIVERY,FUEL TANK
(A) L=2100 SERVICED BY L=3000
0-01260-300-0
01
1
9906-
35
PIPE; FUEL TANK,RETURN
L=1600 SERVICED BY L=3000
0-01260-300-0
01
1
9906-
38
SLEEVE; RUBBER,RUBBER HOSE
L=150
1-09360-677-1
01
1
9906-0101
38
SLEEVE; RUBBER,RUBBER HOSE
L=150
1-09360-677-1
02
1
0102-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14
1-09704-102-0
06
1
9906-
95
BUSHING; PIPE,FUEL TANK
ID=19 OD=23 T=18
9-09956-130-1
02
1
9906-
100
CLIP; FUEL PIPE
ID=16X2 L=20
9-09535-536-0
02
1
9906-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28680-820-0
02
1
9906-
227
BRACKET; FUEL SEDIMENTER
1-22518-176-0
01
1
9906-
228
BOLT; BRKT,SEDIMENTER
(A) M10X40 FLANGE
0-28081-040-0
02
1
9906-
228
BOLT; BRKT,SEDIMENTER
(B) M8X30 FLANGE
0-28680-830-0
02
1
9906-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
9906-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
01
1
9906-0008
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
02
1
0009-0101
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
0102-
