◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶
0-42 — FUEL PUMP AND PIPE (#72016) — 16 parça

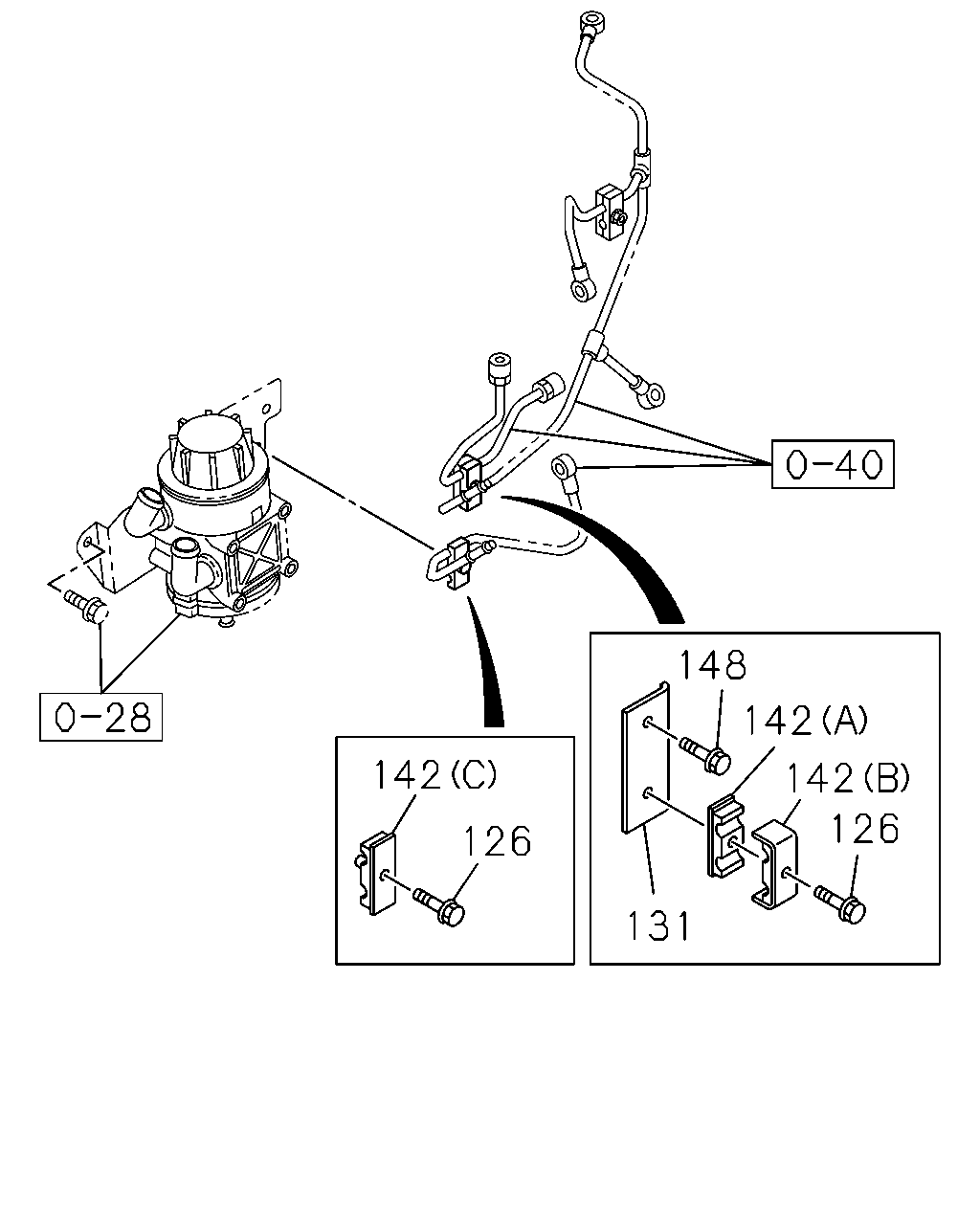

çizim 63594
148 142 142 142 126 126 131
BalonParca AdiParca NoAdetTipApplied Date A B
126 BOLT; CLIP,FUEL PIPE
M10X25 FLANGE 		0-28151-025-0 01 1 1010- ●
126 BOLT; CLIP,FUEL PIPE
M6X35 FLANGE 		0-28650-635-0 02 1 1010- ●
131 BRACKET; FUEL PIPE CLIP 1-15419-391-1 01 1 1010- ●
142 CLIP; FUEL PIPE
(C) L=48 		5-09709-103-0 01 1 1010- ●
142 CLIP; FUEL PIPE
(B) ID=7 & 9 L=25 		8-98000-010-2 01 1 1010- ●
142 CLIP; FUEL PIPE
(A) ID=7 & 9 L=25 		8-98000-011-2 01 1 1010- ●
148 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 01 1 1103- ●
148 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 01 1 1010- ●

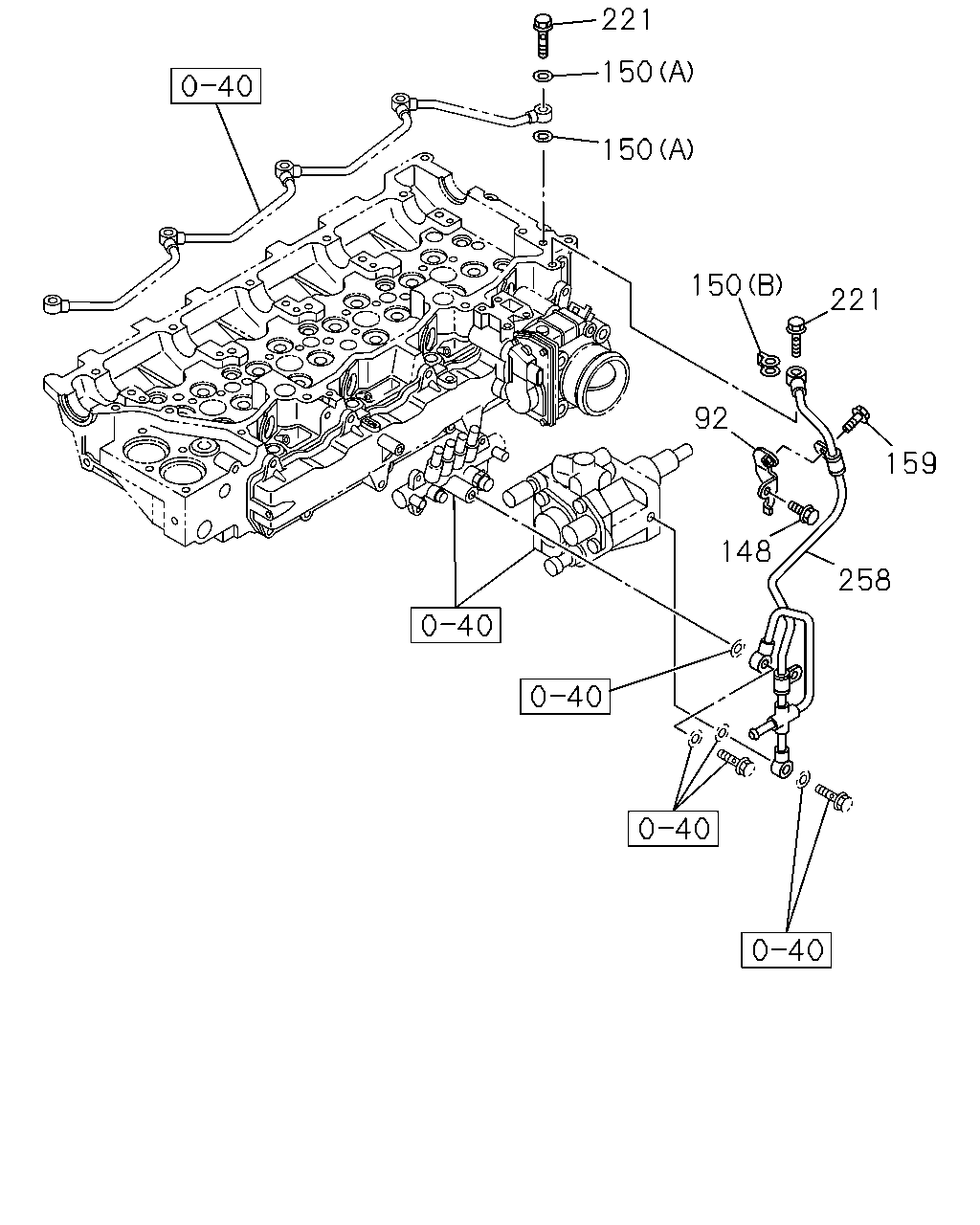

çizim 190136
221 150 150 150 221 92 159 148 258
BalonParca AdiParca NoAdetTipApplied Date A B
92 BRACKET; FUEL PIPE 8-98045-008-1 01 1 1103- ●
148 BOLT; BRKT
M6X12 FLANGE 		0-28050-612-0 01 1 1103- ●
148 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 01 1 1010- ●
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1103- ●
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17 		8-98079-755-0 01 1 1103- ●
159 BOLT; CLIP
M6X12 FLANGE 		0-28050-612-0 01 1 1103- ●
221 BOLT; FUEL PIPE
M10X21 FLANGE 		8-94396-711-0 02 1 1103- ●
258 PIPE ASM; FUEL,LEAK OFF 8-98089-667-0 01 1 1103- ●
