Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

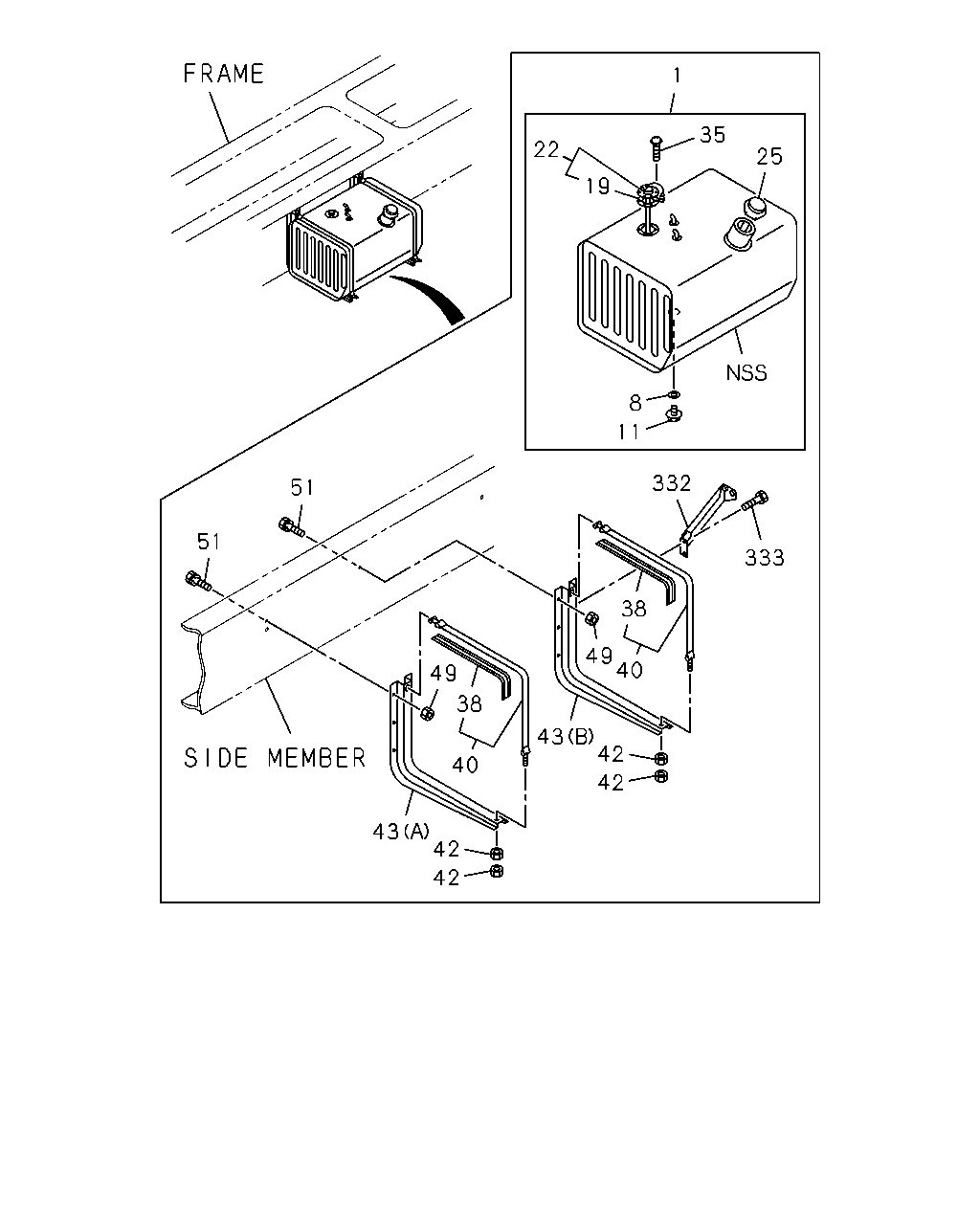

1-40 — FUEL TANK
(#7201) — 22 parça
42
43
42
49
40
38
333
332
11
8
35
19
22
1
25
51
51
49
38
40
43
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
880X549X649 300L
1-22401-027-0
01
1
9906-0003
1
TANK; FUEL
880X549X649 300L
1-22401-108-2
01
1
0004-
8
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
9-09923-030-0
01
1
9906-0106
8
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
9-09572-014-0
01
1
0107-
11
PLUG; DRAIN,FUEL TANK
1-09604-052-0
01
1
9906-0003
11
PLUG; DRAIN,FUEL TANK
1-09604-052-0
01
1
0004-0106
11
PLUG; DRAIN,FUEL TANK
M14X14
9-09862-156-0
01
1
0107-
19
GASKET; FUEL TANK UNIT
9-83135-003-0
01
1
9906-
22
UNIT; FUEL TANK
1-83141-118-0
01
1
9906-
25
CAP; FILLER,FUEL TANK
1-22440-033-2
01
1
9906-0003
25
CAP; FILLER,FUEL TANK
1-22440-067-0
01
1
0004-0112
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
0201-
35
SCREW; FUEL TANK UNIT
M4X10 W/PL WASHER
9-03900-410-0
05
1
9906-
38
INSULATION; SUPPORT BELT
L=1000
1-22553-028-1
02
1
9906-
40
BELT; SUPPORT,FUEL TANK
L=1125
1-22550-225-2
02
1
9906-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
9906-
43
BRACKET; FUEL TANK
(A)
1-53461-435-1
01
1
9906-
43
BRACKET; FUEL TANK
(B)
1-53461-436-4
01
1
9906-
49
NUT; BRKT
M12
9-99110-512-0
07
1
9906-
51
BOLT; BRKT TO FRAME
M12X45 FLANGE
0-28081-245-0
08
1
9906-
332
BRACKET; PRE FUEL FILTER
1-22518-152-0
01
1
9906-
333
BOLT; BRKT,PRE FUEL FILTER
M8X25 FLANGE
0-28680-825-0
02
1
9906-
