Isuzu WW
▶
TRUCKS
▶
FRR
▶
11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#72002) — 132 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀

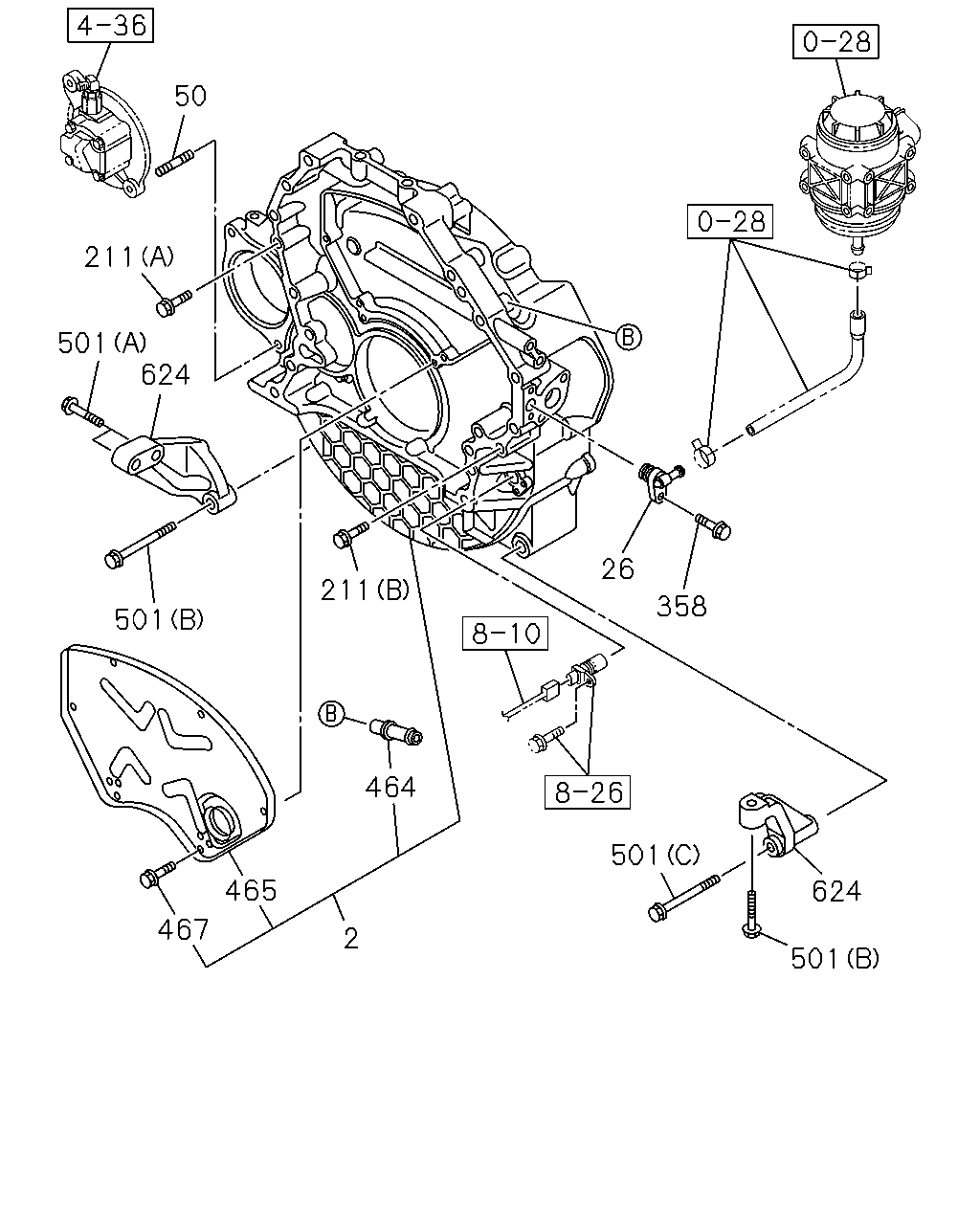

[020A] 6HK1;FLYWHEEL HOUSING NO.1 (29 parça)

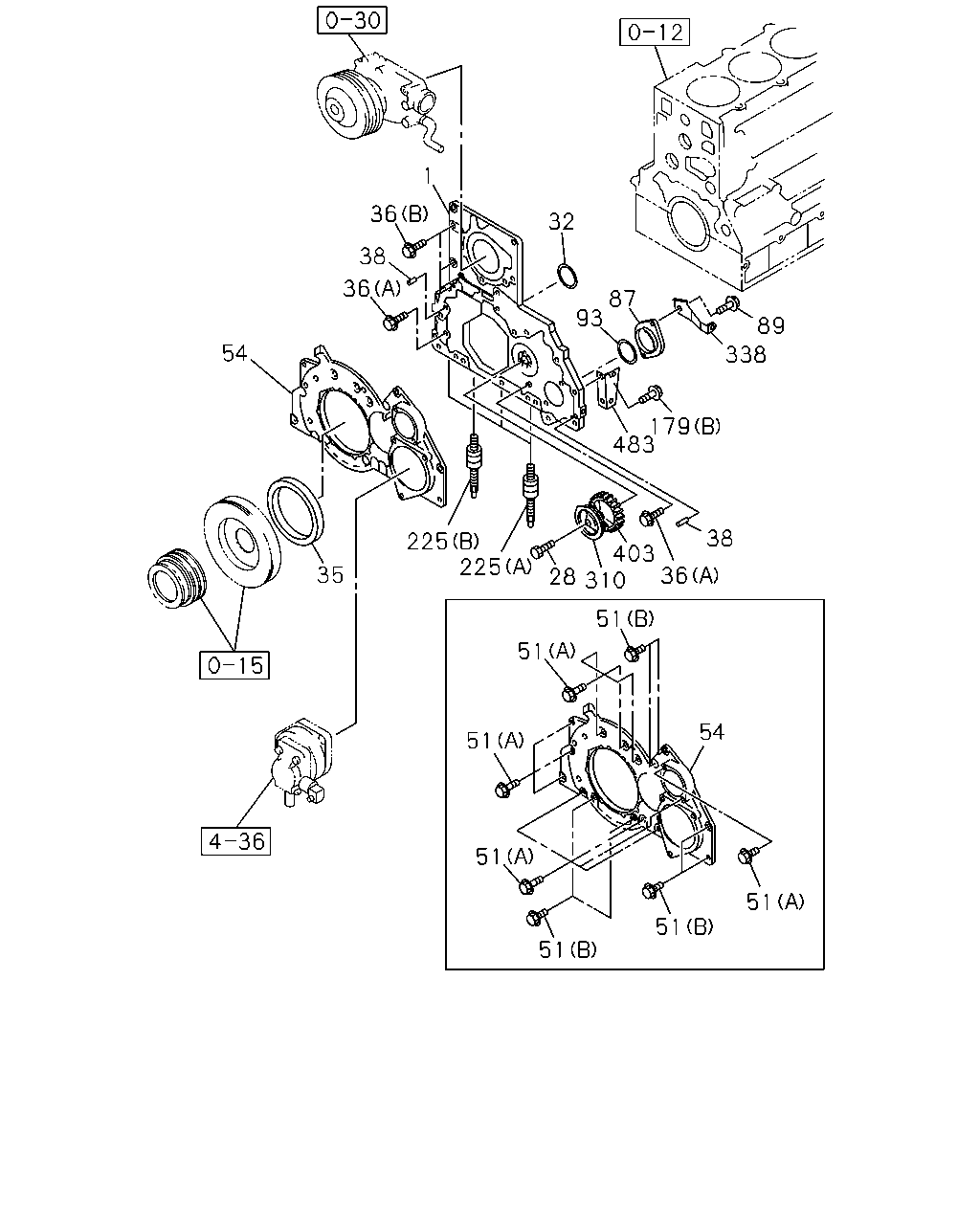

[020A] 6HK1;TIMING GEAR CASE (22 parça)
[020A] 4HK1;FLYWHEEL HOUSING NO.2 (12 parça)

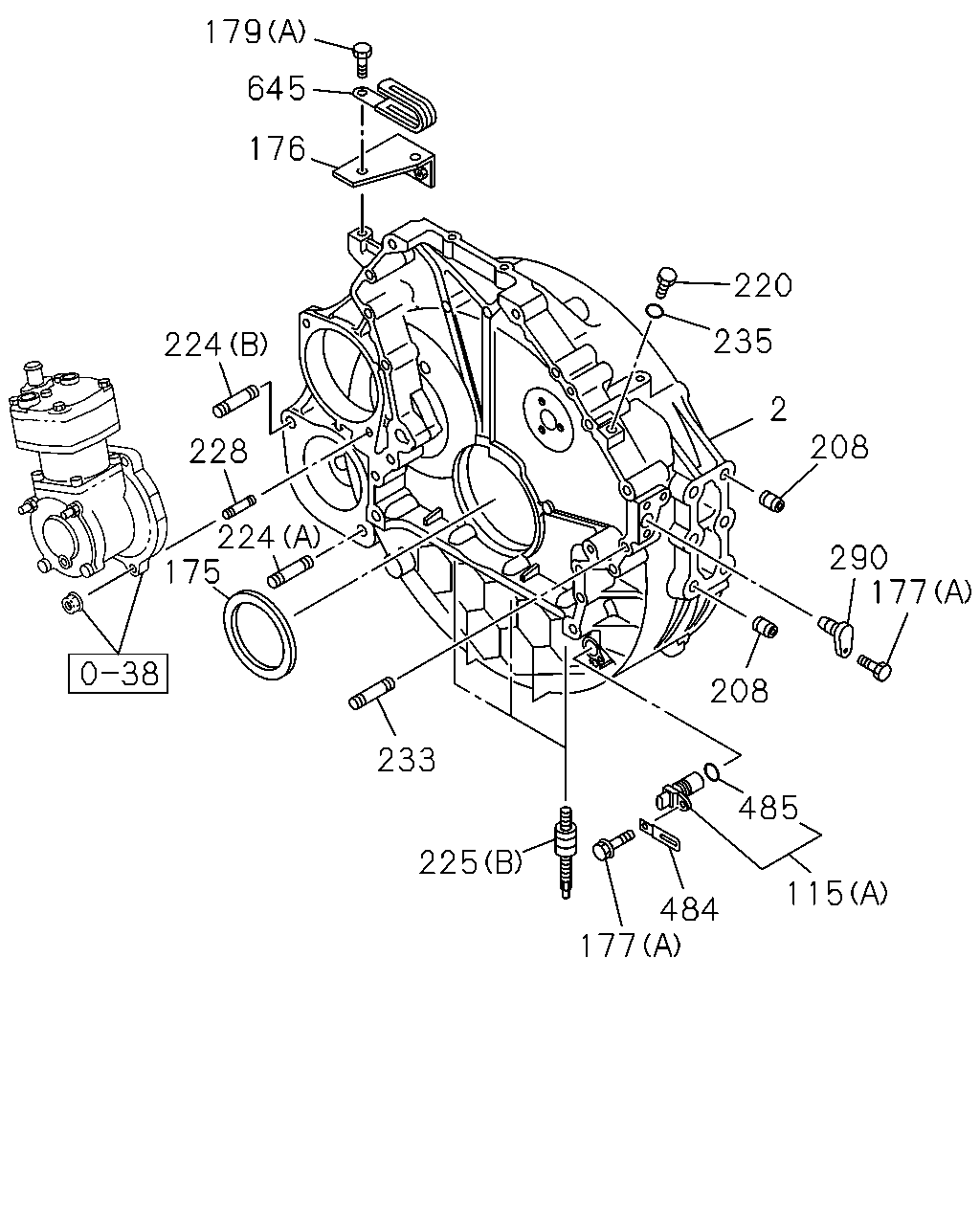

[020A] 6HK1;FLYWHEEL HOUSING NO.2 (26 parça)

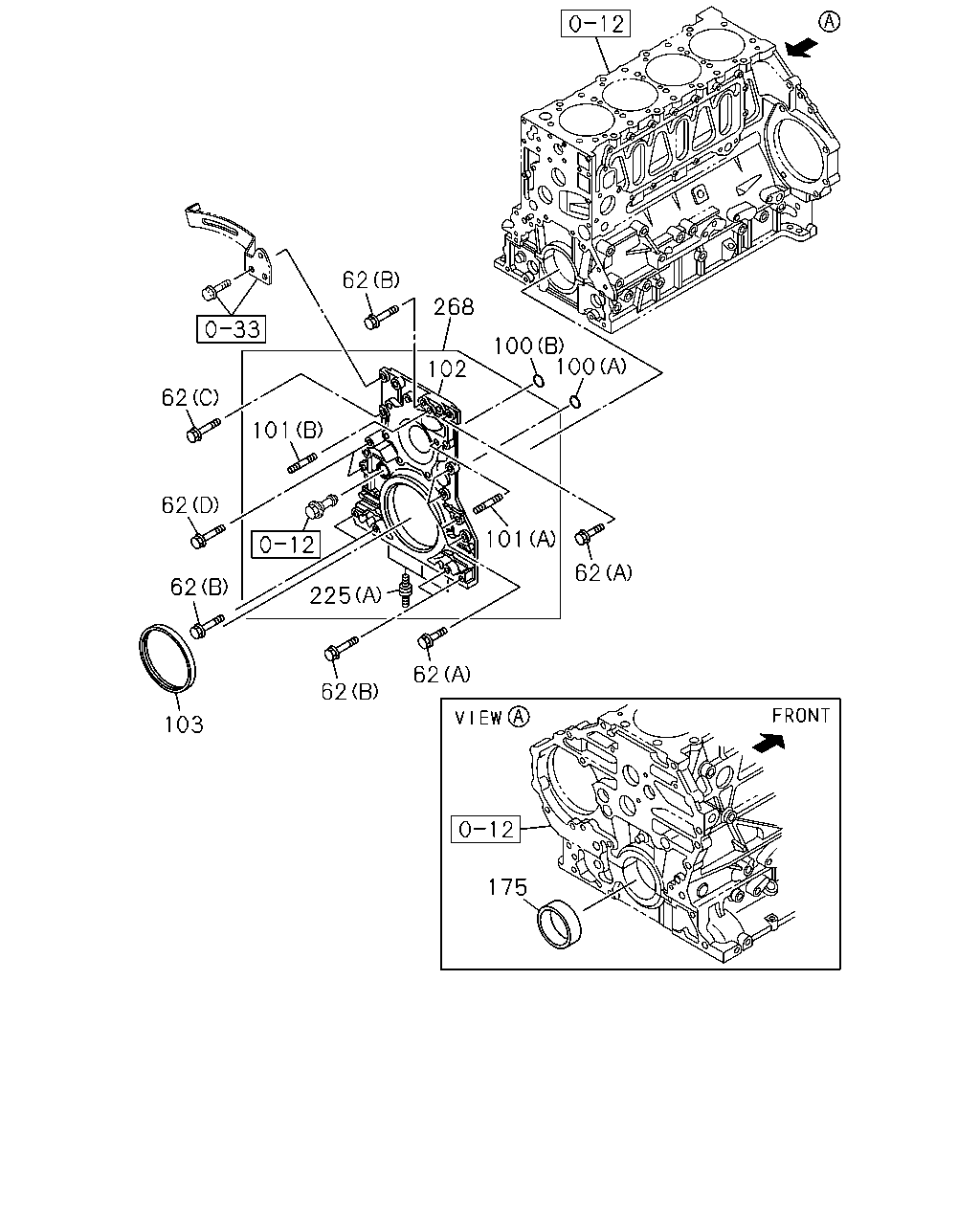

[020A] 4HK1;FRT COVER (18 parça)

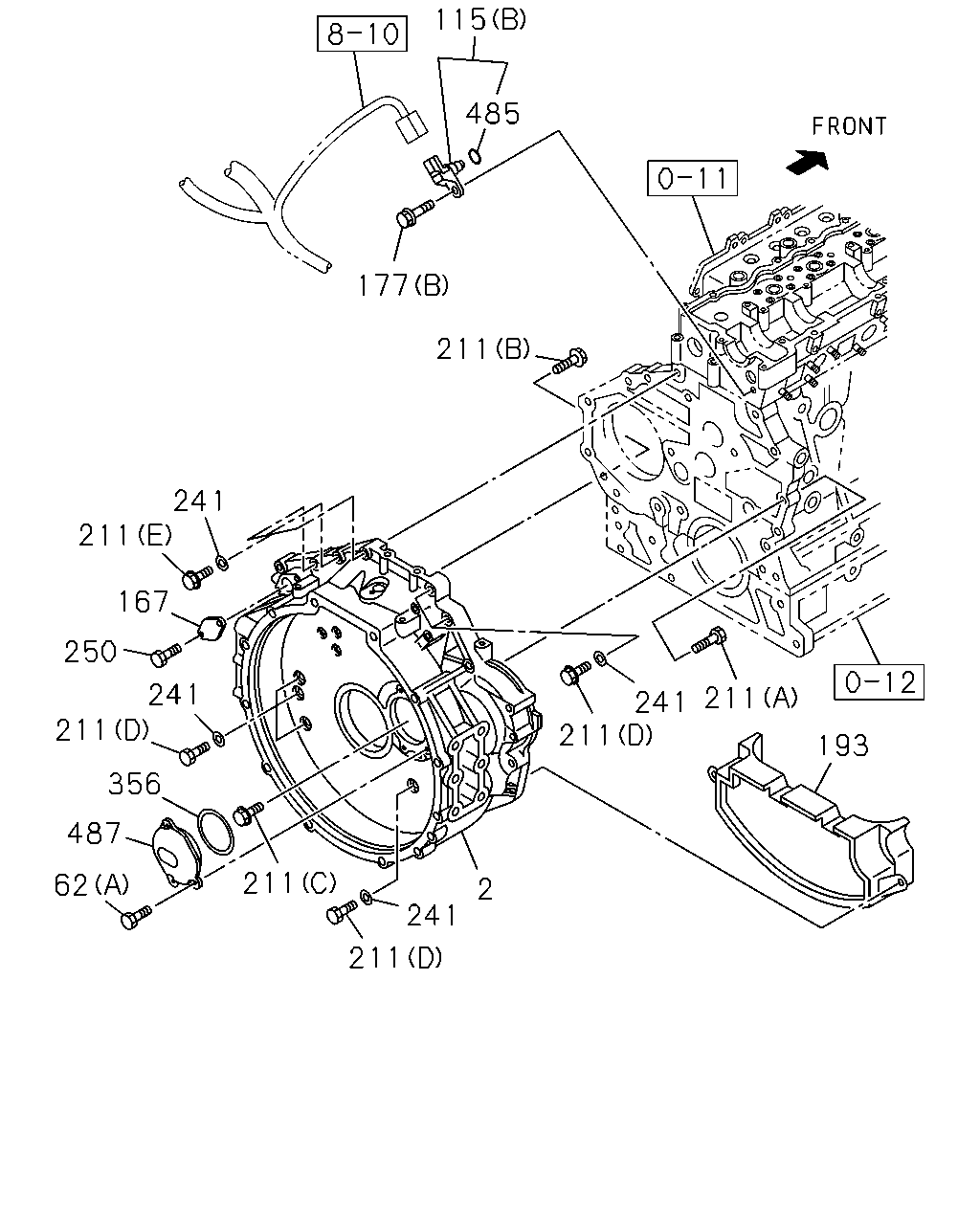

[020A] 4HK1;FLYWHEEL HOUSING NO.1 (23 parça)

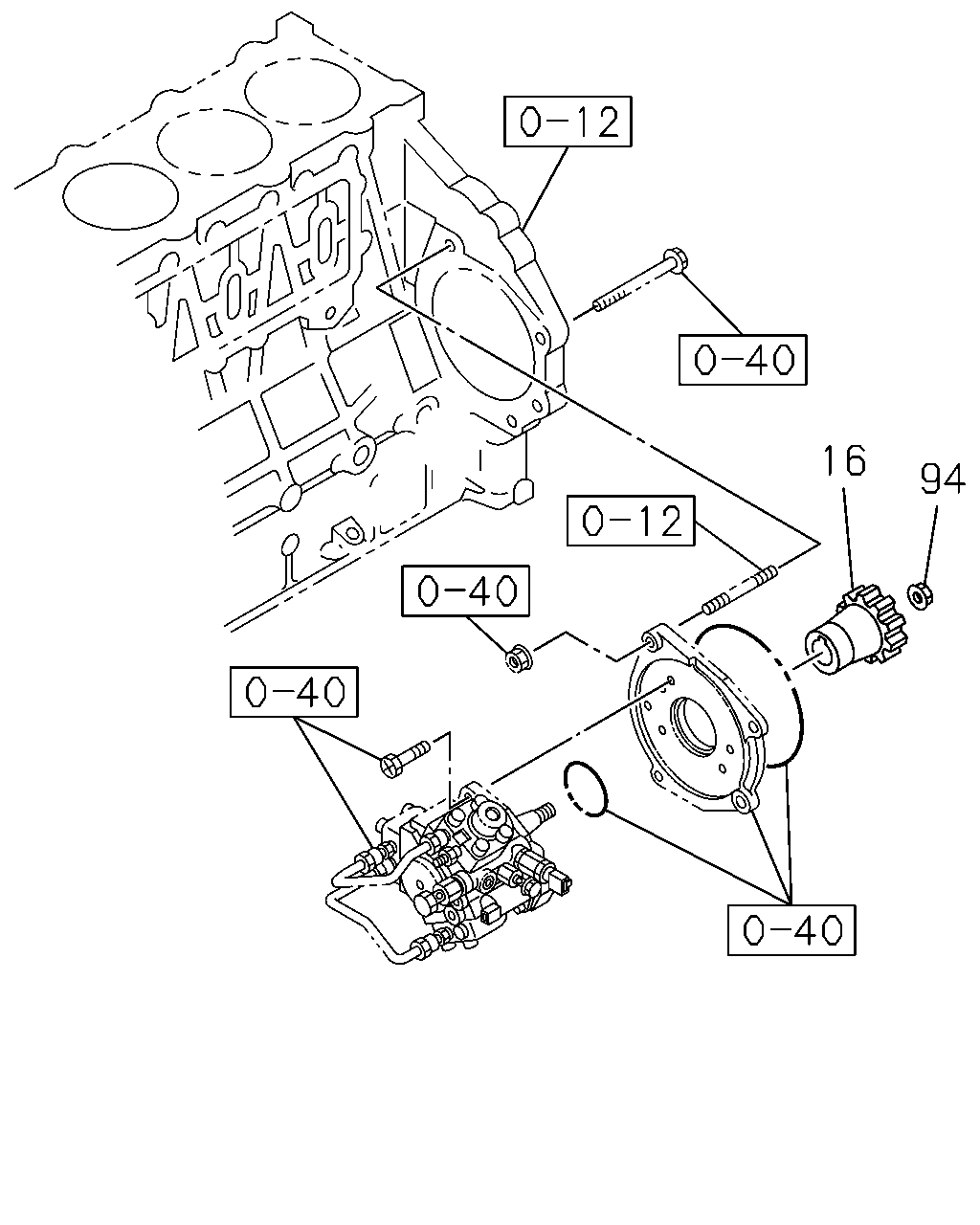

[020A] 6HK1;INJ PUMP GEAR (2 parça)
▶
115
485
177
211
241
211
167
250
241
211
211
241
211
193
356
487
211
62
2
241
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
8-98032-562-4
01
1
1103-
●
2
HOUSING; FLYWHEEL
8-97609-996-9
01
1
1010-
●
62
BOLT; COVER
(A) M8X25 FLANGE
0-28650-825-0
06
1
1103-
●
62
BOLT; COVER
(C) M8X30 FLANGE
0-28650-830-0
01
1
1103-
●
62
BOLT; COVER
(B) M8X35 FLANGE
0-28650-835-0
06
1
1103-
●
62
BOLT; COVER
(D) M8X65 FLANGE
1-09044-072-1
02
1
1103-
●
62
BOLT; COVER
GENERATOR 24V90A(K44) (B) M8X30 FLANGE
0-28650-830-0
02
1
1103-
●
62
BOLT; COVER
(A) M8X14 FLANGE
0-28080-814-0
03
1
1010-
●
115
SENSOR; REVOLUTION,ENG SPD
(A)
8-97606-943-0
01
1
1010-
●
115
SENSOR; REVOLUTION,ENG SPD
(B)
8-98019-024-0
01
1
1010-
●
167
COVER; OIL
1-11219-163-0
01
1
1010-
●
177
BOLT; SENSOR
(B) M6X12 FLANGE
0-28050-612-0
01
1
1010-
●
177
BOLT; SENSOR
(A) M6X16 FLANGE
0-28050-616-0
02
1
1010-
●
193
SPACER; STAY TO OIL,PAN
8-98019-738-1
01
1
1010-
●
211
BOLT; HSG
(A) M10X40 FLANGE
0-28751-040-0
01
1
1103-
●
211
BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER
8-97114-779-0
11
1
1103-1103
●
211
BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
11
1
1103-
●
211
BOLT; HSG
(C) M12X30 FLANGE
8-97135-419-0
01
1
1103-
●
211
BOLT; HSG
(A) M12X60
0-16856-260-0
01
1
1010-
●
211
BOLT; HSG
(D) M12X70
0-16956-270-0
08
1
1010-
●
211
BOLT; HSG
(E) M12X90
0-16956-290-0
03
1
1010-
●
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
1010-1102
●
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
1103-
●
●
211
BOLT; HSG
(C) M14X27 FLANGE
8-94393-995-0
01
1
1010-
●
241
WASHER; PL,HSG
ID=12.5 OD=22
8-94393-140-1
12
1
1010-
●
250
BOLT; COVER,OIL
M8X18 FLANGE
0-28080-818-0
02
1
1010-
●
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110
8-94394-186-0
01
1
1010-
●
485
GASKET; SENSOR
ID=14.2 OD=18.8
8-97369-404-0
02
1
1010-
●
487
COVER; HOLE
8-98023-824-1
01
1
1010-
●
1
36
32
38
36
87
93
89
54
338
179
483
38
225
225
403
28
36
310
35
51
51
54
51
51
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CASE; TIMING GEAR
8-94392-282-1
01
1
1010-
●
28
BOLT; DRIVE GEAR
M8X28
8-94399-256-0
03
1
1010-
●
32
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1
8-97028-748-1
01
1
1010-
●
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137
8-97602-378-3
01
1
1010-
●
36
BOLT; GEAR CASE
(B) M8X35 FLANGE
0-28050-835-0
04
1
1010-
●
36
BOLT; GEAR CASE
(A) M8X30 FLANGE
0-28650-830-0
02
1
1010-
●
38
PIN; GEAR CASE COVER
L=22
8-94483-674-0
02
1
1010-
●
51
BOLT; GEAR CASE COVER
(A) M8X40 FLANGE
0-28050-840-0
11
1
1010-
●
51
BOLT; GEAR CASE COVER
(B) M8X20 FLANGE
0-28650-820-0
06
1
1010-
●
54
COVER; GEAR CASE
8-94393-304-1
01
1
1010-
●
87
COVER; TACHOMETER DRIVE
8-94396-370-0
01
1
1010-
●
89
BOLT; ELBOW
M8X18 FLANGE
0-28080-818-0
02
1
1010-
●
93
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7
1-09623-465-0
01
1
1010-
●
179
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
1010-
●
179
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1010-
●
225
STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
03
1
1103-
●
225
STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER
8-97087-680-2
04
1
1010-
●
225
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
03
1
1010-
●
310
SHAFT; IDLE GEAR
8-94394-806-0
01
1
1010-
●
338
BRACKET; CLIP,HARNESS
1-82699-889-0
01
1
1010-
●
403
GEAR; IDLE,FRONT
Z=33
8-94395-943-1
01
1
1010-
●
483
BRACKET; WATER DUCT
8-94394-405-1
01
1
1010-
●
2
211
211
211
211
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
8-98032-562-4
01
1
1103-
●
2
HOUSING; FLYWHEEL
8-97609-996-9
01
1
1010-
●
211
BOLT; HSG
(A) M10X40 FLANGE
0-28751-040-0
01
1
1103-
●
211
BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER
8-97114-779-0
11
1
1103-1103
●
211
BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
11
1
1103-
●
211
BOLT; HSG
(C) M12X30 FLANGE
8-97135-419-0
01
1
1103-
●
211
BOLT; HSG
(A) M12X60
0-16856-260-0
01
1
1010-
●
211
BOLT; HSG
(D) M12X70
0-16956-270-0
08
1
1010-
●
211
BOLT; HSG
(E) M12X90
0-16956-290-0
03
1
1010-
●
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
1010-1102
●
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
1103-
●
●
211
BOLT; HSG
(C) M14X27 FLANGE
8-94393-995-0
01
1
1010-
●
179
645
176
220
235
224
2
208
228
224
175
290
177
208
233
485
225
115
484
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
8-98032-562-4
01
1
1103-
●
2
HOUSING; FLYWHEEL
8-97609-996-9
01
1
1010-
●
115
SENSOR; REVOLUTION,ENG SPD
(A)
8-97606-943-0
01
1
1010-
●
115
SENSOR; REVOLUTION,ENG SPD
(B)
8-98019-024-0
01
1
1010-
●
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
1010-1102
●
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
1103-
●
●
176
BRACKET; HARNESS
1-82699-828-1
01
1
1010-
●
177
BOLT; SENSOR
(B) M6X12 FLANGE
0-28050-612-0
01
1
1010-
●
177
BOLT; SENSOR
(A) M6X16 FLANGE
0-28050-616-0
02
1
1010-
●
179
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
1010-
●
179
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1010-
●
208
DOWEL; ENG FOOT
9-43269-009-1
04
1
1010-
●
220
PLUG; GEAR CHECK HOLE
M12X10
5-13265-001-0
01
1
1010-
●
224
STUD; STARTER
(A) M14X35 L=56
0-44011-435-0
01
1
1010-
●
224
STUD; STARTER
(B) M14X45 L=66
0-44011-445-0
01
1
1010-
●
225
STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
03
1
1103-
●
225
STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER
8-97087-680-2
04
1
1010-
●
225
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
03
1
1010-
●
228
STUD; AIR CMPR
M12X35 L=53
0-44011-235-0
01
1
1010-
●
233
STUD; BRKT
M12X67 L=82
1-09302-112-0
01
1
1010-
●
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
1-09630-084-0
01
1
1010-1312
●
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
8-98251-344-0
01
1
1401-
●
290
PLUG; SENSOR HOLE
8-97101-974-0
01
1
1010-
●
484
CLIP; BAND
L=80
5-09700-307-1
01
1
1010-
●
485
GASKET; SENSOR
ID=14.2 OD=18.8
8-97369-404-0
02
1
1010-
●
645
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
1010-
●
62
268
100
100
102
62
101
62
101
62
62
225
62
62
103
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
62
BOLT; COVER
(A) M8X25 FLANGE
0-28650-825-0
06
1
1103-
●
62
BOLT; COVER
(C) M8X30 FLANGE
0-28650-830-0
01
1
1103-
●
62
BOLT; COVER
(B) M8X35 FLANGE
0-28650-835-0
06
1
1103-
●
62
BOLT; COVER
(D) M8X65 FLANGE
1-09044-072-1
02
1
1103-
●
62
BOLT; COVER
GENERATOR 24V90A(K44) (B) M8X30 FLANGE
0-28650-830-0
02
1
1103-
●
62
BOLT; COVER
(A) M8X14 FLANGE
0-28080-814-0
03
1
1010-
●
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1
8-97028-748-1
01
1
1103-
●
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8
9-09561-318-0
01
1
1103-
●
101
STUD; WATER PUMP
(B) M8X18 L=30
0-41010-818-0
01
1
1103-
●
101
STUD; WATER PUMP
(A) M8X18 L=29
8-97028-541-0
01
1
1103-
●
102
RETAINER; FRT
8-98039-932-2
01
1
1103-
●
103
SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137
8-97329-780-0
01
1
1103-
●
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
1010-1102
●
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
1103-
●
●
225
STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
03
1
1103-
●
225
STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER
8-97087-680-2
04
1
1010-
●
225
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
03
1
1010-
●
268
COVER; FRT
8-98039-931-2
01
1
1103-
●
50
211
501
624
26
211
358
501
464
501
465
624
467
2
501
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOUSING; FLYWHEEL
8-98032-562-4
01
1
1103-
●
2
HOUSING; FLYWHEEL
8-97609-996-9
01
1
1010-
●
26
ADAPTER
8-97354-819-0
01
1
1103-
●
50
STUD
M10X25 L=48.5
0-49241-025-0
01
1
1103-
●
211
BOLT; HSG
(A) M10X40 FLANGE
0-28751-040-0
01
1
1103-
●
211
BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER
8-97114-779-0
11
1
1103-1103
●
211
BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
11
1
1103-
●
211
BOLT; HSG
(C) M12X30 FLANGE
8-97135-419-0
01
1
1103-
●
211
BOLT; HSG
(A) M12X60
0-16856-260-0
01
1
1010-
●
211
BOLT; HSG
(D) M12X70
0-16956-270-0
08
1
1010-
●
211
BOLT; HSG
(E) M12X90
0-16956-290-0
03
1
1010-
●
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
1010-1102
●
211
BOLT; HSG
(B) M10X50 FLANGE
0-28151-050-0
01
1
1103-
●
●
211
BOLT; HSG
(C) M14X27 FLANGE
8-94393-995-0
01
1
1010-
●
358
BOLT; ADAPTER
M6X16 FLANGE
0-28050-616-0
01
1
1103-
●
464
PIPE; PCV,FLYWHEEL HSG
8-94373-246-3
01
1
1103-
●
465
PLATE; FLYWHEEL HSG
8-97388-568-1
01
1
1103-
●
467
BOLT; PLATE
M6X10
8-98030-649-0
06
1
1103-
●
501
BOLT; STIFFENER
(A) M10X40 FLANGE
0-28151-040-0
02
1
1103-1308
●
501
BOLT; STIFFENER
(B) M12X50 FLANGE
0-28151-250-0
02
1
1103-1308
●
501
BOLT; STIFFENER
(C) M12X90 FLANGE
0-28151-290-0
01
1
1103-1308
●
624
STIFFENER
8-97380-613-1
01
1
1103-1308
●
624
STIFFENER
8-97380-614-1
01
1
1103-1308
●
16
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
GEAR; INJ PUMP DRIVE
Z=35
8-97601-153-1
01
1
1010-
●
94
NUT; GEAR
M14 FLANGE
0-91180-214-0
01
1
1010-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
