◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

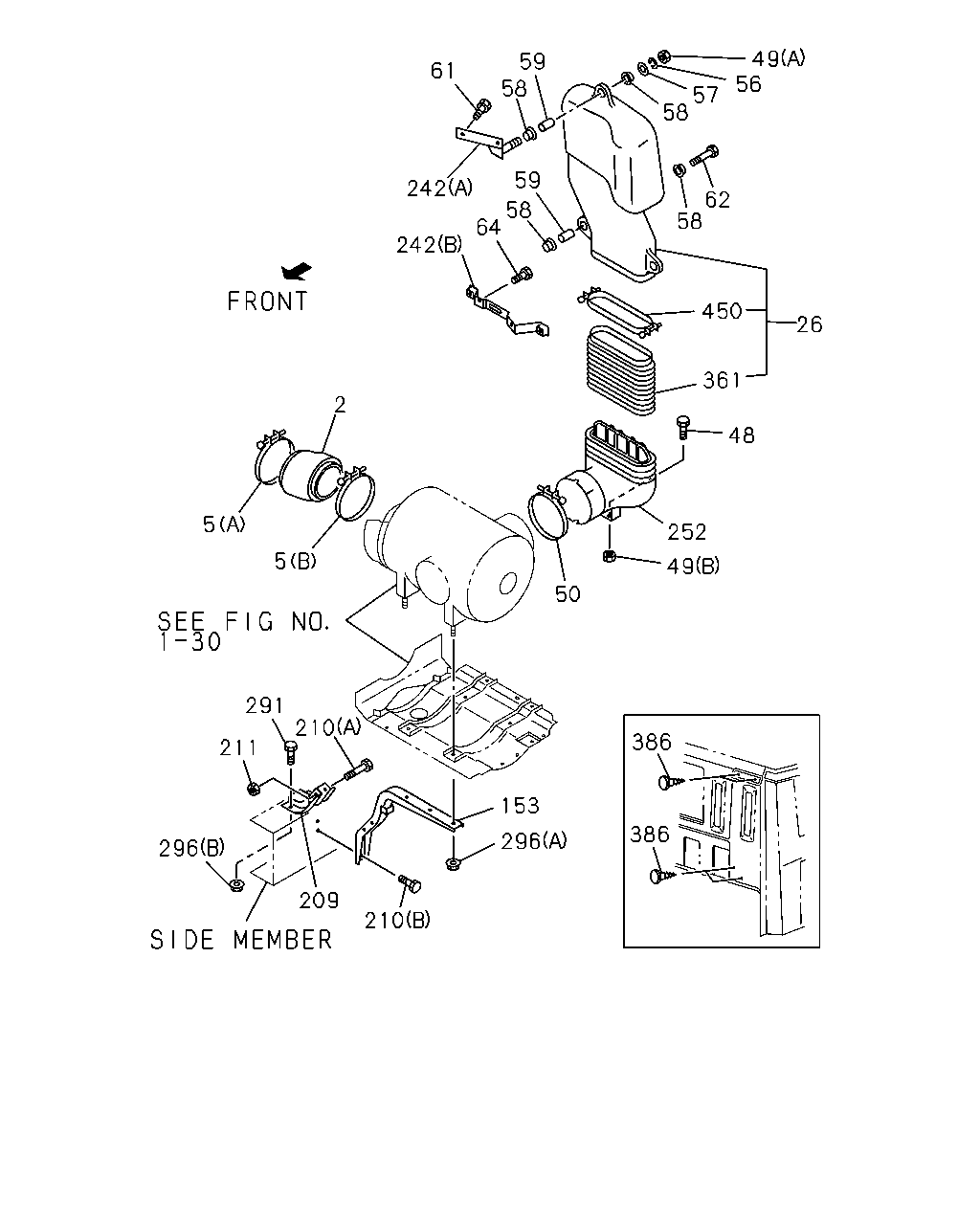

1-31 — AIR DUCT (#7200) — 30 parça
çizim 7682
61 59 49 58 59 242 242 64 58 58 62 58 57 56 26 450 361 48 252 50 49 5 5 2 386 386 296 210 209 153 211 296 210 291
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 1-14231-860-0 01 1 9906-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9906-
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9906-
26 DUCT; AIR INT 1-14230-134-1 01 1 9906-
48 BOLT; AIR DUCT
M10X25 FLANGE 		0-28681-025-0 01 1 9906-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 9906-
49 NUT; AIR DUCT
(A) M10 		1-09984-145-0 01 1 9906-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 9906-
56 WASHER; LK,AIR INT DUCT
ID=10 		1-09985-185-0 01 1 9906-
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.3 		1-09985-172-0 01 1 9906-0110
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0111-
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 06 1 9906-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 03 1 9906-
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9906-
62 BOLT; AIR INT DUCT
M10X26 		1-09030-044-1 02 1 9906-
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 9906-
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 9906-
209 BRACKET; ACL 1-53419-266-0 01 1 9906-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 9906-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 9906-
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9906-
242 BRACKET; AIR DUCT
(A) 		1-79997-323-1 01 1 9906-
242 BRACKET; AIR DUCT
(B) 		1-79997-327-1 01 1 9906-
252 DUCT; AIR INT 1-14230-191-0 01 1 9906-
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 9906-
296 NUT; ACL
(B) M8 FLANGE 		0-91150-108-0 04 1 9906-
296 NUT; ACL
(A) M12 FLANGE 		0-91150-212-0 02 1 9906-
361 RUBBER; CUSHION,AIR DUCT 1-14230-124-0 01 1 9906-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 9906-
450 CLAMP; HOSE 1-14239-237-0 01 1 9906-
