Isuzu WW
▶
TRUCKS
▶
FRR
▶
11326 - FRR AUSTRALIA EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#71999) — 105 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀

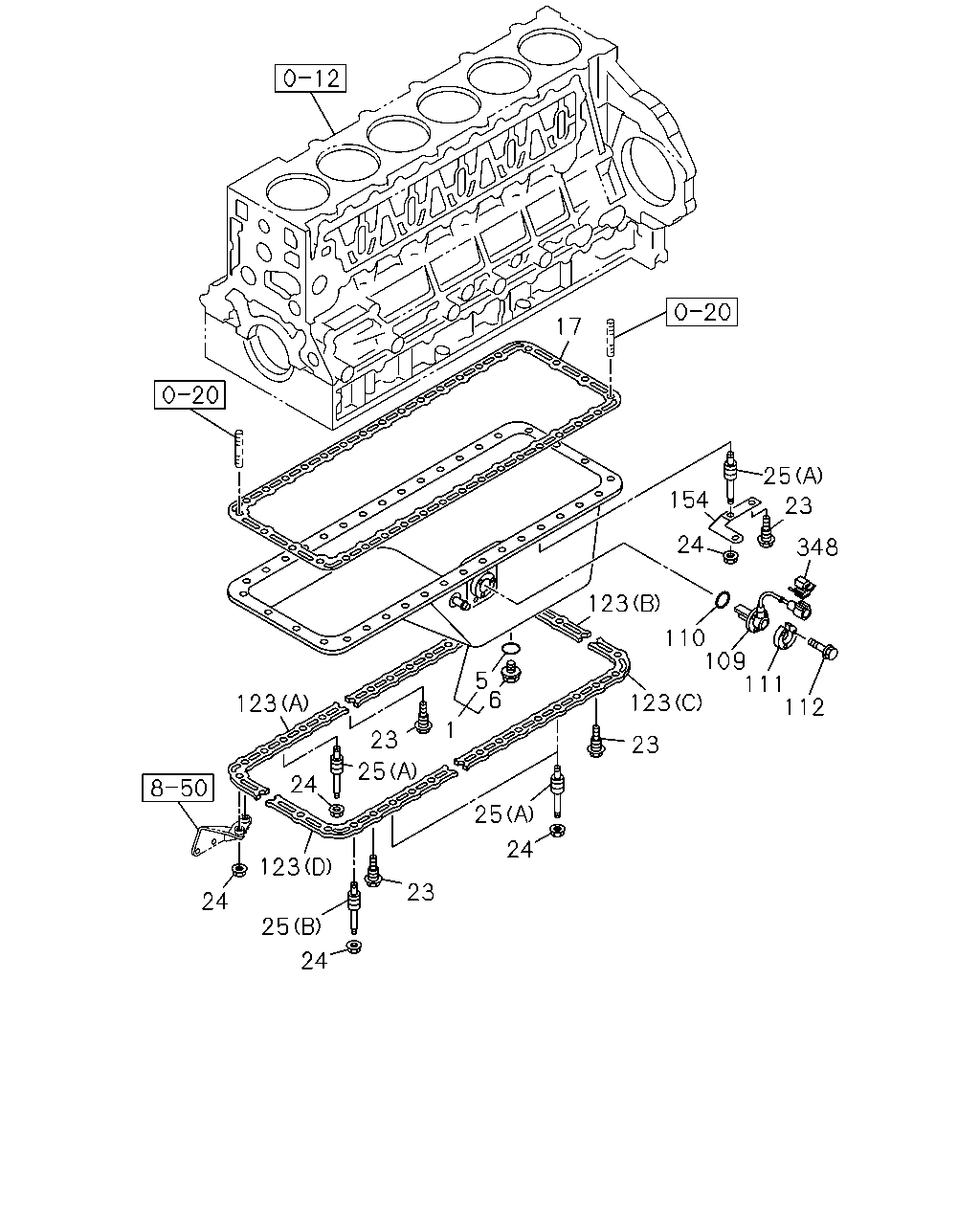

[013A] 6HK1;OIL PAN (30 parça)
[013A] 6HK1;OIL GAUGE (22 parça)
[013A] 4HK1;OIL GAUGE (24 parça)

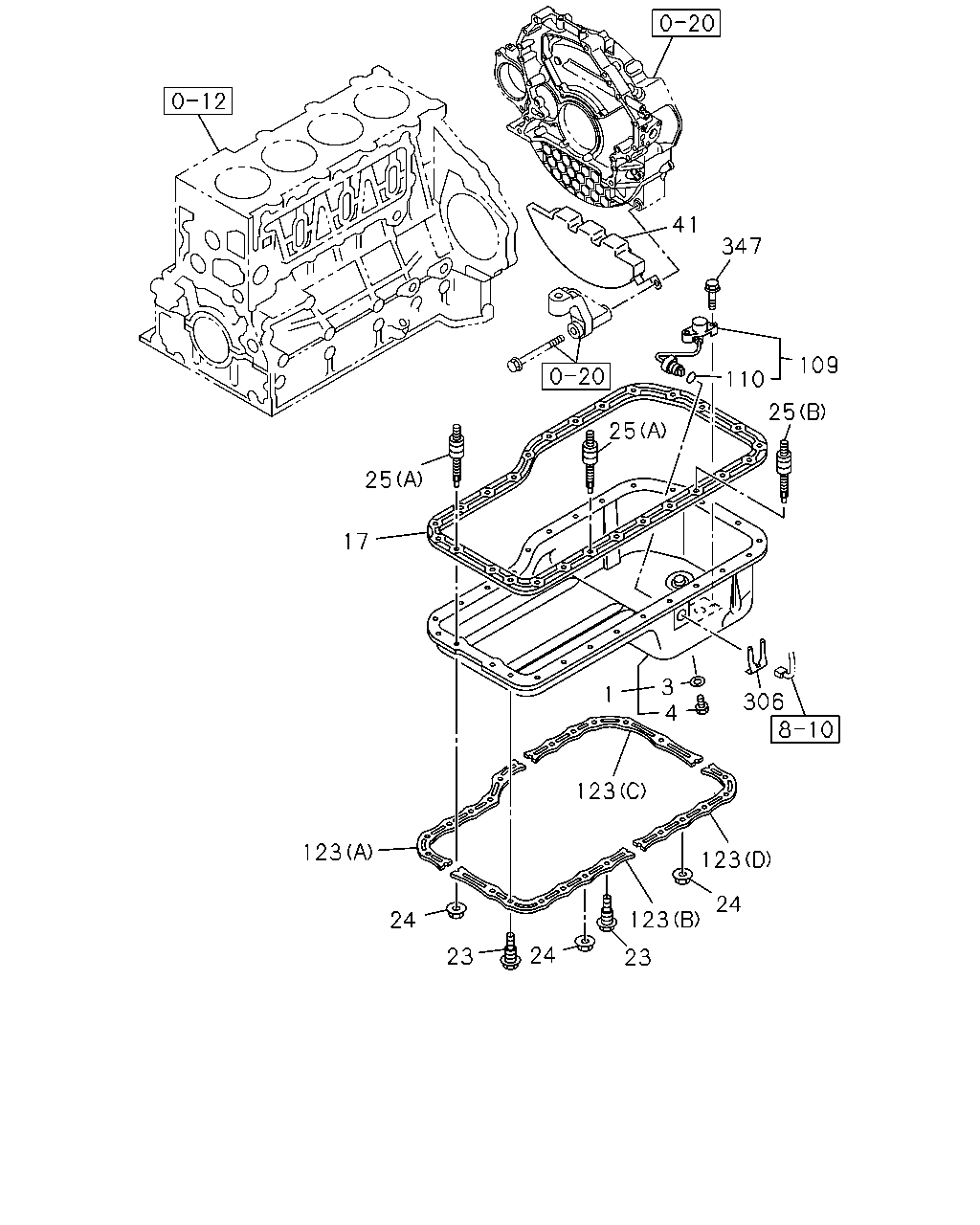

[013A] 4HK1;OIL PAN (29 parça)
▶
17
25
154
23
24
348
123
110
109
111
112
5
6
123
123
1
23
23
25
24
25
24
123
23
24
25
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
8-97386-772-0
01
1
1103-
●
1
PAN ASM; OIL
8-98061-543-0
01
1
1010-
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1010-
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1010-
●
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
1103-
●
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
1010-
●
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
1103-
●
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
20
1
1010-
●
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
13
1
1103-
●
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
14
1
1010-
●
25
STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
1103-
●
25
STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
1103-
●
25
STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
05
1
1010-
●
25
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
02
1
1010-
●
109
SWITCH; OIL LEVEL
8-97328-993-1
01
1
1103-
●
109
SWITCH; OIL LEVEL
8-97601-121-0
01
1
1010-
●
110
GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
1103-
●
110
GASKET; SW,OIL LEVEL
ID=27
8-98056-488-0
01
1
1010-
●
111
SPACER; SW,OIL LEVEL
5-11369-072-0
01
1
1010-
●
112
BOLT; SW,OIL LEVEL
M6X25 FLANGE
0-28050-625-0
03
1
1010-
●
123
RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(A)
8-94391-755-0
01
1
1010-
●
123
RUBBER; SEAL OIL
(B)
8-94391-757-0
01
1
1010-
●
123
RUBBER; SEAL OIL
(C)
8-94391-758-0
01
1
1010-
●
123
RUBBER; SEAL OIL
(D)
8-94392-548-0
01
1
1010-
●
154
BRACKET; CLIP,ENG HARNESS
8-98064-103-0
01
1
1010-
●
348
CONNECTOR
OD=9 H=6
1-09709-178-0
01
1
1010-
●
10
8
49
2
193
192
193
9
9
10
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GAUGE; OIL LEVEL
8-98127-076-0
01
1
1103-1406
●
2
GAUGE; OIL LEVEL
8-98245-517-0
01
1
1407-
●
2
GAUGE; OIL LEVEL
SGL CAB(FC**M*)
8-98092-125-1
01
1
1010-
●
2
GAUGE; OIL LEVEL
DBL CAB(FC**W*)
8-98084-260-0
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98176-440-0
01
1
1103-1109
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98198-675-0
01
1
1110-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98009-115-1
01
1
1103-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
SGL CAB(FC**M*) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-97618-220-1
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
SGL CAB(FC**M*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98098-761-0
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
DBL CAB(FC**W*) (A)
8-98093-643-0
01
1
1010-
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1010-
●
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1103-
●
10
BOLT; GUIDE TUBE
(A) M10X35 FLANGE
0-28151-035-0
01
1
1010-
●
10
BOLT; GUIDE TUBE
SGL CAB(FC**M*) (B) M8X20 FLANGE
0-28650-820-0
01
1
1010-
●
49
NUT; GUIDE TUBE
SGL CAB(FC**M*) M8 FLANGE
0-91180-108-0
01
1
1010-
●
49
NUT; GUIDE TUBE
DBL CAB(FC**W*) M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
192
HOSE; GUIDE TUBE
SGL CAB(FC**M*) L=310
8-98092-068-0
01
1
1010-1102
●
192
HOSE; GUIDE TUBE
SGL CAB(FC**M*) L=310
8-98092-068-0
01
1
1103-
●
192
HOSE; GUIDE TUBE
L=310
8-98092-068-0
01
1
1103-
●
192
HOSE; GUIDE TUBE
DBL CAB(FC**W*) L=395
8-98093-949-0
01
1
1010-
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1010-
●
●
49
380
8
2
193
192
193
379
8
9
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GAUGE; OIL LEVEL
8-98127-076-0
01
1
1103-1406
●
2
GAUGE; OIL LEVEL
8-98245-517-0
01
1
1407-
●
2
GAUGE; OIL LEVEL
SGL CAB(FC**M*)
8-98092-125-1
01
1
1010-
●
2
GAUGE; OIL LEVEL
DBL CAB(FC**W*)
8-98084-260-0
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98176-440-0
01
1
1103-1109
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
8-98198-675-0
01
1
1110-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(D)
8-98009-115-1
01
1
1103-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
SGL CAB(FC**M*) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-97618-220-1
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
SGL CAB(FC**M*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98098-761-0
01
1
1010-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
DBL CAB(FC**W*) (A)
8-98093-643-0
01
1
1010-
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1010-
●
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1103-
●
10
BOLT; GUIDE TUBE
(A) M10X35 FLANGE
0-28151-035-0
01
1
1010-
●
10
BOLT; GUIDE TUBE
SGL CAB(FC**M*) (B) M8X20 FLANGE
0-28650-820-0
01
1
1010-
●
49
NUT; GUIDE TUBE
SGL CAB(FC**M*) M8 FLANGE
0-91180-108-0
01
1
1010-
●
49
NUT; GUIDE TUBE
DBL CAB(FC**W*) M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
192
HOSE; GUIDE TUBE
SGL CAB(FC**M*) L=310
8-98092-068-0
01
1
1010-1102
●
192
HOSE; GUIDE TUBE
SGL CAB(FC**M*) L=310
8-98092-068-0
01
1
1103-
●
192
HOSE; GUIDE TUBE
L=310
8-98092-068-0
01
1
1103-
●
192
HOSE; GUIDE TUBE
DBL CAB(FC**W*) L=395
8-98093-949-0
01
1
1010-
●
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1010-
●
●
379
CLIP; PIPE TO HOSE
ID=18 & 18
8-94323-068-0
01
1
1103-
●
380
PROTECTOR; PIPE
ID=18 L=40
8-98070-445-0
01
1
1103-
●
41
347
109
110
25
25
25
17
3
4
1
306
123
123
123
24
123
24
24
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
8-97386-772-0
01
1
1103-
●
1
PAN ASM; OIL
8-98061-543-0
01
1
1010-
●
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1103-
●
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
1103-
●
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
1103-
●
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
1010-
●
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
1103-
●
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
20
1
1010-
●
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
13
1
1103-
●
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
14
1
1010-
●
25
STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
1103-
●
25
STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
1103-
●
25
STUD; OIL PAN
(A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
05
1
1010-
●
25
STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER
8-97601-889-0
02
1
1010-
●
41
RUBBER; SPACE
8-97380-615-0
01
1
1103-
●
109
SWITCH; OIL LEVEL
8-97328-993-1
01
1
1103-
●
109
SWITCH; OIL LEVEL
8-97601-121-0
01
1
1010-
●
110
GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
1103-
●
110
GASKET; SW,OIL LEVEL
ID=27
8-98056-488-0
01
1
1010-
●
123
RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
1103-
●
123
RUBBER; SEAL OIL
(A)
8-94391-755-0
01
1
1010-
●
123
RUBBER; SEAL OIL
(B)
8-94391-757-0
01
1
1010-
●
123
RUBBER; SEAL OIL
(C)
8-94391-758-0
01
1
1010-
●
123
RUBBER; SEAL OIL
(D)
8-94392-548-0
01
1
1010-
●
306
CLIP; CONNECTOR
8-97229-219-0
01
1
1103-
●
347
BOLT; OIL LEVEL SW
M6X25 FLANGE
0-28650-625-0
02
1
1103-
●
