8-52 — PIPING; AIR CONDITIONING
(#71985) — 31 parça
Tümü
A - FGY5MX
B - FGZ5MX
◀

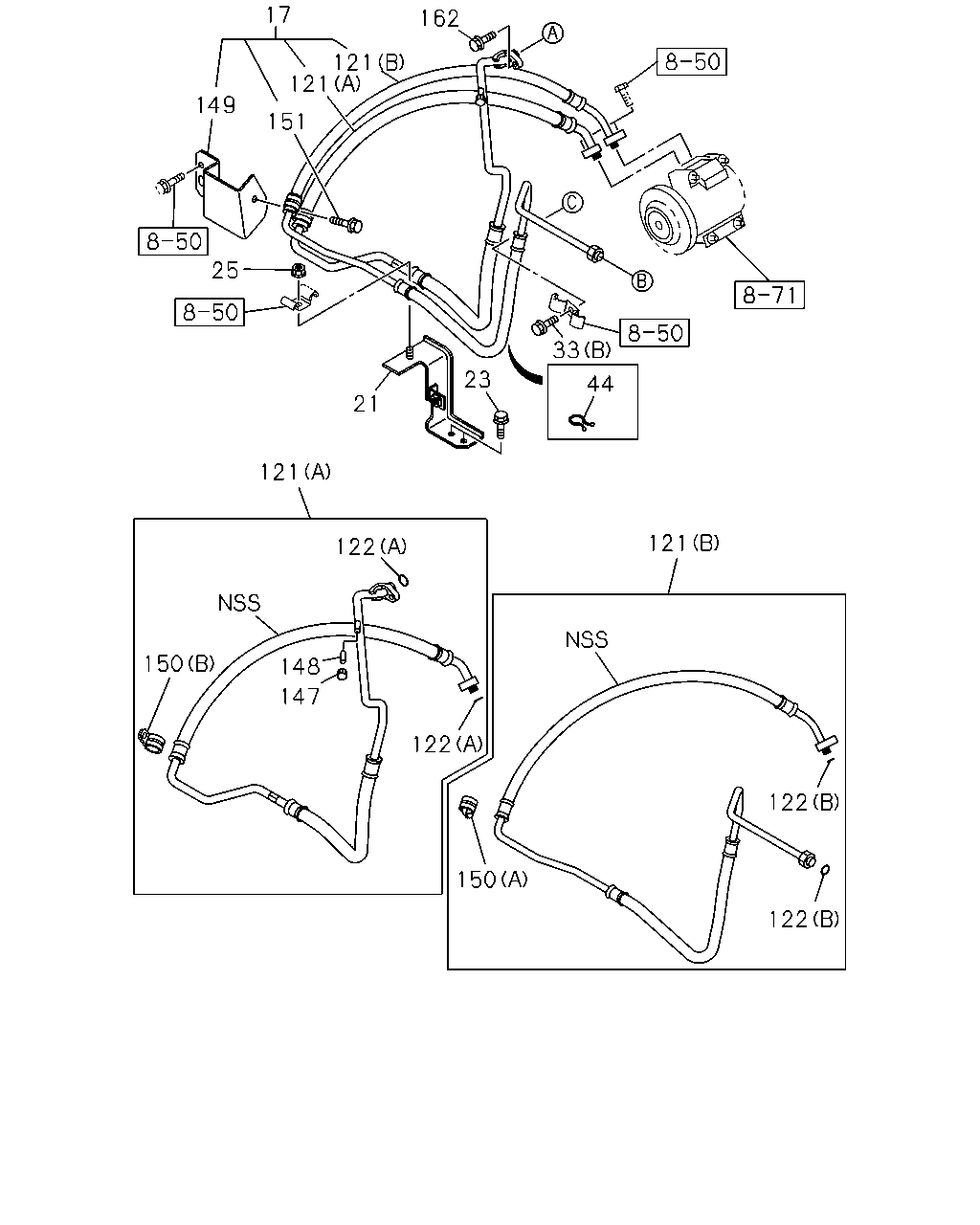

[852A] NO.1 (18 parça)
[852A] NO.2 (13 parça)
▶
162
121
121
17
151
149
25
21
23
33
121
121
122
122
147
150
148
150
122
122
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98111-523-0
01
1
1009-
●
●
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98114-846-0
01
1
1009-
●
●
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE
0-28650-820-0
02
1
1009-
●
●
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE
0-91180-108-0
01
1
1009-
●
●
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE
0-28650-616-0
02
1
1009-
●
●
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE
0-28650-820-0
01
1
1009-
●
●
44
CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=30
8-94315-423-0
01
1
1009-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)
8-98052-619-1
01
1
1009-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)
8-98052-620-1
01
1
1009-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7
8-97095-907-0
02
1
1009-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=14.5
8-97095-908-0
02
1
1009-
●
●
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L
1-83539-331-0
01
1
1009-
●
●
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-97095-909-0
01
1
1009-
●
●
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98055-465-0
01
1
1009-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)
1-83574-249-0
01
1
1009-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)
1-83574-264-0
01
1
1009-
●
●
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE
1-83539-326-0
01
1
1009-
●
●
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE
0-28050-625-0
01
1
1009-
●
●
174
116
158
27
33
27
27
33
202
171
156
158
116
12
158
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98052-610-0
01
1
1009-
●
●
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
1009-
●
●
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
1009-
●
●
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
1009-
●
●
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE
0-28650-616-0
02
1
1009-
●
●
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X20 FLANGE
0-28650-820-0
01
1
1009-
●
●
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4
8-97095-906-0
02
1
1009-
●
●
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7
8-97095-907-0
01
1
1009-
●
●
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98151-702-0
01
1
1009-
●
●
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE
0-28050-625-0
03
1
1009-
●
●
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK H
8-97095-911-0
01
1
1009-
●
●
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98041-330-0
01
1
1009-
●
●
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-83564-391-0
01
1
1009-
●
●
