8-50 — AIR CONDITIONING SYSTEM; FRONT (#71984) — 33 parça

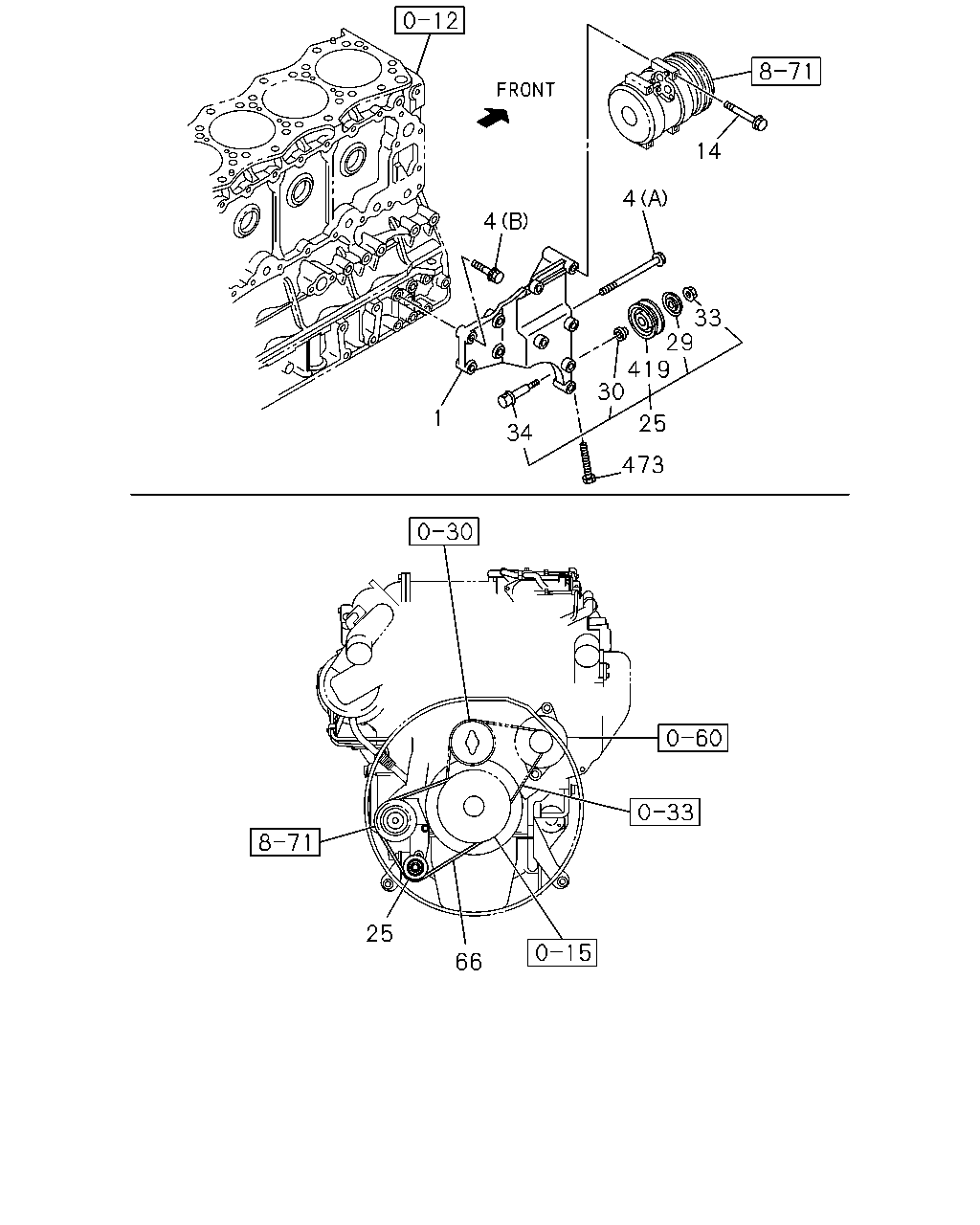

çizim 141138
66 25 473 25 30 419 29 33 4 14 4 1 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97632-242-1 01 1 1009-1302 ● ●
1 BRACKET; A/C 8-97632-242-1 01 1 1303- ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X45 FLANGE 		0-28151-045-0 04 1 1009-1302 ● ●
4 BOLT; A/C CMPR BRKT
(B) M10X45 FLANGE 		0-28151-045-0 04 1 1303- ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X150 FLANGE 		0-28156-015-0 01 1 1009-1302 ● ●
4 BOLT; A/C CMPR BRKT
(A) M10X150 FLANGE 		0-28156-015-0 01 1 1303- ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		0-28050-880-0 04 1 1009-1302 ● ●
14 BOLT; CMPR
M8X80 FLANGE 		0-28050-880-0 04 1 1303- ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97603-949-0 01 1 1009-1302 ● ●
25 PULLEY ASM; IDLER,CMPR 8-97603-949-0 01 1 1303- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83578-100-0 01 1 1009-1302 ● ●
29 COVER; DUST,IDLE PULLEY 1-83578-100-0 01 1 1303- ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-87540-319-0 01 1 1009-1302 ● ●
30 COLLAR; IDLE PULLEY 1-87540-319-0 01 1 1303- ● ●
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-985-0 01 1 1009-1302 ● ●
33 NUT; IDLER PULLEY 1-83579-985-0 01 1 1303- ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-982-0 01 1 1009-1302 ● ●
34 SHAFT; IDLE PULLEY 1-83579-982-0 01 1 1303- ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1274 		8-97607-491-0 01 1 1009-1109 ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1274 		8-98204-691-0 01 1 1110-1302 ● ●
66 BELT; A/C CMPR
L=1274 		8-98204-691-0 01 1 1303- ● ●
419 PULLEY; IDLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-87540-322-0 01 1 1009-1302 ● ●
419 PULLEY; IDLE 1-87540-322-0 01 1 1303- ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE 		1-09044-091-0 01 1 1009-1302 ● ●
473 BOLT; TENSIONER
M8X80 FLANGE 		1-09044-091-0 01 1 1303- ● ●
çizim 189932
378 378
BalonParca AdiParca NoAdetTipApplied Date A B
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98053-746-1 01 1 1009-1110 ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-844-0 01 1 1111- ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-428-0 01 1 1009-1302 ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-428-0 01 1 1303- ● ●

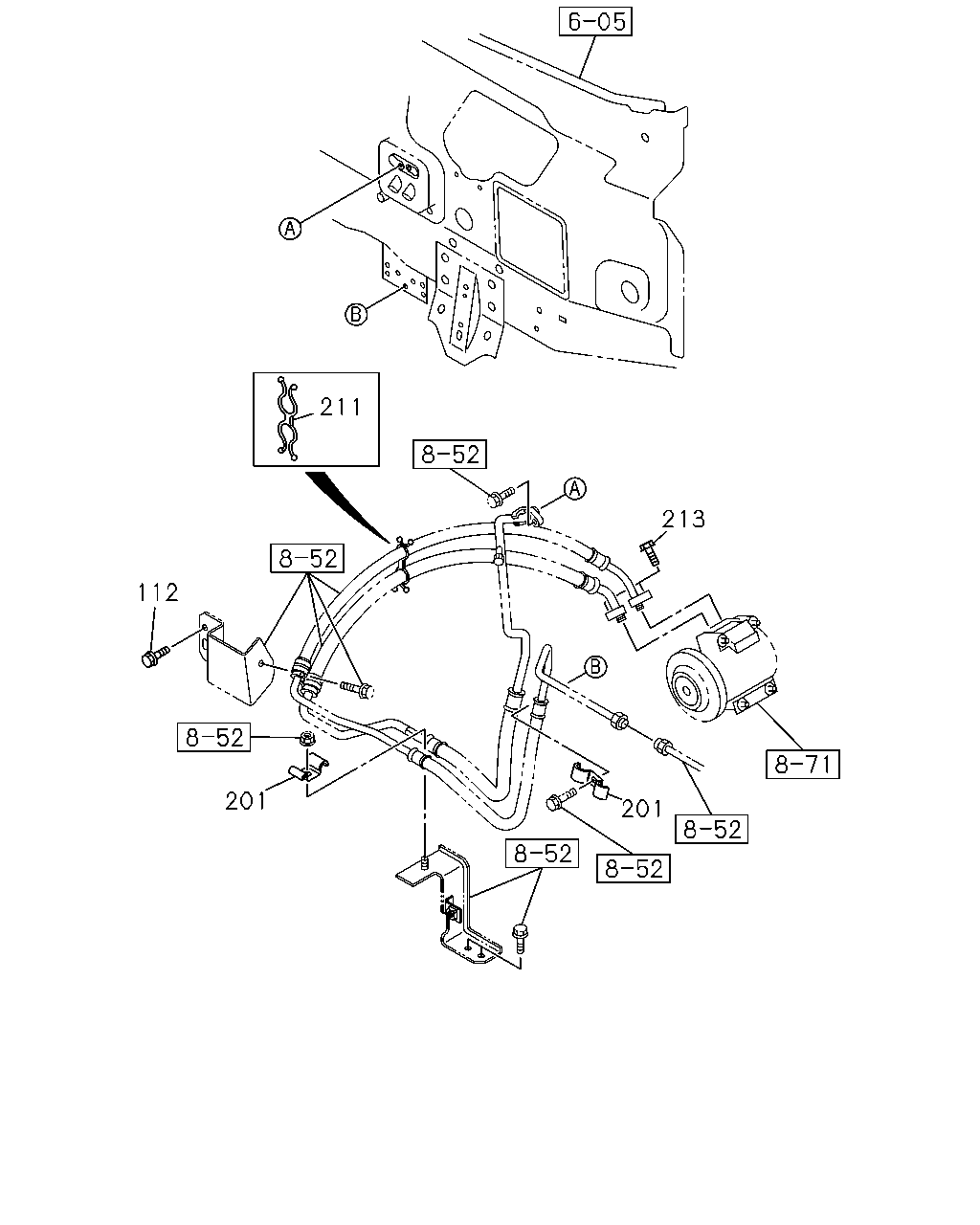

çizim 189939
201 213 201 112 211
BalonParca AdiParca NoAdetTipApplied Date A B
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-673-0 02 1 1009- ● ●
211 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-94423-042-0 02 1 1009- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE 		0-28050-625-0 02 1 1009- ● ●
