◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#71979) — 96 parça

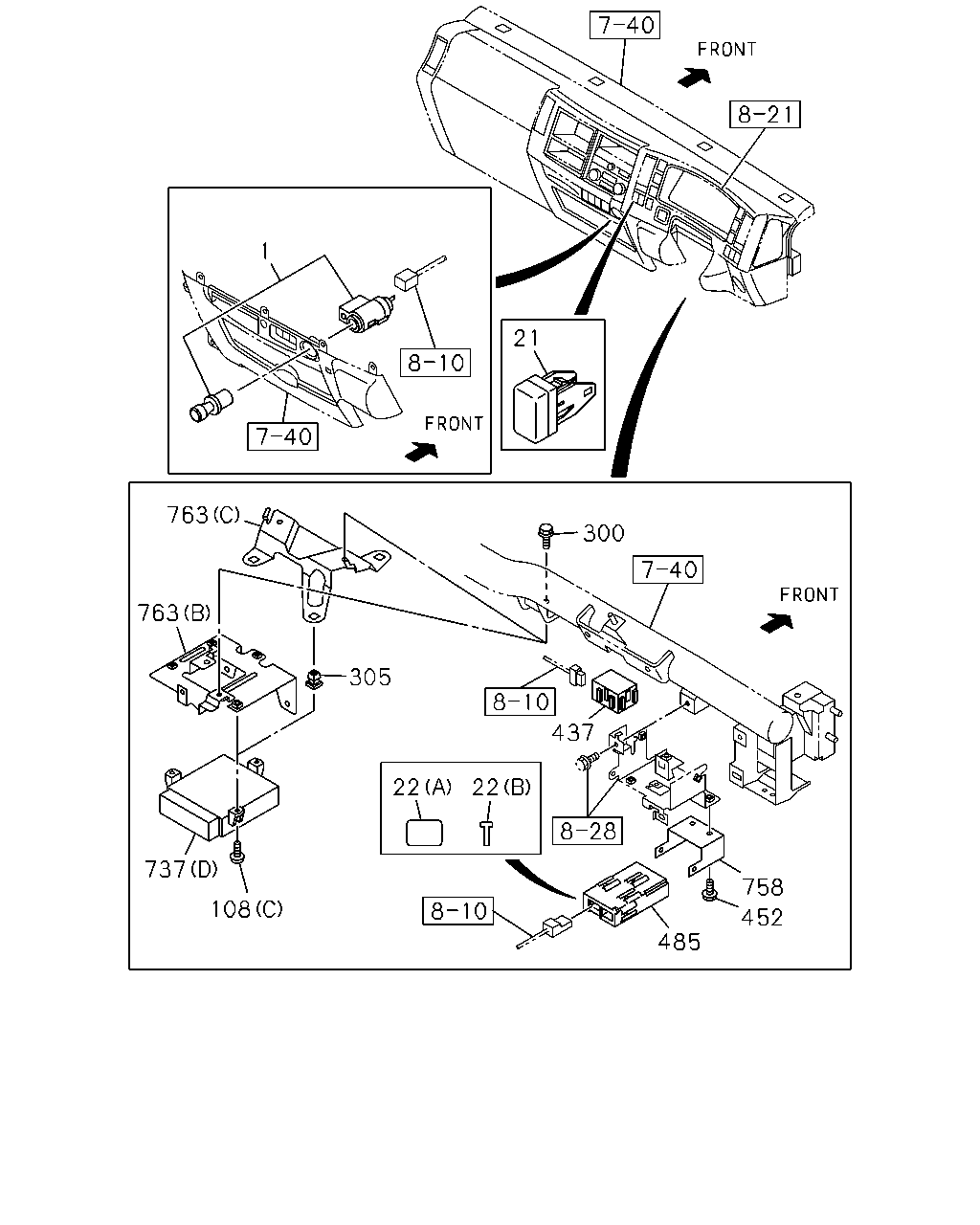

çizim 138222
300 21 1 437 305 763 763 737 108 758 452 485 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1009- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1009- ● ●
22 SEAL; TAPE
(A) 		1-80199-006-0 01 1 1009-1203 ● ●
22 SEAL; TAPE
(A) 		8-98166-639-0 01 1 1204- ● ●
22 SEAL; TAPE
(B) 		8-98083-174-0 01 1 1009- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) M6X20 TAPPING 		0-72180-620-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1303-1503 ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (C) M6X16 FLANGE 		0-28650-616-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1009- ● ●
300 BOLT; CONT UNIT BRKT
A/T ALLISON 4430(Y5V) M6X16 FLANGE 		0-28650-616-0 02 1 1303- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 04 1 1009- ● ●
305 NUT; CONT UNIT
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> D=9.7X9.7 L=8 		8-94222-314-0 03 1 1504- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1009- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1009- ● ●
485 CONTROL UNIT; SPEED SENSOR
A/T ALLISON 4430(Y5V) 		1-80190-061-0 01 1 1303- ● ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-80190-059-1 01 1 1110- ● ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T(Y5K) 		1-80190-063-0 01 1 1009- ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (D) 		8-98257-647-0 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) (D) 		8-98215-411-1 01 1 1303-1503 ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (D) 		8-98215-411-1 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (A) 		1-80111-271-0 01 1 1009- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (B) 		8-98095-040-0 01 1 1009- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (C) 		8-98095-041-0 01 1 1009- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1009- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) 		8-98252-197-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (B) 		8-98064-901-0 01 1 1303-1503 ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98064-901-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) 		8-98085-587-0 01 1 1009- ● ●

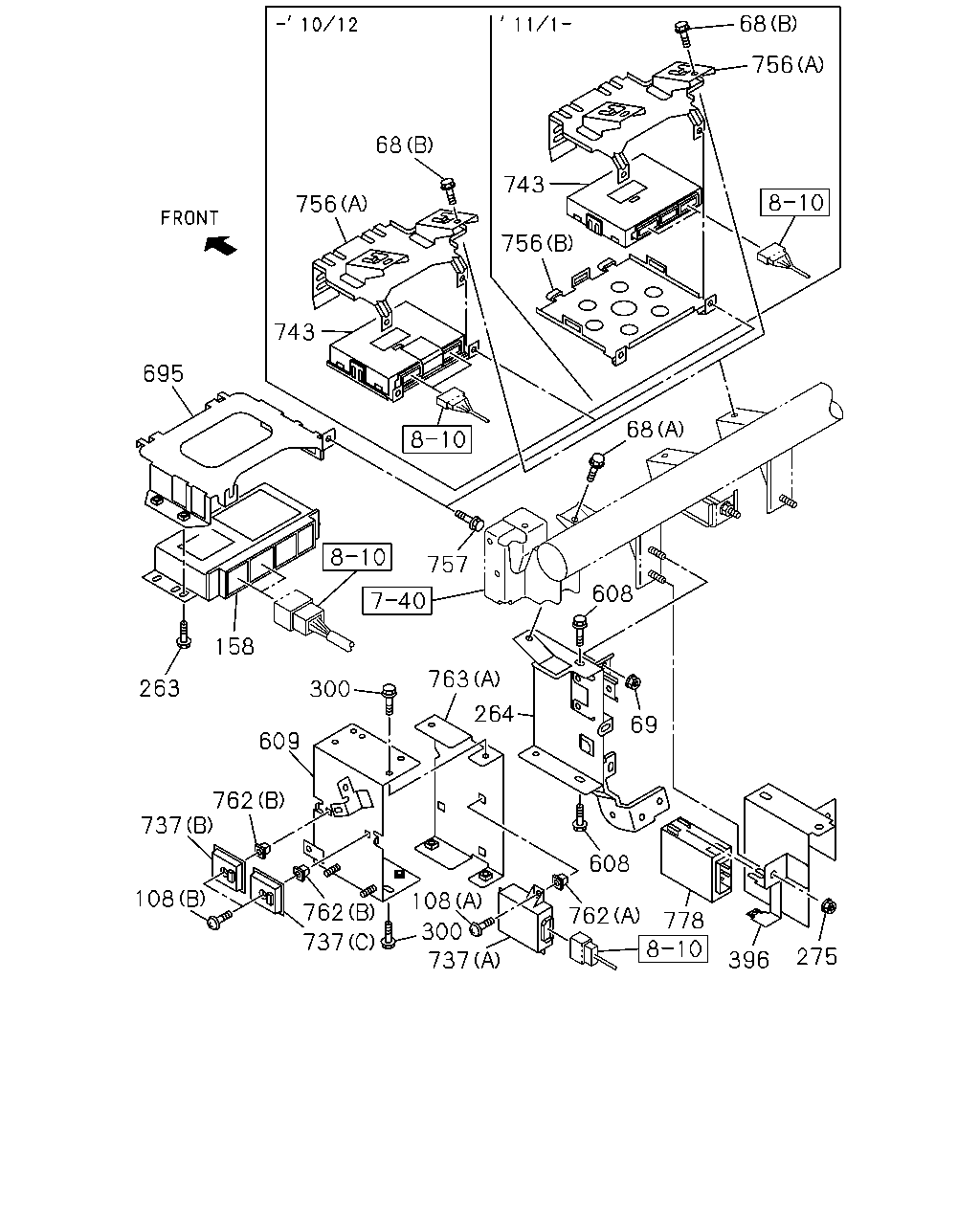

çizim 138293
68 743 756 756 68 608 757 695 743 756 68 158 263 609 762 737 108 300 763 264 108 300 762 737 608 762 778 396 275 737 69
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1009- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1511 ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-1511 ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1512- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1009- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) M6X20 TAPPING 		0-72180-620-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1303-1503 ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (C) M6X16 FLANGE 		0-28650-616-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1009- ● ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 1009-1201 ● ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202-1205 ● ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1206- ● ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1009- ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1009- ● ●
275 NUT; BRKT
AUTO CRUISE<K30> M6 FLANGE 		0-91180-106-0 02 1 1009-1511 ● ●
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1512- ● ●
300 BOLT; CONT UNIT BRKT
A/T ALLISON 4430(Y5V) M6X16 FLANGE 		0-28650-616-0 02 1 1303- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 04 1 1009- ● ●
396 BRACKET
AUTO CRUISE<K30> 		8-98084-467-4 01 1 1009-1511 ● ●
396 BRACKET 8-98084-467-4 01 1 1512- ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 05 1 1009-1203 ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1204-1211 ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 05 1 1212-1302 ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1303- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) 		8-98095-337-0 01 1 1009-1203 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1204-1211 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) 		8-98095-337-0 01 1 1212-1302 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 1303-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) 		8-98169-737-1 01 1 1309- ● ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1009- ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (D) 		8-98257-647-0 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) (D) 		8-98215-411-1 01 1 1303-1503 ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (D) 		8-98215-411-1 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (A) 		1-80111-271-0 01 1 1009- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (B) 		8-98095-040-0 01 1 1009- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (C) 		8-98095-041-0 01 1 1009- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1009-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1511 ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-1511 ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1512- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1511 ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1511 ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1512- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1009- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1009- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) 		8-98252-197-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (B) 		8-98064-901-0 01 1 1303-1503 ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98064-901-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) 		8-98085-587-0 01 1 1009- ● ●
778 MODULE; CRUISE CONT
AUTO CRUISE<K30> 		8-97620-055-0 01 1 1009- ● ●

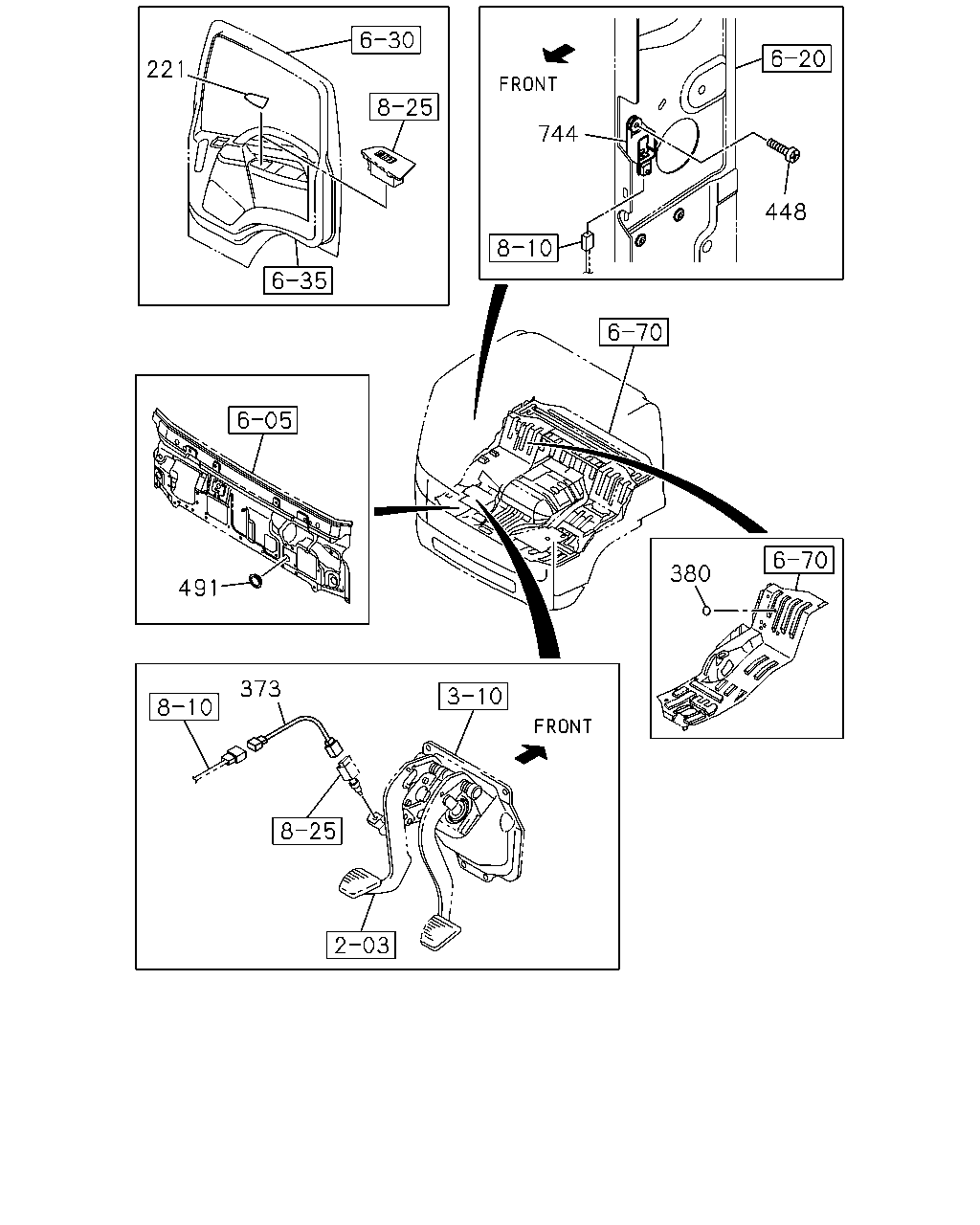

çizim 138361
221 491 373 744 448 380
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1009-1203 ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1009-1203 ● ●
373 HARNESS; CLU SWITCH 8-98059-419-1 01 1 1009-1203 ● ●
373 HARNESS; CLU SWITCH
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98059-419-2 01 1 1204- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
448 BOLT; SENSOR
M6X18 W/PL WASHER 		8-97105-796-1 02 1 1009- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009- ● ●
744 SENSOR; AIR BAG 8-97386-841-2 01 1 1009- ● ●

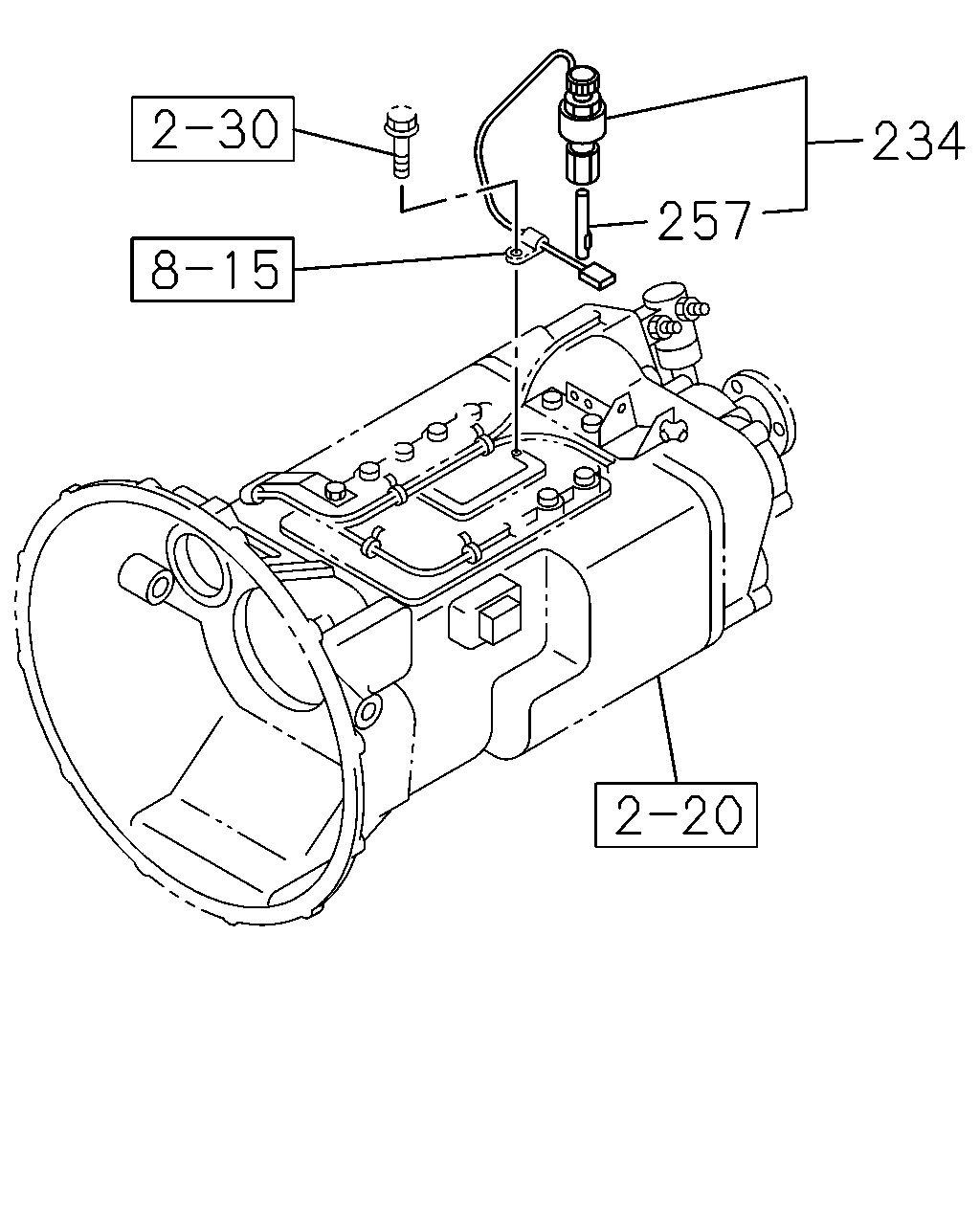

çizim 143802
234 257
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTO11908(Y5L) 25 PULSE 		1-83127-414-1 01 1 1009- ● ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-83129-073-0 01 1 1009- ● ●

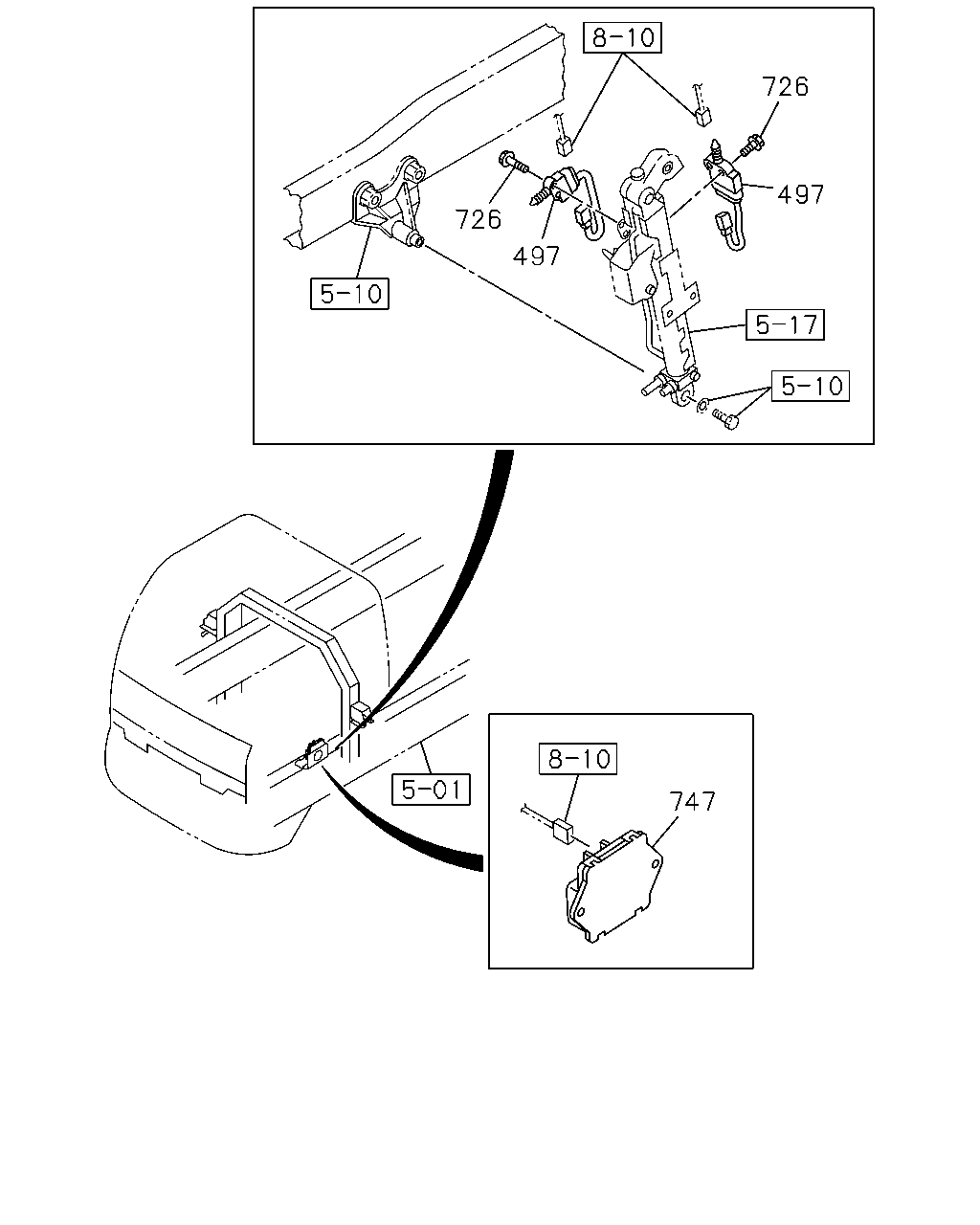

çizim 189929
726 497 726 497 747
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1009- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1009- ● ●
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1009- ● ●
