◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#71978) — 100 parça

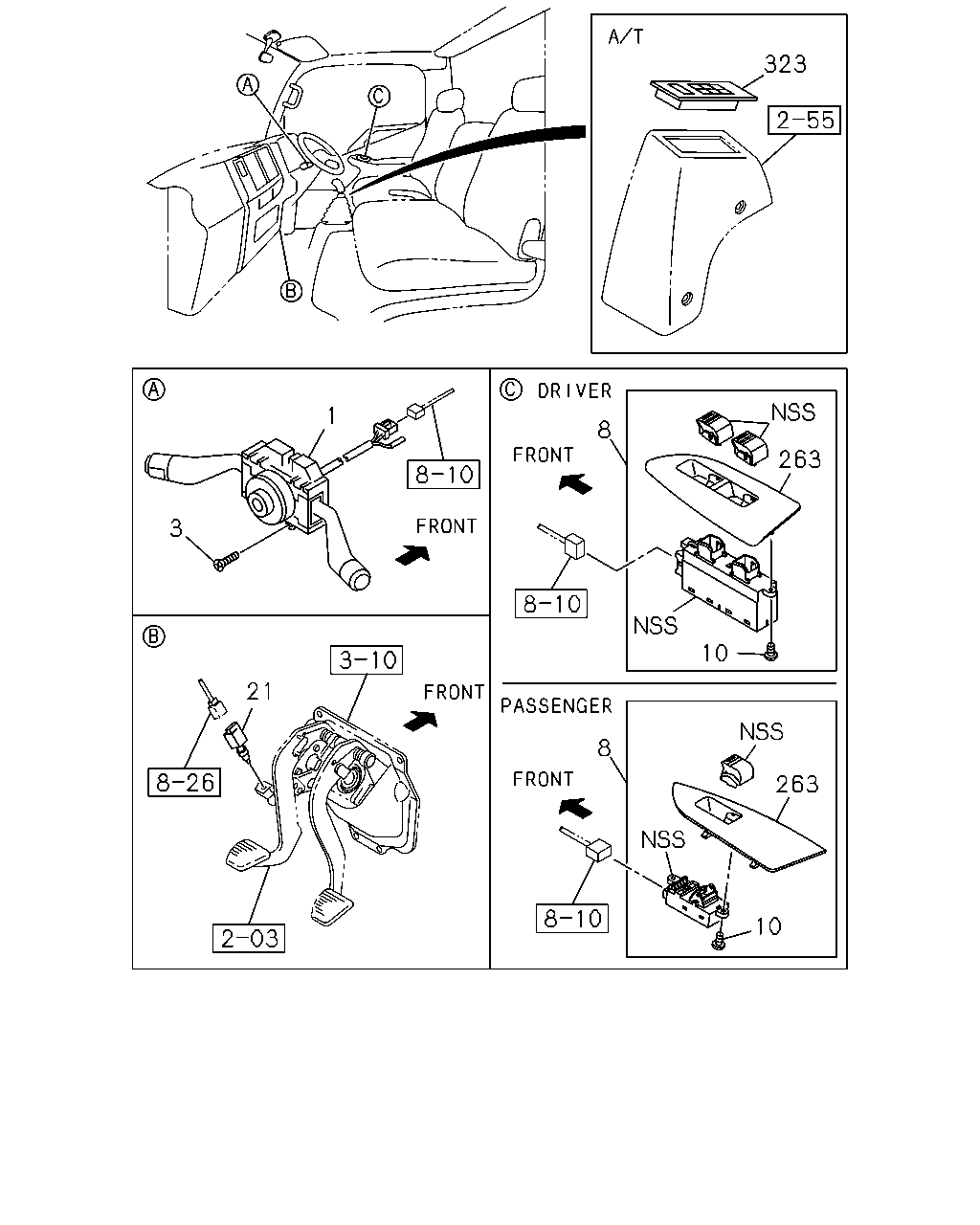

çizim 137335
323 8 263 10 263 10 8 21 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98146-619-0 01 1 1009-1210 ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ● ●
1 SWITCH; COMB
EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 1009-1203 ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1009-1203 ● ●
3 SCREW; COMB SW
AUTO CRUISE<K30> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1204-1511 ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1512- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-97387-034-2 01 1 1009-1203 ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 1204-1207 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98227-828-0 01 1 1208-1509 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-754-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98159-543-0 01 1 1009-1203 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1204-1207 ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98227-829-0 01 1 1208-1509 ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-423-0 01 1 1510- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 02 1 1512- ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 03 1 1009-1203 ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1204-1511 ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 01 1 1512- ● ●
21 SWITCH; CLU 8-97358-248-0 01 1 1009-1302 ● ●
21 SWITCH; CLU
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97358-248-0 01 1 1303- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER 		8-98153-836-0 01 1 1009-1203 ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 1204- ● ●
263 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER 		8-98153-841-0 01 1 1009-1203 ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 1204- ● ●
323 SWITCH ASM; SELECTOR
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> 		8-98221-525-0 01 1 1504- ● ●
323 SWITCH ASM; SELECTOR
A/T ALLISON 4430(Y5V) 		8-98143-058-0 01 1 1303-1503 ● ●
323 SWITCH ASM; SELECTOR
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> 		8-98143-058-0 01 1 1504- ● ●

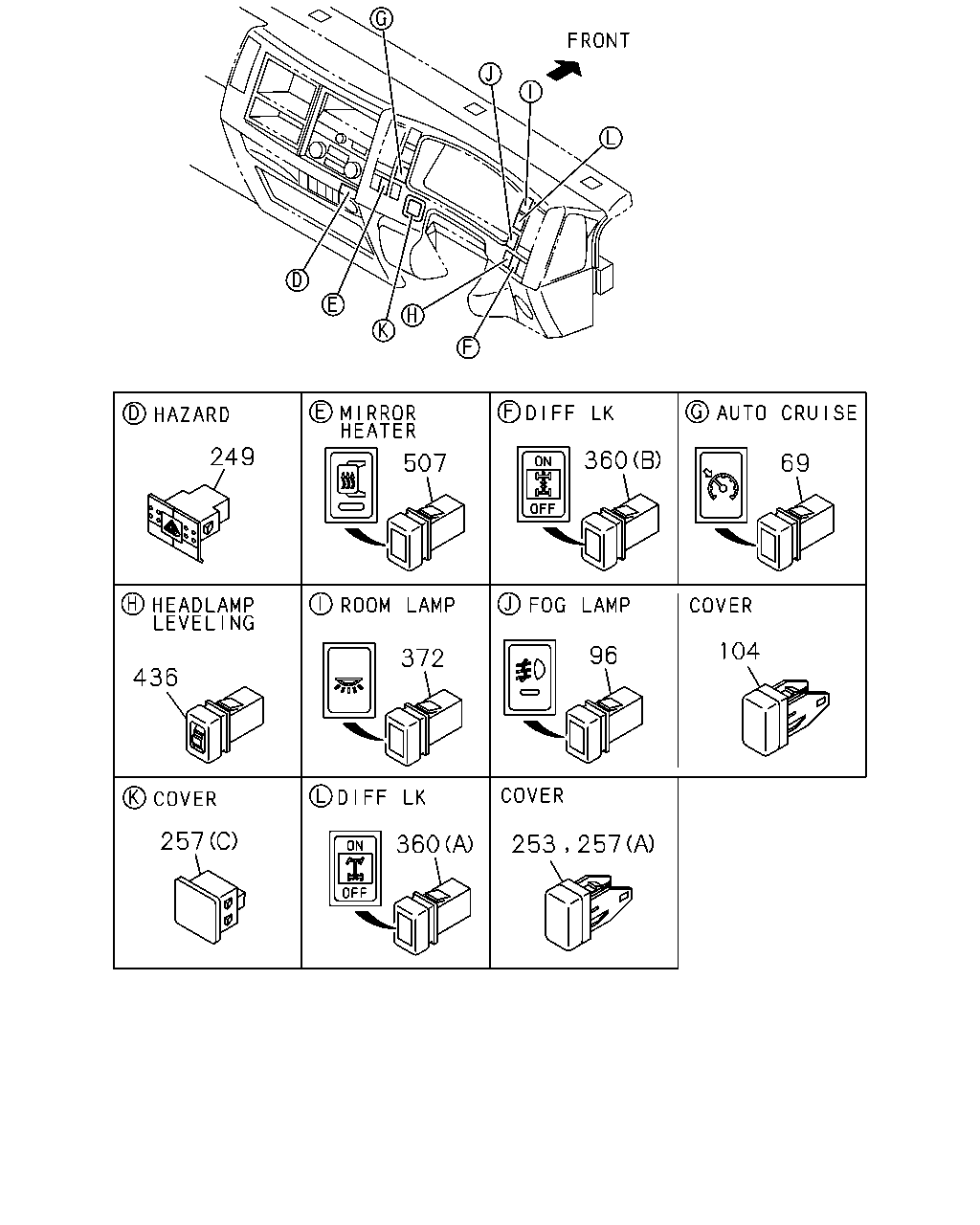

çizim 137825
69 360 104 96 257 253 360 257 372 507 249 436
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1009- ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1009- ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1009-1203 ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1009- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1009- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1009-1203 ● ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 02 1 1009- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1009-1203 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1204- ● ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 1009- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1009-1203 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1203 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1204- ● ●
360 SWITCH ASM; DIFF LK
(A) L-R 		8-97613-963-2 01 1 1009- ● ●
360 SWITCH ASM; DIFF LK
(B) INTER 		8-97613-964-1 01 1 1009- ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1009-1511 ● ●
372 SWITCH; ROOM LAMP
ANTILOCK BRAKE SYSTEM(BFA) 		8-97386-917-2 01 1 1512- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1009- ● ●
507 SWITCH; MIRROR HEATER
HEATER 		8-97386-924-3 01 1 1009- ● ●
çizim 138155
317 610 99 12 164 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1203 ● ●
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1302 ● ●
317 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1303- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●

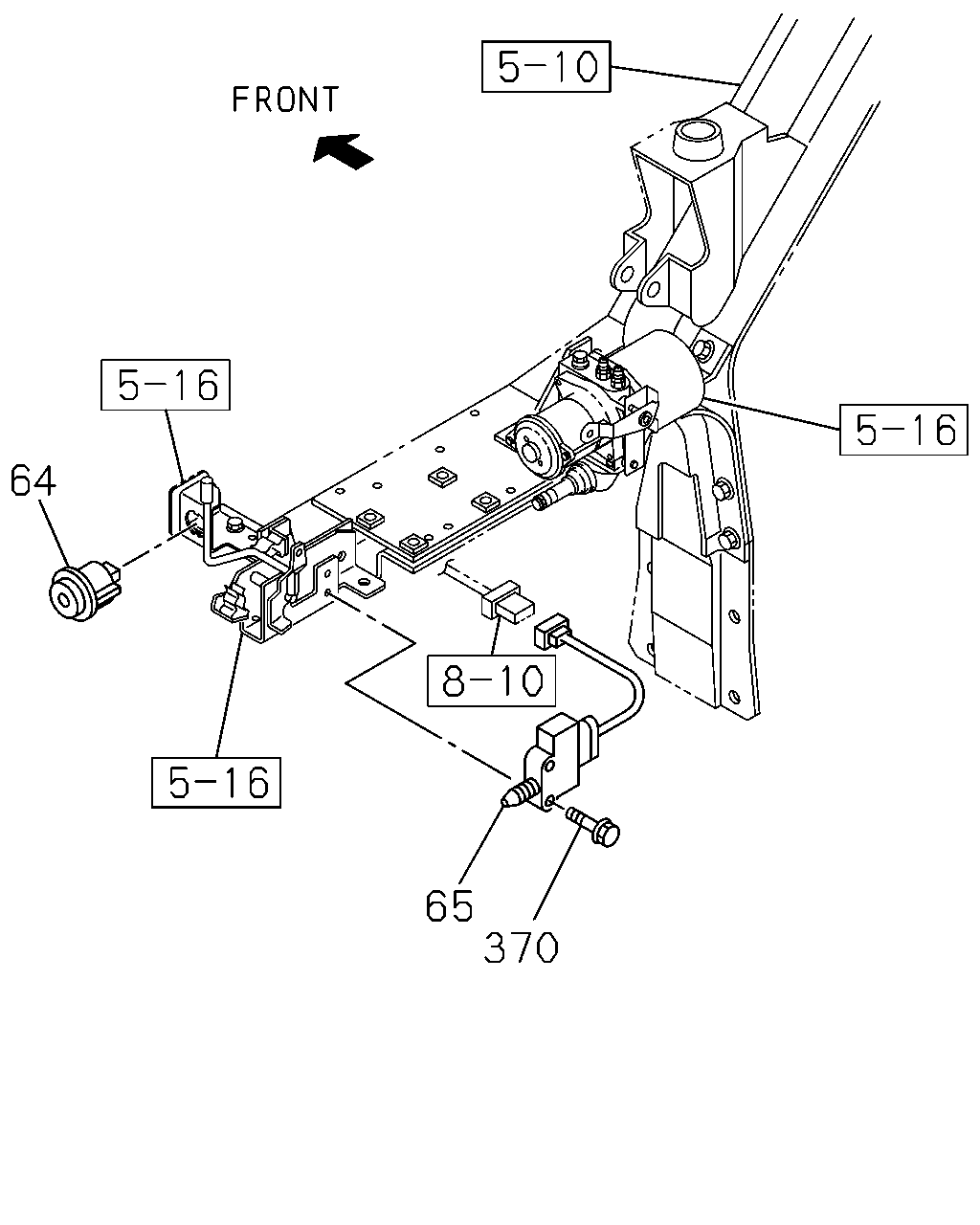

çizim 138385
64 370 65
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1009- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1009- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1009- ● ●
çizim 138513
237 236 666 667 397 482
BalonParca AdiParca NoAdetTipApplied Date A B
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 01 1 1009- ●
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 02 1 1009- ●
237 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009- ● ●
237 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009- ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1009- ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009- ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 1009- ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 01 1 1009- ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 04 1 1009- ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1511 ●
667 BOLT; CLIP
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1512- ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 02 1 1009- ●

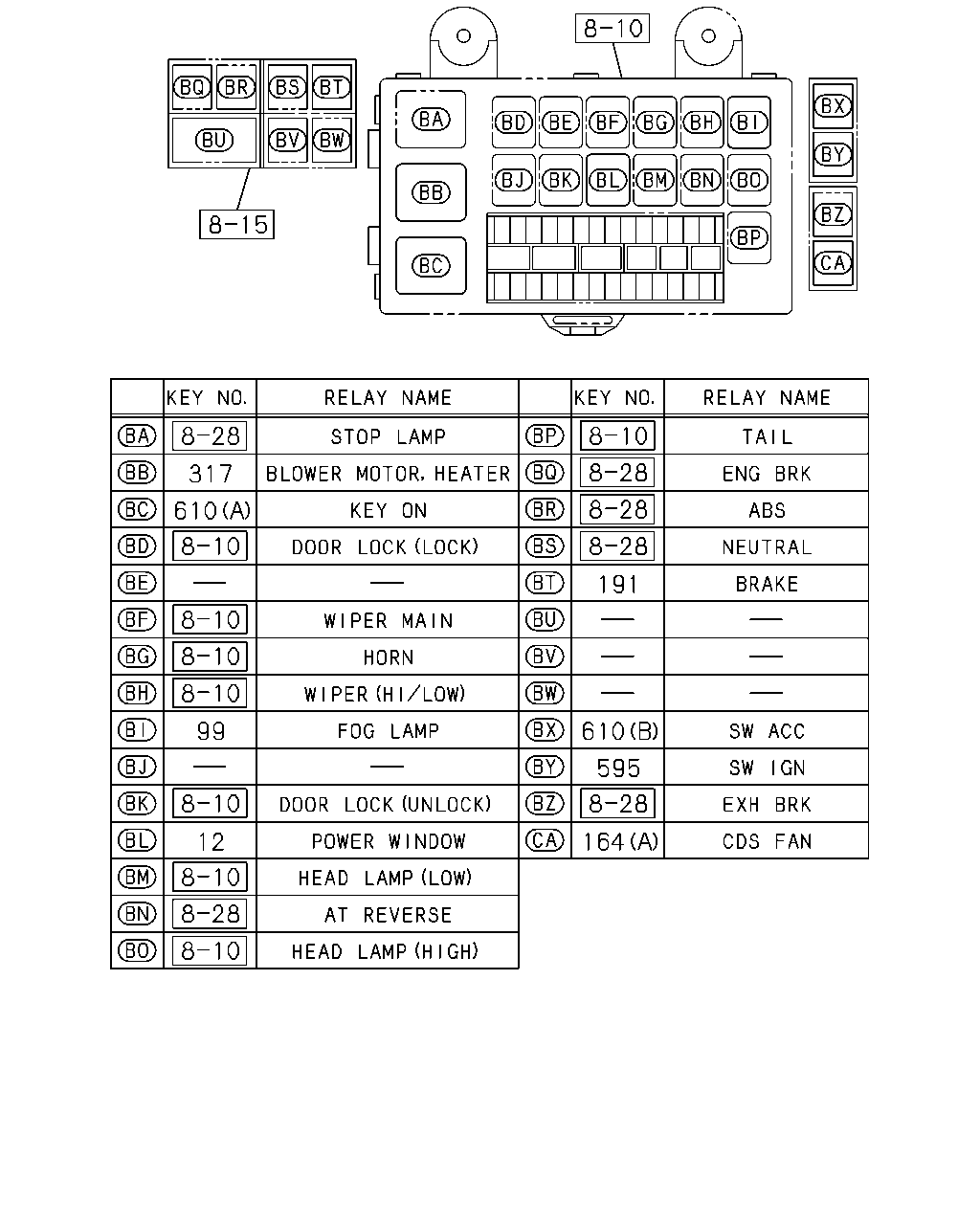

çizim 189926
317 610 99 12 191 610 595 164
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009-1203 ● ●
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
191 RELAY; EXH BRK CUT
A/T ALLISON 4430(Y5V) 24V 10A PANASONIC 		8-97173-035-1 01 1 1303- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009-1302 ● ●
317 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1303- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1204- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●

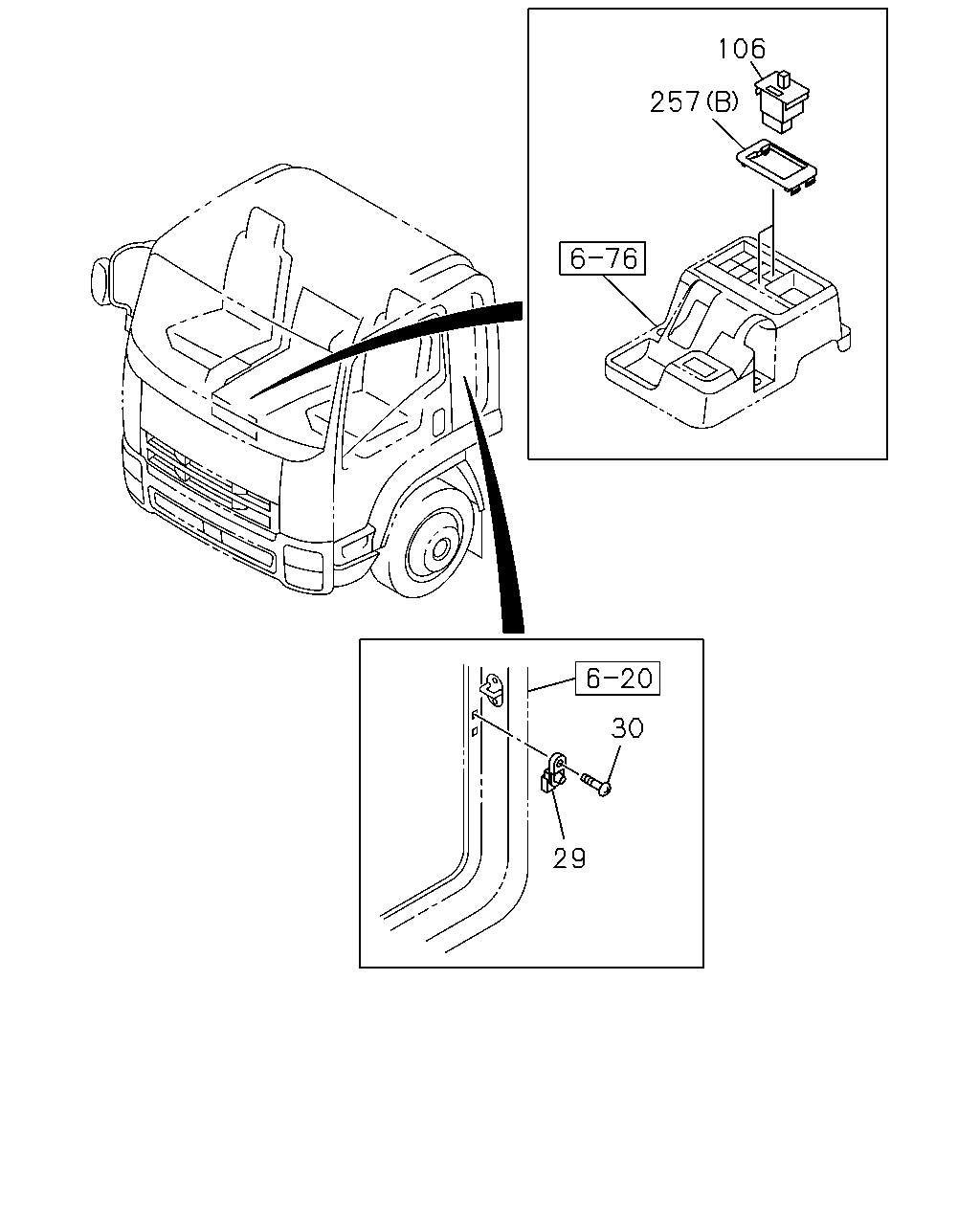

çizim 189928
106 257 30 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009-1203 ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1009-1203 ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 02 1 1204- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1009-1203 ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1009-1203 ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 1204- ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 1009- ● ●
257 COVER; HOLE,SW
(B) 		8-97619-254-1 02 1 1009- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1009-1203 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 05 1 1204- ● ●
257 COVER; HOLE,SW
(C) 		8-98029-914-1 01 1 1009- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1009-1203 ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1009-1203 ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1204- ● ●
çizim 339415
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1009- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1009- ● ●
