◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#71975) — 656 parça
çizim 136579
16 16 206 16 142 16 142 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 02 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 03 1 1303-1511 ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 01 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AR) ID=11 H=20 L=25 		1-09700-848-0 02 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009- ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1204- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1204-1301 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (B) ID=5-12 L=22 		1-09709-288-0 01 1 1204- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 1009- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 13 1 1009- ●
16 CLIP; HARNESS
(AN) ID=18-24 L=26 		1-09709-296-0 02 1 1009- ●
16 CLIP; HARNESS
(I) ID=11 L=24 		0-95235-045-0 01 1 1009- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009- ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009- ● ●
16 CLIP; HARNESS
(J) ID=35 L=33 		1-09700-945-0 01 1 1009- ● ●
16 CLIP; HARNESS
(L) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(N) ID=18 L=40 		1-09701-111-0 01 1 1009- ● ●
16 CLIP; HARNESS
(P) ID=16 L=50 		1-09701-158-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1303-1511 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 03 1 1512- ● ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009- ● ●
16 CLIP; HARNESS
(Q) ID=18 L=48 		9-09917-429-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1204- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1204-1302 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1204-1302 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 1204- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28 		0-95235-255-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40 		0-95235-576-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (R) ID=16 L=28 		0-95235-556-0 01 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (S) ID=16 L=60 		0-95235-596-0 02 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (AK) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 08 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 14 1 1009- ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		8-97209-720-0 01 1 1009- ● ●
142 CLIP; HARNESS,ENG
(B) L=251 		8-97619-917-0 01 1 1009- ● ●
142 CLIP; HARNESS,ENG
ENGINE REAR PTO(SV1) (B) L=251 		8-97619-917-0 01 1 1009- ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 01 1 1009-1009 ● ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 02 1 1010- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1009- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1009-1211 ● ●
206 CLIP; FUEL TANK HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8.3 & 10 		8-94176-792-0 01 1 1212- ● ●

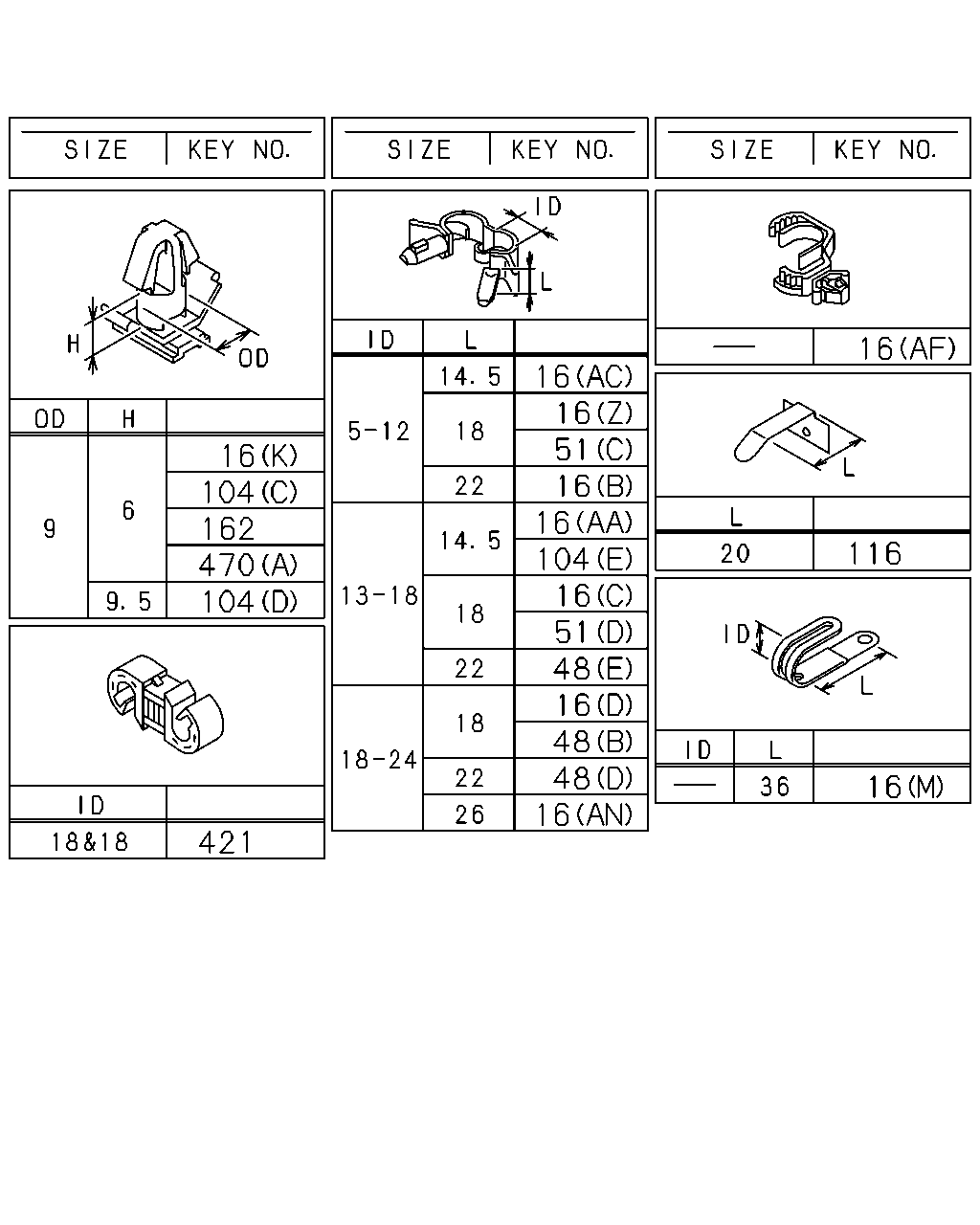

çizim 136750
16 104 470 162 104 421 16 51 16 16 104 51 16 48 48 16 48 16 16 16 116 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 02 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 03 1 1303-1511 ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 01 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AR) ID=11 H=20 L=25 		1-09700-848-0 02 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009- ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1204- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1204-1301 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●

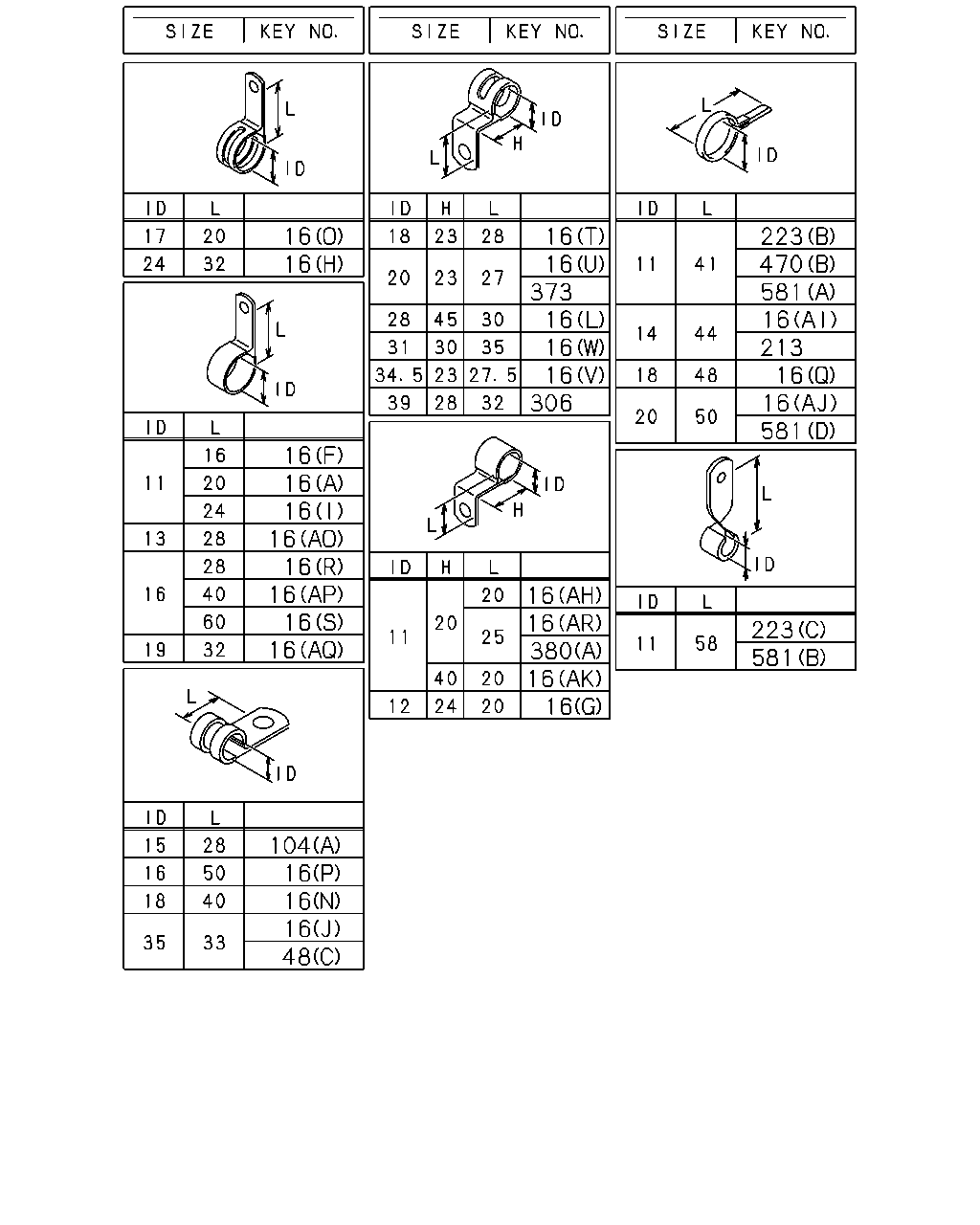

16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (B) ID=5-12 L=22 		1-09709-288-0 01 1 1204- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 1009- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 13 1 1009- ●
16 CLIP; HARNESS
(AN) ID=18-24 L=26 		1-09709-296-0 02 1 1009- ●
16 CLIP; HARNESS
(I) ID=11 L=24 		0-95235-045-0 01 1 1009- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009- ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009- ● ●
16 CLIP; HARNESS
(J) ID=35 L=33 		1-09700-945-0 01 1 1009- ● ●
16 CLIP; HARNESS
(L) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(N) ID=18 L=40 		1-09701-111-0 01 1 1009- ● ●
16 CLIP; HARNESS
(P) ID=16 L=50 		1-09701-158-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1303-1511 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 03 1 1512- ● ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009- ● ●
16 CLIP; HARNESS
(Q) ID=18 L=48 		9-09917-429-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1204- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1204-1302 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1204-1302 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 1204- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28 		0-95235-255-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40 		0-95235-576-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (R) ID=16 L=28 		0-95235-556-0 01 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (S) ID=16 L=60 		0-95235-596-0 02 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (AK) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 08 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 14 1 1009- ●
48 CLIP; FRAME HARNESS
A/T ALLISON 4430(Y5V) (E) ID=13-18 L=22 		1-09709-292-0 03 1 1303- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1204- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-1203 ● ●
48 CLIP; FRAME HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1211 ● ●
48 CLIP; FRAME HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=18-24 L=18 		1-09709-294-0 01 1 1212- ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 1009-1211 ● ●
48 CLIP; FRAME HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (D) ID=18-24 L=22 		1-09709-295-0 02 1 1212- ● ●
51 CLIP; COOLER CMPR
A/T ALLISON 4430(Y5V) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) ID=13-18 L=18 		1-09709-291-0 01 1 1303-1410 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 1009- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 1009-1410 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350 		1-09707-183-0 02 1 1411- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1211 ● ●
51 CLIP; COOLER CMPR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1212-1410 ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 1009- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1009- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1009- ● ●
421 CLIP; FLOOR HARNESS
ID=18 & 18 		8-94323-068-0 02 1 1009- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1009- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1009- ● ●

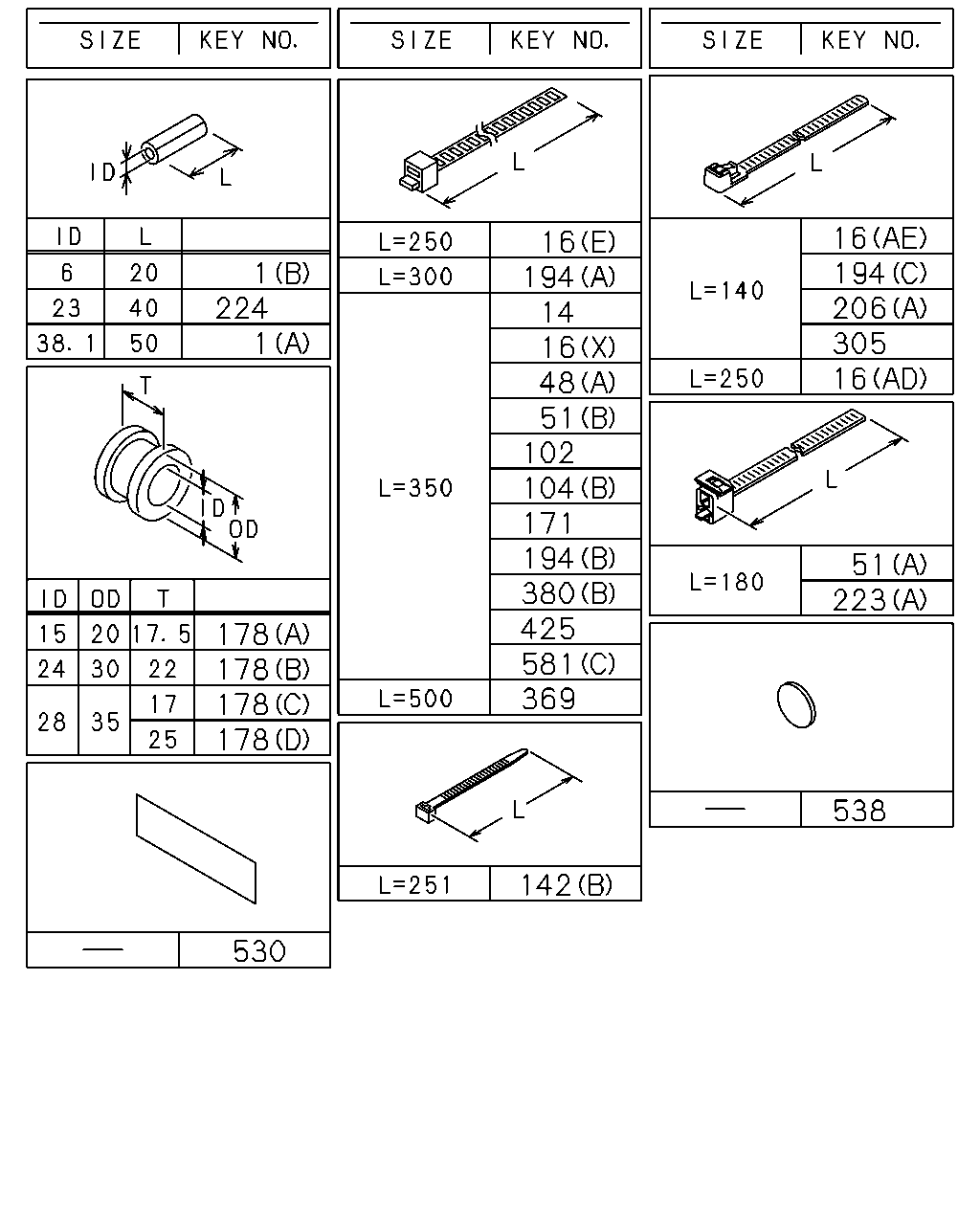

çizim 137183
1 1 224 178 178 178 178 530 142 369 581 425 380 194 171 104 102 51 48 16 14 194 16 16 194 206 305 16 51 223 538
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1009- ● ●
1 SLEEVE; RUBBER
ENGINE REAR PTO(SV1) (B) ID=6 L=20 		1-09360-924-0 01 1 1009- ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 02 1 1009- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 02 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 03 1 1303-1511 ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 01 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AR) ID=11 H=20 L=25 		1-09700-848-0 02 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009- ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1204- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1204-1301 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (B) ID=5-12 L=22 		1-09709-288-0 01 1 1204- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 1009- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 13 1 1009- ●
16 CLIP; HARNESS
(AN) ID=18-24 L=26 		1-09709-296-0 02 1 1009- ●
16 CLIP; HARNESS
(I) ID=11 L=24 		0-95235-045-0 01 1 1009- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009- ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009- ● ●
16 CLIP; HARNESS
(J) ID=35 L=33 		1-09700-945-0 01 1 1009- ● ●
16 CLIP; HARNESS
(L) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(N) ID=18 L=40 		1-09701-111-0 01 1 1009- ● ●
16 CLIP; HARNESS
(P) ID=16 L=50 		1-09701-158-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1303-1511 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 03 1 1512- ● ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009- ● ●
16 CLIP; HARNESS
(Q) ID=18 L=48 		9-09917-429-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1204- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1204-1302 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1204-1302 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 1204- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28 		0-95235-255-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40 		0-95235-576-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (R) ID=16 L=28 		0-95235-556-0 01 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (S) ID=16 L=60 		0-95235-596-0 02 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (AK) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 08 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 14 1 1009- ●
48 CLIP; FRAME HARNESS
A/T ALLISON 4430(Y5V) (E) ID=13-18 L=22 		1-09709-292-0 03 1 1303- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1204- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-1203 ● ●
48 CLIP; FRAME HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1211 ● ●
48 CLIP; FRAME HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=18-24 L=18 		1-09709-294-0 01 1 1212- ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 1009-1211 ● ●
48 CLIP; FRAME HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (D) ID=18-24 L=22 		1-09709-295-0 02 1 1212- ● ●
51 CLIP; COOLER CMPR
A/T ALLISON 4430(Y5V) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) ID=13-18 L=18 		1-09709-291-0 01 1 1303-1410 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 1009- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 1009-1410 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350 		1-09707-183-0 02 1 1411- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1211 ● ●
51 CLIP; COOLER CMPR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1212-1410 ● ●
102 CLIP; BAND
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 02 1 1009- ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009- ● ●
142 CLIP; HARNESS,ENG
(A) L=170.3 		8-97209-720-0 01 1 1009- ● ●
142 CLIP; HARNESS,ENG
(B) L=251 		8-97619-917-0 01 1 1009- ● ●
142 CLIP; HARNESS,ENG
ENGINE REAR PTO(SV1) (B) L=251 		8-97619-917-0 01 1 1009- ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 01 1 1009-1009 ● ●
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 02 1 1010- ● ●
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1009- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1009- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1009- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1009- ● ●
178 GROMMET; HARNESS
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1009-1203 ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1009-1203 ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1204- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 1009- ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 02 1 1009- ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=300 		1-09707-001-1 02 1 1009- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1009- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 1009-1211 ● ●
206 CLIP; FUEL TANK HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8.3 & 10 		8-94176-792-0 01 1 1212- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1009-1302 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1303- ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1009- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W) (C) ID=11 L=58 		9-09917-135-2 01 1 1009- ●
224 SLEEVE; RUBBER,HARNESS
ID=23 OD=27 L=40 		1-09337-015-0 01 1 1009- ● ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1009- ● ●
369 CLIP; BAND EDS HARNESS
L=500 		1-09707-082-1 01 1 1009- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1009- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1009- ● ●
425 CLIP; MODULATOR
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 01 1 1303- ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 03 1 1009- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1009- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 01 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=58 		9-09917-135-2 01 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) (C) L=350 		1-09707-183-0 01 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=20 L=50 		9-09917-430-0 02 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=20 L=50 		9-09917-430-0 01 1 1009- ●

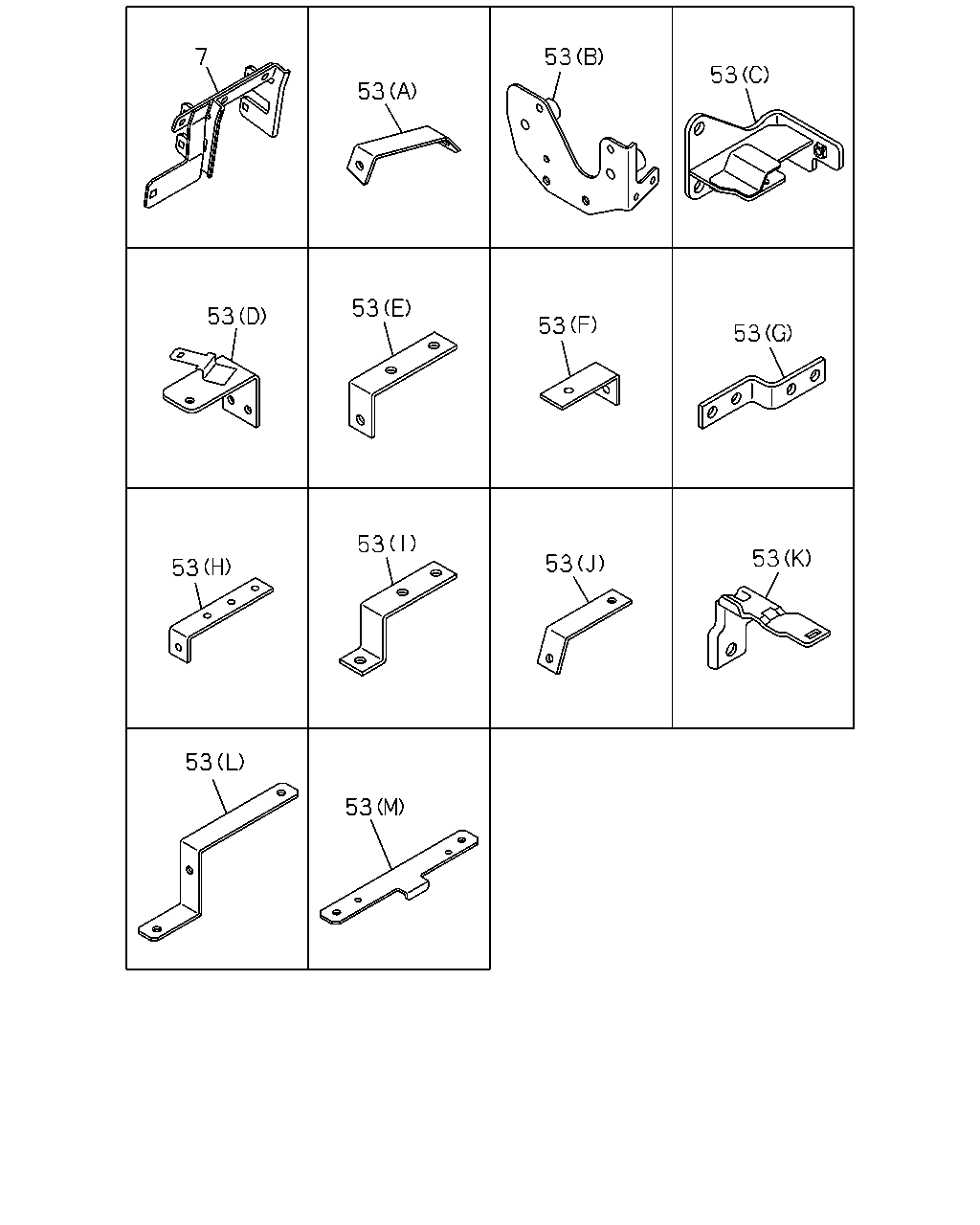

çizim 137355
7 53 53 53 53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1009- ● ●
53 BRACKET; HARNESS
A/T ALLISON 4430(Y5V) (M) 		8-98202-645-0 01 1 1303- ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 1009-1404 ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		8-98259-390-0 01 1 1405- ● ●
53 BRACKET; HARNESS
(F) L=65 		1-47479-064-1 01 1 1009- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 1009- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1009- ● ●
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(J) 		1-82698-514-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(K) 		8-98052-458-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(L) 		8-98078-801-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(D) 		8-98102-490-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(I) 		8-98124-778-0 01 1 1009- ● ●
53 BRACKET; HARNESS
(C) 		8-98127-603-1 01 1 1009- ● ●
53 BRACKET; HARNESS
(B) 		8-98154-215-1 01 1 1009-1009 ● ●
53 BRACKET; HARNESS
(B) 		8-98178-990-0 01 1 1010- ● ●
çizim 137742
211 335 600 375 312 312 375 335 375 375
BalonParca AdiParca NoAdetTipApplied Date A B
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		8-97621-353-1 01 1 1009- ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		8-97621-352-1 01 1 1009- ● ●
312 BRACKET; CLIP HARNESS
A/T ALLISON 4430(Y5V) (A) 		1-82698-479-0 01 1 1303- ● ●
312 BRACKET; CLIP HARNESS
(B) L=120 		8-97619-440-0 01 1 1009-1302 ● ●
312 BRACKET; CLIP HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) L=120 		8-97619-440-0 01 1 1303- ● ●
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 1009- ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 1009-1203 ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 1204- ● ●
375 BRACKET; AC GEN HARNESS CLIP
A/T ALLISON 4430(Y5V) (D) 		8-98229-600-0 01 1 1303- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 1009- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 1009- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 1009-1211 ● ●
375 BRACKET; AC GEN HARNESS CLIP
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-82698-583-1 01 1 1212- ● ●
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1009- ● ●

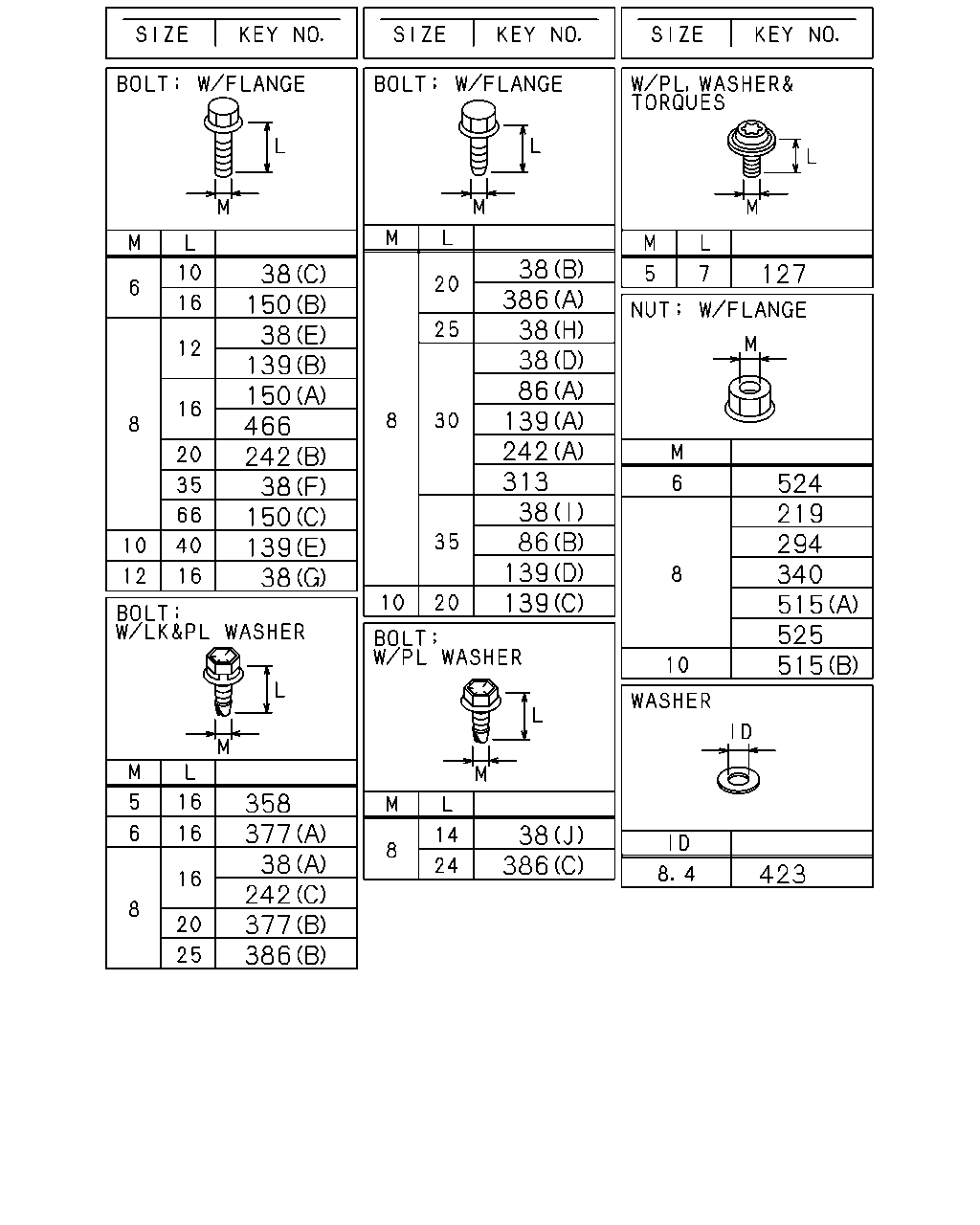

çizim 189922
423 515 515 340 294 219 524 127 386 139 38 139 86 38 313 242 139 86 38 38 386 38 358 377 38 242 377 386 38 139 150 38 242 466 150 139 38 150 38 525
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
A/T ALLISON 4430(Y5V) (B) M8X20 FLANGE 		0-28650-820-0 04 1 1303- ● ●
38 BOLT; CLIP,HARNESS
(C) M6X10 FLANGE 		0-28050-610-0 01 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X35 FLANGE 		0-28050-835-0 01 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X35 FLANGE 		0-28050-835-0 03 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 07 1 1009-1211 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 08 1 1212- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28650-825-0 03 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 03 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 04 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28650-835-0 02 1 1009- ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 1009-1105 ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ● ●
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1203 ● ●
38 BOLT; CLIP,HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1204- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1204- ● ●
38 BOLT; CLIP,HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1203 ● ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T(Y5K) (E) M8X12 FLANGE 		0-28050-812-0 02 1 1009- ● ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1203 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1203 ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1204-1211 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1204-1211 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1212- ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4900MM(49W) (D) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ●
86 BOLT; CLIP BRKT
A/T ALLISON 4430(Y5V) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1303- ● ●
86 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1211 ● ●
86 BOLT; CLIP BRKT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1212- ● ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1009- ● ●
139 BOLT; BRKT
A/T ALLISON 4430(Y5V) (E) M10X40 FLANGE 		0-28051-040-0 02 1 1303- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1210-1210 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1211- ● ●
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1011- ● ●
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1009- ● ●
139 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1009- ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 08 1 1009- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1010 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1010 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1011-1203 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1204-1204 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1205-1209 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1210-1210 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1204 ● ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1009- ●
150 BOLT; CLIP
EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1009- ●
150 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1009- ● ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 08 1 1009- ● ●
150 BOLT; CLIP
(C) M8X66 FLANGE 		8-98081-507-0 02 1 1009- ● ●
219 NUT
A/T ALLISON 4430(Y5V) M8 FLANGE 		0-91180-108-0 04 1 1303- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 1009-1210 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 08 1 1211- ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-1203 ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1204- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009-1311 ● ●
219 NUT
TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 01 1 1009-1311 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009-1311 ●
219 NUT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 01 1 1009-1311 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1312- ●
219 NUT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 01 1 1312- ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1009- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009- ● ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1009- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 1009-1203 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 06 1 1204-1302 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1303-1511 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 1512- ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1009-1204 ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 03 1 1205-1209 ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1210-1210 ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 03 1 1211- ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-1203 ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1204-1204 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1204-1204 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1205-1209 ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1210-1210 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1210-1210 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1211-1302 ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-1511 ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 1009- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1009- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1009- ● ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1009- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1009- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009- ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1009-1202 ● ●
386 BOLT; GRAND HARNESS
(C) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1203- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1009- ● ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
515 NUT; BRKT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
515 NUT; BRKT
A/T ALLISON 4430(Y5V) (B) M10 FLANGE 		0-91180-210-0 02 1 1303- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 07 1 1009-1208 ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 08 1 1209-1211 ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 07 1 1212- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009-1208 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1009- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1208 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1209-1211 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1209-1211 ● ●
525 NUT; CLIP
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ●
çizim 189923
16 16 16 16 16 16 16 16 16 16 48 16 104 16 16 16 380 16 16 581 16 223 581 16 16 213 16 581 470 223 306 16 16 16 373 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 02 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 03 1 1303-1511 ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AQ) ID=19 L=32 		0-95235-866-0 01 1 1512- ● ●
16 CLIP; HARNESS
A/T ALLISON 4430(Y5V) (AR) ID=11 H=20 L=25 		1-09700-848-0 02 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1203 ● ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009- ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 04 1 1204- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) L=250 		1-09707-126-0 01 1 1009-1303 ●
16 CLIP; HARNESS
(G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (G) ID=12 H=24 L=20 		1-09700-605-0 01 1 1009- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1009-1102 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (X) L=350 		1-09707-183-0 01 1 1103-1203 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (Z) ID=5-12 L=18 		1-09709-287-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1204-1301 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1302-1302 ● ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1303- ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1009-1102 ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) ID=5-12 L=22 		1-09709-288-0 02 1 1103-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (B) ID=5-12 L=22 		1-09709-288-0 01 1 1204- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 1009- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 13 1 1009- ●
16 CLIP; HARNESS
(AN) ID=18-24 L=26 		1-09709-296-0 02 1 1009- ●
16 CLIP; HARNESS
(I) ID=11 L=24 		0-95235-045-0 01 1 1009- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009- ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1009- ● ●
16 CLIP; HARNESS
(J) ID=35 L=33 		1-09700-945-0 01 1 1009- ● ●
16 CLIP; HARNESS
(L) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009- ● ●
16 CLIP; HARNESS
(N) ID=18 L=40 		1-09701-111-0 01 1 1009- ● ●
16 CLIP; HARNESS
(P) ID=16 L=50 		1-09701-158-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1009-1102 ● ●
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1303- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1203 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 01 1 1204-1302 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 1303-1511 ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 03 1 1512- ● ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009- ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105 ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ●
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009- ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009- ● ●
16 CLIP; HARNESS
(Q) ID=18 L=48 		9-09917-429-0 01 1 1009- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 1204- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AM) L=155 		8-97173-307-0 18 1 1009-1203 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1204-1302 ● ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AL) L=40.6 		8-97229-357-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1204-1302 ● ●
16 CLIP; HARNESS
(AL) L=40.6 		8-97229-357-0 02 1 1303- ● ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-1203 ● ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 1204- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20 		0-95235-035-0 01 1 1009- ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28 		0-95235-255-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40 		0-95235-576-0 01 1 1009- ● ●
16 CLIP; HARNESS
TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6 		1-09709-178-0 02 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (R) ID=16 L=28 		0-95235-556-0 01 1 1009- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) (S) ID=16 L=60 		0-95235-596-0 02 1 1009- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 02 1 1009- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18 		1-09709-291-0 05 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (Y) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009- ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (AK) D=11 H=40 L=20 		8-94246-610-0 01 1 1009- ●
16 CLIP; HARNESS
FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1203 ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18 		1-09709-291-0 02 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18 		1-09709-294-0 08 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18 		1-09709-291-0 07 1 1009- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18 		1-09709-294-0 14 1 1009- ●
48 CLIP; FRAME HARNESS
A/T ALLISON 4430(Y5V) (E) ID=13-18 L=22 		1-09709-292-0 03 1 1303- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1009- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1204- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-1203 ● ●
48 CLIP; FRAME HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1211 ● ●
48 CLIP; FRAME HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=18-24 L=18 		1-09709-294-0 01 1 1212- ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 1009-1211 ● ●
48 CLIP; FRAME HARNESS
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (D) ID=18-24 L=22 		1-09709-295-0 02 1 1212- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1009- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1009-1302 ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1303- ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1009- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4900MM(49W) (C) ID=11 L=58 		9-09917-135-2 01 1 1009- ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 1009- ● ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1009- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1009- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1009- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1009- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1009- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 01 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=58 		9-09917-135-2 01 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) (C) L=350 		1-09707-183-0 01 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=20 L=50 		9-09917-430-0 02 1 1009- ●
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=20 L=50 		9-09917-430-0 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
