◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#71974) — 290 parça

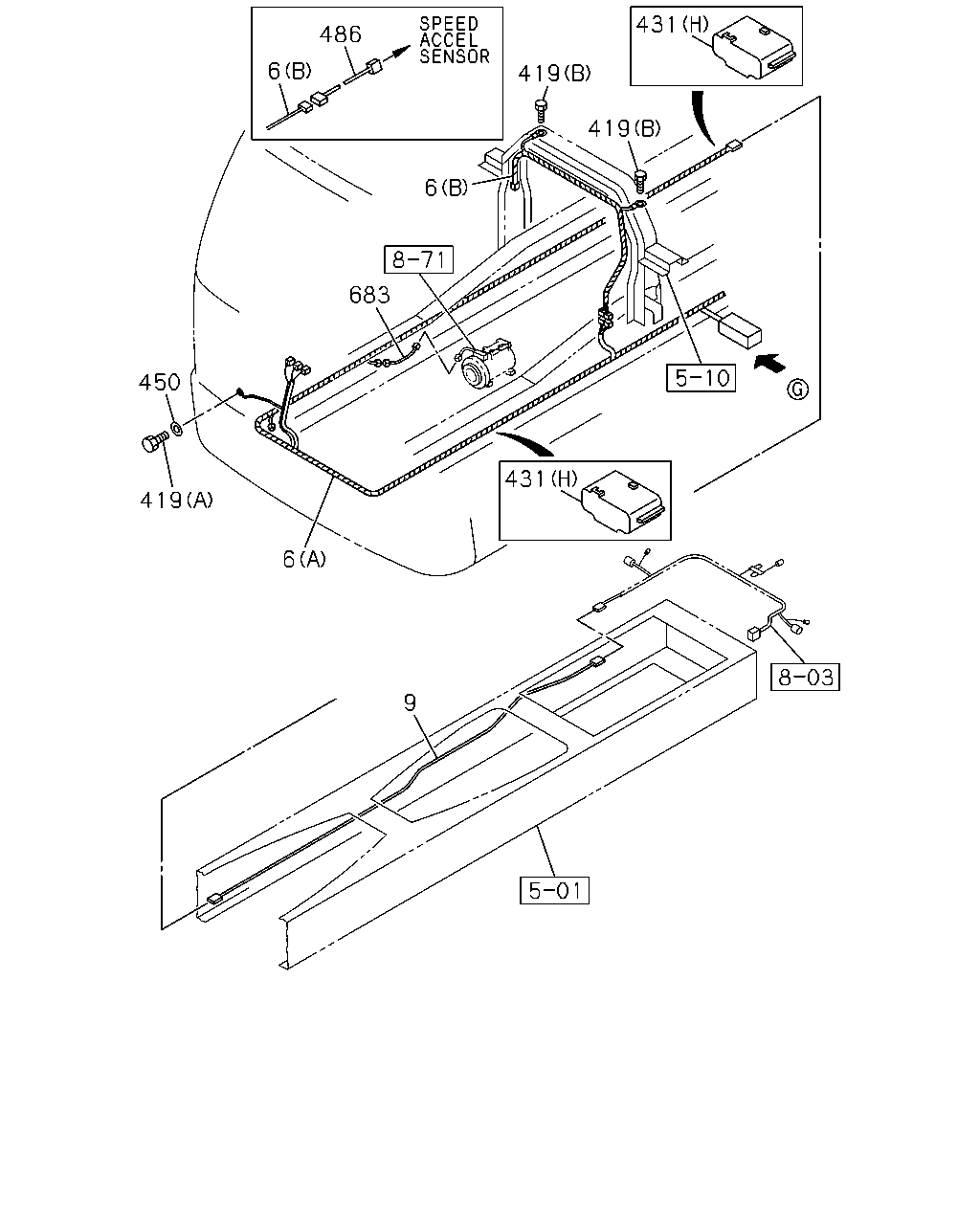

çizim 136061
431 419 486 6 6 419 683 450 419 6 431 9
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A) 		8-98233-776-1 01 1 1303- ● ●
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A) 		8-98233-775-1 01 1 1303- ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-1203 ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1204- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1212- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1212- ● ●
9 HARNESS; FRAME,RR 8-98131-643-2 01 1 1009- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98131-640-1 01 1 1009- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) 		8-98127-951-1 01 1 1009- ●
419 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1009- ● ●
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201 ● ●
419 BOLT; CAB EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ●
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) (G) 10P GREEN 		1-82699-599-0 06 1 1303- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 1009- ● ●
486 HARNESS; ALL SPEED ACCEL
ENGINE REAR PTO(SV1) 		8-98163-095-0 01 1 1009- ●
683 HARNESS; EXT,COOLER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97609-020-1 01 1 1009- ● ●

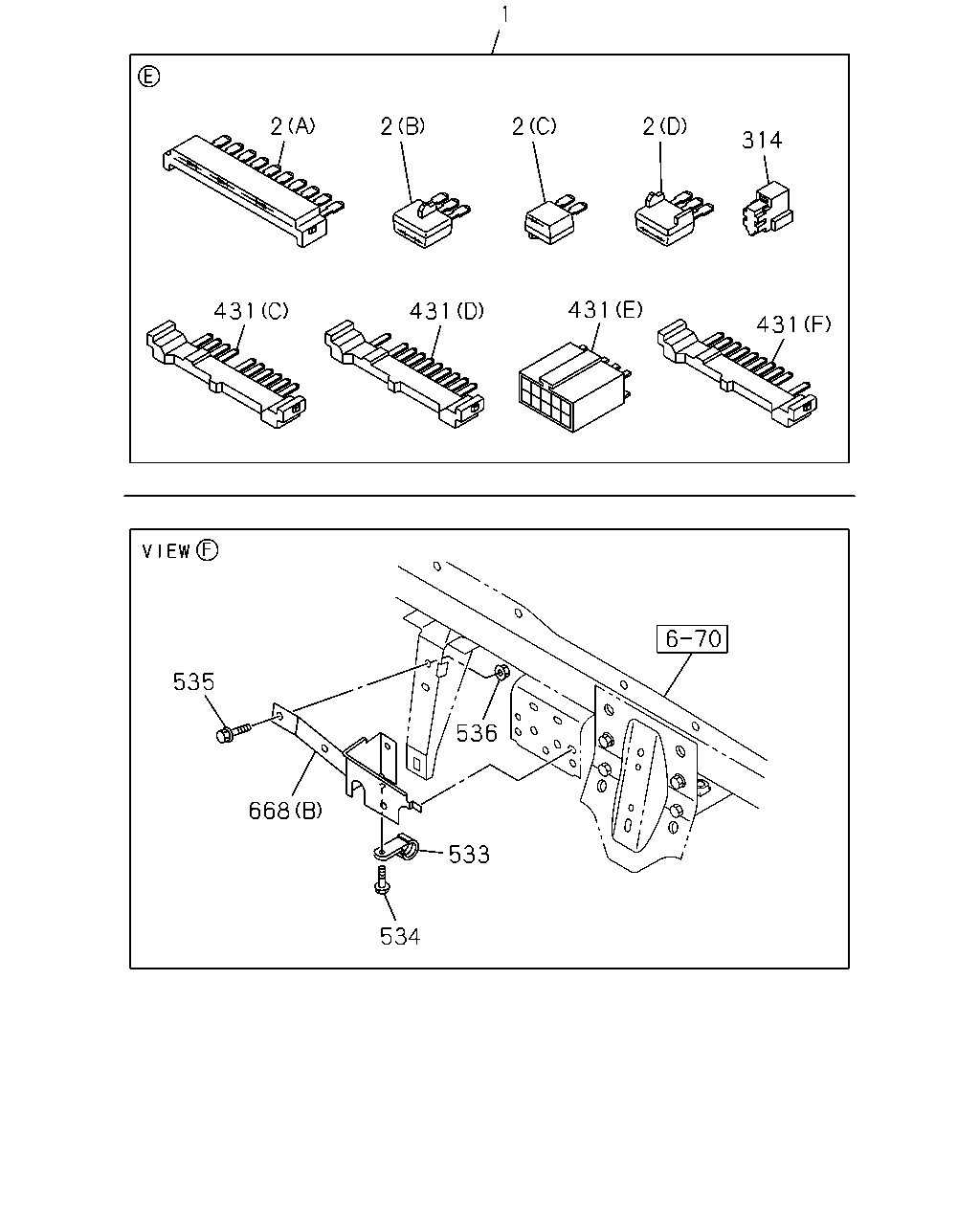

çizim 136382
431 314 2 2 1 2 2 431 431 431 535 668 533 536 534
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> 		8-98296-565-0 01 1 1504-1511 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> 		8-98296-565-1 01 1 1512- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98296-564-0 01 1 1504-1511 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98296-564-1 01 1 1512- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) 		8-98211-960-2 01 1 1303-1503 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF> 		8-98211-960-3 01 1 1504- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-959-2 01 1 1303-1503 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF> 		8-98211-959-3 01 1 1504- ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) 		8-98155-301-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) 		8-98211-956-1 01 1 1204- ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-299-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-954-1 01 1 1204- ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) 		8-98155-300-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) 		8-98211-955-1 01 1 1204-1302 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98211-955-1 01 1 1303- ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-298-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1204-1302 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1303- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1009- ● ●
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1009- ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1203 ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 02 1 1204- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1009- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) (G) 10P GREEN 		1-82699-599-0 06 1 1303- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ●
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 1009- ● ●
534 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 1009- ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302 ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303 ● ●
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
536 NUT; BRKT FIX
M8 		8-98041-929-0 01 1 1009- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1009- ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1009- ● ●

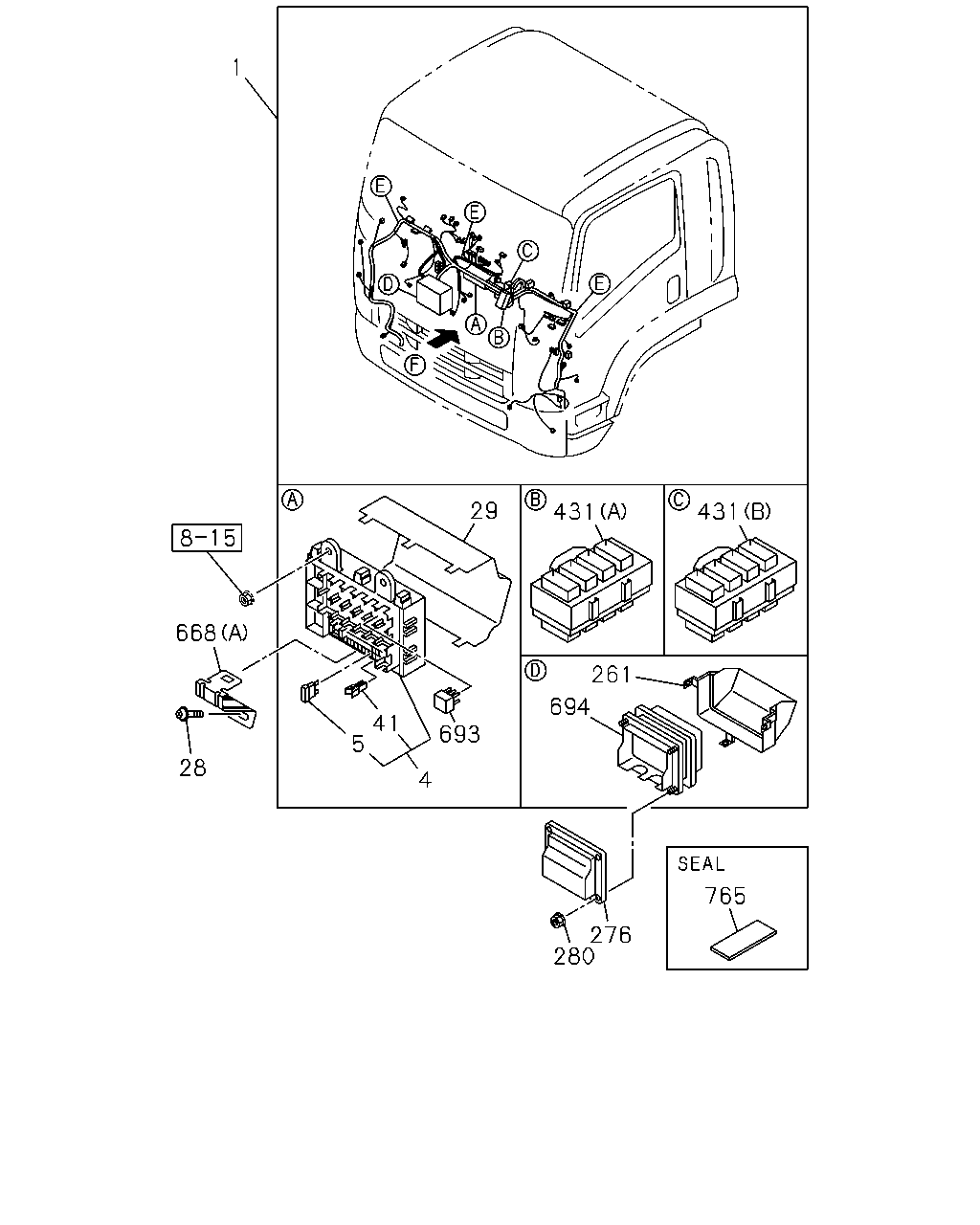

çizim 136458
1 668 28 5 41 4 693 29 431 261 694 431 765 276 280
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> 		8-98296-565-0 01 1 1504-1511 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> 		8-98296-565-1 01 1 1512- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98296-564-0 01 1 1504-1511 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98296-564-1 01 1 1512- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) 		8-98211-960-2 01 1 1303-1503 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF> 		8-98211-960-3 01 1 1504- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-959-2 01 1 1303-1503 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF> 		8-98211-959-3 01 1 1504- ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) 		8-98155-301-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) 		8-98211-956-1 01 1 1204- ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-299-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-954-1 01 1 1204- ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) 		8-98155-300-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) 		8-98211-955-1 01 1 1204-1302 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98211-955-1 01 1 1303- ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-298-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1204-1302 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1303- ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1009- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1009- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1009- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1009- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1009- ● ●
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1009- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1009- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1009- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1009- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1009- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1009- ● ●
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) (G) 10P GREEN 		1-82699-599-0 06 1 1303- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1009- ● ●
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1009- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1009- ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1009- ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409-1512 ● ●

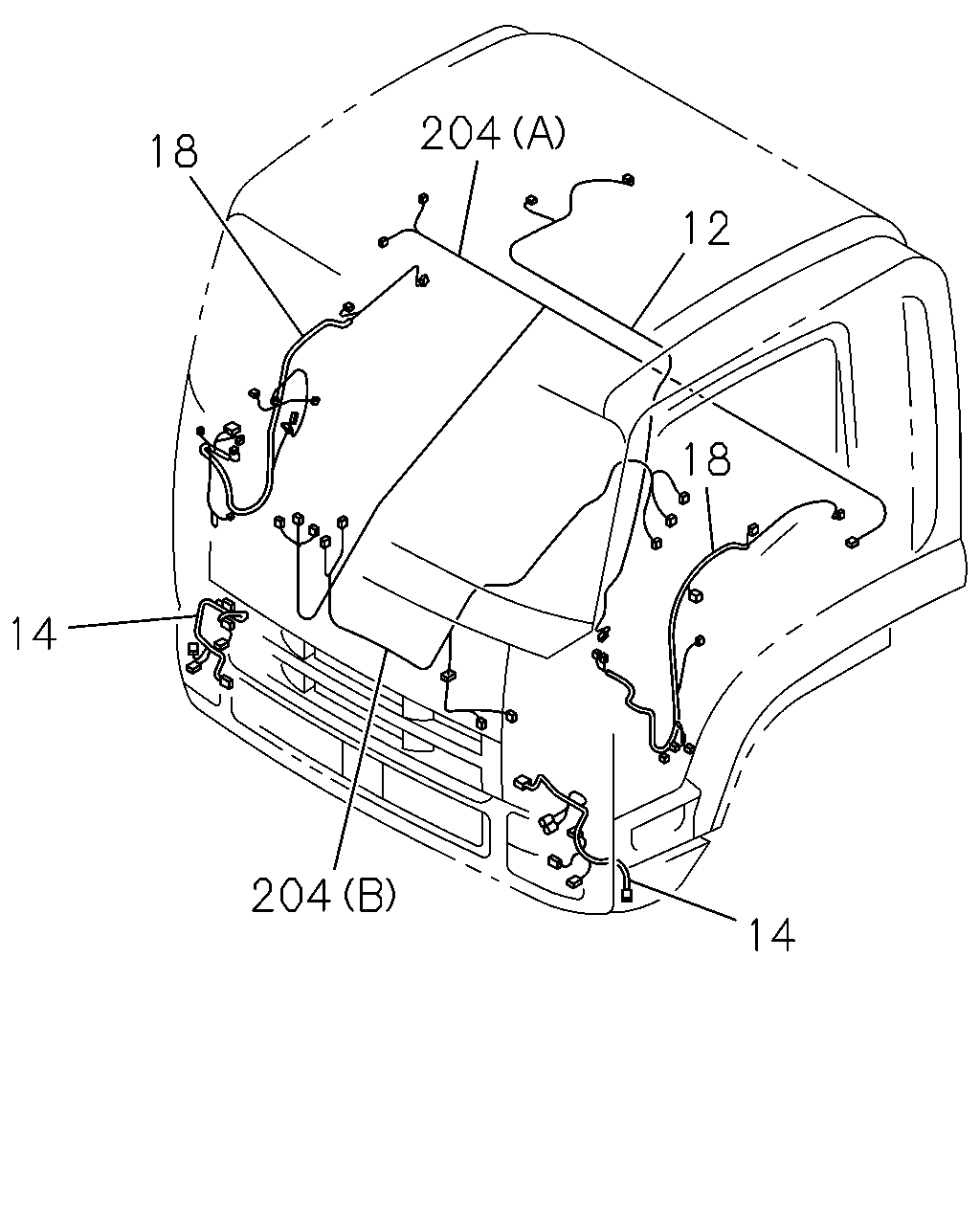

çizim 136591
18 14 204 14 204 12 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 8-98079-072-1 01 1 1009- ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98103-680-1 02 1 1009- ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98075-629-3 02 1 1009- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98079-079-5 01 1 1009-1203 ● ●
18 HARNESS; DOOR 8-98079-079-5 01 1 1204-1302 ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98079-076-5 01 1 1009-1203 ● ●
18 HARNESS; DOOR 8-98079-076-5 01 1 1204-1302 ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-287-3 01 1 1009-1203 ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-282-3 01 1 1009-1203 ● ●
204 HARNESS; CABLE,FLOOR
A/T ALLISON 4430(Y5V) (A) 		8-98213-048-1 01 1 1303- ● ●
204 HARNESS; CABLE,FLOOR
A/T ALLISON 4430(Y5V) (B) 		8-98213-049-1 01 1 1303- ● ●
204 HARNESS; CABLE,FLOOR
(A) 		8-98117-544-0 01 1 1009-1203 ● ●
204 HARNESS; CABLE,FLOOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) 		8-98117-544-0 01 1 1204- ● ●
204 HARNESS; CABLE,FLOOR
(B) 		8-98155-317-2 01 1 1009-1203 ● ●
204 HARNESS; CABLE,FLOOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98155-317-2 01 1 1204- ● ●

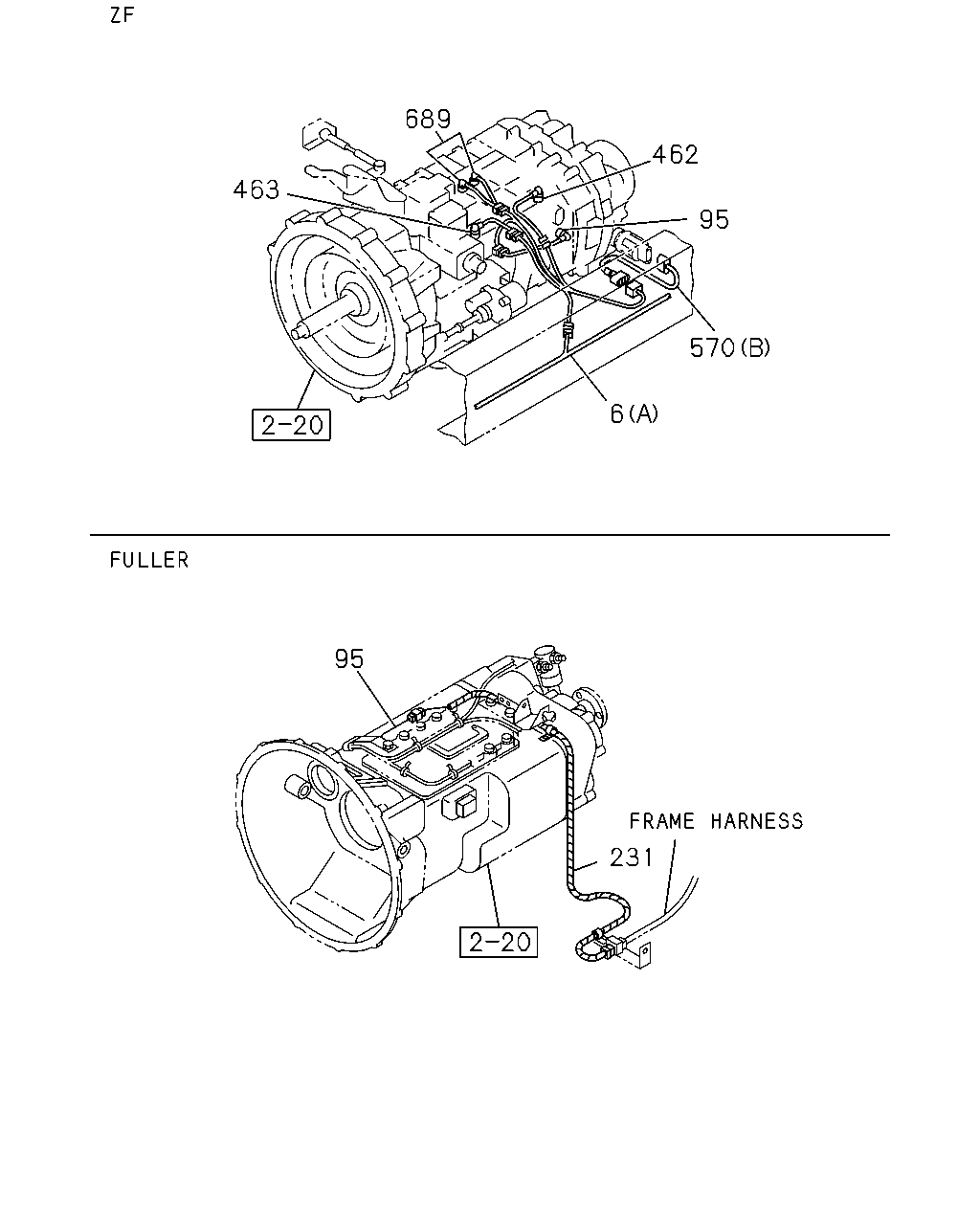

çizim 137088
463 689 462 95 570 6 95 231
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A) 		8-98233-776-1 01 1 1303- ● ●
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A) 		8-98233-775-1 01 1 1303- ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-1203 ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1204- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1212- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1212- ● ●
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTO11908(Y5L) 		1-82639-626-0 01 1 1009- ● ●
95 HARNESS; NEUTRAL SW
ZF9S1310 M/T(Y5K) RED 		8-98145-854-0 01 1 1009- ● ●
231 HARNESS; TRANS
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> 		8-98305-945-0 01 1 1504- ● ●
231 HARNESS; TRANS
A/T ALLISON 4430(Y5V) 		8-98197-147-0 01 1 1303-1503 ● ●
231 HARNESS; TRANS
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> 		8-98197-147-0 01 1 1504- ● ●
231 HARNESS; TRANS
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-751-1 01 1 1009- ● ●
231 HARNESS; TRANS
ZF9S1310 M/T(Y5K) 		8-98163-093-0 01 1 1009- ● ●
462 HARNESS; SW,RANGE
ZF9S1310 M/T(Y5K) BLUE 		8-98145-857-0 01 1 1009- ● ●
463 HARNESS; SW,BACK UP
ZF9S1310 M/T(Y5K) BLACK 		8-98145-856-0 01 1 1009- ● ●
570 HARNESS; SPEED SENSOR
A/T ALLISON 4430(Y5V) (A) 		8-98091-562-0 01 1 1303- ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1009-1203 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) 		8-98058-327-1 01 1 1204- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (B) 		8-98148-602-0 01 1 1009- ● ●
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1310 M/T(Y5K) 		1-82659-229-1 01 1 1009-1101 ● ●
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1310 M/T(Y5K) 		8-98148-603-0 01 1 1102- ● ●

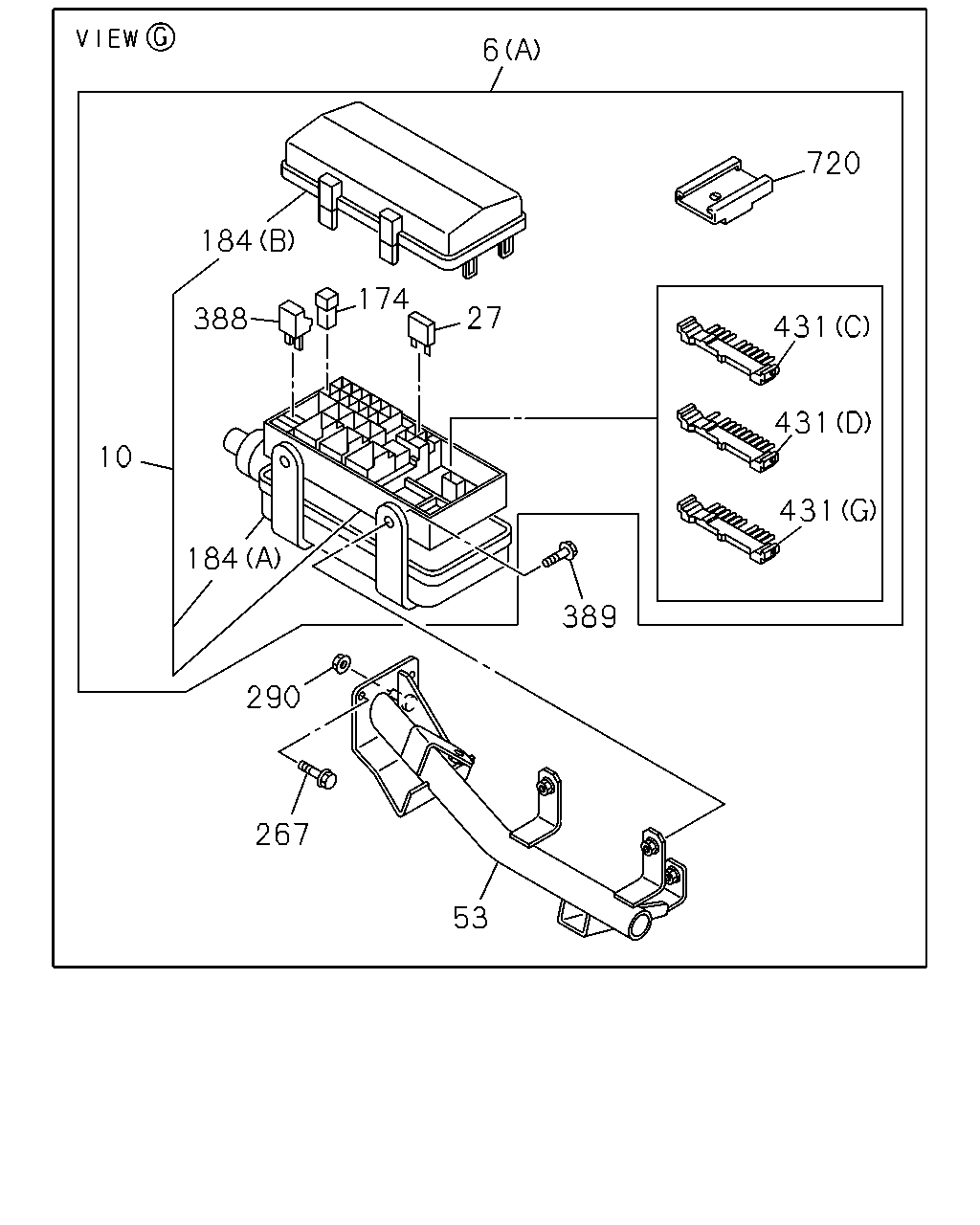

çizim 137201
431 431 431 720 6 184 174 388 27 10 184 290 267 53 389
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A) 		8-98233-776-1 01 1 1303- ● ●
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A) 		8-98233-775-1 01 1 1303- ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-1203 ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1204- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1212- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1212- ● ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1009- ● ●
27 FUSE UNIT
A/T ALLISON 4430(Y5V) 15A BLUE 		8-98054-258-0 02 1 1303- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 03 1 1009- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1009- ● ●
53 BRACKET; FUSE BOX 8-98078-800-1 01 1 1009- ● ●
174 FUSE; SLOW BLOW
A/T ALLISON 4430(Y5V) 30A PINK 		8-98079-191-0 01 1 1303- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1009- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1009- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1009- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1009-1106 ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1009- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1009- ● ●
267 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 1009- ● ●
290 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 1009-1208 ● ●
290 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1209- ● ●
388 DIODE; RELAY BOX
A/T ALLISON 4430(Y5V) BLACK 2P-1.5A 		8-94422-639-1 02 1 1303- ● ●
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1009- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1009- ● ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1009- ● ●
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) (G) 10P GREEN 		1-82699-599-0 06 1 1303- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1204- ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1204- ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1203 ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1009- ● ●

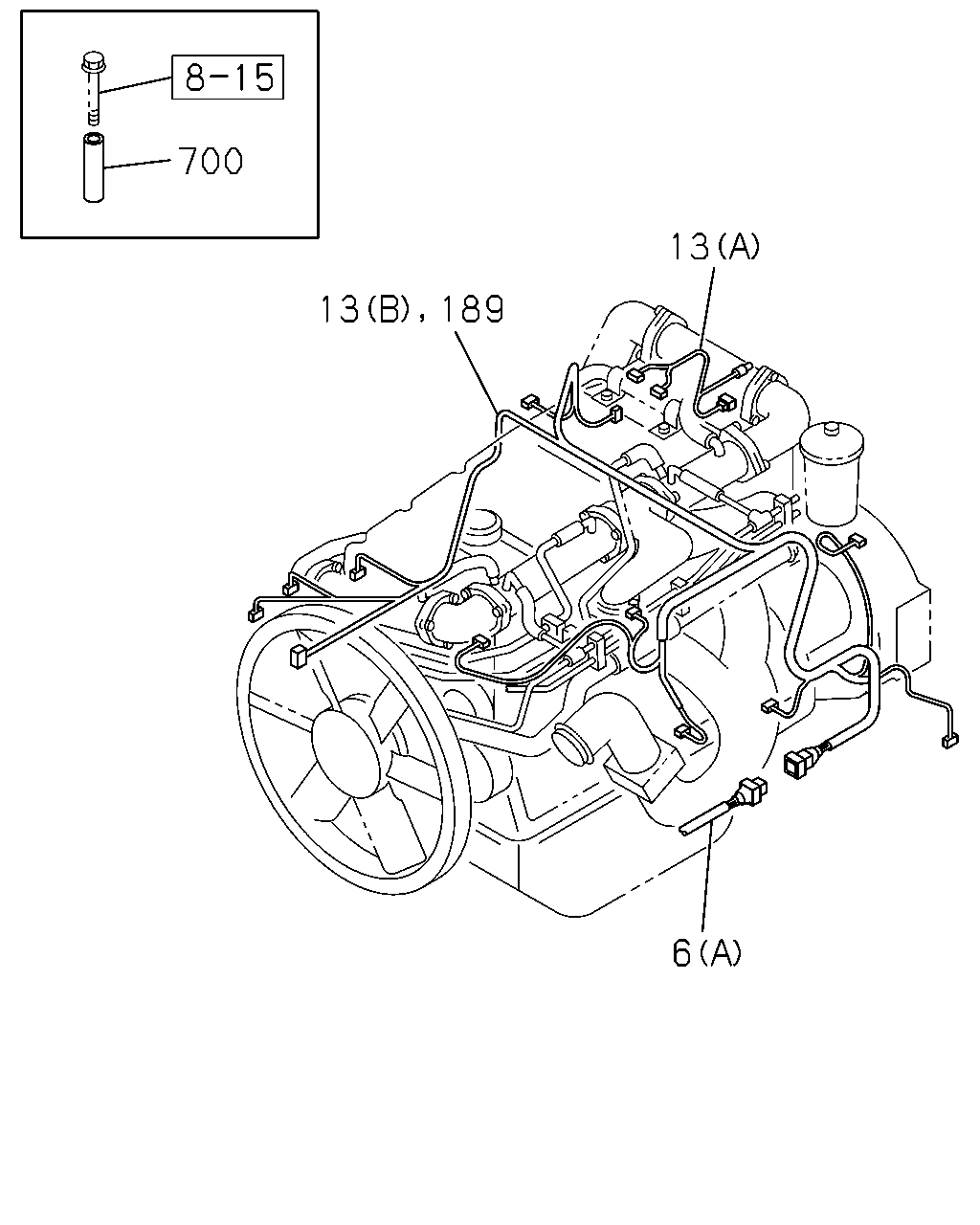

çizim 137257
6 13 189 13 700
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A) 		8-98233-776-1 01 1 1303- ● ●
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A) 		8-98233-775-1 01 1 1303- ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-1203 ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1204- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1212- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1212- ● ●
13 HARNESS; ENG
(B) 		8-97628-333-4 01 1 1204-1204 ● ●
13 HARNESS; ENG
(B) 		8-98210-223-1 01 1 1205- ● ●
13 HARNESS; ENG
(A) 		8-98152-373-1 01 1 1009- ●
13 HARNESS; ENG
EXC. ENGINE REAR PTO(SV1) (A) 		8-98152-373-1 01 1 1009- ●
13 HARNESS; ENG
ENGINE REAR PTO(SV1) (A) 		8-98160-805-0 01 1 1009- ●
189 HARNESS; EXT 8-97628-333-4 01 1 1009-1203 ● ●
700 TUBE; DISTANCE
L=51 		1-11369-157-0 02 1 1009- ● ●

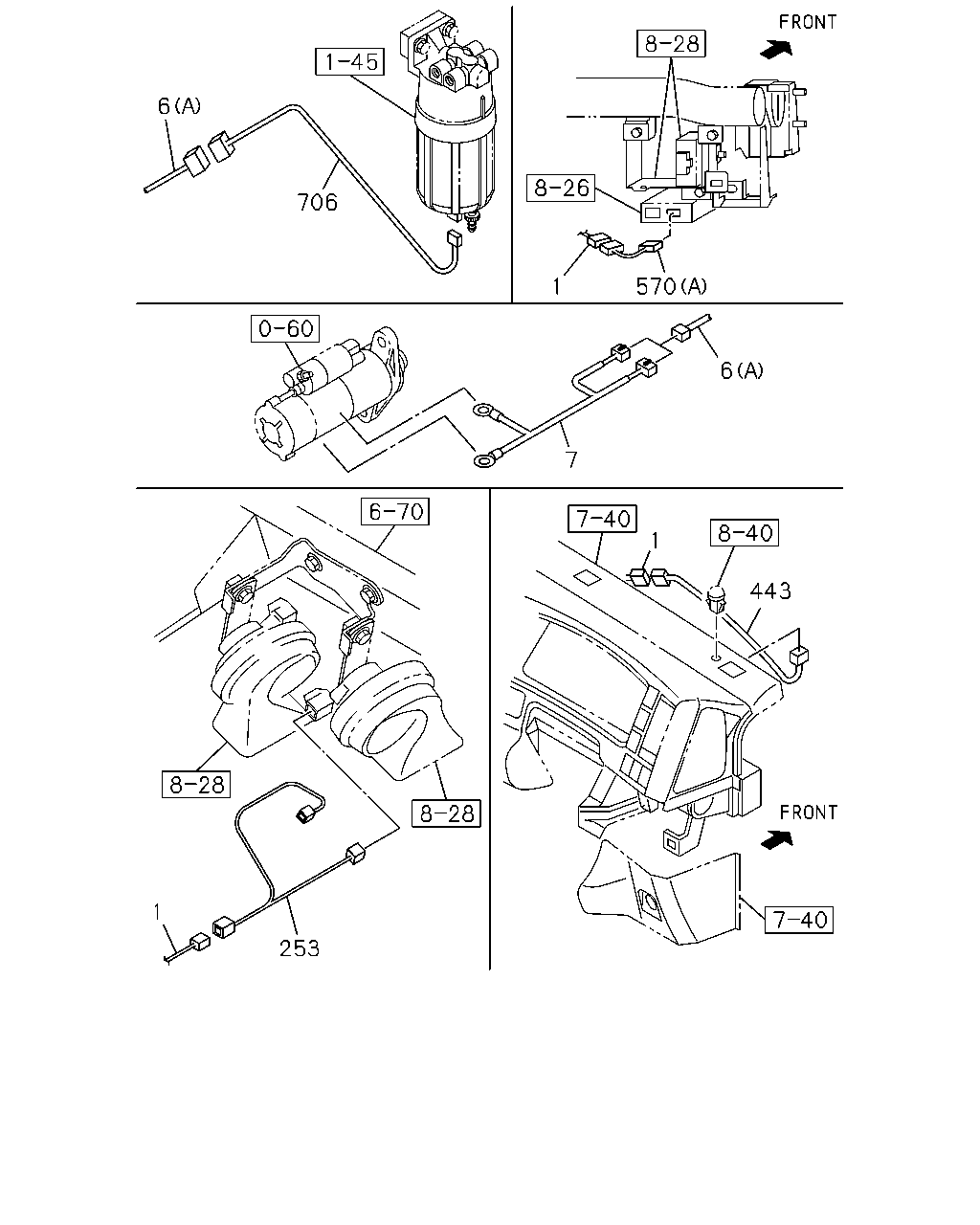

çizim 189921
6 706 570 1 6 1 443 1 253 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> 		8-98296-565-0 01 1 1504-1511 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> 		8-98296-565-1 01 1 1512- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98296-564-0 01 1 1504-1511 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98296-564-1 01 1 1512- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) 		8-98211-960-2 01 1 1303-1503 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF> 		8-98211-960-3 01 1 1504- ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-959-2 01 1 1303-1503 ● ●
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF> 		8-98211-959-3 01 1 1504- ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) 		8-98155-301-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) 		8-98211-956-1 01 1 1204- ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-299-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-954-1 01 1 1204- ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) 		8-98155-300-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) 		8-98211-955-1 01 1 1204-1302 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> 		8-98211-955-1 01 1 1303- ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98155-298-3 01 1 1009-1203 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1204-1302 ● ●
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98211-953-1 01 1 1303- ● ●
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A) 		8-98233-776-1 01 1 1303- ● ●
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A) 		8-98233-775-1 01 1 1303- ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-1203 ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1204- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1212- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1212- ● ●
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) 		8-98103-000-0 01 1 1009- ●
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1) 		8-98103-000-0 01 1 1009- ●
7 LINK ASM; FUSIBLE
EXC. GENERATOR 24V90A(K44) 		8-98088-132-0 01 1 1009- ●
7 LINK ASM; FUSIBLE
EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1) 		8-98088-132-0 01 1 1009- ●
7 LINK ASM; FUSIBLE
ENGINE REAR PTO(SV1) EXC. GENERATOR 24V90A(K44) 		8-98106-137-0 01 1 1009- ●
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) ENGINE REAR PTO(SV1) 		8-98106-138-0 01 1 1009- ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1009- ● ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1009- ● ●
570 HARNESS; SPEED SENSOR
A/T ALLISON 4430(Y5V) (A) 		8-98091-562-0 01 1 1303- ● ●
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1009-1203 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) 		8-98058-327-1 01 1 1204- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (B) 		8-98148-602-0 01 1 1009- ● ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98187-173-0 01 1 1103-1203 ●
706 HARNESS; EXT,SEDIMENTER
WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> 		8-98187-173-0 01 1 1103-1203 ●
706 HARNESS; EXT,SEDIMENTER
WHEEL BASE 6600MM(66W) 		8-98187-173-1 01 1 1204- ● ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> 		8-98187-172-0 01 1 1103-1203 ●
706 HARNESS; EXT,SEDIMENTER
WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> 		8-98187-174-0 01 1 1103-1203 ●
706 HARNESS; EXT,SEDIMENTER
WHEEL BASE 4900MM(49W) 		8-98187-174-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER 8-98087-610-1 01 1 1009-1102 ●
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 400L<SDH> 		8-98087-610-1 01 1 1009-1102 ●
706 HARNESS; EXT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98087-610-1 01 1 1103-1203 ●
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98087-610-1 01 1 1103-1203 ●
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 200L AL<THF> 		8-98079-754-0 01 1 1009-1102 ●
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98079-754-0 01 1 1103-1203 ●

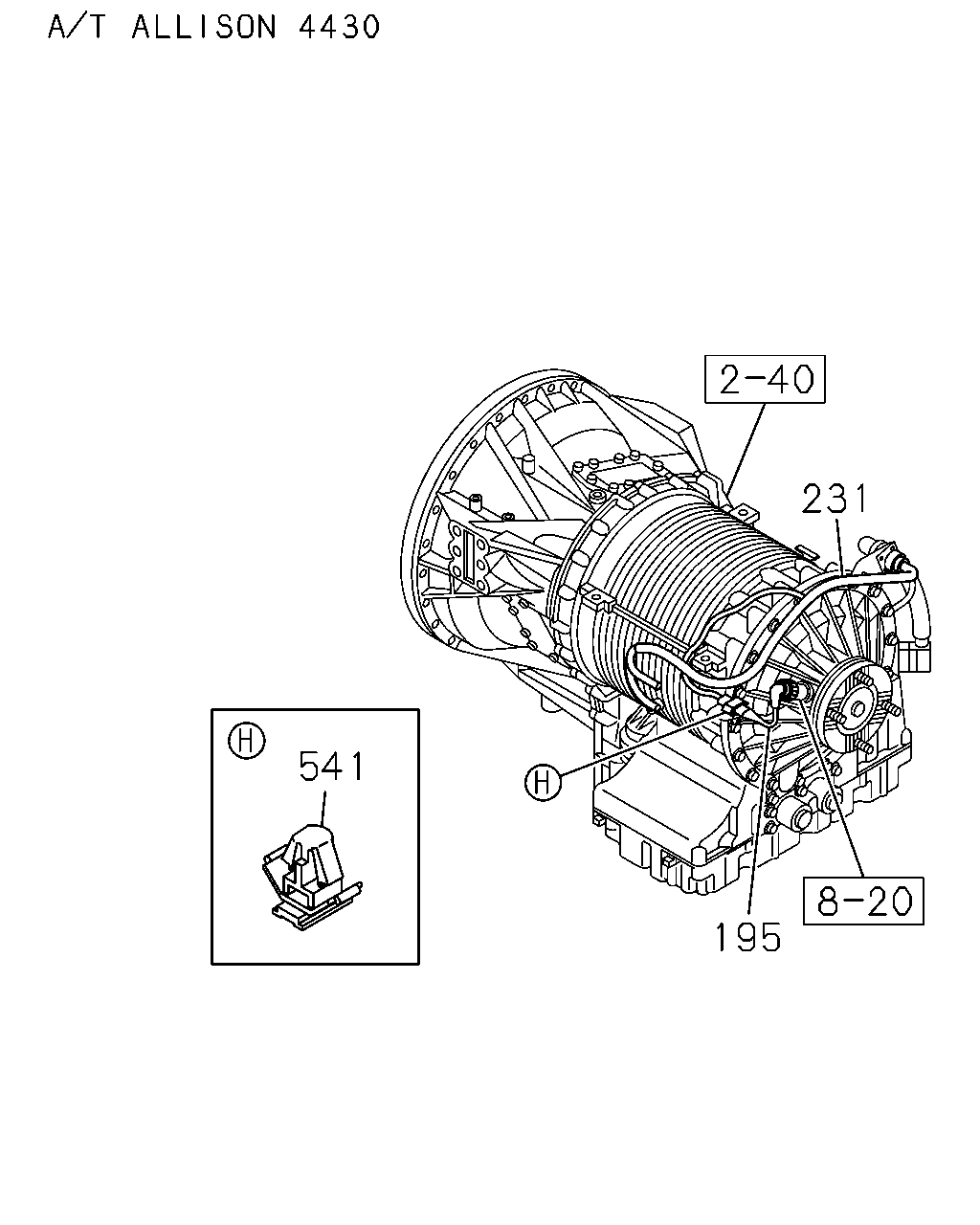

çizim 189927
231 195 541
BalonParca AdiParca NoAdetTipApplied Date A B
195 HARNESS; EXT
A/T ALLISON 4430(Y5V) 		1-82671-045-1 01 1 1303- ● ●
231 HARNESS; TRANS
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> 		8-98305-945-0 01 1 1504- ● ●
231 HARNESS; TRANS
A/T ALLISON 4430(Y5V) 		8-98197-147-0 01 1 1303-1503 ● ●
231 HARNESS; TRANS
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> 		8-98197-147-0 01 1 1504- ● ●
231 HARNESS; TRANS
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-751-1 01 1 1009- ● ●
231 HARNESS; TRANS
ZF9S1310 M/T(Y5K) 		8-98163-093-0 01 1 1009- ● ●
541 CLIP
A/T ALLISON 4430(Y5V) OD=9 H=6 		1-09709-178-0 01 1 1303- ● ●

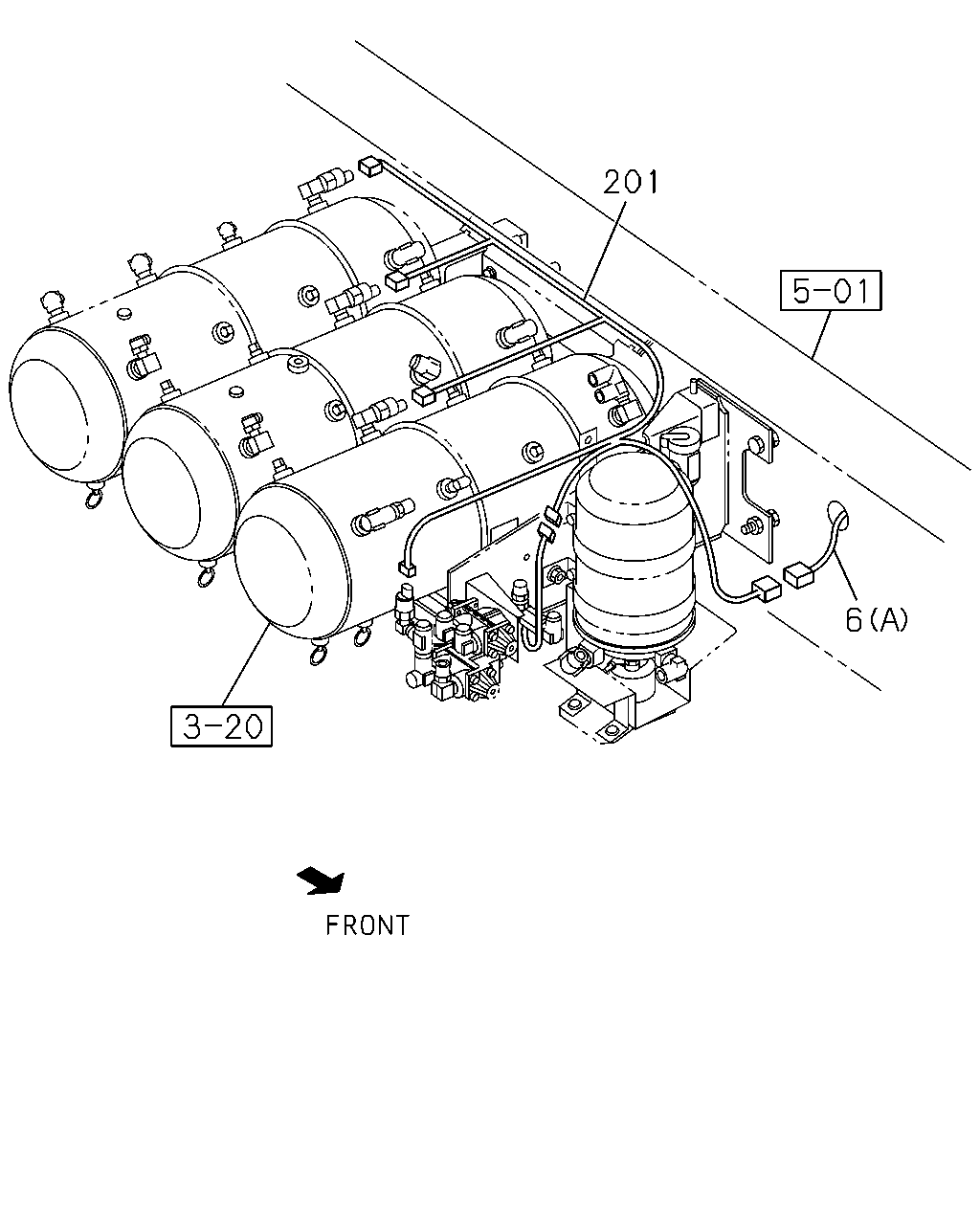

çizim 339430
201 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A) 		8-98233-776-1 01 1 1303- ● ●
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A) 		8-98233-775-1 01 1 1303- ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-1203 ● ●
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1204- ● ●
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1009-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A) 		8-98156-168-2 01 1 1212- ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98156-167-2 01 1 1009-1203 ● ●
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1204-1211 ● ●
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A) 		8-98202-418-0 01 1 1212- ● ●
201 HARNESS; AIR TANK 8-98079-765-5 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
