Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#7197) — 34 parça
◀

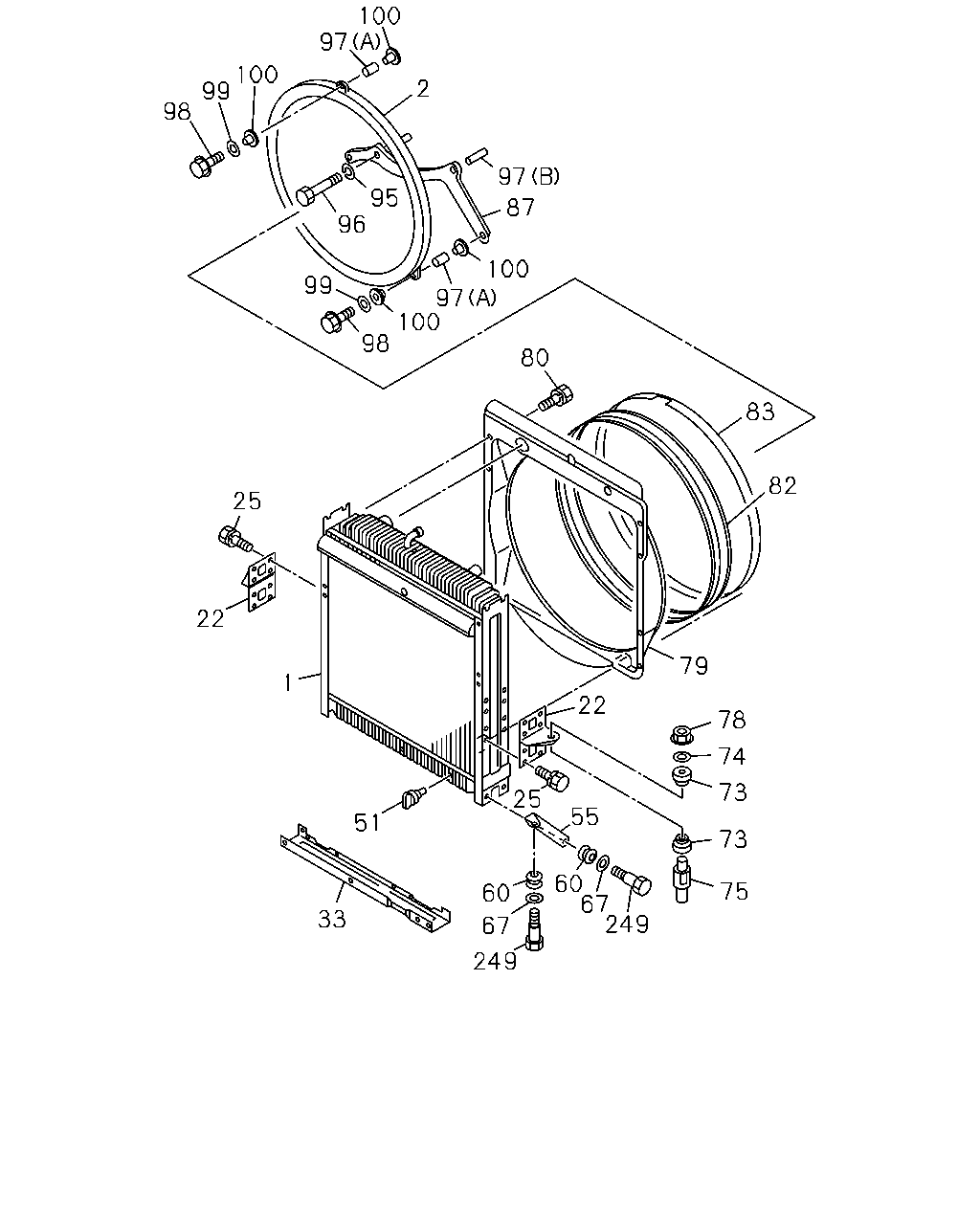

[110A] ASM AND OTHER PARTS (31 parça)

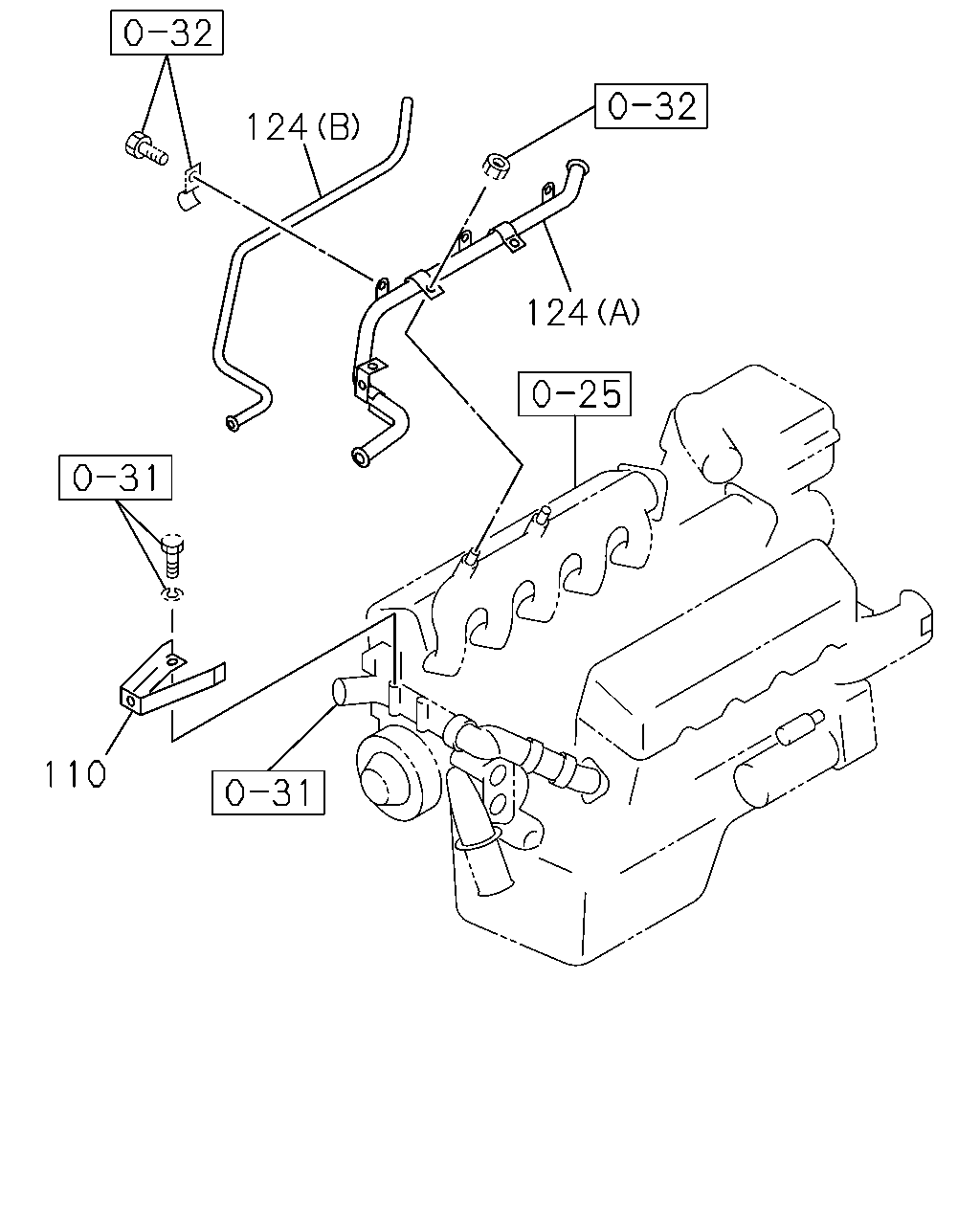

[110A] PIPE AND STAY (3 parça)
▶
100
97
100
99
2
98
97
95
96
87
100
99
97
100
98
80
83
82
25
22
79
1
22
78
74
73
25
55
51
73
60
60
67
249
75
33
67
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-685-1
01
1
9906-
2
GUIDE; FAN
1-21551-235-3
01
1
9906-
22
BRACKET; RAD MTG
1-21464-382-0
01
1
9906-
22
BRACKET; RAD MTG
1-21464-381-0
01
1
9906-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
14
1
9906-
33
PROTECTOR; RAD
1-21419-050-0
01
1
9906-
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
9906-
55
STAY; RAD TO UPR MBR
1-21464-386-0
01
1
9906-
55
STAY; RAD TO UPR MBR
1-21464-385-0
01
1
9906-
60
GROMMET
1-09332-117-0
04
1
9906-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
9906-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
9906-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-1
02
1
9906-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
9906-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
9906-
79
GUIDE; FAN,RAD
1-21551-383-0
01
1
9906-9907
79
GUIDE; FAN,RAD
1-21551-477-0
01
1
9908-
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
12
1
9906-
82
COVER; FAN,RAD
1-21559-134-1
01
1
9906-
83
CLIP; FAN COVER
1-09707-127-1
01
1
9906-
87
STAY; FAN GUIDE
1-21559-285-0
01
1
9906-
95
WASHER; LK
ID=12.2
9-09150-512-0
02
1
9906-
96
BOLT; STAY FIX
M12X160
1-09020-067-1
02
1
9906-
97
TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8
1-13666-037-0
01
1
9906-
97
TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27
1-21559-149-0
03
1
9906-
98
BOLT; RAD FAN GUIDE
M8X45 FLANGE
0-28080-845-0
03
1
9906-
99
WASHER; PL
ID=8.4 OD=26
9-09164-808-0
03
1
9906-
100
RUBBER; MTG
1-09337-017-0
06
1
9906-
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
04
1
9906-0201
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
02
1
0202-
249
BOLT; STAY,RAD MBR
M8X26
1-09009-175-0
02
1
0202-
124
124
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
110
STAY; FAN GUIDE
1-21559-104-2
01
1
9906-
124
PIPE; WATER,TANK TO RAD
(A)
1-13711-667-2
01
1
9906-
124
PIPE; WATER,TANK TO RAD
(B)
1-13711-728-0
01
1
9906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
