◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#71962) — 94 parça

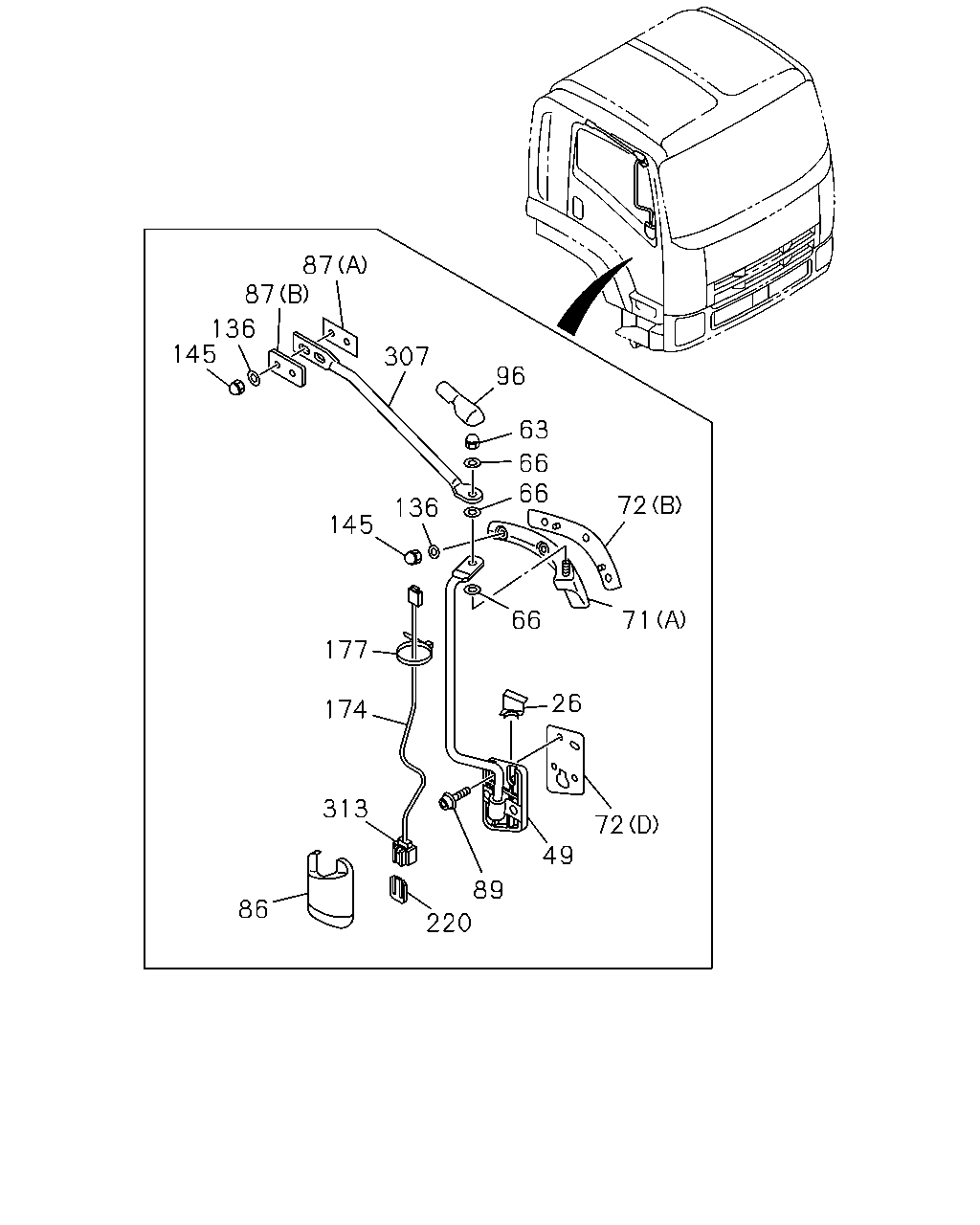

çizim 132780
86 220 313 174 177 145 66 66 63 96 307 72 71 66 72 49 9 136 145 136 87 87 26
BalonParca AdiParca NoAdetTipApplied Date A B
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1009- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1009- ● ●
49 STAY; MIRROR SIDE 8-98064-779-0 01 1 1009-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE 8-98064-778-0 01 1 1009-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-200-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1009- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1009-1203 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1009-1203 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1204- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1009- ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 1009- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 1009- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 1009- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1009- ● ●
72 SHEET
(B) 		8-98031-796-0 01 1 1009- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1009- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1009- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1009- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1009- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1009- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1009- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1009- ● ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 1009- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1009- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1009- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1009- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1009- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1009- ● ●

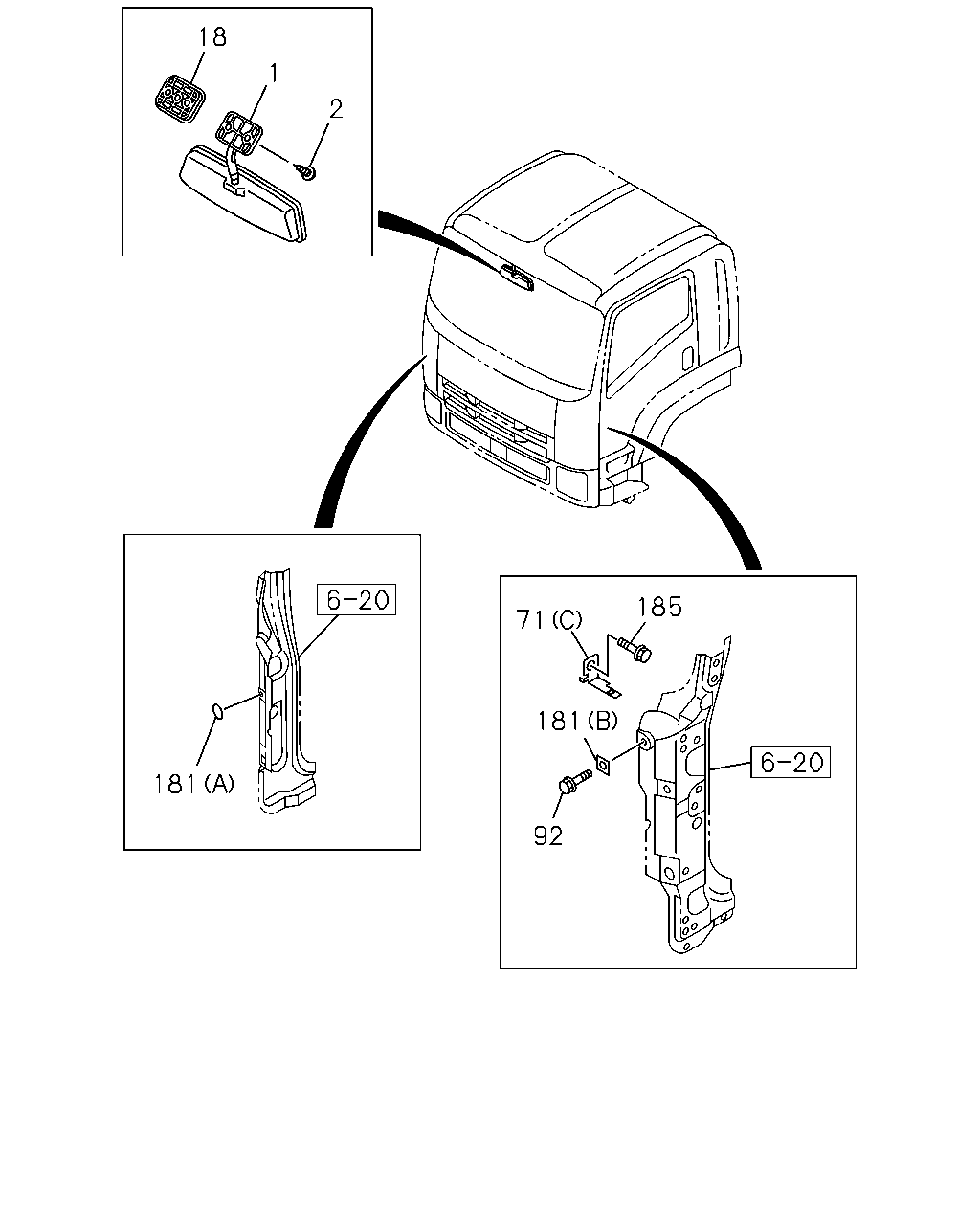

çizim 133024
185 71 181 92 181 2 1 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1009- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1009- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1009- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1009- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1009- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●

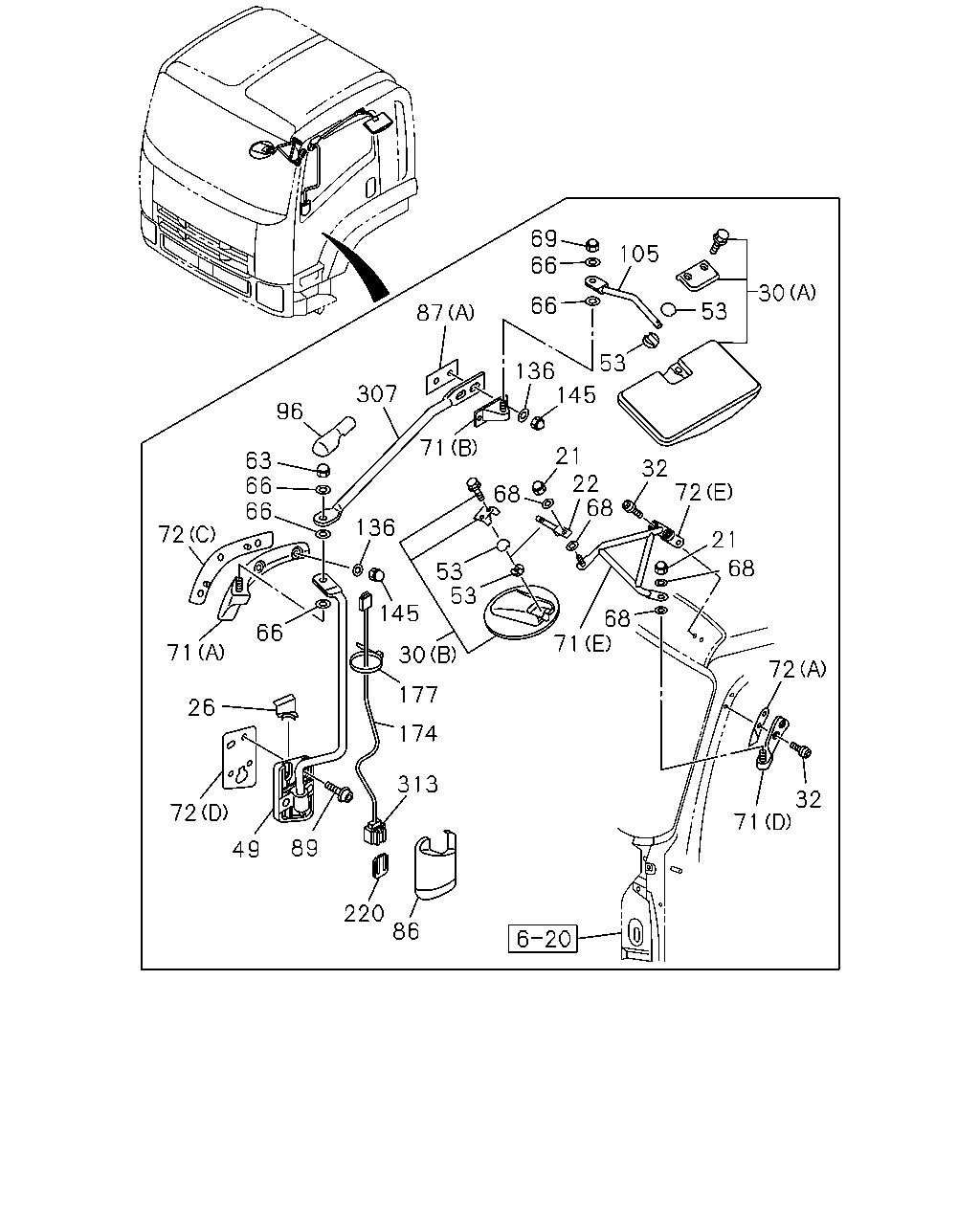

çizim 189912
49 220 86 89 72 26 71 72 66 66 66 63 96 307 136 145 30 177 174 313 71 53 53 68 71 21 136 53 145 32 22 72 68 21 68 72 87 66 66 69 53 105 30 32 71 68
BalonParca AdiParca NoAdetTipApplied Date A B
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1009- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1009- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1009- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1009- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1009- ● ●
30 MIRROR; UNDER
(B) 		8-98055-994-0 01 1 1009-1504 ● ●
30 MIRROR; UNDER
(B) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1009- ● ●
49 STAY; MIRROR SIDE 8-98064-779-0 01 1 1009-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE 8-98064-778-0 01 1 1009-1202 ● ●
49 STAY; MIRROR SIDE 8-98166-200-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 04 1 1009- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1009- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1009-1203 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1009-1203 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1204- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1009- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1009- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1009- ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 1009- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 1009- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 1009- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1009- ● ●
72 SHEET
(B) 		8-98031-796-0 01 1 1009- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1009- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1009- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1009- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1009- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 1009- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1009- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1009- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1009- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1009- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1009- ● ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 1009- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1009- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1009- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1009- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1009- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1009- ● ●
