◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#71961) — 16 parça

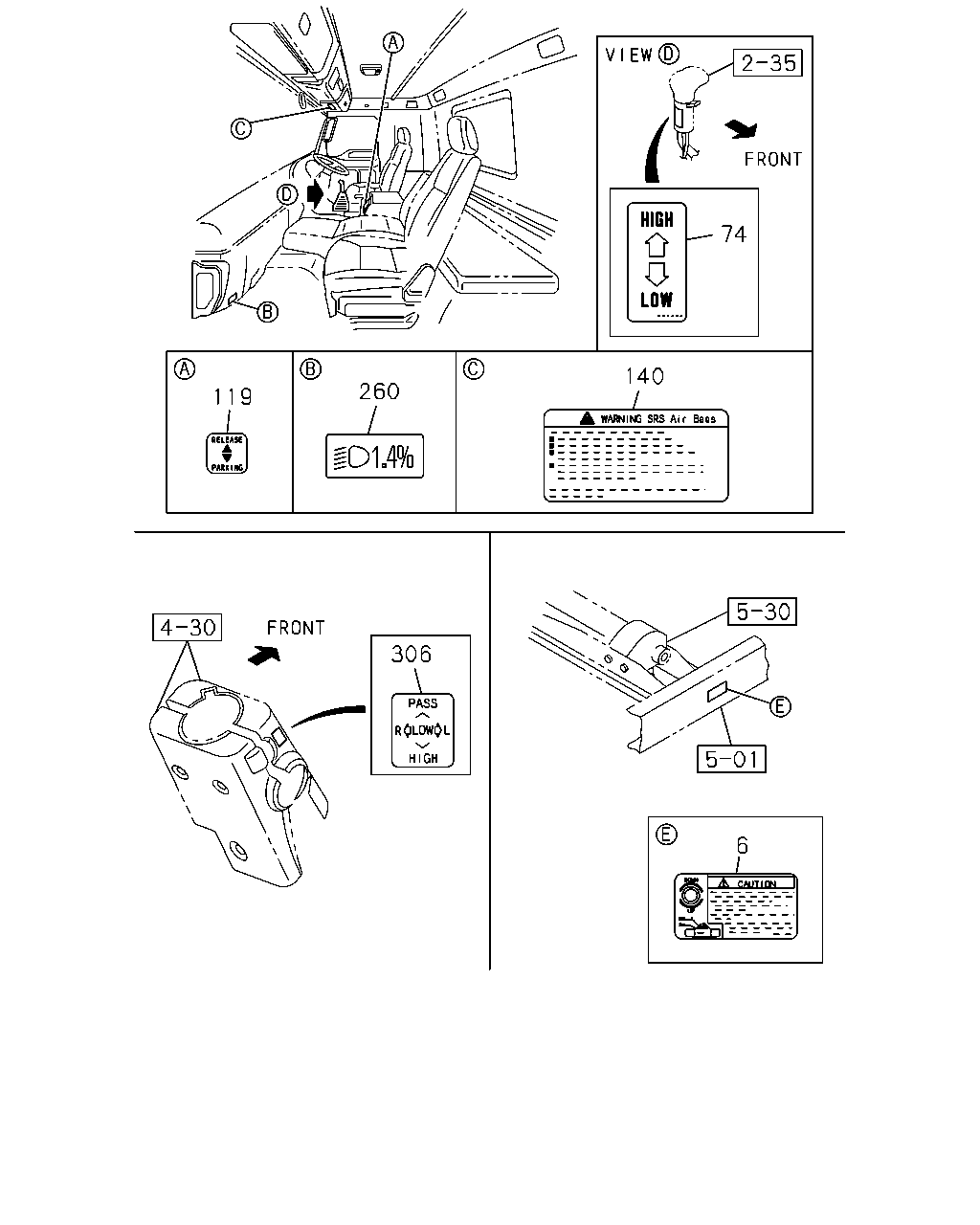

çizim 132607
6 306 260 119 140 74
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1009-1203 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1009-1203 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1204- ● ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1310 M/T(Y5K) 		8-98118-493-0 01 1 1009- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> 		1-85881-759-0 01 1 1009- ● ●
140 PLATE; CAUTION,SRS
CAUTIONS ENGLISH<RR8> 		8-98139-964-0 01 1 1009- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1009- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1009- ● ●

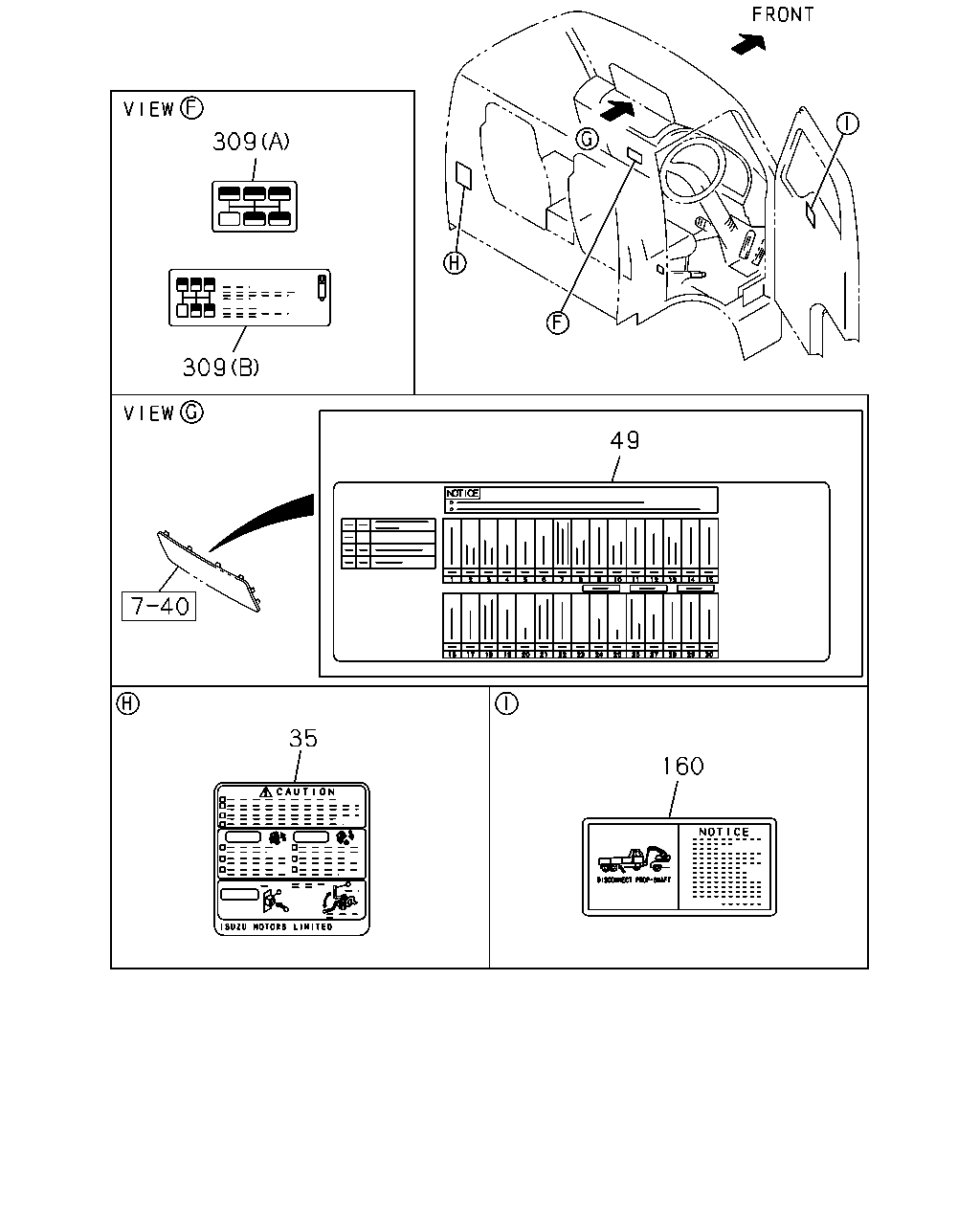

çizim 133093
309 309 35 49 160
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
CAUTIONS ENGLISH<RR8> 		8-98017-667-1 01 1 1009- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-98076-221-0 01 1 1009- ● ●
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS ENGLISH<RR8> 		1-85888-737-1 01 1 1009- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-85881-640-0 01 1 1009- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98086-310-1 01 1 1009- ● ●
çizim 189915
4 4 181
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1009- ● ●
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1009- ● ●
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
