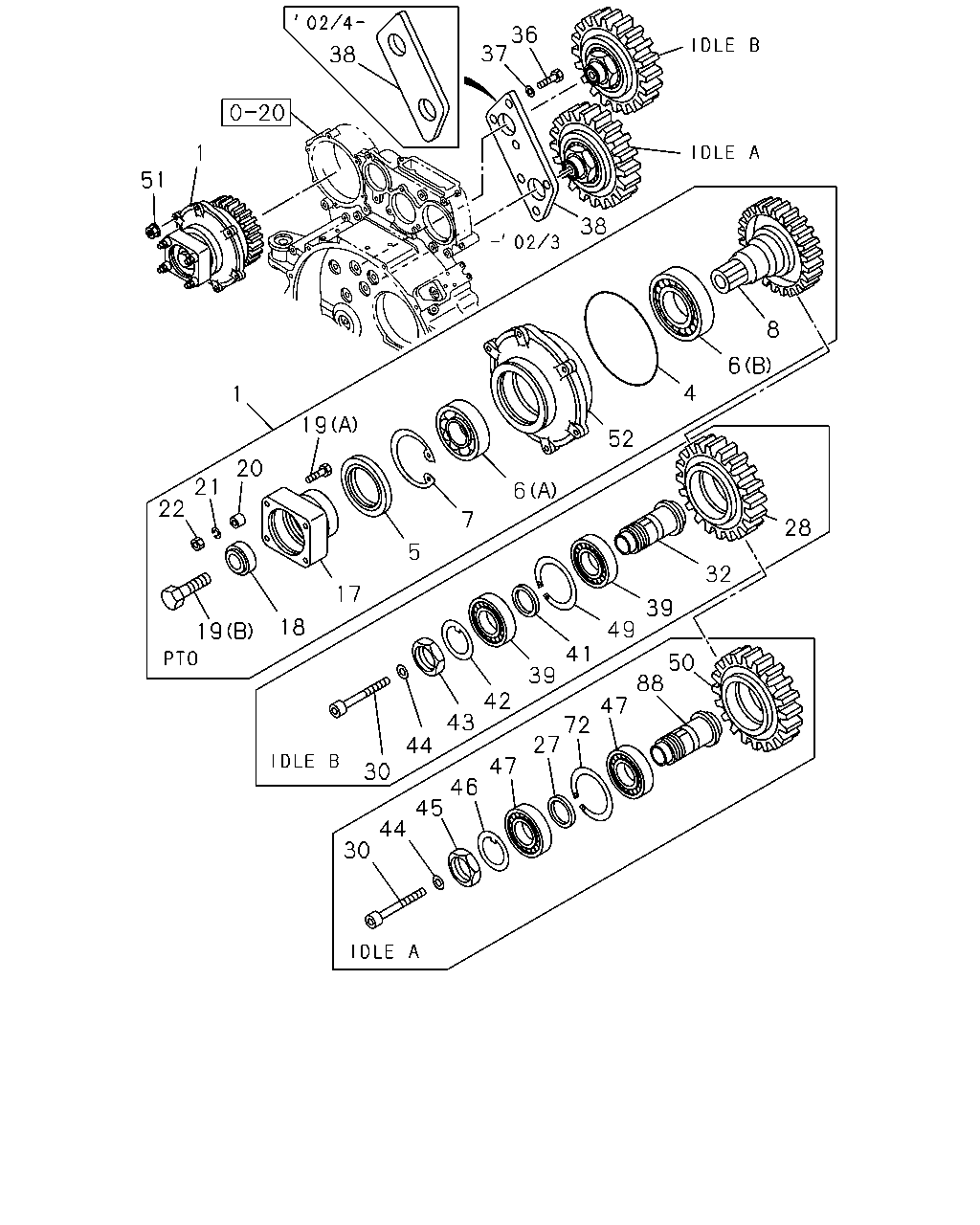

0-90 — POWER TAKE OFF; FLYWHEEL (#7195) — 80 parça

36 37 38 1 51 38 8 6 4 1 19 52 20 21 22 6 7 28 5 32 17 39 18 49 19 41 50 88 47 39 42 43 72 27 44 47 30 46 45 44 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; ENG RR MIXER TRUCK<RA2>	1-38000-159-2	01	1	9907-0004
1	POWER TAKE OFF ASM; ENG RR MIXER TRUCK<RA2>	1-38000-350-0	01	1	0005-0203
1	POWER TAKE OFF ASM; ENG RR MIXER TRUCK<RA2>	1-38000-159-2	01	1	0204-
4	GASKET; BRG CASE ALSO INCLUDED IN GASKET SET(ENGINE). MIXER TRUCK<RA2>	1-09623-003-0	01	1	9907-
5	SEAL; OIL,BRG CASE,PTO ALSO INCLUDED IN GASKET SET(ENGINE). MIXER TRUCK<RA2>	1-09625-062-0	01	1	9907-
6	BEARING; FLYWHEEL PTO MIXER TRUCK<RA2> (A) NSK	9-00090-047-0	01	1	9907-
6	BEARING; FLYWHEEL PTO MIXER TRUCK<RA2> (B) NSK	9-00094-107-0	01	1	9907-
7	RING; SNAP BALL BRG MIXER TRUCK<RA2> OD=105.5	9-09180-100-0	01	1	9907-
8	GEAR; FLYWHEEL PTO MIXER TRUCK<RA2> Z=36	1-38241-097-0	01	1	9907-0004
8	GEAR; FLYWHEEL PTO MIXER TRUCK<RA2> Z=47	1-38240-023-0	01	1	0005-0203
8	GEAR; FLYWHEEL PTO MIXER TRUCK<RA2> Z=36	1-38241-097-0	01	1	0204-
17	FLANGE; PTO,FLYWHEEL MIXER TRUCK<RA2>	1-38189-010-0	01	1	9907-
18	WASHER; FLANGE,FLYWHEEL PTO MIXER TRUCK<RA2>	1-09509-014-0	01	1	9907-
19	BOLT; FLANGE MIXER TRUCK<RA2> (A) M20X60	9-92052-060-0	01	1	9907-
19	BOLT; FLANGE MIXER TRUCK<RA2> (B) M12X70	9-92621-270-0	04	1	9907-
20	SPACER; FLANGE,FLYWHEEL PTO MIXER TRUCK<RA2> T=13 ID=22.2	9-38189-005-0	04	1	9907-
21	WASHER; LK,FLANGE MIXER TRUCK<RA2> ID=12.2	9-09150-612-0	04	1	9907-
22	NUT; FLANGE MIXER TRUCK<RA2> M12	9-99110-512-0	04	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.05	1-38226-016-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.12	1-38226-017-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.19	1-38226-018-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.26	1-38226-019-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.33	1-38226-020-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.40	1-38226-021-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.47	1-38226-022-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.54	1-38226-023-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.61	1-38226-024-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.68	1-38226-025-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.75	1-38226-026-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.82	1-38226-027-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.89	1-38226-028-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=6.96	1-38226-029-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=7.03	1-38226-030-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=7.10	1-38226-031-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=7.17	1-38226-032-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=7.24	1-38226-033-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=7.31	1-38226-034-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=7.38	1-38226-035-0	01	1	9907-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=7.45	1-38226-036-0	01	1	9907-
28	GEAR; IDLE MIXER TRUCK<RA2> Z=30	1-38261-012-2	01	1	9907-
30	BOLT; SPINDLE MIXER TRUCK<RA2>	1-09054-007-1	02	1	9907-
32	SPINDLE; IDLE GEAR MIXER TRUCK<RA2>	1-12531-003-1	01	1	9907-
36	BOLT; HOLDER MIXER TRUCK<RA2>	1-09009-038-1	06	1	9907-0004
37	WASHER; HOLDER MIXER TRUCK<RA2> ID=12.2	1-09503-008-0	06	1	9907-0004
38	HOLDER; IDLE GEAR SPINDLE MIXER TRUCK<RA2>	1-11349-062-0	01	1	9907-0203
38	HOLDER; IDLE GEAR SPINDLE MIXER TRUCK<RA2>	1-11349-256-0	01	1	0204-
39	BEARING; TAPER ROLLER MIXER TRUCK<RA2> ID=45 OD=85	9-00032-209-0	02	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.05	1-38226-016-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.12	1-38226-017-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.19	1-38226-018-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.26	1-38226-019-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.33	1-38226-020-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.40	1-38226-021-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.47	1-38226-022-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.54	1-38226-023-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.61	1-38226-024-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.68	1-38226-025-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.75	1-38226-026-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.82	1-38226-027-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.89	1-38226-028-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=6.96	1-38226-029-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=7.03	1-38226-030-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=7.10	1-38226-031-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=7.17	1-38226-032-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=7.24	1-38226-033-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=7.31	1-38226-034-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=7.38	1-38226-035-0	01	1	9907-
41	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=7.45	1-38226-036-0	01	1	9907-
42	WASHER; LK,BRG MIXER TRUCK<RA2> ID=47	1-09533-003-0	01	1	9907-
43	NUT; BRG IDLE GEAR MIXER TRUCK<RA2>	1-09840-005-0	01	1	9907-
44	WASHER; SPINDLE MIXER TRUCK<RA2> ID=16.2	1-09503-022-1	02	1	9907-
45	NUT; BRG,IDLE GEAR MIXER TRUCK<RA2>	1-09840-005-0	01	1	9907-
46	WASHER; LK,BRG MIXER TRUCK<RA2> ID=47	1-09533-003-0	01	1	9907-
47	BEARING; TAPER ROLLER MIXER TRUCK<RA2> ID=45 OD=85	9-00032-209-0	02	1	9907-
49	SPACER; IDLE GEAR MIXER TRUCK<RA2> T=3	1-38226-015-0	01	1	9907-
50	GEAR; IDLE A MIXER TRUCK<RA2> Z=29	1-38261-011-2	01	1	9907-
51	NUT; PTO MIXER TRUCK<RA2> M10 FLANGE	0-91150-110-0	06	1	9907-
52	CASE; BRG,PTO MIXER TRUCK<RA2>	1-38181-004-0	01	1	9907-
72	SPACER; OUTER,IDLE DRIVEN GEAR,PTO MIXER TRUCK<RA2> T=3	1-38226-015-0	01	1	9907-
88	SPINDLE; IDLE GEAR MIXER TRUCK<RA2>	1-12531-003-1	01	1	9907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
