Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11317 - FXZ(AUST)EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#71949) — 76 parça
Tümü
A - FGY5MX
B - FGZ5MX
◀

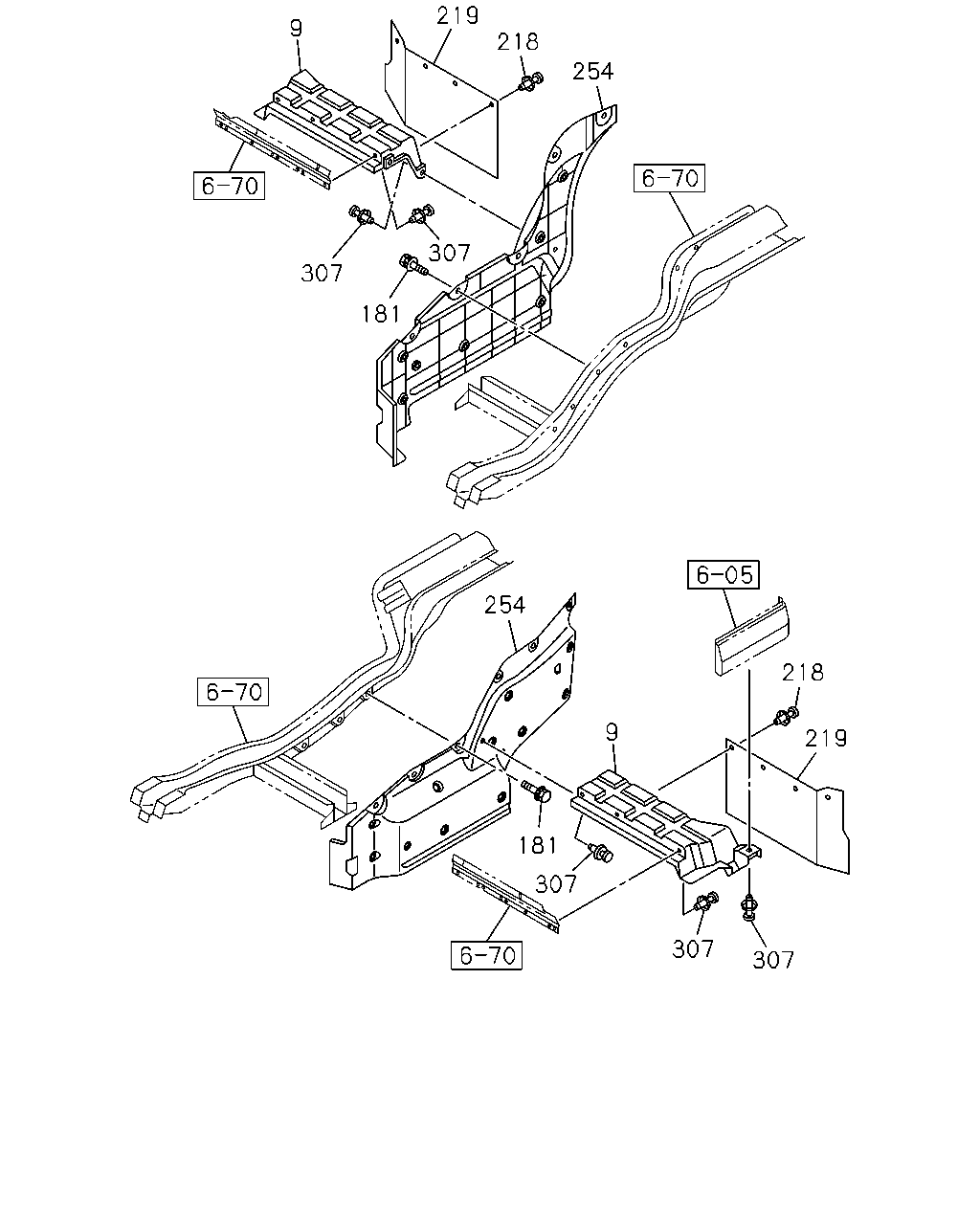

[647A] MUD COVER AND SEAL (8 parça)

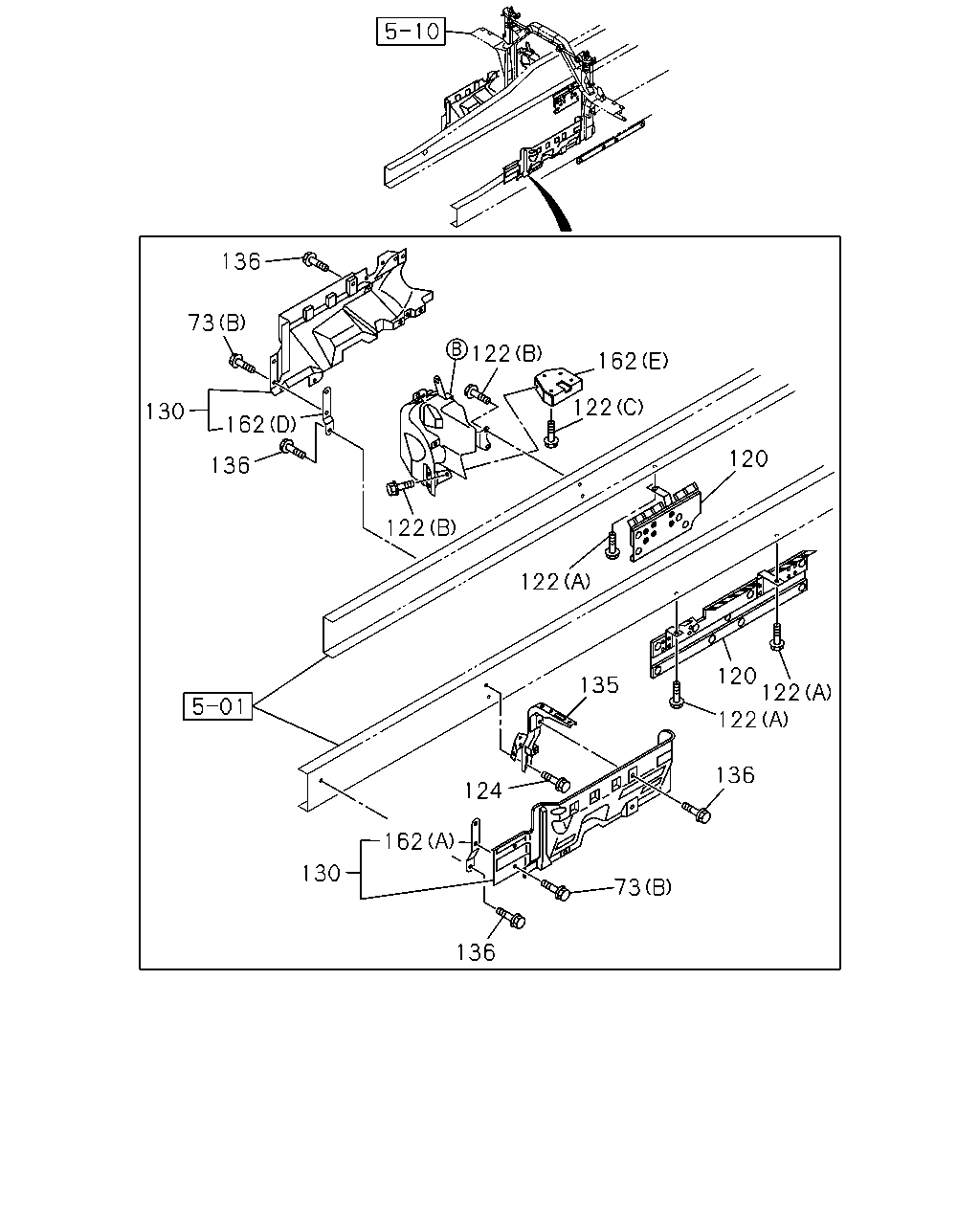

[647A] PANEL (19 parça)

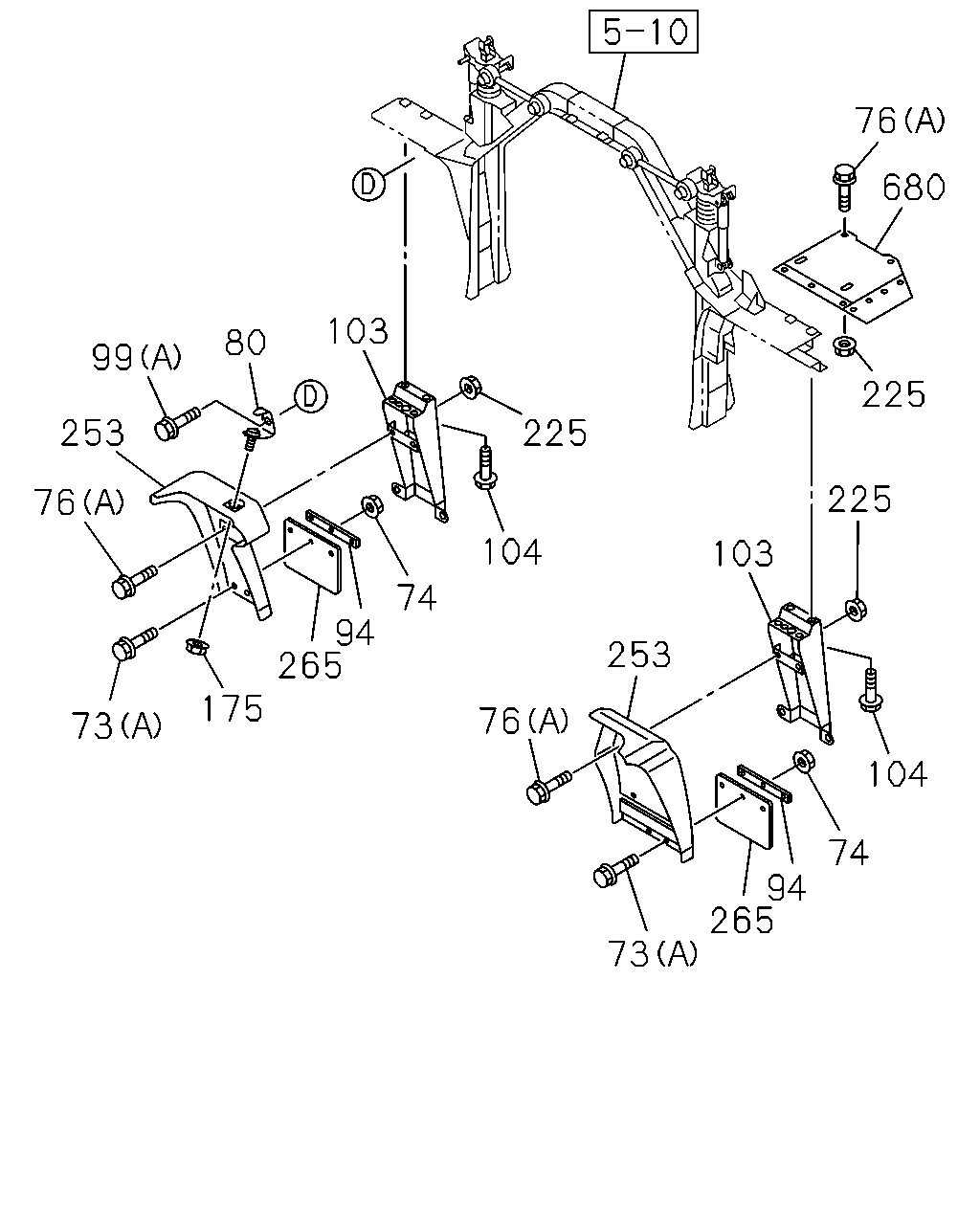

[647A] MUD GUARD;REAR (24 parça)

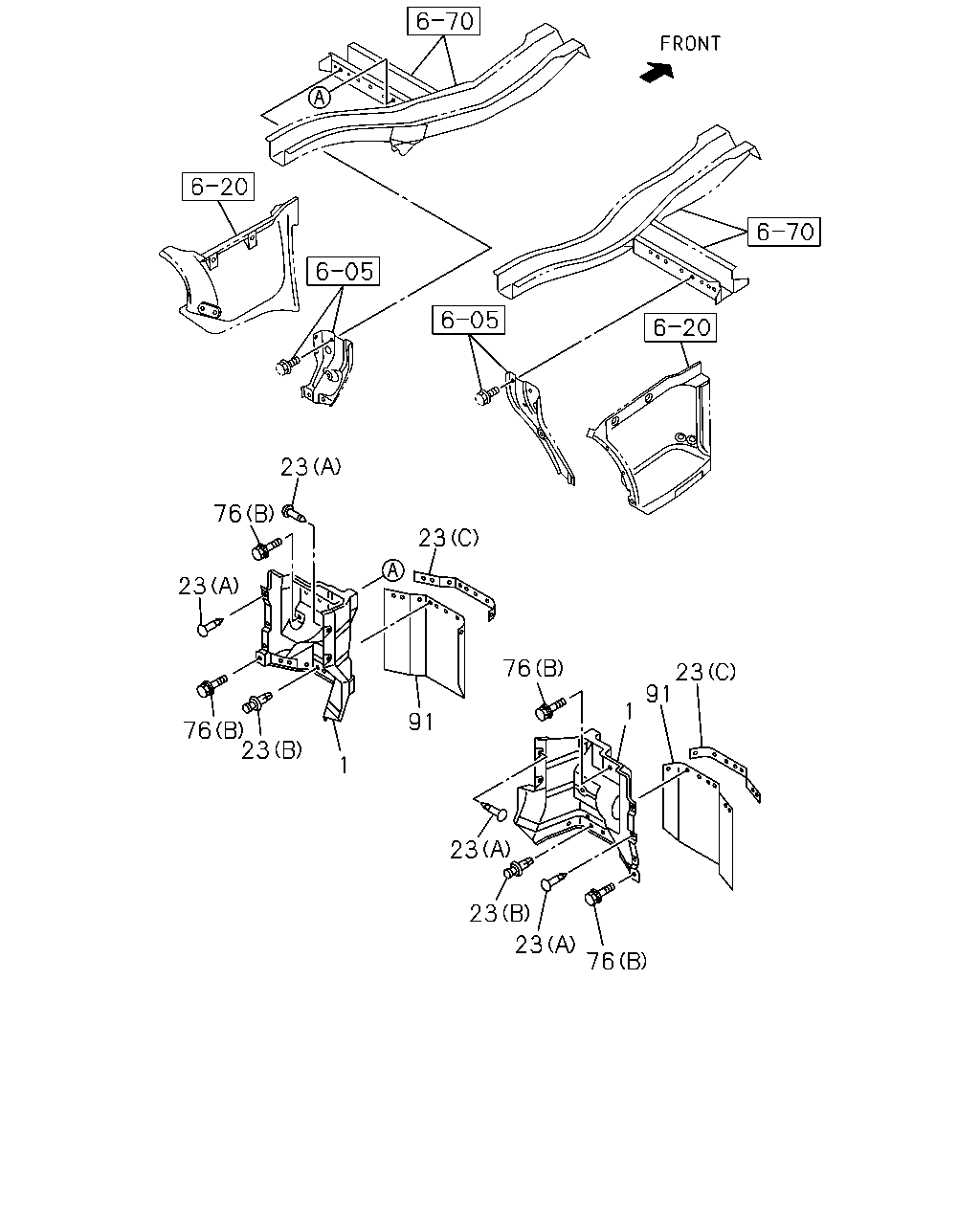

[647A] MUD GUARD;FRONT (10 parça)
[647A] COMPONENT;PANEL (11 parça)

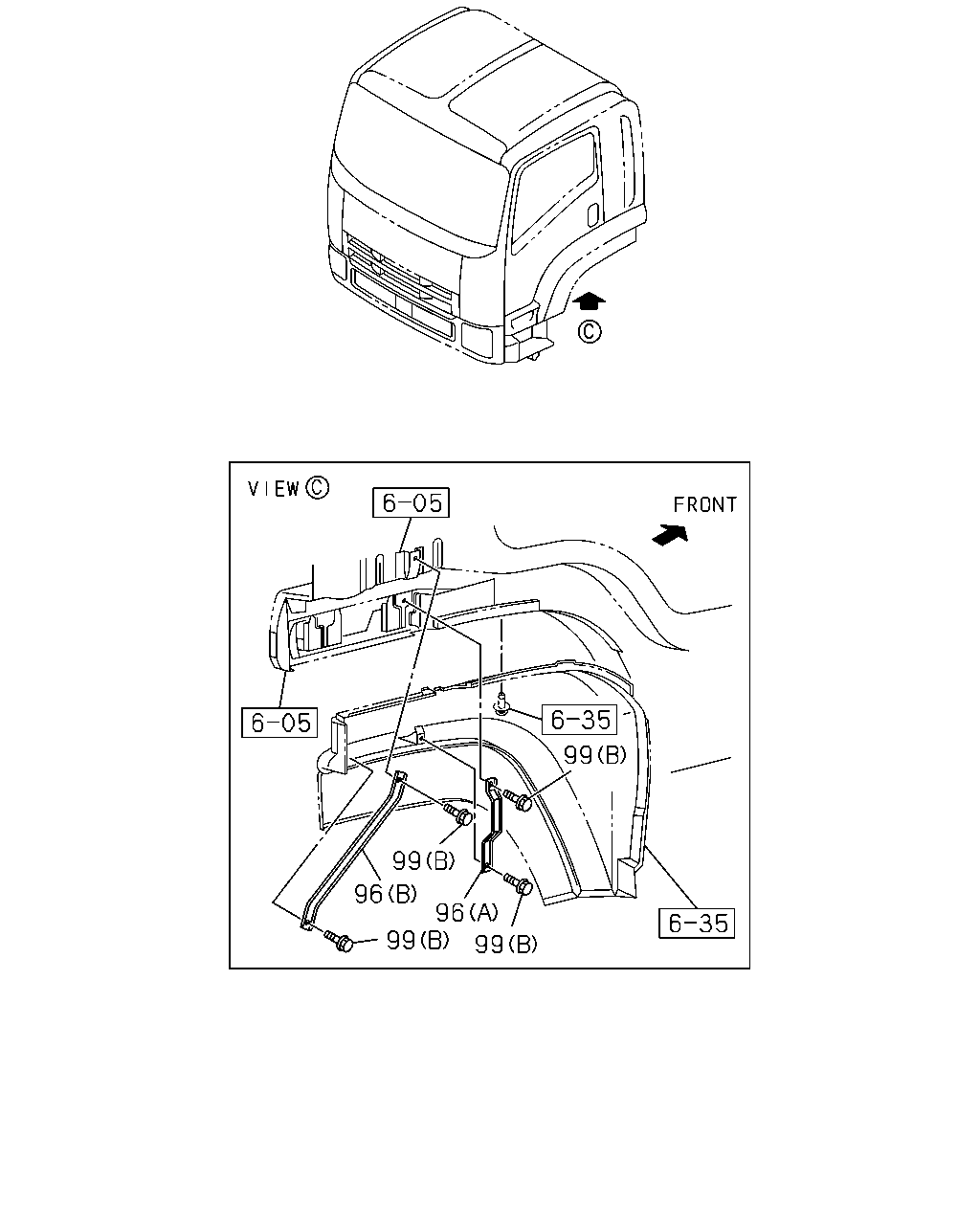

[647A] OTHER PARTS (4 parça)
▶
9
219
218
254
307
307
181
254
218
219
9
307
307
307
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
GUARD; SPLASH,WHEEL HOUSE
8-97617-133-1
01
1
1009-
●
●
9
GUARD; SPLASH,WHEEL HOUSE
8-97617-132-1
01
1
1009-
●
●
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
11
1
1009-
●
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1009-
●
●
219
FLAP; MUD GUARD
8-97617-139-0
02
1
1009-
●
●
254
COVER; MUD,VALANCE
8-97617-144-0
01
1
1009-
●
●
254
COVER; MUD,VALANCE
8-97617-143-1
01
1
1009-
●
●
307
RETAINER
D8X13.5
1-09987-248-1
12
1
1009-
●
●
136
73
130
162
136
122
122
162
122
120
122
135
124
162
130
136
73
136
122
122
120
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1009-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1009-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1009-
●
●
120
PANEL; UNDER
1-53194-272-3
01
1
1009-
●
●
120
PANEL; UNDER
8-98039-540-0
01
1
1009-
●
●
122
BOLT
(C) M10X40 FLANGE
0-28051-040-0
02
1
1009-
●
●
122
BOLT
(B) M8X30 FLANGE
0-28650-830-0
03
1
1009-
●
●
122
BOLT
(A) M8X35 FLANGE
0-28650-835-0
04
1
1009-
●
●
124
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1009-
●
●
124
BOLT; BRKT
M12X25 FLANGE
0-28051-225-0
02
1
1009-
●
●
130
PANEL; SHUTTER NOISE
8-98088-647-0
01
1
1009-
●
●
130
PANEL; SHUTTER NOISE
8-98088-648-3
01
1
1009-
●
●
135
BRACKET; SIDE PANEL
8-98122-549-1
01
1
1009-
●
●
136
BOLT
M8X30 W/LK&PL WASHER
1-09030-095-0
12
1
1009-
●
●
162
BRACKET
(E)
8-98059-845-1
01
1
1009-
●
●
162
BRACKET
(A)
8-98055-601-0
01
1
1009-
●
●
162
BRACKET
(B)
8-98055-608-0
01
1
1009-
●
●
162
BRACKET
(C)
8-98055-609-2
01
1
1009-
●
●
162
BRACKET
(D)
8-98092-305-0
01
1
1009-
●
●
76
680
225
225
103
253
76
104
74
94
265
73
225
104
74
103
80
99
253
76
73
265
175
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1009-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1009-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1009-
●
●
74
NUT
M8 FLANGE
0-91180-108-0
06
1
1009-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1012-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
12
1
1009-1011
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1012-
●
●
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
8-94331-747-1
06
1
1009-
●
●
80
BRACKET; MUD GUARD STAY
8-98057-793-0
01
1
1009-
●
●
94
RETAINER; FLAP RUBBER
1-79931-091-2
01
1
1009-
●
●
94
RETAINER; FLAP RUBBER
8-98038-675-0
01
1
1009-
●
●
99
BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE
0-28650-616-0
08
1
1009-
●
●
99
BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE
0-28050-825-0
01
1
1009-
●
●
103
BRACKET ASM; RR MUD FLAP
8-98055-593-1
02
1
1009-
●
●
104
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1009-
●
●
175
NUT; STAY FIX
M8 W/DISHED WASHER
8-97329-625-0
01
1
1009-
●
●
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
04
1
1012-
●
●
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
12
1
1009-1011
●
●
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
08
1
1012-
●
●
253
GUARD; MUD
8-98057-779-1
01
1
1009-
●
●
253
GUARD; MUD
8-98057-778-1
01
1
1009-
●
●
265
RUBBER; FLAP,REAR
1-79930-978-0
01
1
1009-
●
●
265
RUBBER; FLAP,REAR
8-98106-956-0
01
1
1009-
●
●
680
GUARD; MUD,UPPER
8-98060-251-0
01
1
1009-
●
●
76
23
23
23
76
1
91
23
91
23
23
1
76
23
76
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GUARD; MUD,FRT
8-97617-152-0
01
1
1009-
●
●
1
GUARD; MUD,FRT
8-97617-151-0
01
1
1009-
●
●
23
FASTENER; MUD COVER
(B)
1-09470-001-0
10
1
1009-
●
●
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
08
1
1009-
●
●
23
FASTENER; MUD COVER
(C)
8-98060-235-0
02
1
1009-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
1012-
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
12
1
1009-1011
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1012-
●
●
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
8-94331-747-1
06
1
1009-
●
●
91
COVER; MUD,FRT
8-97617-155-0
02
1
1009-
●
●
160
167
122
163
163
162
122
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
122
BOLT
(C) M10X40 FLANGE
0-28051-040-0
02
1
1009-
●
●
122
BOLT
(B) M8X30 FLANGE
0-28650-830-0
03
1
1009-
●
●
122
BOLT
(A) M8X35 FLANGE
0-28650-835-0
04
1
1009-
●
●
160
COVER ASM; EXH
8-98090-111-1
01
1
1009-
●
●
162
BRACKET
(E)
8-98059-845-1
01
1
1009-
●
●
162
BRACKET
(A)
8-98055-601-0
01
1
1009-
●
●
162
BRACKET
(B)
8-98055-608-0
01
1
1009-
●
●
162
BRACKET
(C)
8-98055-609-2
01
1
1009-
●
●
162
BRACKET
(D)
8-98092-305-0
01
1
1009-
●
●
163
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1009-
●
●
167
BOLT; EXH COVER
M8X20 FLANGE
0-28650-820-0
01
1
1009-
●
●
99
99
96
96
99
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96
STAY; MUD GUARD
(A)
8-98057-075-0
02
1
1009-
●
●
96
STAY; MUD GUARD
(B)
8-98082-316-0
02
1
1009-
●
●
99
BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE
0-28650-616-0
08
1
1009-
●
●
99
BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE
0-28050-825-0
01
1
1009-
●
●
