6-32 — FRONT DOOR LOCK AND HANDLE (#71946) — 100 parça

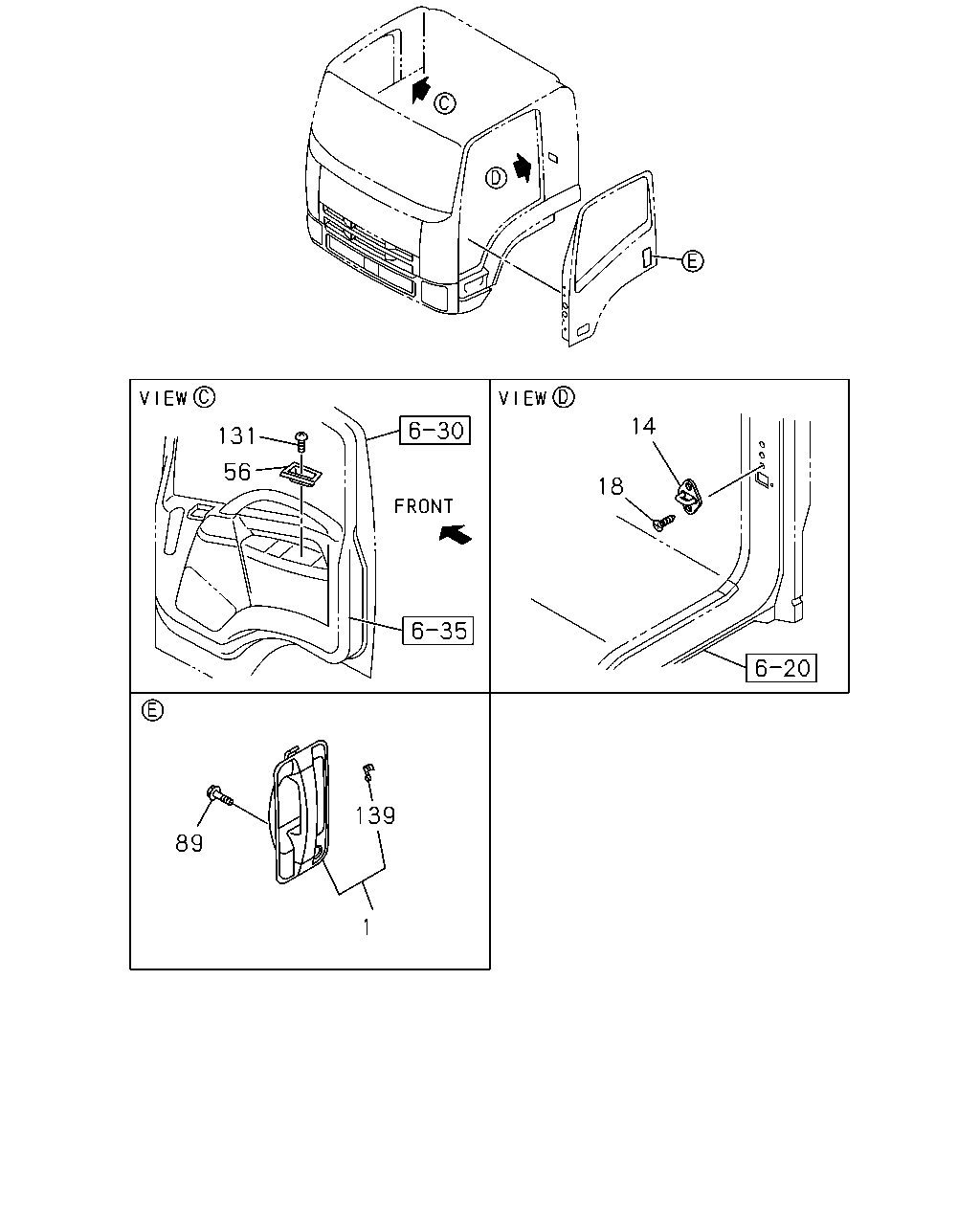

131 56 14 18 139 1 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; OUTSIDE,FRT DOOR	8-98037-100-2	01	1	1009-	●	●
1	HANDLE; OUTSIDE,FRT DOOR	8-98037-101-2	01	1	1009-	●	●
14	STRIKER; FRT DOOR	8-98029-173-2	02	1	1009-	●	●
18	SCREW; DOOR STRIKER M8X20 CK-HEAD	8-98004-343-2	04	1	1009-	●	●
56	ESCUTCHEON; LOCK KNOB GRAY	8-97405-314-1	01	1	1009-	●	●
56	ESCUTCHEON; LOCK KNOB GRAY	8-97405-315-1	01	1	1009-	●	●
89	BOLT; DOOR OUTSIDE HANDLE M6X10 FLANGE	0-28050-610-0	04	1	1009-	●	●
131	SCREW; ESCUTCHEON,DOOR PULL M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1009-	●	●
139	HOLDER; ROD,DOOR HANDLE WHITE	8-97333-303-0	01	1	1009-	●	●
139	HOLDER; ROD,DOOR HANDLE BLACK	8-98095-813-0	01	1	1009-	●	●

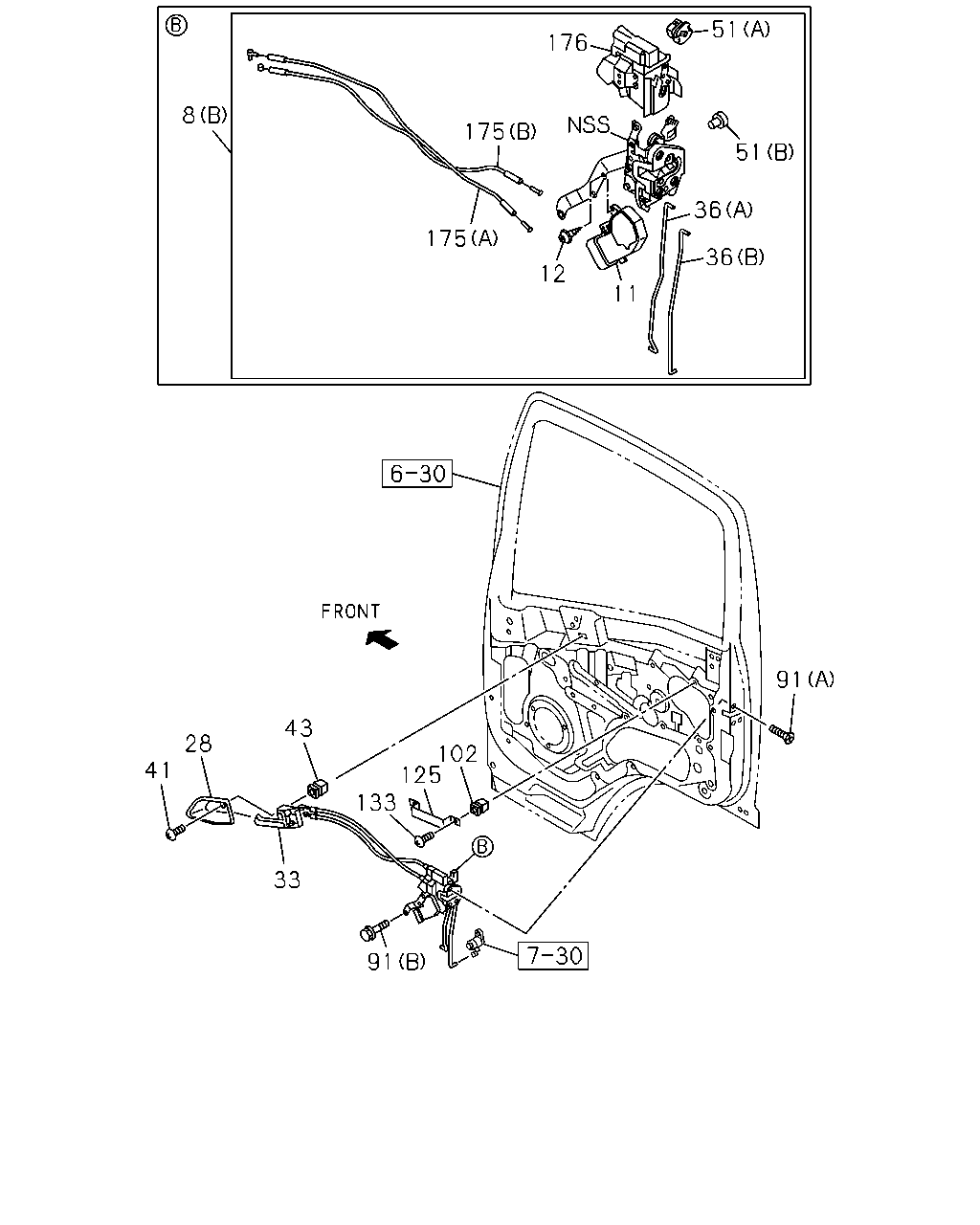

8 176 175 175 12 11 51 51 36 36 91 102 125 133 43 28 41 33 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (B)	8-98029-055-2	01	1	1009-1203	●	●
8	LOCK; DOOR,FRT DOOR (B)	8-98029-055-2	01	1	1204-	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (B)	8-98029-056-2	01	1	1009-1203	●	●
8	LOCK; DOOR,FRT DOOR (B)	8-98029-056-2	01	1	1204-	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98029-053-2	01	1	1009-1203	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98029-052-2	01	1	1009-1203	●	●
11	ACTUATOR; DOOR LK,FRT AUTO DOOR LOCK<AU4>	8-98058-231-0	01	1	1009-1203	●	●
11	ACTUATOR; DOOR LK,FRT	8-98058-231-0	01	1	1204-	●	●
11	ACTUATOR; DOOR LK,FRT AUTO DOOR LOCK<AU4>	8-98058-233-0	01	1	1009-1203	●	●
11	ACTUATOR; DOOR LK,FRT	8-98058-233-0	01	1	1204-	●	●
12	SCREW; DOOR LK AUTO DOOR LOCK<AU4>	8-97310-549-0	02	1	1009-1203	●	●
12	SCREW; DOOR LK AUTO DOOR LOCK<AU4>	8-97310-549-0	02	1	1009-1203	●	●
12	SCREW; DOOR LK	8-97310-549-0	02	1	1204-	●	●
12	SCREW; DOOR LK	8-97310-549-0	02	1	1204-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-312-0	01	1	1009-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-311-0	01	1	1009-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-310-1	01	1	1009-1207	●	●
33	LEVER ASM; INSIDE,FRT DOOR LIGHT GRAY	8-98039-995-1	01	1	1208-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-309-1	01	1	1009-1207	●	●
33	LEVER ASM; INSIDE,FRT DOOR LIGHT GRAY	8-98039-994-1	01	1	1208-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A)	8-98058-532-0	01	1	1009-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B)	8-98058-536-0	01	1	1009-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A)	8-98058-531-0	01	1	1009-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B)	8-98058-535-0	01	1	1009-	●	●
41	SCREW; INSIDE HANDLE M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1009-	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1009-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) RED	8-98058-229-0	01	1	1009-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) BLACK	8-98058-228-0	01	1	1009-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	01	1	1009-1203	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) BLUE	8-98058-227-0	01	1	1204-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	01	1	1009-1203	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) NATURAL	8-98058-226-0	01	1	1204-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	02	1	1009-1203	●	●
51	SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	02	1	1009-1203	●	●
91	BOLT; DOOR LOCK (A) SCREW M6X14.5	8-98004-342-0	06	1	1009-	●	●
91	BOLT; DOOR LOCK AUTO DOOR LOCK<AU4> (B) M6X10 FLANGE	0-28050-610-0	02	1	1009-1203	●	●
91	BOLT; DOOR LOCK (B) M6X10 FLANGE	0-28050-610-0	02	1	1204-	●	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1009-	●	●
125	BRACKET; DOOR PULL	8-97585-927-0	02	1	1009-	●	●
133	SCREW; DOOR PULL STAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	1009-	●	●
175	CABLE ASM; LOCK CONTROL (A)	8-98058-538-0	01	1	1009-	●	●
175	CABLE ASM; LOCK CONTROL (A)	8-98058-537-0	01	1	1009-	●	●
175	CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (B)	8-98058-539-0	01	1	1009-1203	●	●
175	CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (B)	8-98058-539-0	01	1	1009-1203	●	●
175	CABLE ASM; LOCK CONTROL (B)	8-98058-539-0	01	1	1204-	●	●
175	CABLE ASM; LOCK CONTROL (B)	8-98058-539-0	01	1	1204-	●	●
175	CABLE ASM; LOCK CONTROL EXC. AUTO DOOR LOCK<AU4> (B)	8-98058-539-0	02	1	1009-1203	●	●
176	COVER; DOOR LOCK	8-98058-239-0	01	1	1009-	●	●
176	COVER; DOOR LOCK	8-98058-238-0	01	1	1009-	●	●

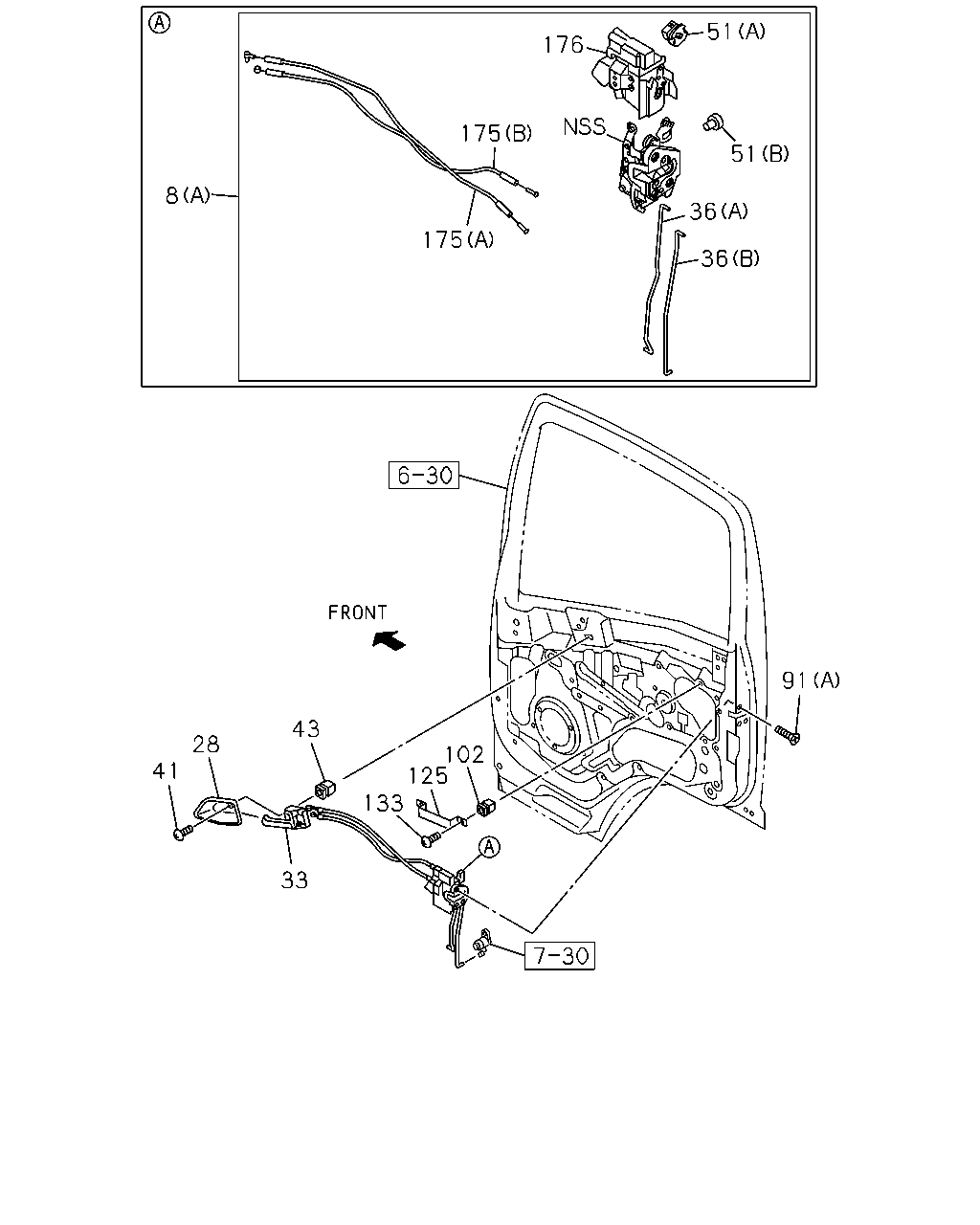

8 176 175 175 51 51 36 36 43 28 41 33 133 125 102 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (B)	8-98029-055-2	01	1	1009-1203	●	●
8	LOCK; DOOR,FRT DOOR (B)	8-98029-055-2	01	1	1204-	●	●
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (B)	8-98029-056-2	01	1	1009-1203	●	●
8	LOCK; DOOR,FRT DOOR (B)	8-98029-056-2	01	1	1204-	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98029-053-2	01	1	1009-1203	●	●
8	LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-98029-052-2	01	1	1009-1203	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-312-0	01	1	1009-	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR DARK GRAY	8-97405-311-0	01	1	1009-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-310-1	01	1	1009-1207	●	●
33	LEVER ASM; INSIDE,FRT DOOR LIGHT GRAY	8-98039-995-1	01	1	1208-	●	●
33	LEVER ASM; INSIDE,FRT DOOR DARK GRAY	8-97405-309-1	01	1	1009-1207	●	●
33	LEVER ASM; INSIDE,FRT DOOR LIGHT GRAY	8-98039-994-1	01	1	1208-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A)	8-98058-532-0	01	1	1009-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B)	8-98058-536-0	01	1	1009-	●	●
36	LINK; DOOR LOCK,OUTSIDE (A)	8-98058-531-0	01	1	1009-	●	●
36	LINK; DOOR LOCK,OUTSIDE (B)	8-98058-535-0	01	1	1009-	●	●
41	SCREW; INSIDE HANDLE M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1009-	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1009-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) RED	8-98058-229-0	01	1	1009-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (B) BLACK	8-98058-228-0	01	1	1009-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	01	1	1009-1203	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) BLUE	8-98058-227-0	01	1	1204-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	01	1	1009-1203	●	●
51	SNAP; FRT DOOR LOCK CONT ROD (A) NATURAL	8-98058-226-0	01	1	1204-	●	●
51	SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) BLUE	8-98058-227-0	02	1	1009-1203	●	●
51	SNAP; FRT DOOR LOCK CONT ROD EXC. AUTO DOOR LOCK<AU4> (A) NATURAL	8-98058-226-0	02	1	1009-1203	●	●
91	BOLT; DOOR LOCK (A) SCREW M6X14.5	8-98004-342-0	06	1	1009-	●	●
91	BOLT; DOOR LOCK AUTO DOOR LOCK<AU4> (B) M6X10 FLANGE	0-28050-610-0	02	1	1009-1203	●	●
91	BOLT; DOOR LOCK (B) M6X10 FLANGE	0-28050-610-0	02	1	1204-	●	●
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1009-	●	●
125	BRACKET; DOOR PULL	8-97585-927-0	02	1	1009-	●	●
133	SCREW; DOOR PULL STAY M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	1009-	●	●
175	CABLE ASM; LOCK CONTROL (A)	8-98058-538-0	01	1	1009-	●	●
175	CABLE ASM; LOCK CONTROL (A)	8-98058-537-0	01	1	1009-	●	●
175	CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (B)	8-98058-539-0	01	1	1009-1203	●	●
175	CABLE ASM; LOCK CONTROL AUTO DOOR LOCK<AU4> (B)	8-98058-539-0	01	1	1009-1203	●	●
175	CABLE ASM; LOCK CONTROL (B)	8-98058-539-0	01	1	1204-	●	●
175	CABLE ASM; LOCK CONTROL (B)	8-98058-539-0	01	1	1204-	●	●
175	CABLE ASM; LOCK CONTROL EXC. AUTO DOOR LOCK<AU4> (B)	8-98058-539-0	02	1	1009-1203	●	●
176	COVER; DOOR LOCK	8-98058-239-0	01	1	1009-	●	●
176	COVER; DOOR LOCK	8-98058-238-0	01	1	1009-	●	●
