◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#71941) — 224 parça

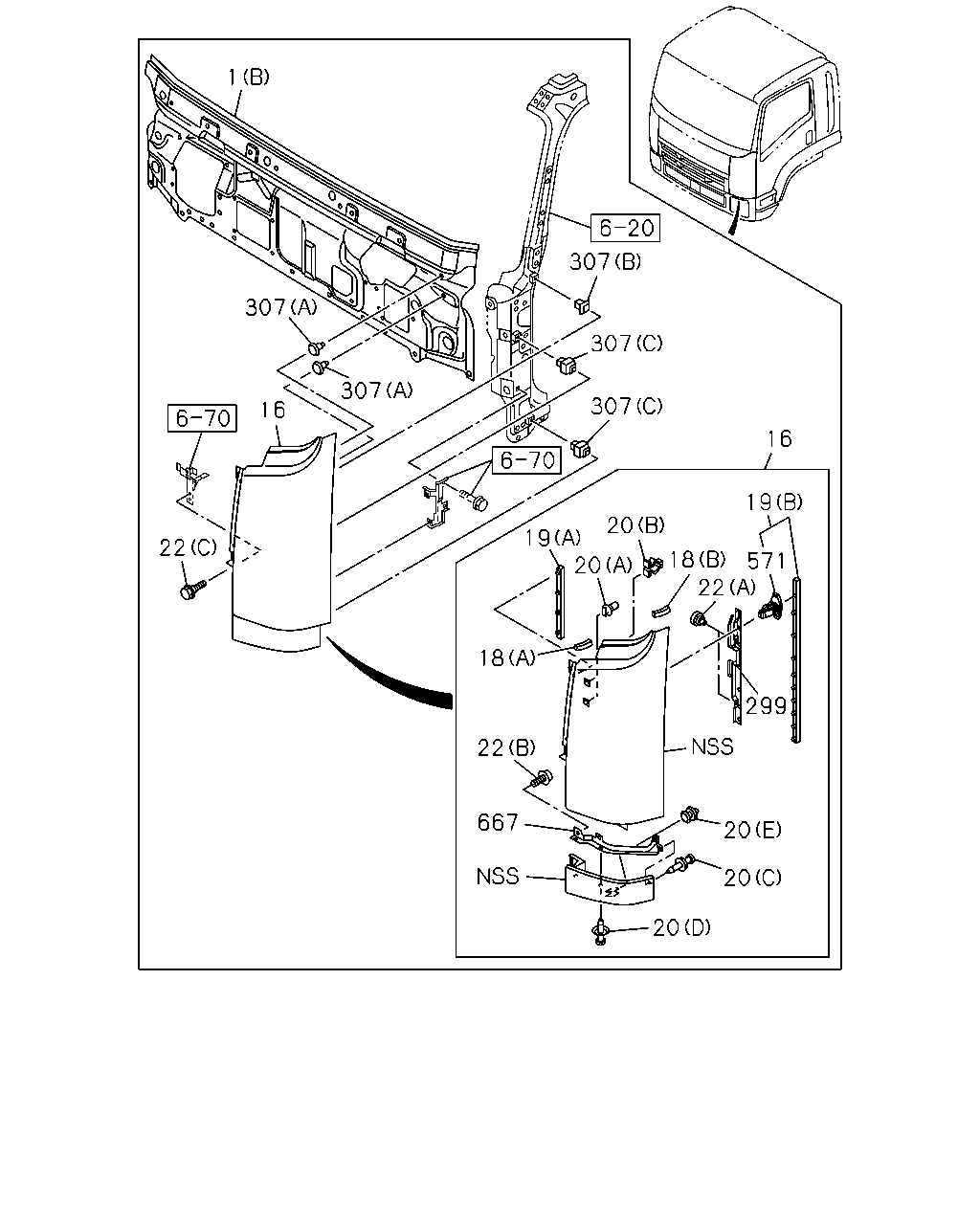

çizim 126309
1 307 307 16 22 307 307 307 19 20 20 16 19 571 18 22 299 20 20 667 22 18 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1009- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-897-2 01 1 1512- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-905-2 01 1 1512- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-898-2 01 1 1512- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-906-2 01 1 1512- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-948-2 01 1 1404- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-949-2 01 1 1404- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-764-2 01 1 1203- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-765-2 01 1 1203- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-088-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-087-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97418-360-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97418-354-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97418-365-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97418-359-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-363-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-357-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-362-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-356-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) 		8-97418-364-2 01 1 1009-1011 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) 		8-97418-358-2 01 1 1009-1011 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-361-2 01 1 1009- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-355-2 01 1 1009- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1009-1203 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1009-1203 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1204- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1009-1203 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1009-1203 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1204- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1009- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1009- ● ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 04 1 1204- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 02 1 1204- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 02 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 02 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 1204- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 01 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 01 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1204- ● ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1009-1203 ● ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 02 1 1204- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-1203 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-1203 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1204- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1009-1203 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1009-1203 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1204- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1009-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1009- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1009- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1009- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1009- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1009- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1009-1203 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1009-1203 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1204- ● ●
667 STAY; EXT,SIDE PANEL 8-98054-092-1 01 1 1009- ● ●
667 STAY; EXT,SIDE PANEL 8-98054-091-1 01 1 1009- ● ●

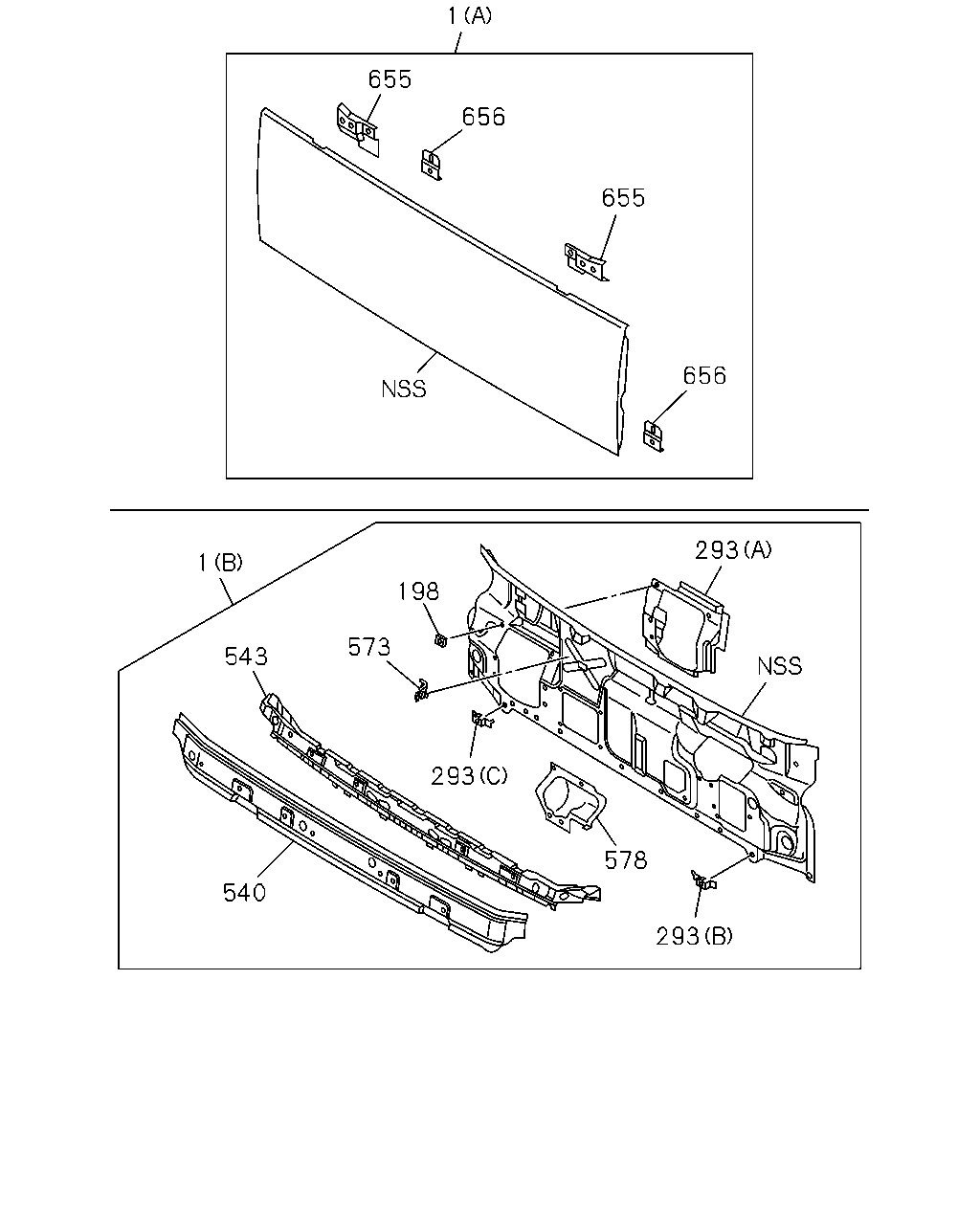

çizim 126407
1 655 656 655 656 293 198 573 293 578 293 540 543 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1009- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1009- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1009- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1009- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1009- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1009- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1009- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1009- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1009- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1009- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1009- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1009- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1009- ● ●

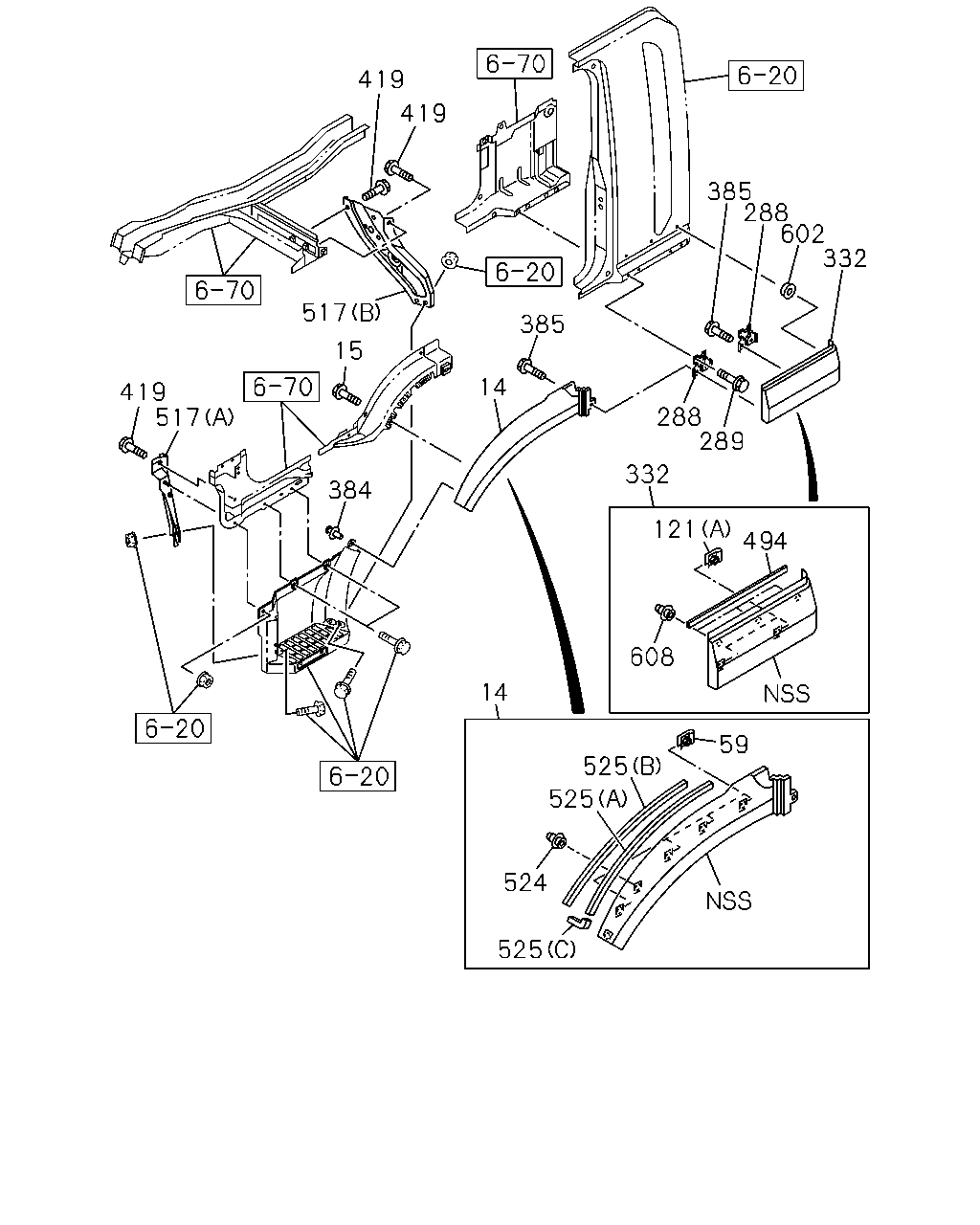

çizim 126580
419 419 385 288 289 602 332 288 385 517 419 517 384 14 608 494 121 332 525 59 525 524 525 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1009- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1009- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1009- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1204- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1009-1203 ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1009- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1009- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1009- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1009- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1009- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1009- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1009- ● ●
288 BRACKET; FENDER SKIRT 8-98059-770-1 04 1 1009- ● ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1009- ● ●
332 FENDER; RR
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-913-2 01 1 1512- ● ●
332 FENDER; RR
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-915-2 01 1 1512- ● ●
332 FENDER; RR
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-914-2 01 1 1512- ● ●
332 FENDER; RR
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-916-2 01 1 1512- ● ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-967-2 01 1 1404- ● ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-968-2 01 1 1404- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-768-2 01 1 1203- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-769-2 01 1 1203- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-507-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-506-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-310-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-304-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-313-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-307-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-314-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-308-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-612-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-602-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR OMAHA ORANGE(906) 		8-97411-312-2 01 1 1009-1011 ● ●
332 FENDER; RR
BODY COLOR OMAHA ORANGE(906) 		8-97411-306-2 01 1 1009-1011 ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-311-2 01 1 1009- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-305-2 01 1 1009- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1009- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1009- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1009- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1009- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1009- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1009- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1009- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1009- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1009- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1009- ● ●
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 1009- ● ●
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 1009- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1009- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 1009-1302 ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1009- ● ●

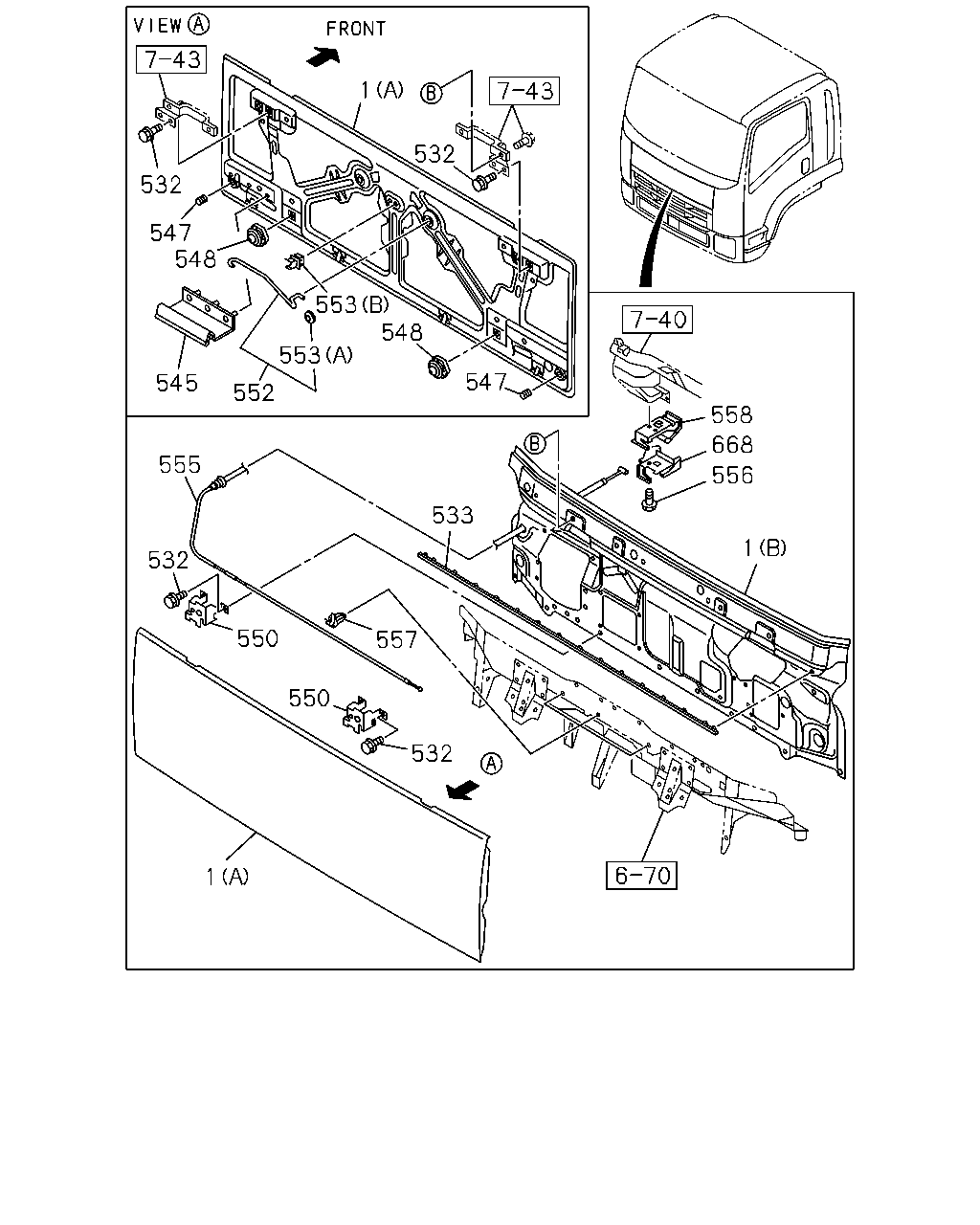

çizim 126667
532 547 548 545 552 553 553 532 1 558 668 556 1 533 557 532 1 550 550 532 555 547 548
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1009- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1009- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1009- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1009- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1009- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1009- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1009- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1009- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1009- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1009- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1009- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1009- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1009- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1009- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1009- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1009- ● ●

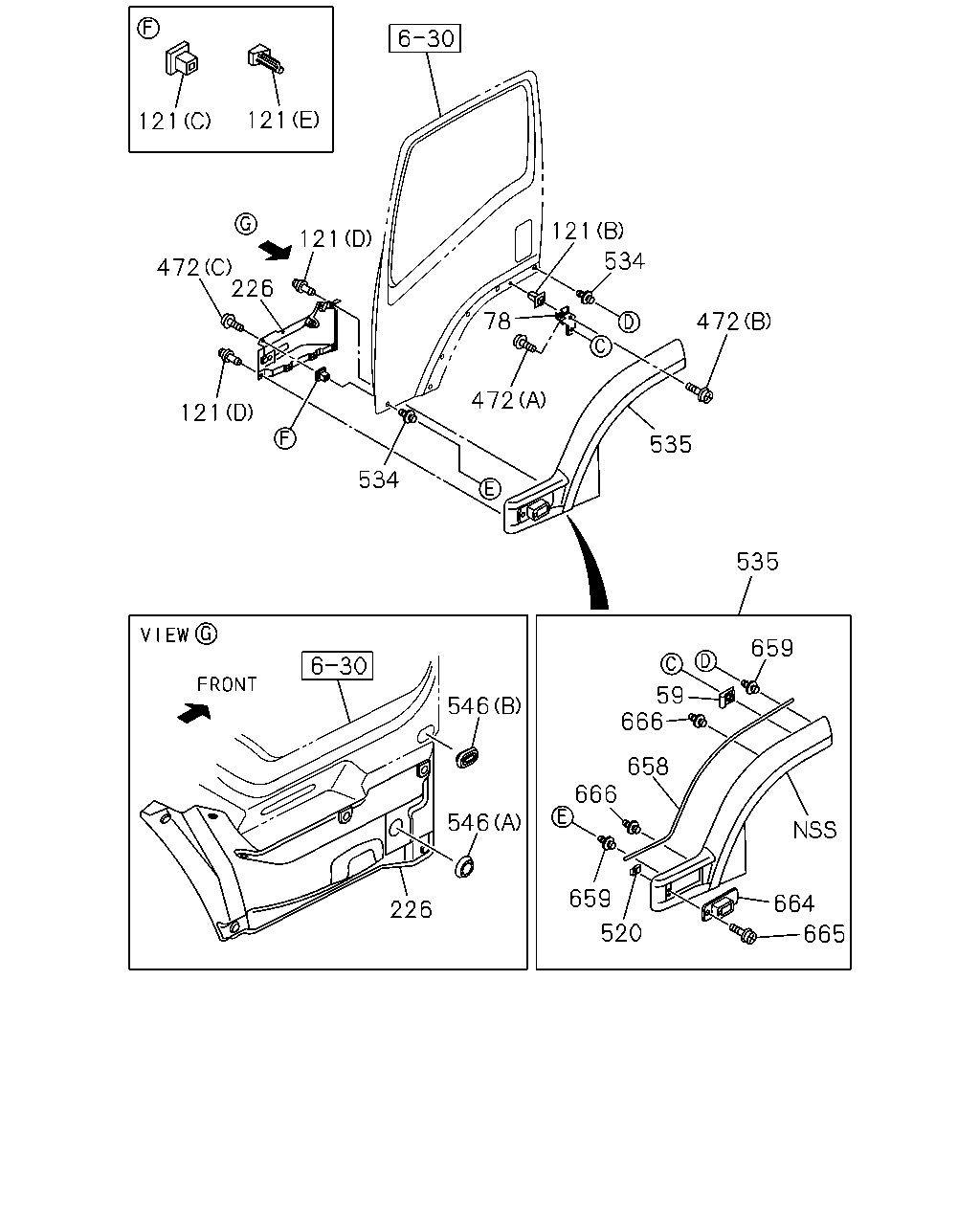

çizim 126762
121 121 121 226 472 121 534 472 78 535 472 534 121 546 546 226 659 520 666 658 666 59 659 535 664 665
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 1204- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1009-1203 ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1009- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1009- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1009- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1009- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1009- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1009- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1009- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1009- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1009- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1009- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1009- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1009- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1009- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1009- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 1204- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 1009-1203 ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1009-1302 ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303- ● ●
535 FENDER; BLISTER
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-921-1 01 1 1512- ● ●
535 FENDER; BLISTER
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-923-1 01 1 1512- ● ●
535 FENDER; BLISTER
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-922-1 01 1 1512- ● ●
535 FENDER; BLISTER
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-924-1 01 1 1512- ● ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-952-1 01 1 1404- ● ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-953-1 01 1 1404- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-770-1 01 1 1203- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-771-1 01 1 1203- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-394-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-393-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97418-323-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97418-309-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97418-371-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97418-368-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-369-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-366-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-329-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-315-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) 		8-97418-370-1 01 1 1009-1011 ● ●
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) 		8-97418-367-1 01 1 1009-1011 ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-328-1 01 1 1009- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-314-1 01 1 1009- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1009- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1009- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1204- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1204- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1009-1203 ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1009-1203 ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1204- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1009-1203 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-933-0 01 1 1512- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BORAL YELLOW(556) YELLOW 		8-97466-935-0 01 1 1512- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-934-0 01 1 1512- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HOLCIM WHITE(557) WHITE 		8-97466-936-0 01 1 1512- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-957-0 01 1 1404- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97429-958-0 01 1 1404- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-784-0 01 1 1203- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-785-0 01 1 1203- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-597-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-469-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-637-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-471-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-481-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-477-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-479-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-475-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-626-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-615-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) 		8-97421-644-0 01 1 1009-1011 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) 		8-97421-642-0 01 1 1009-1011 ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-640-0 01 1 1009- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-473-0 01 1 1009- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1204- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1009-1203 ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1204- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1009-1203 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
