6-01 — FRONT BUMPER (#71938) — 147 parça

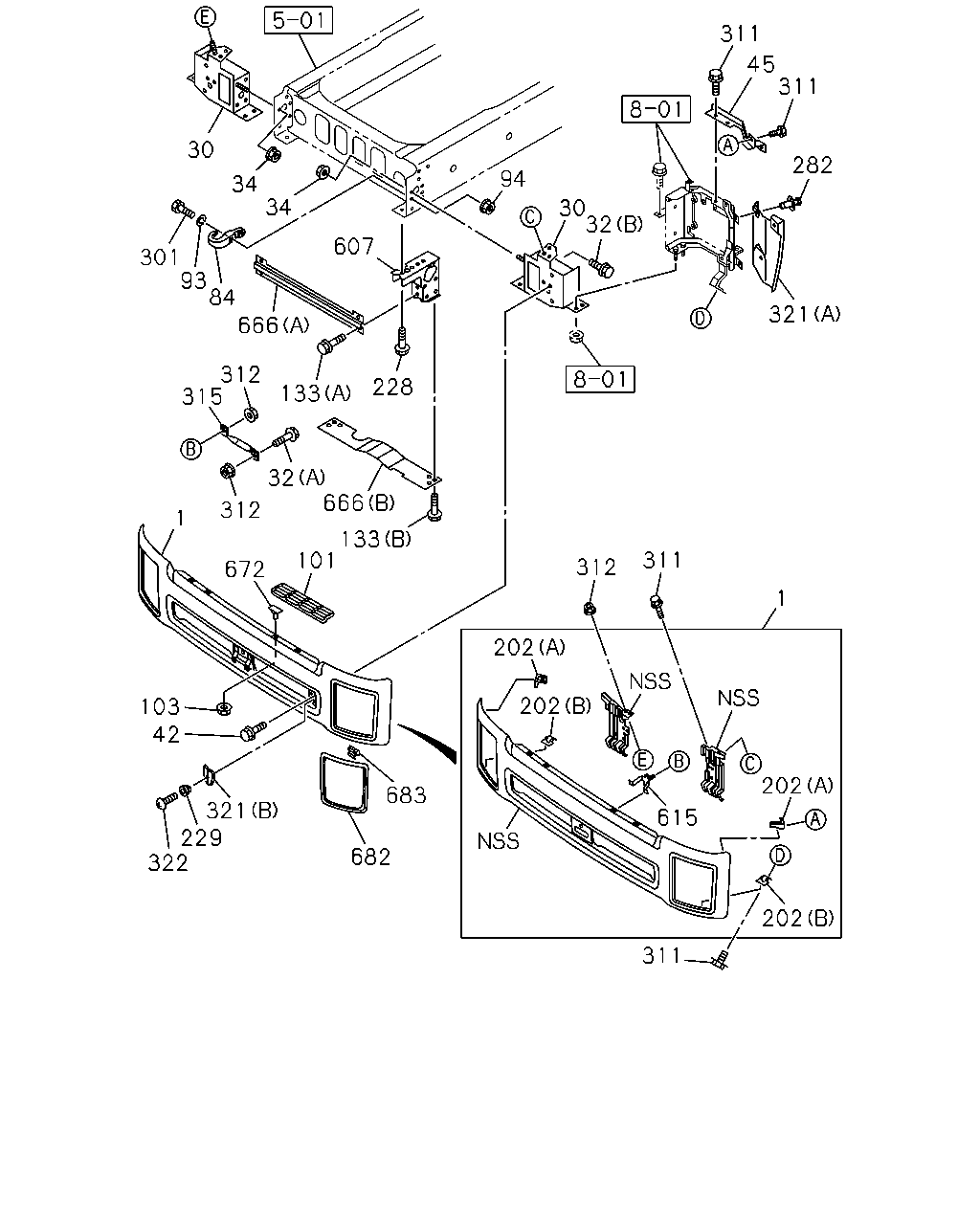

çizim 189901
30 34 34 607 94 30 32 321 282 311 45 311 311 1 312 202 202 615 311 202 202 683 682 321 229 322 103 42 672 312 1 101 666 133 32 315 312 133 228 666 84 93 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1009- ● ●
30 BRACKET; FRT BUMPER 8-98055-264-0 01 1 1009-1203 ● ●
30 BRACKET; FRT BUMPER 8-98203-557-2 01 1 1204- ● ●
30 BRACKET; FRT BUMPER 8-98055-263-0 01 1 1009-1203 ● ●
30 BRACKET; FRT BUMPER 8-98203-556-2 01 1 1204- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 10 1 1009-1203 ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 04 1 1204- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1009- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 06 1 1009-1203 ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 04 1 1204- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1009- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1009- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1009- ● ●
84 HOOK 8-98099-119-0 01 1 1009- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1009- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 01 1 1009- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 1009- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 1009- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1009- ● ●
133 BOLT; PROTECTOR FIX
(C) M12X30 FLANGE 		0-28661-230-0 06 1 1211- ● ●
133 BOLT; PROTECTOR FIX
(A) M12X60 FLANGE 		0-28051-260-0 04 1 1009-1203 ● ●
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 1009-1203 ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 1009- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 1009- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 1009- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 1009- ● ●
228 BOLT; BRKT
M12X35 FLANGE 		0-28051-235-0 04 1 1204-1208 ● ●
228 BOLT; BRKT
M12X30 FLANGE 		0-28051-230-0 04 1 1209- ● ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 08 1 1009-1203 ● ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 05 1 1204- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1009- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 1009- ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 1009-1203 ● ●
301 BOLT; HOOK TO FRAME
M16X80 		0-10861-680-0 01 1 1204- ● ●
301 BOLT; HOOK TO FRAME
M16X40 		0-20851-640-0 01 1 1009- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1009- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1009- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1009- ● ●
315 STAY; BUMPER 8-97617-115-0 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 1009- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1009- ● ●
607 BRACKET 8-98220-874-0 01 1 1205-1205 ●
607 BRACKET 8-98202-490-1 01 1 1206- ●
607 BRACKET 8-98220-875-0 01 1 1205-1205 ●
607 BRACKET 8-98202-491-1 01 1 1206- ●
607 BRACKET 8-98055-268-1 01 1 1009-1203 ● ●
607 BRACKET 8-98202-491-0 01 1 1204-1204 ● ●
607 BRACKET 8-98202-491-1 01 1 1205-1205 ●
607 BRACKET 8-98220-875-0 01 1 1206-1302 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98220-875-0 01 1 1303- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98220-875-0 01 1 1303- ●
607 BRACKET 8-98055-267-1 01 1 1009-1203 ● ●
607 BRACKET 8-98202-490-0 01 1 1204-1204 ● ●
607 BRACKET 8-98202-490-1 01 1 1205-1205 ●
607 BRACKET 8-98220-874-0 01 1 1206-1302 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98220-874-0 01 1 1303- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98220-874-0 01 1 1303- ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 1009- ● ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1009-1203 ● ●
666 PROTECTOR; UNDER
(C) 		8-98172-164-0 01 1 1204-1206 ● ●
666 PROTECTOR; UNDER
(C) 		8-98220-526-0 01 1 1207- ● ●
666 PROTECTOR; UNDER
(A) 		8-97610-033-0 01 1 1009-1203 ● ●
666 PROTECTOR; UNDER
(D) 		8-98203-565-0 01 1 1204- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1009- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 1009- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 1009- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1009- ● ●

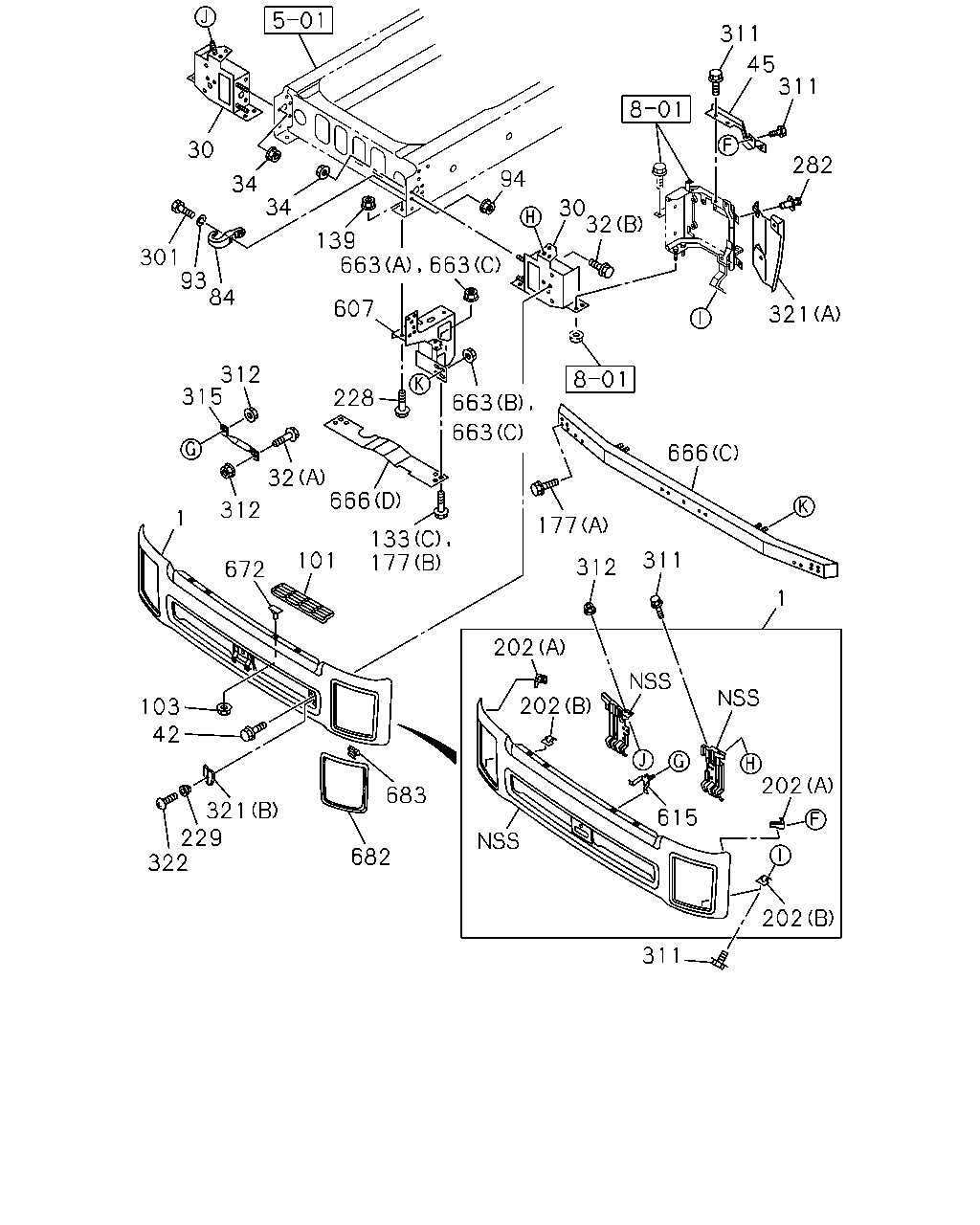

çizim 189997
30 34 34 139 663 663 30 32 311 45 311 282 321 663 663 177 312 311 1 666 94 607 228 312 315 32 312 1 672 101 177 133 84 93 301 103 42 321 229 322 683 682 202 202 615 202 202 311 666
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1009- ● ●
30 BRACKET; FRT BUMPER 8-98055-264-0 01 1 1009-1203 ● ●
30 BRACKET; FRT BUMPER 8-98203-557-2 01 1 1204- ● ●
30 BRACKET; FRT BUMPER 8-98055-263-0 01 1 1009-1203 ● ●
30 BRACKET; FRT BUMPER 8-98203-556-2 01 1 1204- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 10 1 1009-1203 ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 04 1 1204- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1009- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 06 1 1009-1203 ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 04 1 1204- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1009- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1009- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1009- ● ●
84 HOOK 8-98099-119-0 01 1 1009- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1009- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 01 1 1009- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 1009- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 1009- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1009- ● ●
133 BOLT; PROTECTOR FIX
(C) M12X30 FLANGE 		0-28661-230-0 06 1 1211- ● ●
133 BOLT; PROTECTOR FIX
(A) M12X60 FLANGE 		0-28051-260-0 04 1 1009-1203 ● ●
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 1009-1203 ● ●
139 NUT; BRKT FIX
M16 		0-91110-516-0 01 1 1204- ● ●
139 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1204- ● ●
177 BOLT
(B) M12X25 FLANGE 		0-28051-225-0 06 1 1204-1210 ● ●
177 BOLT
(A) 		8-98205-141-0 16 1 1204-1206 ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 1009- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 1009- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 1009- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 1009- ● ●
228 BOLT; BRKT
M12X35 FLANGE 		0-28051-235-0 04 1 1204-1208 ● ●
228 BOLT; BRKT
M12X30 FLANGE 		0-28051-230-0 04 1 1209- ● ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 08 1 1009-1203 ● ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 05 1 1204- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1009- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 1009- ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 1009-1203 ● ●
301 BOLT; HOOK TO FRAME
M16X80 		0-10861-680-0 01 1 1204- ● ●
301 BOLT; HOOK TO FRAME
M16X40 		0-20851-640-0 01 1 1009- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1009- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1009- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1009- ● ●
315 STAY; BUMPER 8-97617-115-0 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 1009- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 1009- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1009- ● ●
607 BRACKET 8-98220-874-0 01 1 1205-1205 ●
607 BRACKET 8-98202-490-1 01 1 1206- ●
607 BRACKET 8-98220-875-0 01 1 1205-1205 ●
607 BRACKET 8-98202-491-1 01 1 1206- ●
607 BRACKET 8-98055-268-1 01 1 1009-1203 ● ●
607 BRACKET 8-98202-491-0 01 1 1204-1204 ● ●
607 BRACKET 8-98202-491-1 01 1 1205-1205 ●
607 BRACKET 8-98220-875-0 01 1 1206-1302 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98220-875-0 01 1 1303- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98220-875-0 01 1 1303- ●
607 BRACKET 8-98055-267-1 01 1 1009-1203 ● ●
607 BRACKET 8-98202-490-0 01 1 1204-1204 ● ●
607 BRACKET 8-98202-490-1 01 1 1205-1205 ●
607 BRACKET 8-98220-874-0 01 1 1206-1302 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98220-874-0 01 1 1303- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98220-874-0 01 1 1303- ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 1009- ● ●
663 NUT
(A) M12 FLANGE 		0-91180-112-0 06 1 1204-1208 ● ●
663 NUT
(B) M12 FLANGE 		0-91180-212-0 08 1 1204-1208 ● ●
663 NUT
(C) M12 FLANGE 		0-91180-212-0 14 1 1209- ● ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1009-1203 ● ●
666 PROTECTOR; UNDER
(C) 		8-98172-164-0 01 1 1204-1206 ● ●
666 PROTECTOR; UNDER
(C) 		8-98220-526-0 01 1 1207- ● ●
666 PROTECTOR; UNDER
(A) 		8-97610-033-0 01 1 1009-1203 ● ●
666 PROTECTOR; UNDER
(D) 		8-98203-565-0 01 1 1204- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1009- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 1009- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 1009- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1009- ● ●
