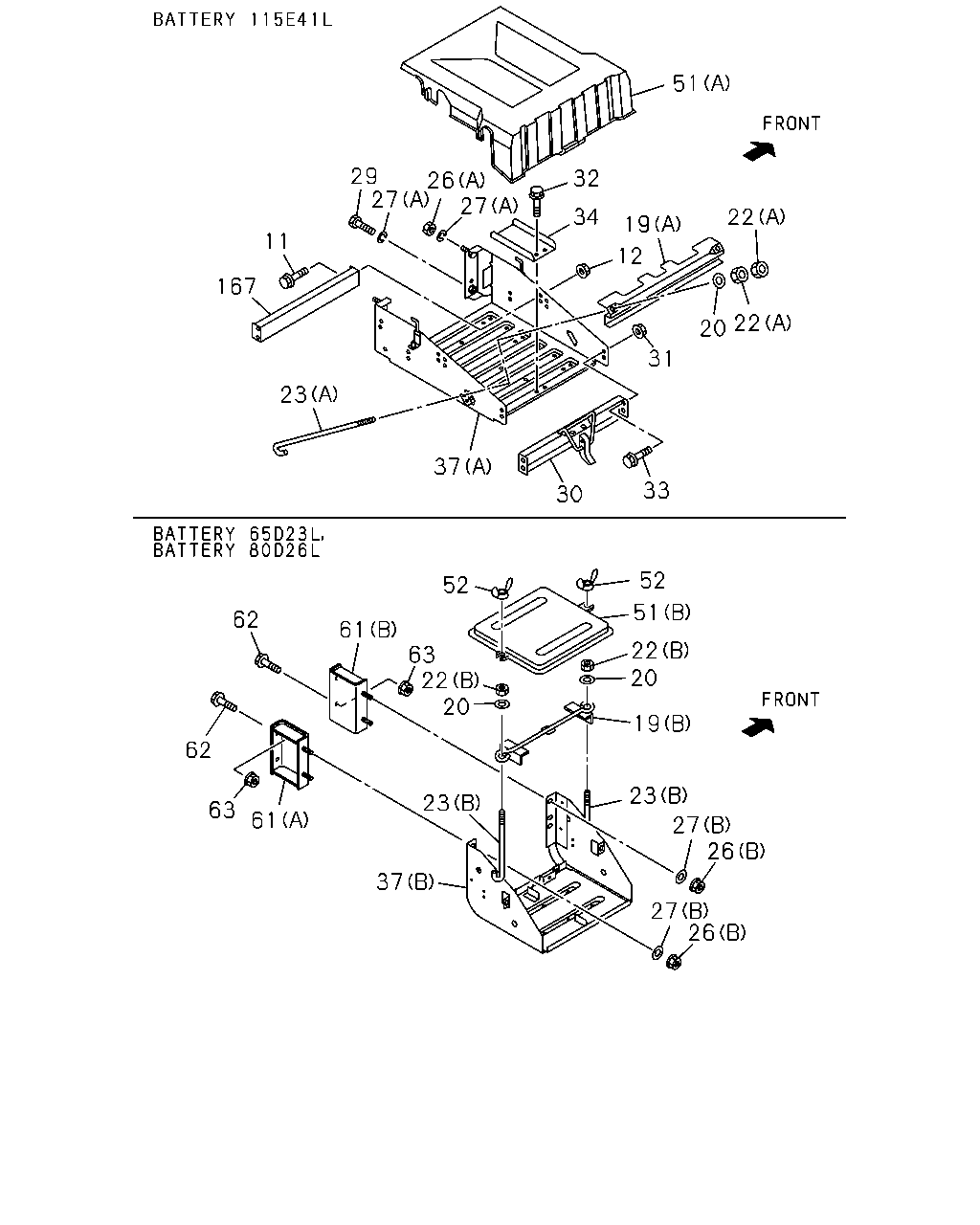

5-20 — BATTERY CARRIER (#71936) — 59 parça

51 22 22 20 31 33 30 37 23 167 11 29 27 26 27 32 34 19 12 52 51 22 20 19 23 27 26 27 26 37 23 20 22 52 63 61 62 62 63 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX BATTERY 115E41L<8MA> M8X20 FLANGE	0-28050-820-0	04	1	1009-1203	●	●
11	BOLT; BRKT FIX BATTERY 115E41L<8MA> M8X20 FLANGE	0-28050-820-0	04	1	1204-	●	●
12	NUT; BRKT FIX BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1009-1203	●	●
12	NUT; BRKT FIX BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1204-	●	●
19	STAY; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	5-53615-004-1	01	1	1204-	●	●
19	STAY; BATTERY BATTERY 115E41L<8MA> (A)	8-98056-961-0	01	1	1009-1203	●	●
19	STAY; BATTERY BATTERY 115E41L<8MA> (A)	8-98056-961-0	01	1	1204-	●	●
19	STAY; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	5-53615-004-1	01	1	1009-1203	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1009-	●	●
22	NUT; STAY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M8 FLANGE	0-91180-108-0	02	1	1204-	●	●
22	NUT; STAY BATTERY 115E41L<8MA> (A) M8	0-91110-508-0	04	1	1009-1203	●	●
22	NUT; STAY BATTERY 115E41L<8MA> (A) M8	0-91110-508-0	04	1	1204-	●	●
22	NUT; STAY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M8 FLANGE	0-91180-108-0	02	1	1009-1203	●	●
23	BOLT; STAY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1204-	●	●
23	BOLT; STAY BATTERY 115E41L<8MA> (A) L=250	1-53616-108-0	02	1	1009-1203	●	●
23	BOLT; STAY BATTERY 115E41L<8MA> (A) L=250	1-53616-108-0	02	1	1204-	●	●
23	BOLT; STAY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1009-1203	●	●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M10 FLANGE	0-91180-210-0	04	1	1204-	●	●
26	NUT; BRKT BATTERY 115E41L<8MA> (A) M14	1-09440-072-0	02	1	1009-1203	●	●
26	NUT; BRKT BATTERY 115E41L<8MA> (A) M14	1-09440-072-0	02	1	1204-	●	●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) M10 FLANGE	0-91180-210-0	04	1	1009-1203	●	●
27	WASHER; LK,BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=10.5 OD=22	0-91614-610-0	04	1	1204-	●	●
27	WASHER; LK,BRKT BATTERY 115E41L<8MA> (A) ID=14.2	0-91510-514-0	04	1	1009-1203	●	●
27	WASHER; LK,BRKT BATTERY 115E41L<8MA> (A) ID=14.2	0-91510-514-0	04	1	1204-	●	●
27	WASHER; LK,BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=10.5 OD=22	0-91614-610-0	04	1	1009-1203	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41L<8MA> M14X45	1-09000-764-0	02	1	1009-1203	●	●
29	BOLT; BRKT TO FRAME BATTERY 115E41L<8MA> M14X45	1-09000-764-0	02	1	1204-	●	●
30	PLATE; BATTERY BATTERY 115E41L<8MA>	1-53619-085-0	01	1	1009-1203	●	●
30	PLATE; BATTERY BATTERY 115E41L<8MA>	1-53619-085-0	01	1	1204-	●	●
31	NUT; PLATE BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1009-1203	●	●
31	NUT; PLATE BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	04	1	1204-	●	●
32	BOLT; PLATE TO SPACER BATTERY 115E41L<8MA> M8X16 FLANGE	0-28050-816-0	02	1	1009-1203	●	●
32	BOLT; PLATE TO SPACER BATTERY 115E41L<8MA> M8X16 FLANGE	0-28050-816-0	02	1	1204-	●	●
33	BOLT; PLATE TO BRKT BATTERY 115E41L<8MA> M8X20 FLANGE	0-28650-820-0	04	1	1009-1203	●	●
33	BOLT; PLATE TO BRKT BATTERY 115E41L<8MA> M8X20 FLANGE	0-28650-820-0	04	1	1204-	●	●
34	SPACER; BATTERY BRKT BATTERY 115E41L<8MA>	8-98057-728-0	01	1	1009-1203	●	●
34	SPACER; BATTERY BRKT BATTERY 115E41L<8MA>	8-98057-728-0	01	1	1204-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1204-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1204-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (A)	8-98088-440-3	01	1	1009-1203	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (A)	8-98088-440-3	01	1	1204-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1009-1203	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1009-1203	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1204-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-068-0	01	1	1009-1203	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-068-0	01	1	1204-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1009-1203	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1411-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1009-1203	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-98088-828-0	01	1	1204-	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	8-98162-291-0	01	1	1204-	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-98088-828-0	01	1	1009-1203	●	●
61	DISTANCE; BRKT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	8-98162-291-0	01	1	1009-1203	●	●
62	BOLT; DIST TO FRAME,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10X35 FLANGE	0-28651-035-0	04	1	1411-	●	●
62	BOLT; DIST TO FRAME,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10X35 FLANGE	0-28651-035-0	04	1	1009-1203	●	●
63	NUT; DIST TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10 FLANGE	0-91180-210-0	04	1	1411-	●	●
63	NUT; DIST TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M10 FLANGE	0-91180-210-0	04	1	1009-1203	●	●
167	BRACKET; STOPPER BATTERY 115E41L<8MA>	8-98091-941-0	01	1	1009-1203	●	●
167	BRACKET; STOPPER BATTERY 115E41L<8MA>	8-98091-941-0	01	1	1204-	●	●
