Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#71931) — 290 parça

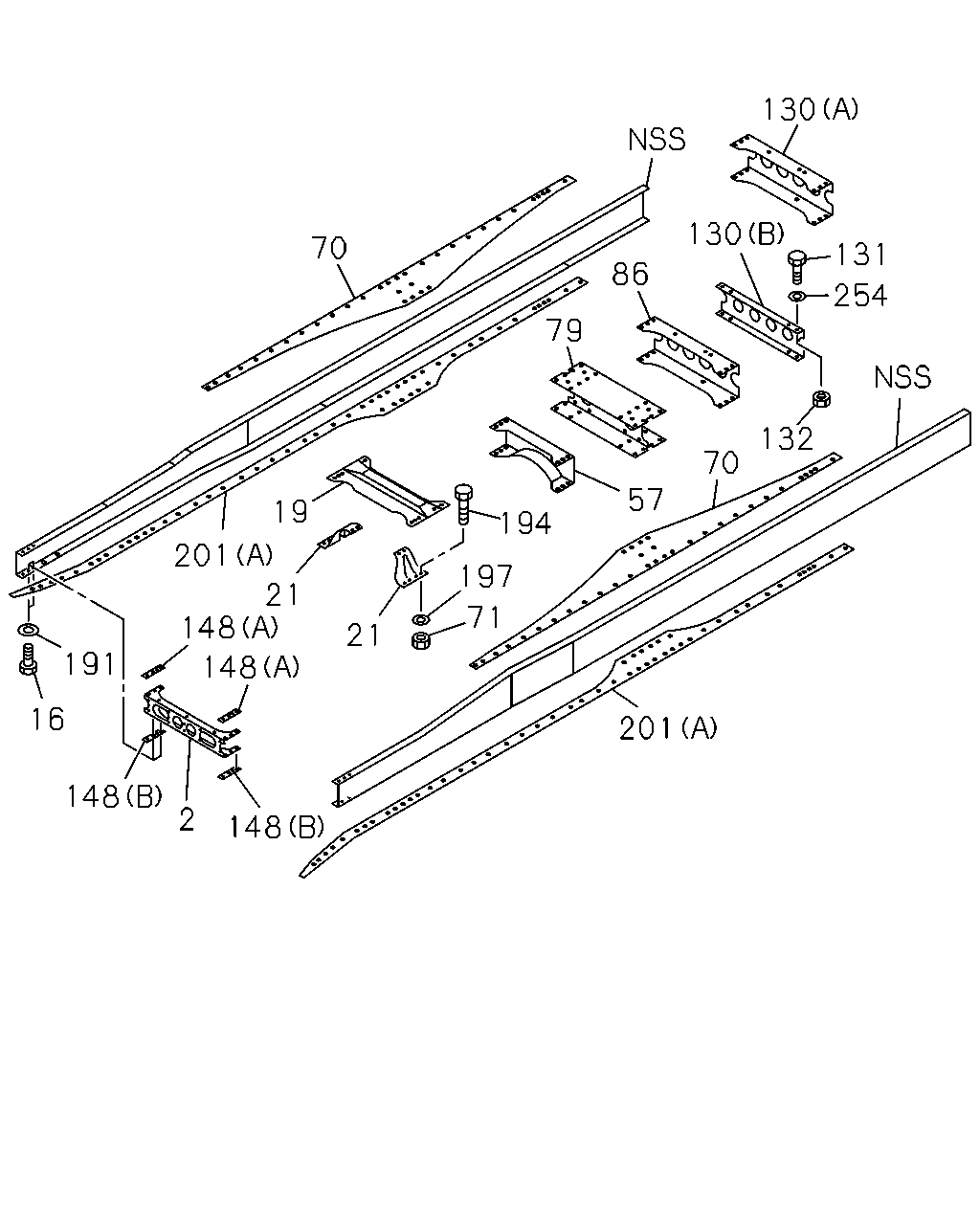

70 130 130 131 254 132 70 201 57 86 79 194 197 71 21 19 201 21 148 148 191 16 148 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1204-	●	●
19	MEMBER; CROSS,2ND	8-97610-855-1	01	1	1204-	●	●
19	MEMBER; CROSS,2ND A/T ALLISON 4430(Y5V)	8-98098-303-0	01	1	1303-		●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1203	●	●
19	MEMBER; CROSS,2ND	8-97610-855-0	01	1	1303-	●
19	MEMBER; CROSS,2ND ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-97610-855-0	01	1	1303-		●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1203	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1204-	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1203	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1204-	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1009-	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	1009-		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	1009-1203		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	8-98100-869-0	01	1	1204-		●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1203	●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	1-53161-477-0	02	1	1009-1203		●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1204-	●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-98191-622-0	02	1	1204-		●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1009-	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1203	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	1009-1203		●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1204-	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-98191-628-1	01	1	1204-		●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	1009-		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	1009-1203		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	8-98105-054-0	01	1	1204-1302		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-054-1	01	1	1303-		●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	1-53181-646-7	01	1	1009-1203	●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	8-98105-054-1	01	1	1204-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	1-53181-613-1	01	1	1009-1203	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	1009-1203		●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1204-1302	●
130	MEMBER; CROSS,END (B)	8-98105-203-0	01	1	1204-1302		●
130	MEMBER; CROSS,END ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1303-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1303-		●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1009-1302	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1302		●
131	BOLT; END C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1303-	●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1303-		●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1009-1302	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1302		●
132	NUT; END C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1303-	●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1303-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-98098-259-0	02	1	1204-1302		●
148	SPACER; C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (C)	8-98098-259-0	02	1	1303-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1204-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1204-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1204-	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1009-	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1009-	●	●
201	GUSSET; C/MBR (A)	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97631-755-1	02	1	1009-1302		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (A)	8-97631-755-1	02	1	1303-		●
201	GUSSET; C/MBR AIR SUS(FGY***) (B)	1-53167-544-1	04	1	1009-		●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1009-1302	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1302		●
254	WASHER; PL,C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1303-	●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1303-		●

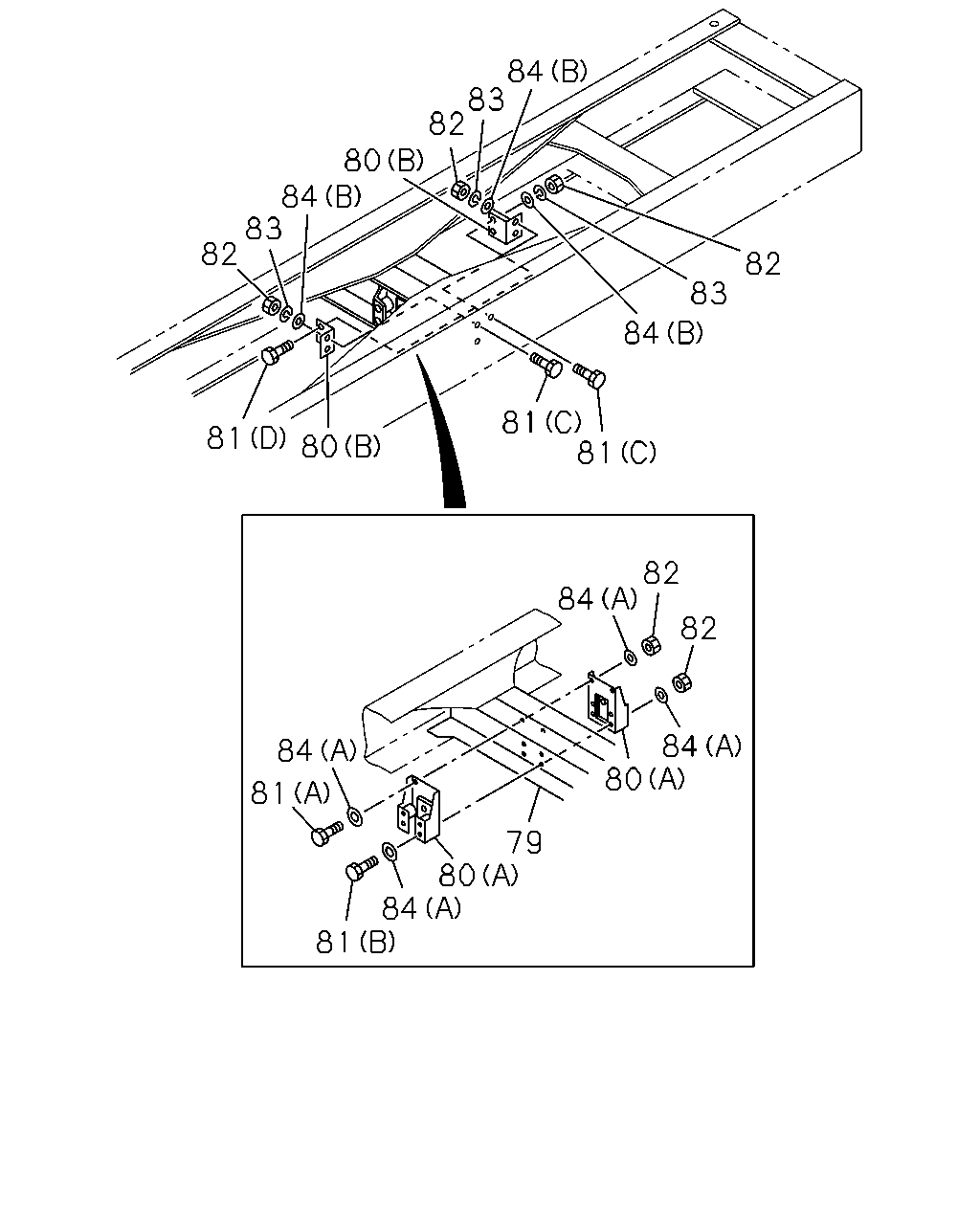

82 83 84 80 82 83 84 82 83 84 81 81 81 80 82 84 82 84 80 84 81 79 80 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1203	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	1009-1203		●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1204-	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-98191-628-1	01	1	1204-		●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1009-	●
80	BRACKET; C/MBR LEAF SUS(FGZ***) (A)	1-53363-031-2	02	1	1009-		●
80	BRACKET; C/MBR (B)	1-53167-610-0	04	1	1009-	●
80	BRACKET; C/MBR LEAF SUS(FGZ***) (B)	1-53167-610-0	04	1	1009-		●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1009-	●
81	BOLT; BRKT LEAF SUS(FGZ***) (A) M14X50	0-20951-450-0	02	1	1009-		●
81	BOLT; BRKT (B) M14X205	1-09000-147-0	02	1	1009-	●
81	BOLT; BRKT LEAF SUS(FGZ***) (B) M14X205	1-09000-147-0	02	1	1009-		●
81	BOLT; BRKT (C) M14X40	0-20951-440-0	08	1	1009-	●
81	BOLT; BRKT LEAF SUS(FGZ***) (C) M14X40	0-20951-440-0	08	1	1009-		●
81	BOLT; BRKT (D) M14X55	0-20951-455-0	04	1	1009-	●
81	BOLT; BRKT LEAF SUS(FGZ***) (D) M14X55	0-20951-455-0	04	1	1009-		●
82	NUT; BRKT M14	0-91110-514-0	04	1	1009-	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1009-	●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	12	1	1009-		●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	1009-	●
83	WASHER; LK,BRKT LEAF SUS(FGZ***) ID=14.2	0-91510-614-0	12	1	1009-		●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1009-	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) (A) ID=15	8-98010-627-1	08	1	1009-		●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1009-	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) (B) ID=15 OD=26	0-91614-514-0	16	1	1009-		●

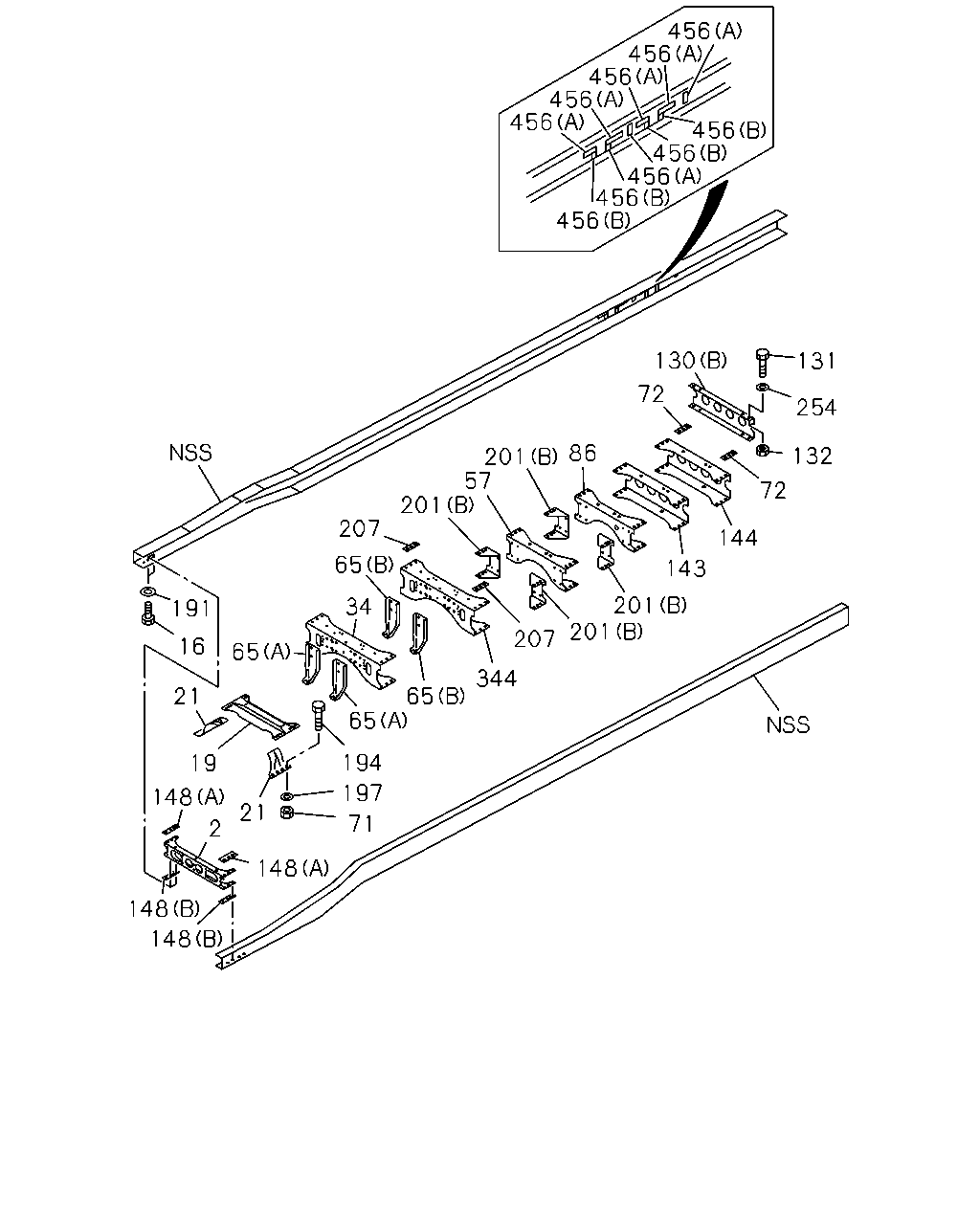

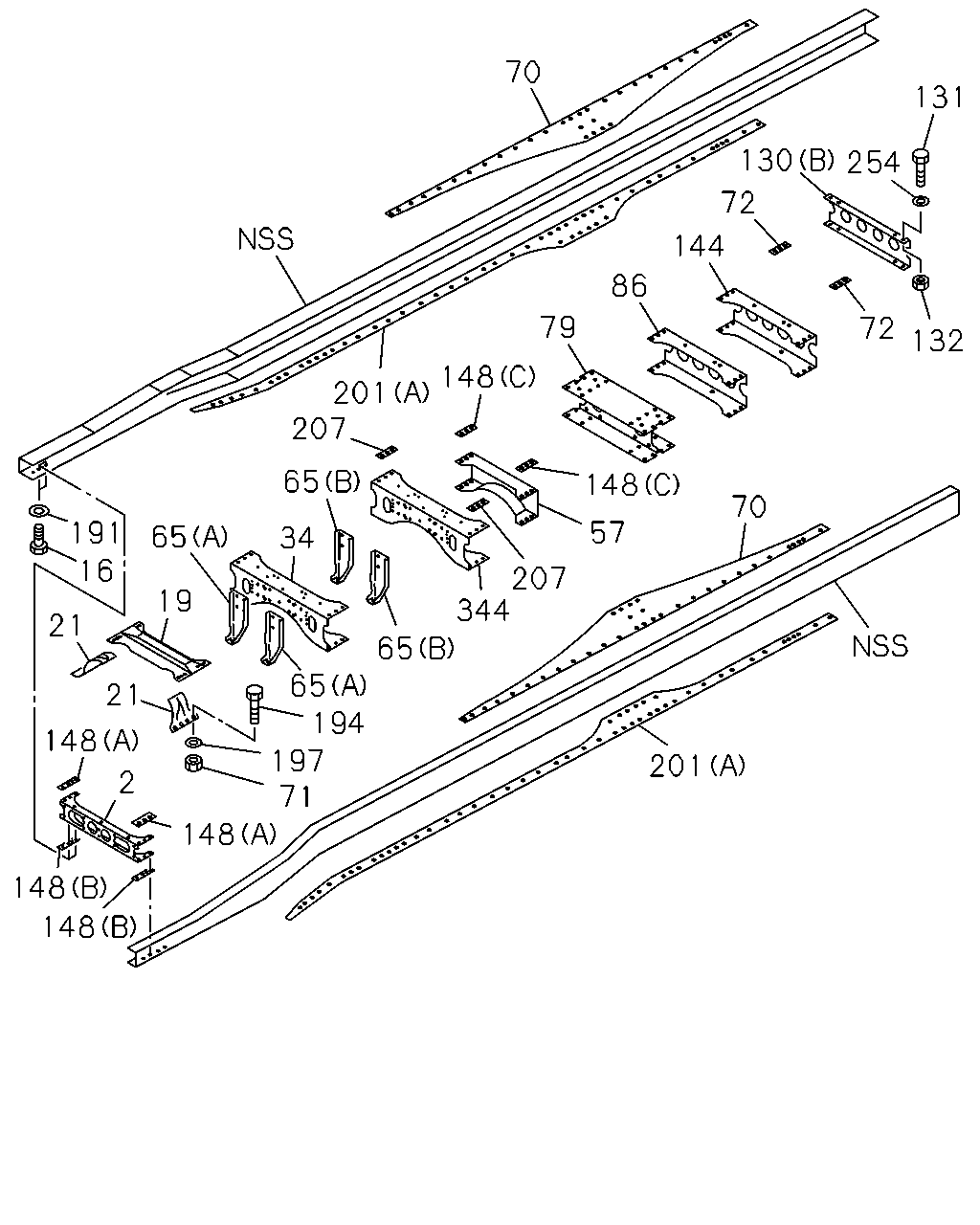

148 148 148 2 148 21 21 16 191 65 19 65 194 197 71 201 65 344 207 57 148 70 132 72 131 254 130 72 144 86 70 79 148 201 207 65 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1204-	●	●
19	MEMBER; CROSS,2ND	8-97610-855-1	01	1	1204-	●	●
19	MEMBER; CROSS,2ND A/T ALLISON 4430(Y5V)	8-98098-303-0	01	1	1303-		●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1203	●	●
19	MEMBER; CROSS,2ND	8-97610-855-0	01	1	1303-	●
19	MEMBER; CROSS,2ND ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-97610-855-0	01	1	1303-		●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1203	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1204-	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1203	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1204-	●	●
34	MEMBER; CROSS,3RD LEAF SUS(FGZ***)	8-98105-393-0	01	1	1204-1302		●
34	MEMBER; CROSS,3RD LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-393-0	01	1	1303-		●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	1009-1203		●
34	MEMBER; CROSS,3RD AIR SUS(FGY***)	8-98209-391-0	01	1	1204-		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1009-	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	1009-		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	1009-1203		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	8-98100-869-0	01	1	1204-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97621-881-0	02	1	1009-		●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	1009-1302		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-128-0	02	1	1303-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (A)	8-97614-128-0	02	1	1303-		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-98120-236-0	02	1	1009-1203		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1204-		●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1203	●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	1-53161-477-0	02	1	1009-1203		●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1204-	●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-98191-622-0	02	1	1204-		●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1009-	●	●
72	SPACER; TRUNNION	1-53168-100-0	02	1	1009-1203		●
72	SPACER; TRUNNION	8-98098-261-0	02	1	1204-1302		●
72	SPACER; TRUNNION AIR SUS(FGY***)	8-98098-261-0	02	1	1303-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98098-261-0	02	1	1303-		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1203	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	1009-1203		●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1204-	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-98191-628-1	01	1	1204-		●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	1009-		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	1009-1203		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	8-98105-054-0	01	1	1204-1302		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-054-1	01	1	1303-		●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	1-53181-646-7	01	1	1009-1203	●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	8-98105-054-1	01	1	1204-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	1-53181-613-1	01	1	1009-1203	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	1009-1203		●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1204-1302	●
130	MEMBER; CROSS,END (B)	8-98105-203-0	01	1	1204-1302		●
130	MEMBER; CROSS,END ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1303-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1303-		●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1009-1302	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1302		●
131	BOLT; END C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1303-	●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1303-		●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1009-1302	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1302		●
132	NUT; END C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1303-	●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1303-		●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	1009-1203		●
144	MEMBER; CROSS,8TH	8-98105-054-0	01	1	1204-1302		●
144	MEMBER; CROSS,8TH AIR SUS(FGY***)	8-98105-054-1	01	1	1303-		●
144	MEMBER; CROSS,8TH LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-054-1	01	1	1303-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-98098-259-0	02	1	1204-1302		●
148	SPACER; C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (C)	8-98098-259-0	02	1	1303-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1204-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1204-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1204-	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1009-	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1009-	●	●
201	GUSSET; C/MBR (A)	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97631-755-1	02	1	1009-1302		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (A)	8-97631-755-1	02	1	1303-		●
201	GUSSET; C/MBR AIR SUS(FGY***) (B)	1-53167-544-1	04	1	1009-		●
207	SPACER; 4TH C/MBR	8-98098-259-0	02	1	1204-1302		●
207	SPACER; 4TH C/MBR AIR SUS(FGY***)	8-98098-259-0	02	1	1303-		●
207	SPACER; 4TH C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98098-259-0	02	1	1303-		●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1009-1302	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1302		●
254	WASHER; PL,C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1303-	●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1303-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-98105-393-0	01	1	1204-1302		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-393-0	01	1	1303-		●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	1009-1203		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-98209-391-0	01	1	1204-		●

13 255 11 13 255 11 23 25 24 23 25 26 23 25 25 26 26 26 39 46 25 25 46 255 255 26 24 25 23 23 25 25 26 25 23 44 37 36 35

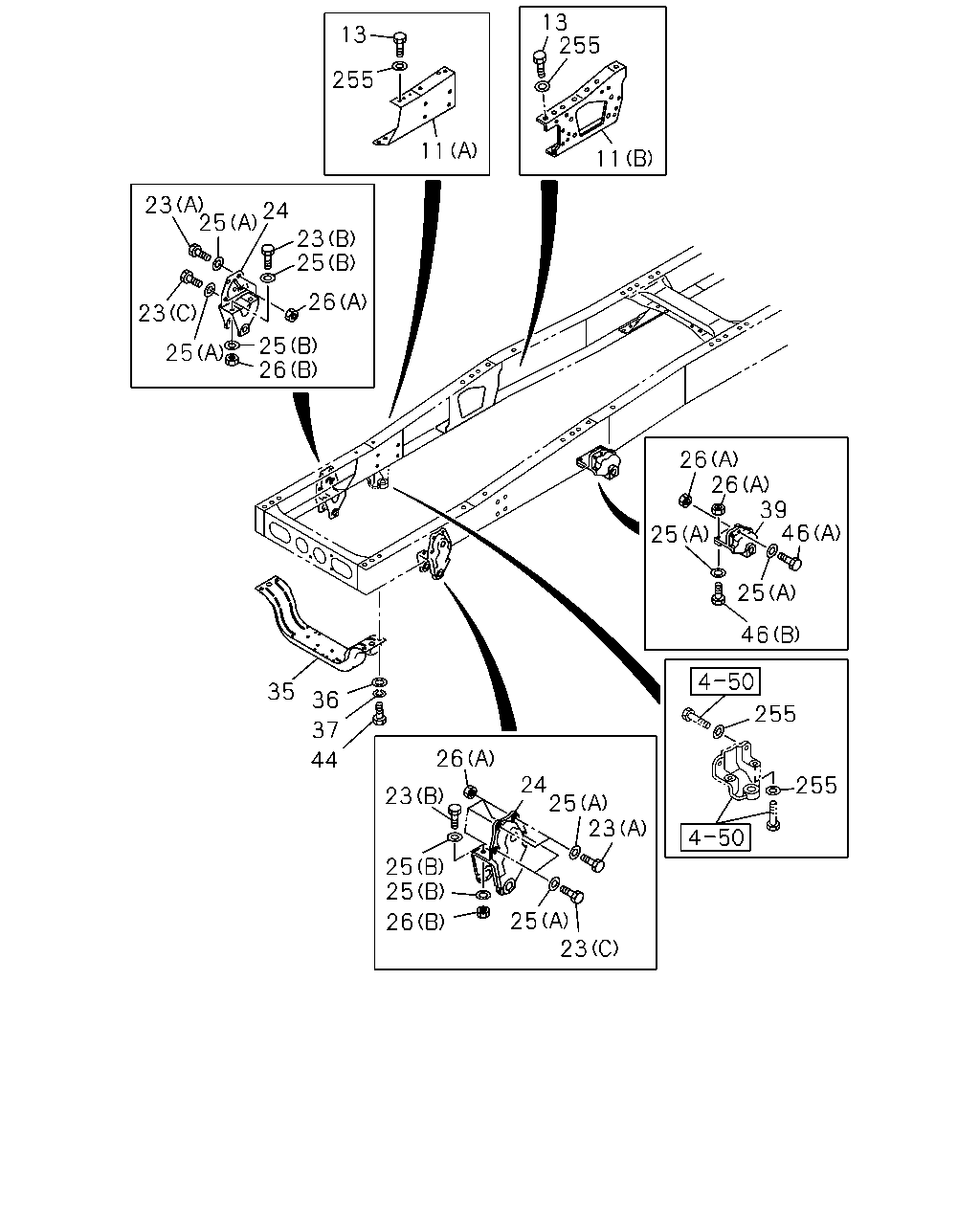

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG A/T ALLISON 4430(Y5V) (B)	8-98233-358-0	01	1	1303-		●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1009-1302	●	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1009-	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1009-	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1009-	●	●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1303-	●
11	BRACKET; ENG MTG ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98055-432-1	01	1	1303-		●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1009-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1009-	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1009-	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1009-	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1009-	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1009-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1009-	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	20	1	1009-	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1009-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1009-	●	●
35	MEMBER; UNDER A/T ALLISON 4430(Y5V)	1-53174-301-3	01	1	1303-1511		●
35	MEMBER; UNDER A/T ALLISON 4430(Y5V)	1-53174-301-3	01	1	1512-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1009-1302	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1303-1511	●
35	MEMBER; UNDER ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	1-53174-263-2	01	1	1303-1511		●
35	MEMBER; UNDER	1-53174-263-2	01	1	1512-	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1009-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1009-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1009-	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1009-	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1009-	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	1009-	●	●
46	BOLT; BRKT FIX (B) M14X40	8-98097-157-0	04	1	1009-	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	18	1	1009-	●	●

456 456 456 456 456 456 456 456 456 456 130 72 131 254 132 72 144 143 201 201 207 344 65 65 194 197 71 148 148 148 2 21 148 19 21 16 65 191 34 65 207 201 57 201 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X45	0-20951-645-0	02	1	1204-	●	●
19	MEMBER; CROSS,2ND	8-97610-855-1	01	1	1204-	●	●
19	MEMBER; CROSS,2ND A/T ALLISON 4430(Y5V)	8-98098-303-0	01	1	1303-		●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1203	●	●
19	MEMBER; CROSS,2ND	8-97610-855-0	01	1	1303-	●
19	MEMBER; CROSS,2ND ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L)	8-97610-855-0	01	1	1303-		●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1203	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1204-	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1203	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1204-	●	●
34	MEMBER; CROSS,3RD LEAF SUS(FGZ***)	8-98105-393-0	01	1	1204-1302		●
34	MEMBER; CROSS,3RD LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-393-0	01	1	1303-		●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	1009-1203		●
34	MEMBER; CROSS,3RD AIR SUS(FGY***)	8-98209-391-0	01	1	1204-		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1009-	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	1009-		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	1009-1203		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	8-98100-869-0	01	1	1204-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97621-881-0	02	1	1009-		●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	1009-1302		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-128-0	02	1	1303-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (A)	8-97614-128-0	02	1	1303-		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-98120-236-0	02	1	1009-1203		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1204-		●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1009-	●	●
72	SPACER; TRUNNION	1-53168-100-0	02	1	1009-1203		●
72	SPACER; TRUNNION	8-98098-261-0	02	1	1204-1302		●
72	SPACER; TRUNNION AIR SUS(FGY***)	8-98098-261-0	02	1	1303-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98098-261-0	02	1	1303-		●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	1009-		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	1009-1203		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	8-98105-054-0	01	1	1204-1302		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-054-1	01	1	1303-		●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	1-53181-646-7	01	1	1009-1203	●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	8-98105-054-1	01	1	1204-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	1-53181-613-1	01	1	1009-1203	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	1009-1203		●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1204-1302	●
130	MEMBER; CROSS,END (B)	8-98105-203-0	01	1	1204-1302		●
130	MEMBER; CROSS,END ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1303-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	8-98105-203-0	01	1	1303-		●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1009-1302	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1302		●
131	BOLT; END C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1303-	●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1303-		●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1009-1302	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1302		●
132	NUT; END C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1303-	●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1303-		●
143	MEMBER; CROSS,7TH AIR SUS(FGY***)	1-53181-646-7	01	1	1009-1203		●
143	MEMBER; CROSS,7TH AIR SUS(FGY***)	8-98105-054-1	01	1	1204-		●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	1009-1203		●
144	MEMBER; CROSS,8TH	8-98105-054-0	01	1	1204-1302		●
144	MEMBER; CROSS,8TH AIR SUS(FGY***)	8-98105-054-1	01	1	1303-		●
144	MEMBER; CROSS,8TH LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-054-1	01	1	1303-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-98098-259-0	02	1	1204-1302		●
148	SPACER; C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (C)	8-98098-259-0	02	1	1303-		●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1204-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1203	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1204-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1204-	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1009-	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1009-	●	●
201	GUSSET; C/MBR (A)	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97631-755-1	02	1	1009-1302		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1) (A)	8-97631-755-1	02	1	1303-		●
201	GUSSET; C/MBR AIR SUS(FGY***) (B)	1-53167-544-1	04	1	1009-		●
207	SPACER; 4TH C/MBR	8-98098-259-0	02	1	1204-1302		●
207	SPACER; 4TH C/MBR AIR SUS(FGY***)	8-98098-259-0	02	1	1303-		●
207	SPACER; 4TH C/MBR LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98098-259-0	02	1	1303-		●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1009-1302	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1302		●
254	WASHER; PL,C/MBR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1303-	●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1303-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-98105-393-0	01	1	1204-1302		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***) EXC. ENGINE REAR PTO(SV1)	8-98105-393-0	01	1	1303-		●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	1009-1203		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-98209-391-0	01	1	1204-		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97611-248-0	12	1	1009-1209		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97642-212-0	12	1	1210-		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97611-249-0	08	1	1009-1209		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97642-213-0	08	1	1210-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
