4-60 — REAR SUSPENSION (#71923) — 107 parça

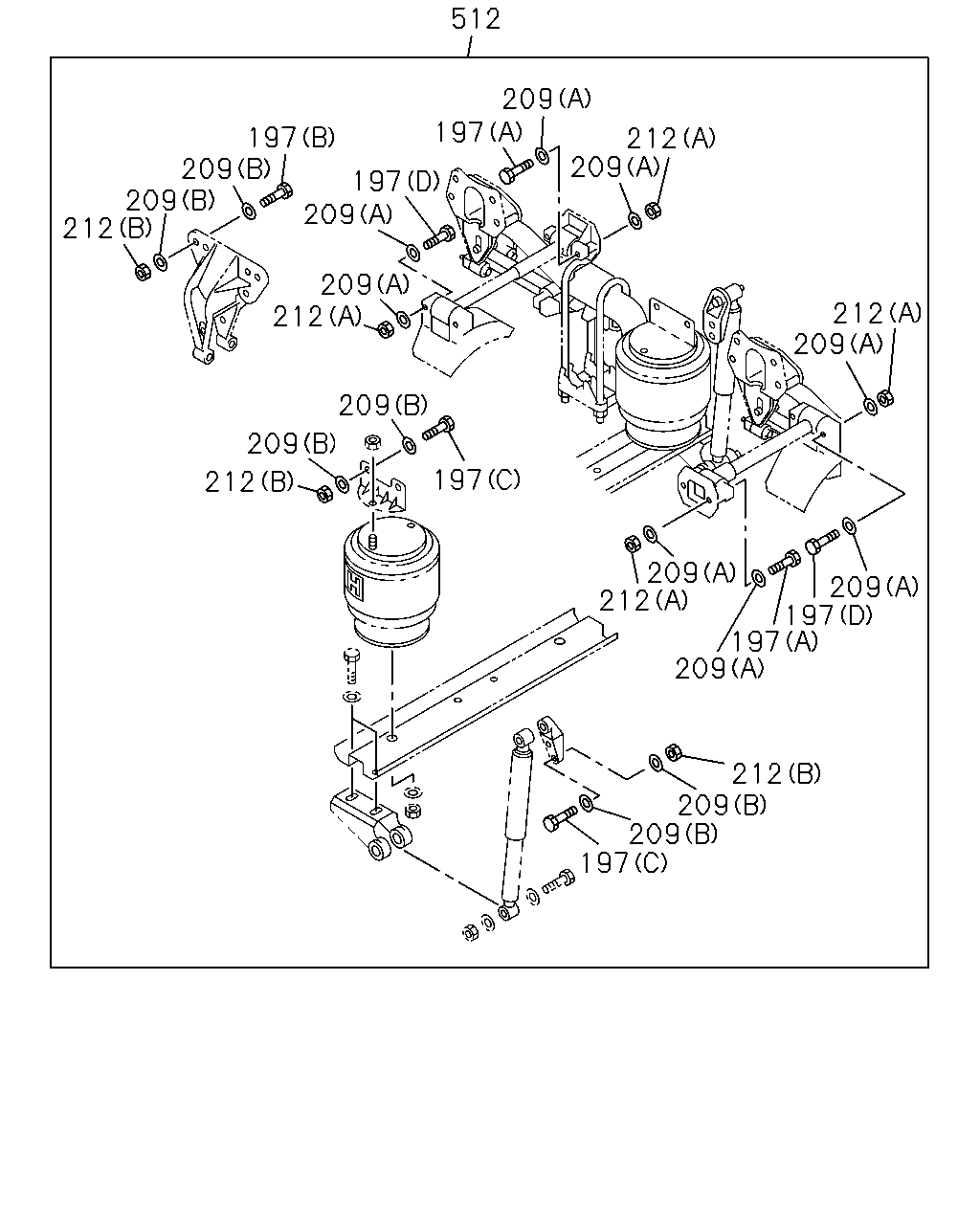

çizim 124929
512 209 197 197 197 209 209 212 209 209 212 209 209 212 197 209 212 209 212 209 209 197 197 197 209 209 212 212 209
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 1009- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1009- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1009- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1009- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1009- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1009- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1009- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1009- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 1009- ●

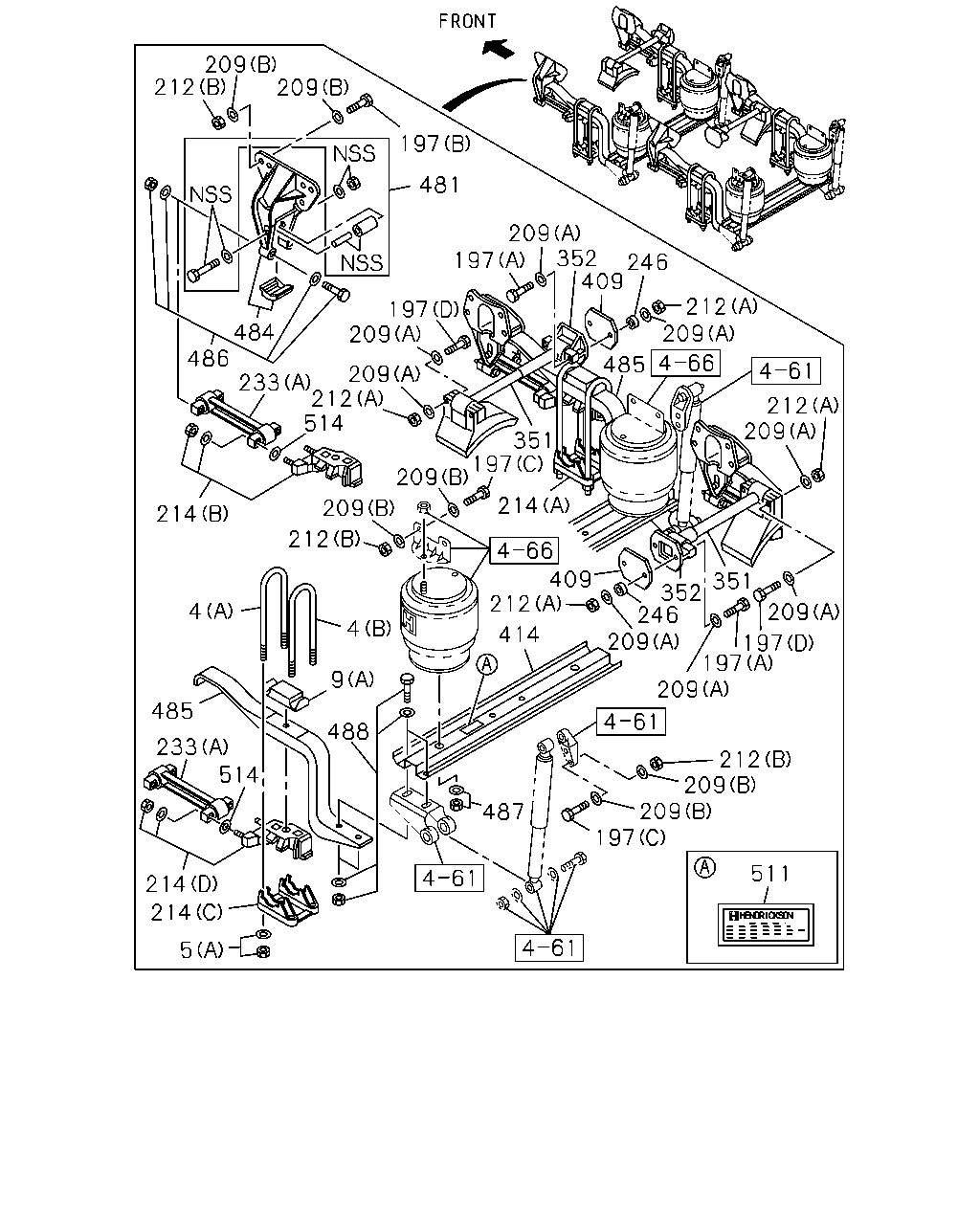

çizim 189887
212 209 209 197 481 209 352 409 246 212 209 485 212 209 351 352 246 209 209 197 197 209 212 209 209 197 511 487 414 212 409 214 351 197 209 514 212 209 209 197 197 484 486 233 214 209 212 4 9 488 4 485 233 514 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 1009- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 1009- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1009- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1009- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1009- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 1009-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
197 BOLT
(D) 		1-09000-767-0 04 1 1009- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1009- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1009- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1009- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1009- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1009- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1009- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1009- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1009- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 1009- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 1009- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
L=550 		1-51511-659-0 02 1 1512- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=366 		1-51510-855-0 04 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 03 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 03 1 1009-1511 ●
233 ROD ASM; TORQUE,RR SUSP
L=550 		1-51511-659-0 01 1 1512- ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1101- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 1009- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 1009- ●
409 SPACER; RADIUS ROD
T=10 		1-52175-020-0 02 1 1208- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 1009- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 1009-1207 ●
481 ROLLER; REBOUND 1-53357-044-0 02 1 1208- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 1009- ●
485 SPRING; LEAF 1-51410-240-0 04 1 1009-1207 ●
485 SPRING; LEAF 1-51410-259-0 04 1 1208- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 1009- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1009- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 1009- ●
511 LABEL 1-51399-034-0 02 1 1009-1207 ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 1009- ●

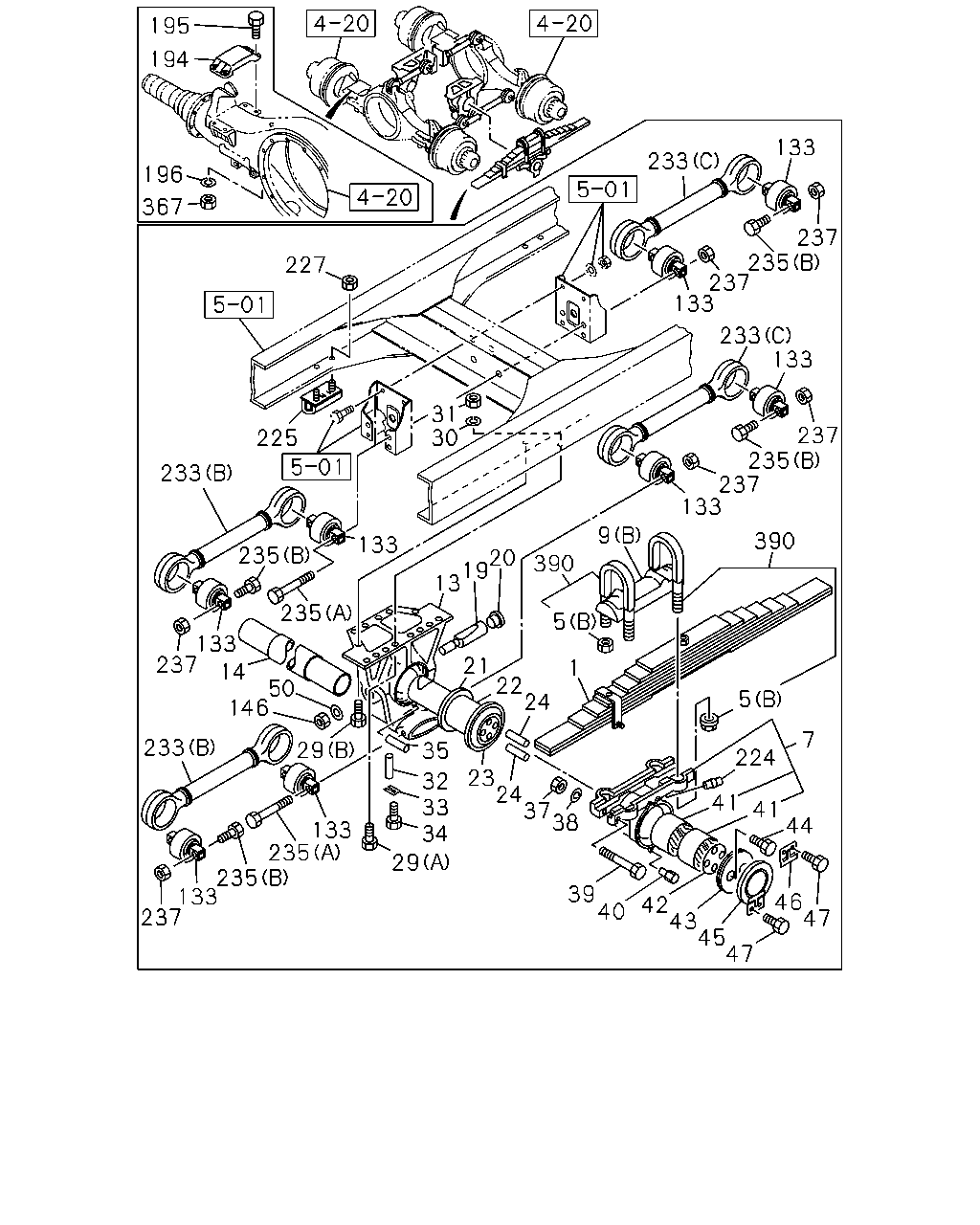

çizim 189889
195 194 196 367 227 31 30 225 233 235 133 235 133 237 14 50 146 233 29 133 235 235 133 237 29 34 33 32 35 23 24 37 38 39 40 42 43 45 47 47 46 44 41 41 224 7 5 24 22 21 1 5 13 19 20 390 9 133 390 237 235 237 133 233 133 237 235 237 133 233
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98102-211-1 02 1 1009- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1009- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1009- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1009- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1009- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 1009-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1009- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1009- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1009- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1009- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1009- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1009- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1009- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1009- ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1009- ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1009- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1009- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1009- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1009- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1009- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1009- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1009- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1009- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1009- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1009- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1009- ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1009- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1009- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1009- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1009- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1009- ●
46 BRACKET; COVER 1-51387-015-2 02 1 1009- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1009- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1009- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 1512- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 08 1 1512- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 1009-1511 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 1512- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 12 1 1009-1511 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1512- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1009- ●
194 PAD; CONTACT 1-42124-101-0 04 1 1009- ●
195 BOLT; PAD FIX
M14X40 		0-20951-440-0 16 1 1009- ●
196 WASHER; LK
ID=14.2 		0-91510-814-0 16 1 1009- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1009- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-077-3 02 1 1009- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-100-2 02 1 1009- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
L=550 		1-51511-659-0 02 1 1512- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=366 		1-51510-855-0 04 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 03 1 1009- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 03 1 1009-1511 ●
233 ROD ASM; TORQUE,RR SUSP
L=550 		1-51511-659-0 01 1 1512- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1009- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1009- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1009- ●
367 NUT
M14 		0-91110-514-0 16 1 1009- ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 1009- ●
