◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#71921) — 33 parça

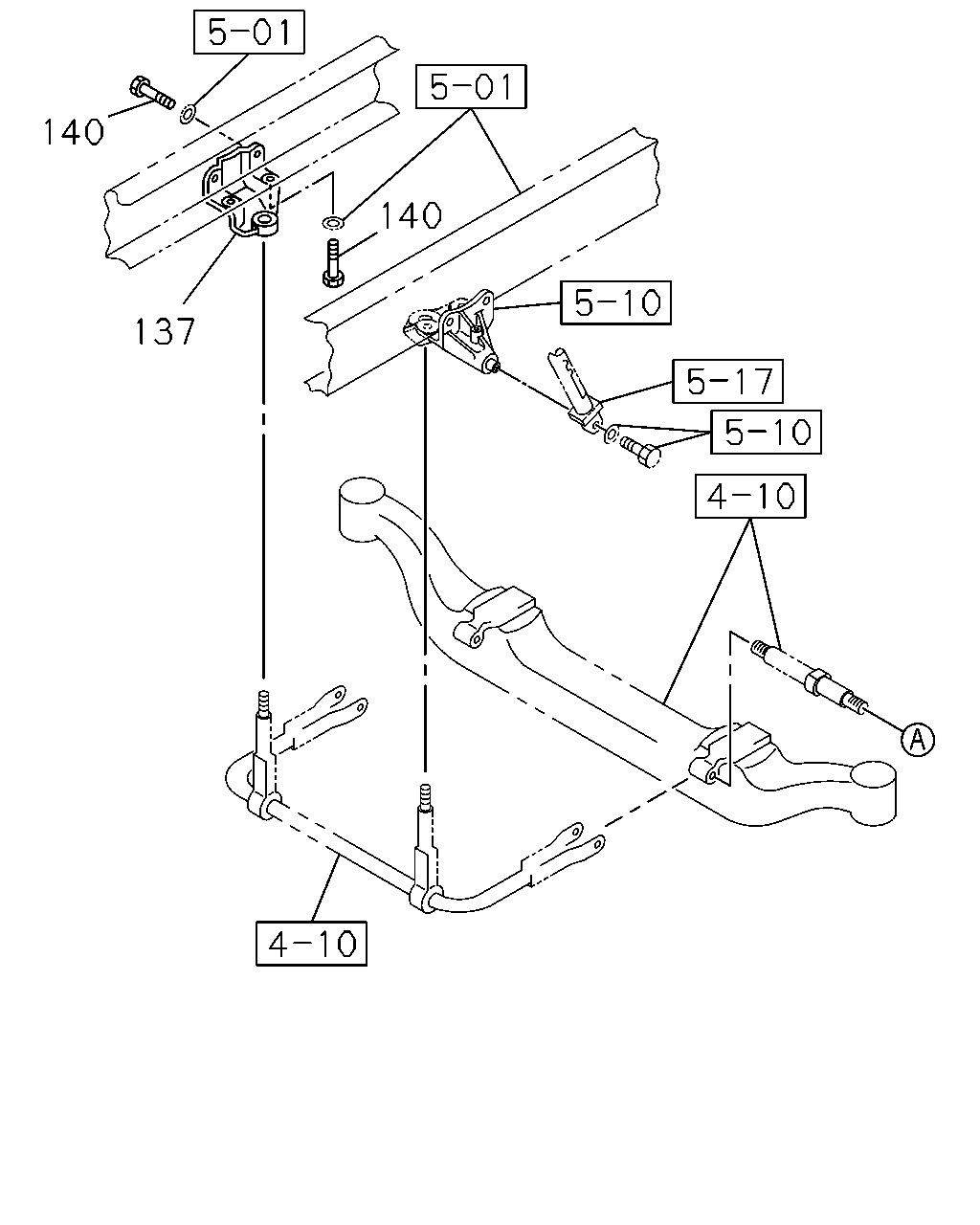

çizim 189879
140 137 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1009- ● ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1009- ● ●

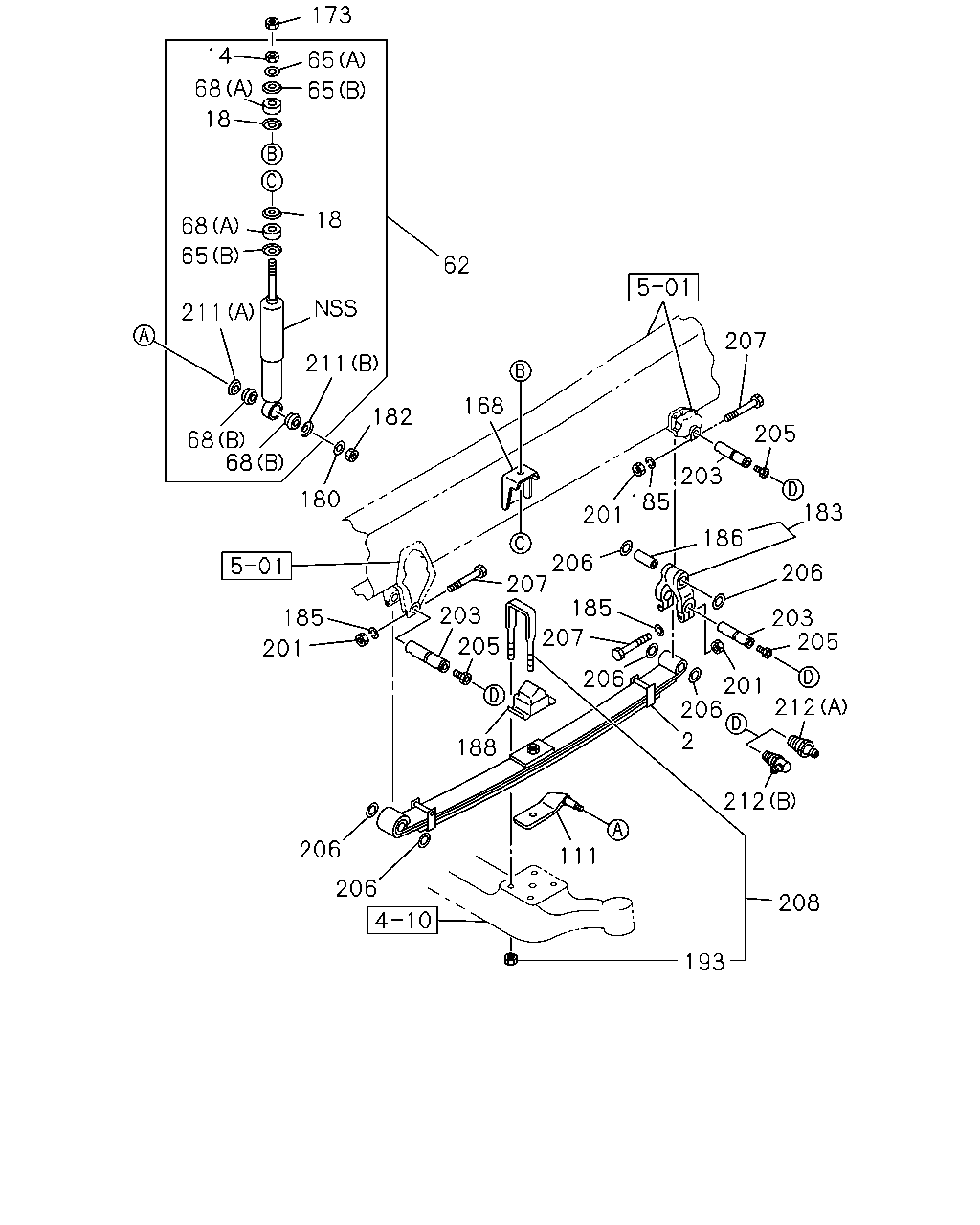

çizim 189880
173 65 65 18 68 14 18 68 65 211 211 62 182 180 68 68 185 201 203 205 188 206 185 207 207 201 206 185 186 201 206 2 212 212 205 203 206 183 205 207 203 208 193 111 206 206 168
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98053-122-0 02 1 1009- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1009- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1009- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 1009- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1009- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1009- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1009- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1009- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1009- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1009- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1009- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1009- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1009- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1009- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1009- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1009- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1009- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1009- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1009-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1009- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1009- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1009- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1009- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1009- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 1009-1206 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1009- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1009- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1009- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1009- ● ●
