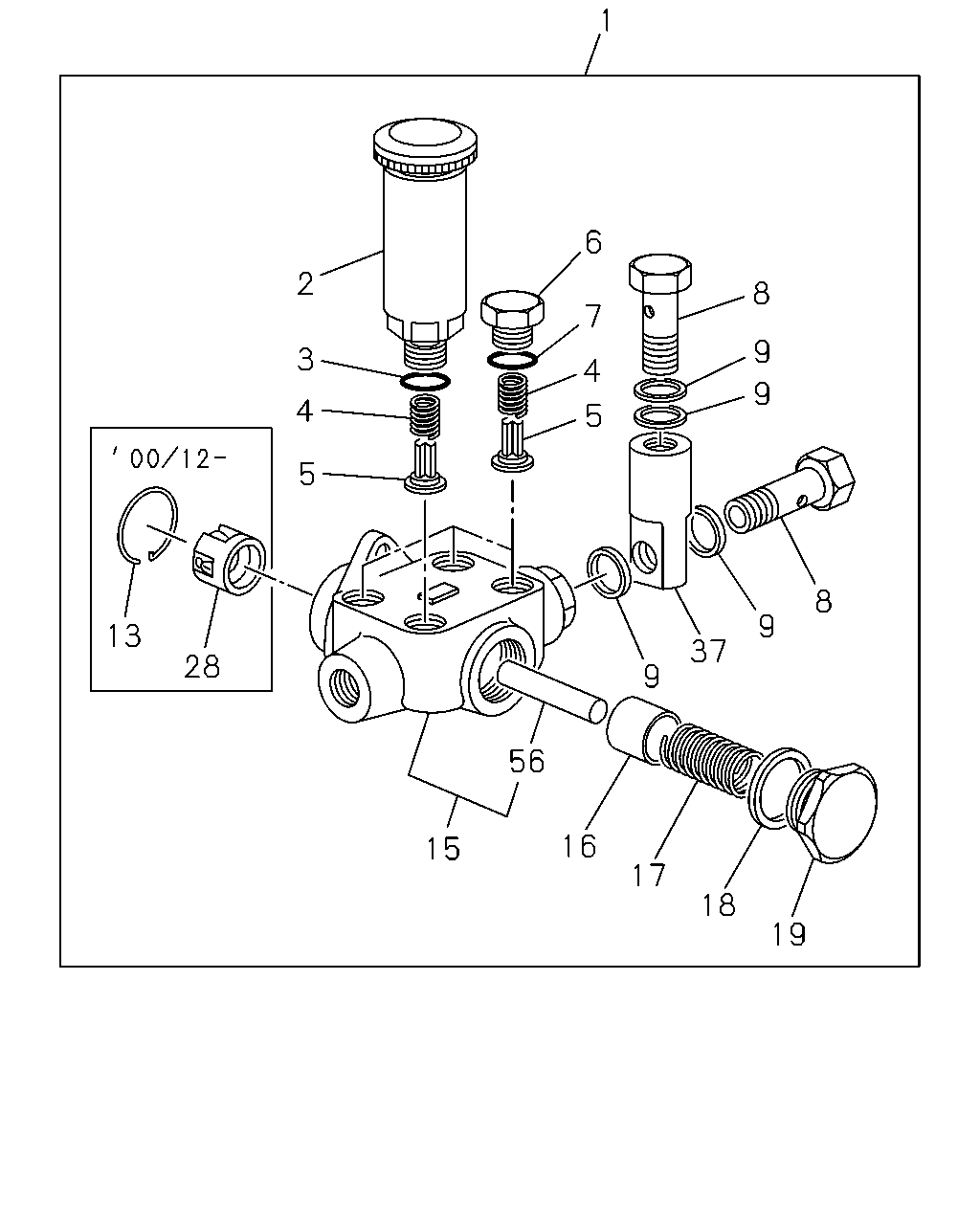

0-84 — FEED PUMP; INJECTION PUMP (#7192) — 23 parça

1 6 2 8 7 9 3 4 9 4 5 5 8 9 13 37 28 9 56 16 15 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-209-1	1-15750-171-0	01	1	-0011
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-209-1	1-15750-177-0	01	1	0012-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15755-002-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15759-009-0	03	1	0012-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15759-066-0	03	1	-0011
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-19623-016-0	03	1	-0011
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	9-81355-031-0	03	1	0012-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-209-1	1-15759-011-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-209-1	1-09630-085-0	04	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	9-81355-062-0	01	1	0012-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15751-034-0	01	1	-0011
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15751-042-0	01	1	0012-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15752-001-0	01	1	-0011
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15752-002-0	01	1	0012-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15753-004-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15759-042-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15754-006-0	01	1	0012-
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: A = 1-15603-209-1	1-15759-068-0	01	1	-
56	PUSH ROD ASM PART: A = 1-15603-209-1	1-15759-069-0	01	1	-0011
