◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#71913) — 273 parça

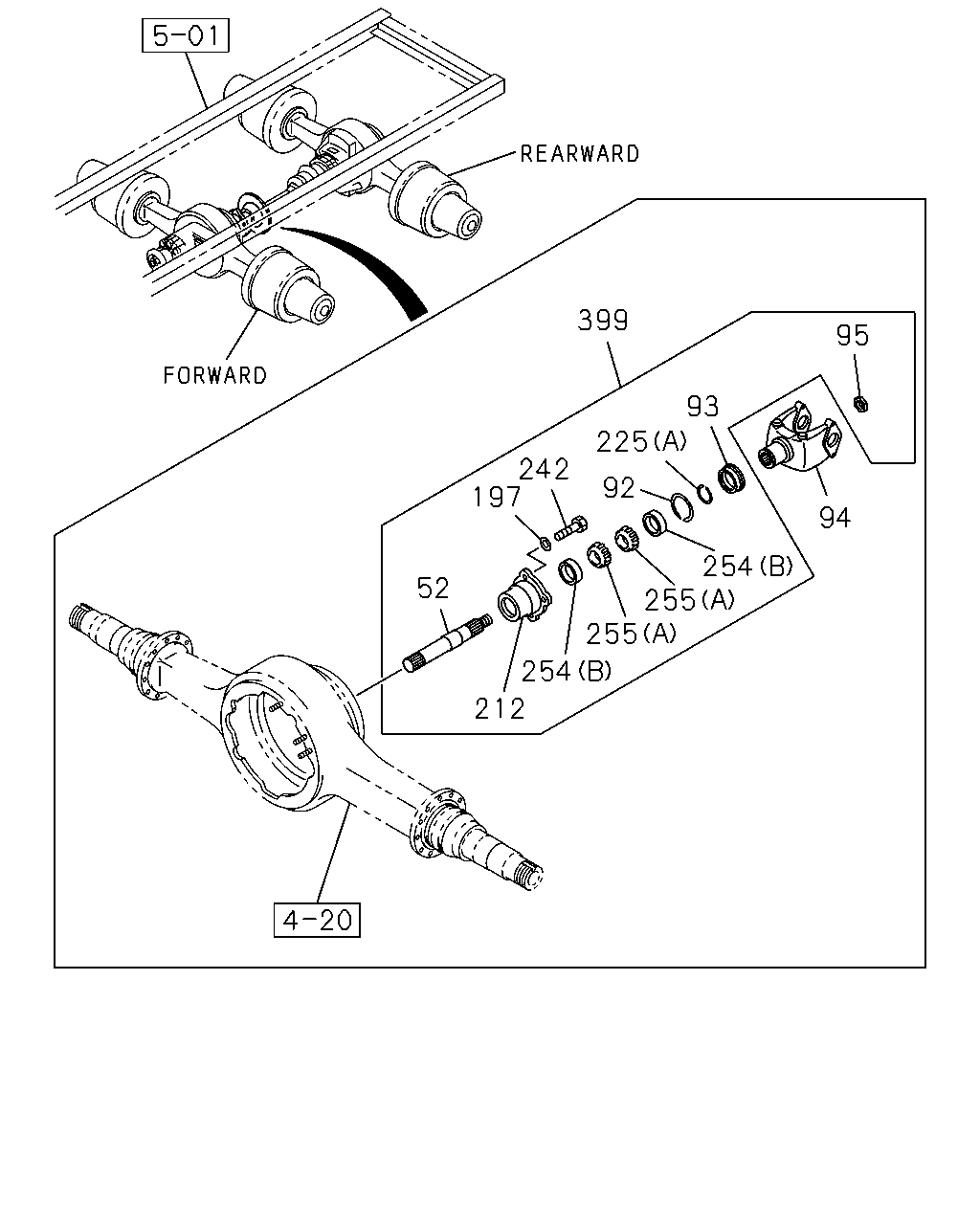

çizim 123080
399 95 93 225 242 197 52 92 254 255 255 254 212 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 SHAFT; OUTPUT 1-41343-025-0 01 1 1009- ● ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 1009- ● ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-191-0 01 1 1009- ● ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-362-0 01 1 1009- ● ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 1009- ● ● ● ●
197 COVER; HELICAL GEAR CASE 1-41329-037-0 04 1 1009- ● ● ● ●
212 COVER 1-41519-049-0 01 1 1009- ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 1009- ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 1009- ● ● ● ●
242 BOLT; COVER 1-42119-226-0 04 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 1009- ● ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 1009- ● ● ● ●

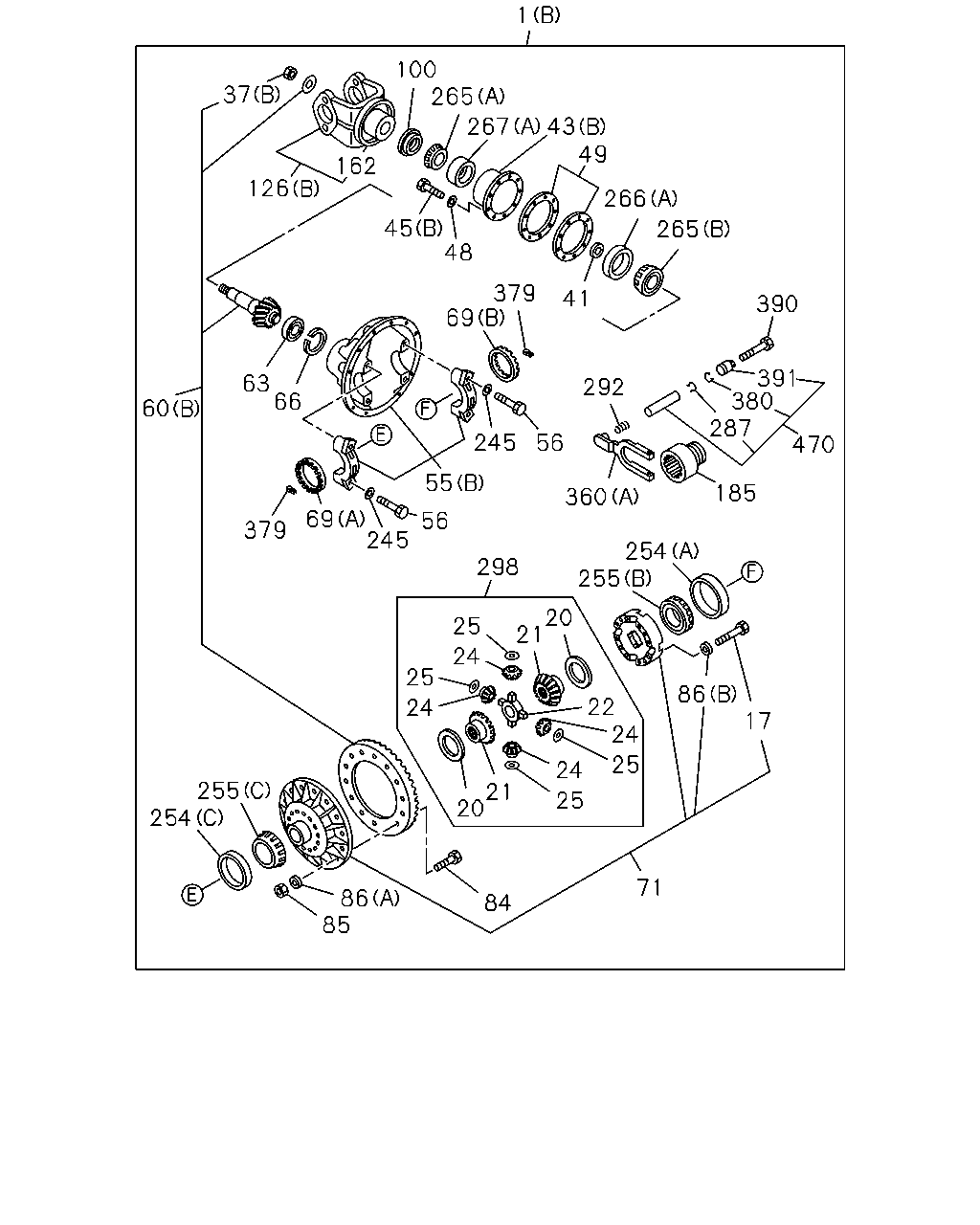

çizim 189882
470 185 287 380 391 390 265 266 49 43 267 265 100 1 37 126 162 45 379 48 69 41 292 56 245 55 66 63 60 379 245 69 56 298 360 255 20 25 21 22 24 25 71 17 86 254 24 25 24 21 20 25 24 84 86 85 255 254
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
(B) 39/8 		1-41003-350-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 39/8 		1-41003-355-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 41/10 		1-41002-635-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 41/10 		1-41003-367-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 37/7 		1-41003-351-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 37/7 		1-41003-356-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 37/8 		1-41003-349-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 37/8 		1-41003-354-0 01 1 1009- ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 1009- ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 1009- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 1009- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 1009- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 1009- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 1009- ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 1009- ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 1009- ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 1009- ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 1009- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 1009- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 1009- ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 1009- ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 1009- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 1204- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-296-0 01 1 1009-1203 ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 1009- ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 1009- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 1009- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 1009- ● ● ● ●
48 WASHER; LK,FINAL PINION 1-41329-034-0 08 1 1009- ● ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-090-0 01 1 1009- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 1009- ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 1009- ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 1009- ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 1009- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-590-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-595-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-588-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-593-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/7 		1-41210-591-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/7 		1-41210-596-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/8 		1-41210-732-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/8 		1-41210-737-0 01 1 1009- ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 1009- ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 1009- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 1009- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 1009- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 1009- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 1009- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 1009- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 1009- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 01 1 1009- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 01 1 1009- ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 1009- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 1009- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1009- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 1009- ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-185-0 01 1 1009- ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 1009- ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-424-0 01 1 1009- ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 1009- ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 1009- ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 1009- ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 1009- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 1009- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 1009- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 1009- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 1009- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 1009- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 1009- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 1009- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 1009- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 1009- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 1009- ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 1009- ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 1009- ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 1009- ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 1009- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 1009- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 1009- ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 1009- ● ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 1009- ● ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 1009- ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 1009- ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 1009- ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 1009- ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 1009- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 1009- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 1009- ● ● ● ●
470 SHIFT KIT 1-48269-258-0 01 1 1009- ● ● ● ●
470 SHIFT KIT 1-48269-258-0 01 1 1009- ● ● ● ●

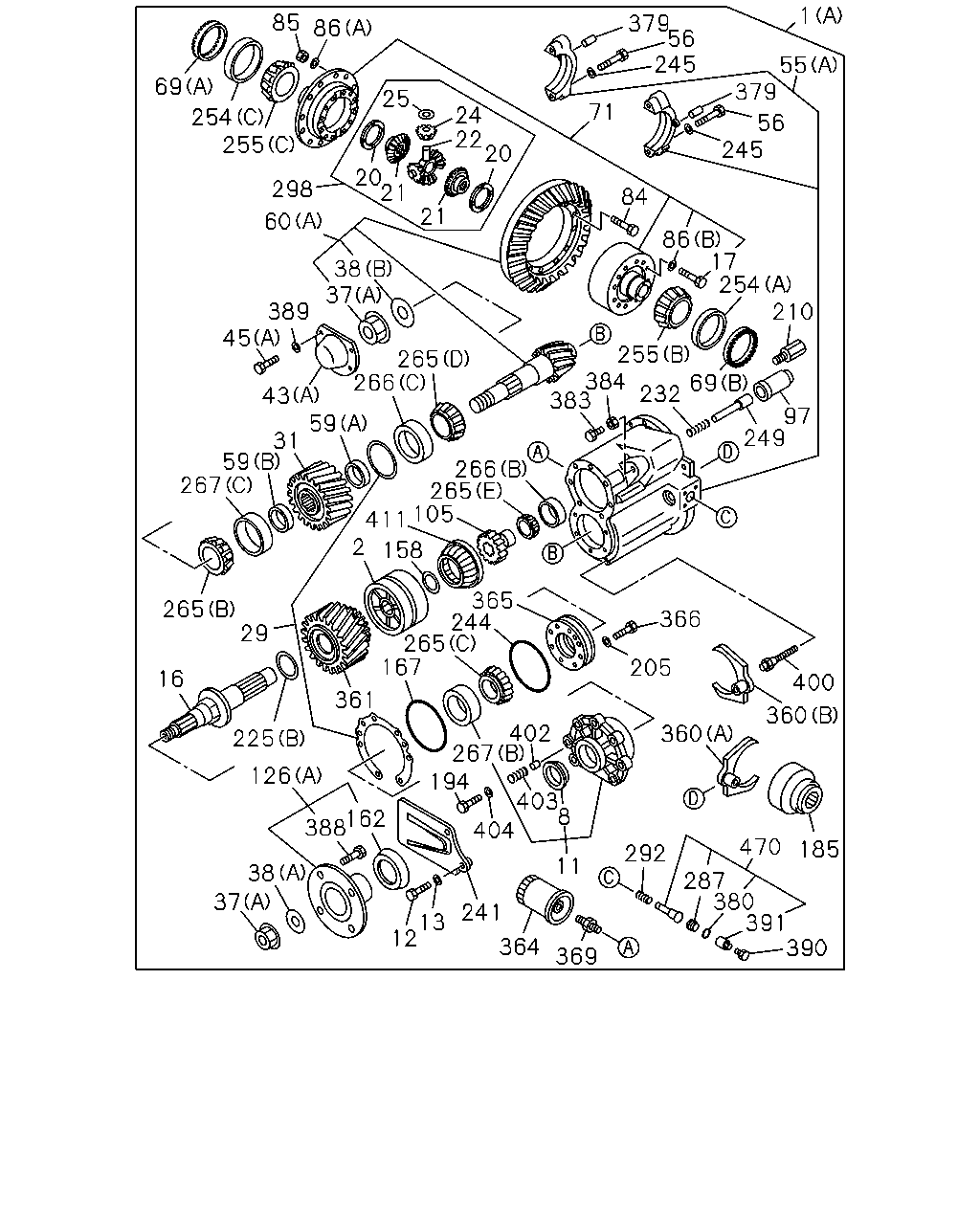

çizim 189886
1 55 245 53 379 71 245 56 379 84 17 86 210 254 97 249 69 232 255 384 383 266 265 105 411 2 158 365 244 265 167 361 402 267 194 162 388 126 225 16 265 29 267 59 31 59 266 265 37 38 60 298 255 254 69 85 43 45 389 21 21 20 20 22 24 25 86 38 37 12 364 13 404 241 403 8 11 369 292 287 380 391 390 185 470 360 360 205 400 366
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
(B) 39/8 		1-41003-350-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 39/8 		1-41003-355-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 41/10 		1-41002-635-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 41/10 		1-41003-367-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 37/7 		1-41003-351-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 37/7 		1-41003-356-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(B) 37/8 		1-41003-349-0 01 1 1009- ●
1 DRIVE ASM; FINAL,RR
(A) 37/8 		1-41003-354-0 01 1 1009- ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 1009- ● ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-190-0 01 1 1009- ● ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 1009- ● ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 1009- ● ● ● ●
13 WASHER; COVER TO CASE 1-41329-084-0 07 1 1009- ● ● ● ●
16 SHAFT ASM; INPUT 1-41341-032-0 01 1 1009- ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 1009- ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 1009- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 1009- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 1009- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 1009- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 1009- ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 1009- ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 1009- ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 1009- ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 1009- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 1009- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 1009- ● ● ● ●
29 SHIM; BRG RET 1-41154-091-0 02 1 1009- ● ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-423-0 01 1 1009- ● ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 1009- ● ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 1009- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41219-048-0 01 1 1009- ● ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41349-058-0 01 1 1009- ● ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 1009- ● ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 1009- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 1009- ● ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 1009- ● ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 1009- ● ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 1009- ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 1009- ● ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 1009- ● ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 1009- ● ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 1009- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 		1-41210-590-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 		1-41210-595-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/10 		1-41210-588-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/10 		1-41210-593-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/7 		1-41210-591-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/7 		1-41210-596-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 37/8 		1-41210-732-0 01 1 1009- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 37/8 		1-41210-737-0 01 1 1009- ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 1009- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 1009- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 1009- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 1009- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 1009- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 1009- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 01 1 1009- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-262-0 01 1 1009- ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 1009- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 1009- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1009- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 1009- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 1009- ● ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 1009- ● ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 1009- ● ● ● ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 1009- ● ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-424-0 01 1 1009- ● ● ● ●
158 RING; SNAP 1-41519-043-0 01 1 1009- ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 1009- ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-190-0 01 1 1009- ● ● ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 1009- ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 1009- ● ● ● ●
185 COLLAR; SHIFT FORK 1-41379-003-0 01 1 1009- ● ● ● ●
194 PLUG 1-41329-077-0 01 1 1009- ● ● ● ●
205 WASHER; PL 1-41329-016-0 06 1 1009- ● ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 1009- ● ● ● ●
225 WASHER; THRUST
(B) 		1-41349-160-0 01 1 1009- ● ● ● ●
225 WASHER; THRUST
(A) 		1-41349-162-0 01 1 1009- ● ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 1009- ● ● ● ●
241 COVER; SHIFT HSG 1-41329-080-0 01 1 1009- ● ● ● ●
244 GASKET; COVER 1-41349-155-0 01 1 1009- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 1009- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 1009- ● ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 1009- ● ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-051-0 02 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-108-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 1009- ● ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41219-030-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-042-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-044-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41349-157-0 01 1 1009- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 1009- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41219-031-0 01 1 1009- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-045-0 01 1 1009- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41519-048-0 01 1 1009- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 1009- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 1009- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 1009- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 1009- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-013-0 01 1 1009- ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 1009- ● ● ● ●
292 SPRING; PISTON 1-48265-008-0 01 1 1009- ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 1009- ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 1009- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 1009- ● ● ● ●
360 FORK; SHIFT
(A) 		1-41371-007-0 01 1 1009- ● ● ● ●
360 FORK; SHIFT
(B) 		1-41519-046-0 01 1 1009- ● ● ● ●
361 GEAR; DRIVE 1-41251-423-0 01 1 1009- ● ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 1009- ● ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 1009- ● ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 1009- ● ● ● ●
369 PLUG; STRAINER 1-41389-020-0 01 1 1009- ● ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 1009- ● ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 1009- ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 1009- ● ● ● ●
380 GASKET; PISTON 1-48269-075-0 01 1 1009- ● ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 1009- ● ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 1009- ● ● ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 1009- ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-069-0 05 1 1009- ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 1009- ● ● ● ●
390 BOLT; CAGING 1-48269-071-0 01 1 1009- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 1009- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-070-0 01 1 1009- ● ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 1009- ● ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 1009- ● ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 1009- ● ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 1009- ● ● ● ●
411 SLEEVE; CLU 1-41519-082-0 01 1 1009- ● ● ● ●
470 SHIFT KIT 1-48269-258-0 01 1 1009- ● ● ● ●
470 SHIFT KIT 1-48269-258-0 01 1 1009- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
