◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11317 - FXZ(AUST)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#71910) — 74 parça

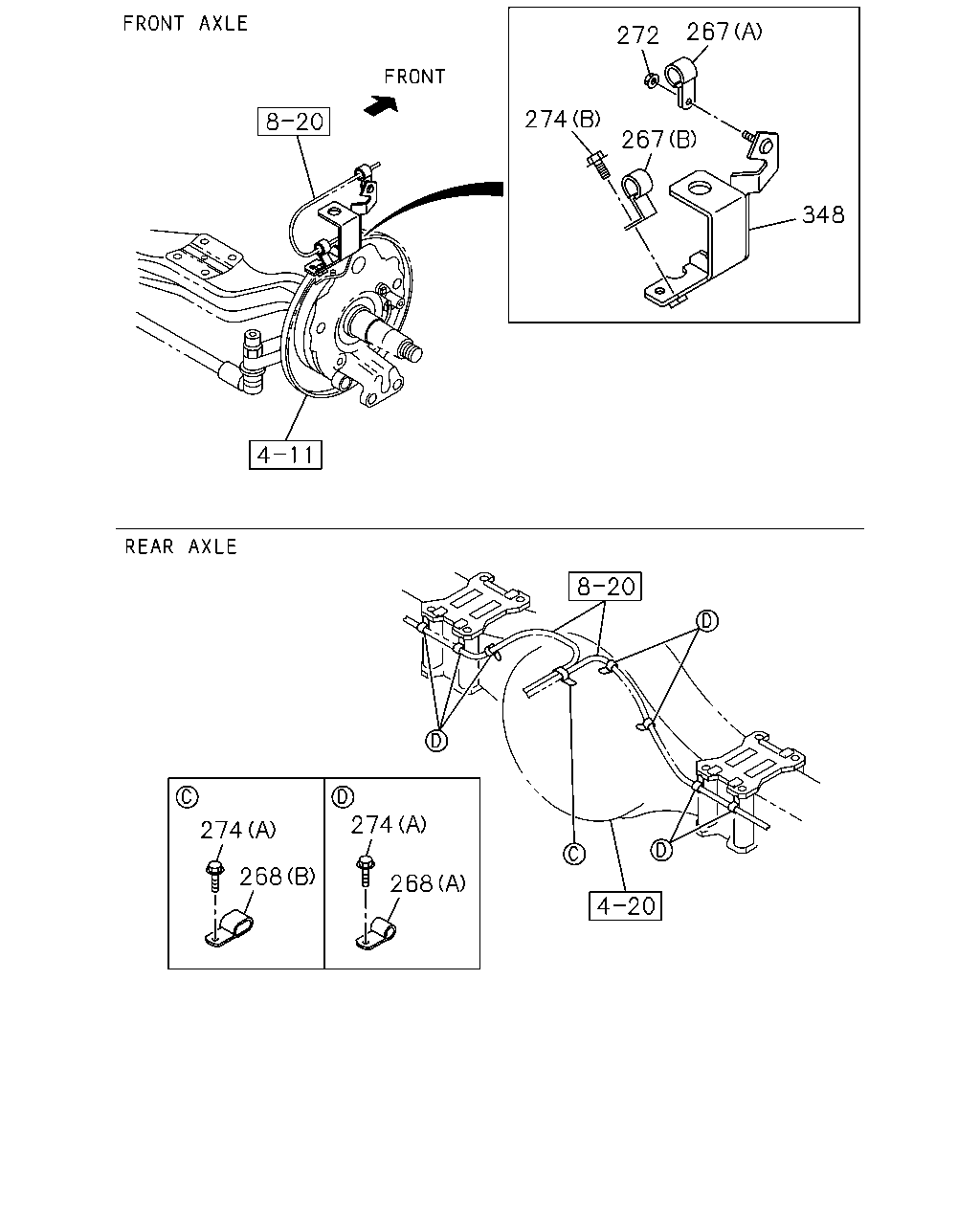

çizim 122807
348 267 274 272 267 274 274 268 268
BalonParca AdiParca NoAdetTipApplied Date A B
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1009- ● ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1009- ● ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 07 1 1009- ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 01 1 1009-1407 ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 02 1 1408- ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 1009- ●
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1408- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1009-1407 ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1408- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1009- ● ●
348 BRACKET; CLIP 8-98072-900-1 01 1 1009- ● ●
348 BRACKET; CLIP 8-98072-899-1 01 1 1009- ● ●

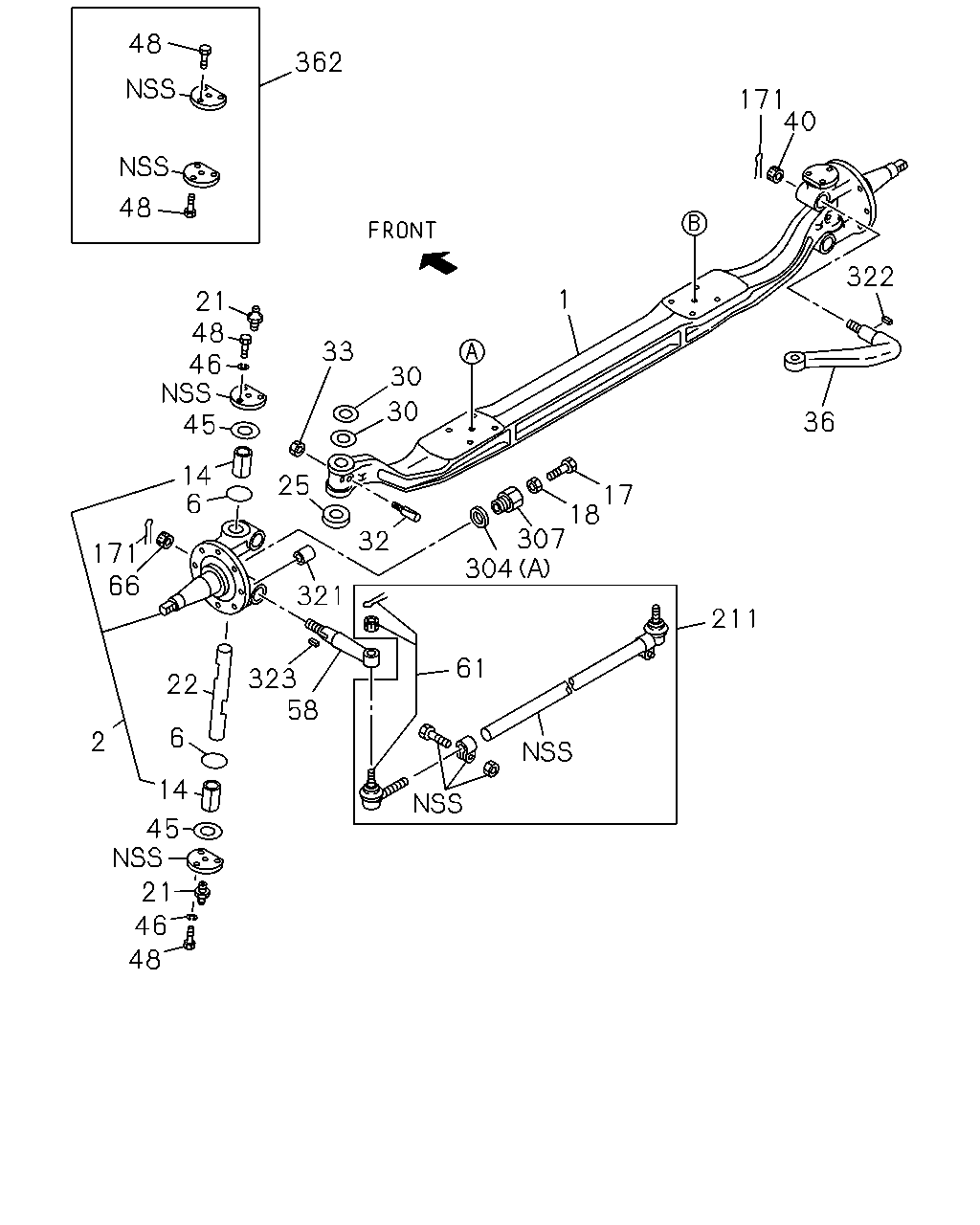

çizim 189875
48 46 21 45 14 6 22 323 58 61 304 307 18 17 211 36 322 40 171 362 48 48 33 30 30 25 32 321 6 14 45 46 48 21 2 171 1 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-167-0 01 1 1009- ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 1009- ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 1009- ● ●
6 SEAL; KING PIN 1-09625-634-0 04 1 1009- ● ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 1009- ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 1009- ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 1009- ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 1009- ● ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 1009- ● ●
25 BEARING; THRUST,KING PIN 1-43173-004-0 02 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-338-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-339-0 AR 1 1009- ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-340-0 AR 1 1009- ● ●
32 BOLT; KEY,KING PIN
L=98.4 		1-43116-014-0 02 1 1009- ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 1009- ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 1009- ● ●
36 ARM; KNUCKLE 1-43133-088-0 01 1 1009- ● ●
40 NUT; KNUCKLE ARM 1-43139-059-0 01 1 1009- ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 1009- ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 1009- ● ●
48 BOLT; COVER 1-43139-045-0 12 1 1009- ● ●
58 ARM; TIE ROD 1-43134-061-0 01 1 1009- ● ●
58 ARM; TIE ROD 1-43135-066-0 01 1 1009- ● ●
61 ROD END; TIE ROD 1-43155-058-0 01 1 1009- ● ●
61 ROD END; TIE ROD 1-43156-058-0 01 1 1009- ● ●
66 NUT; TIE ROD END 1-43139-052-0 02 1 1009- ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 1009- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1009- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1009- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1009- ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 1009- ● ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 1009- ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 1009- ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 1009- ● ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 1009- ● ●

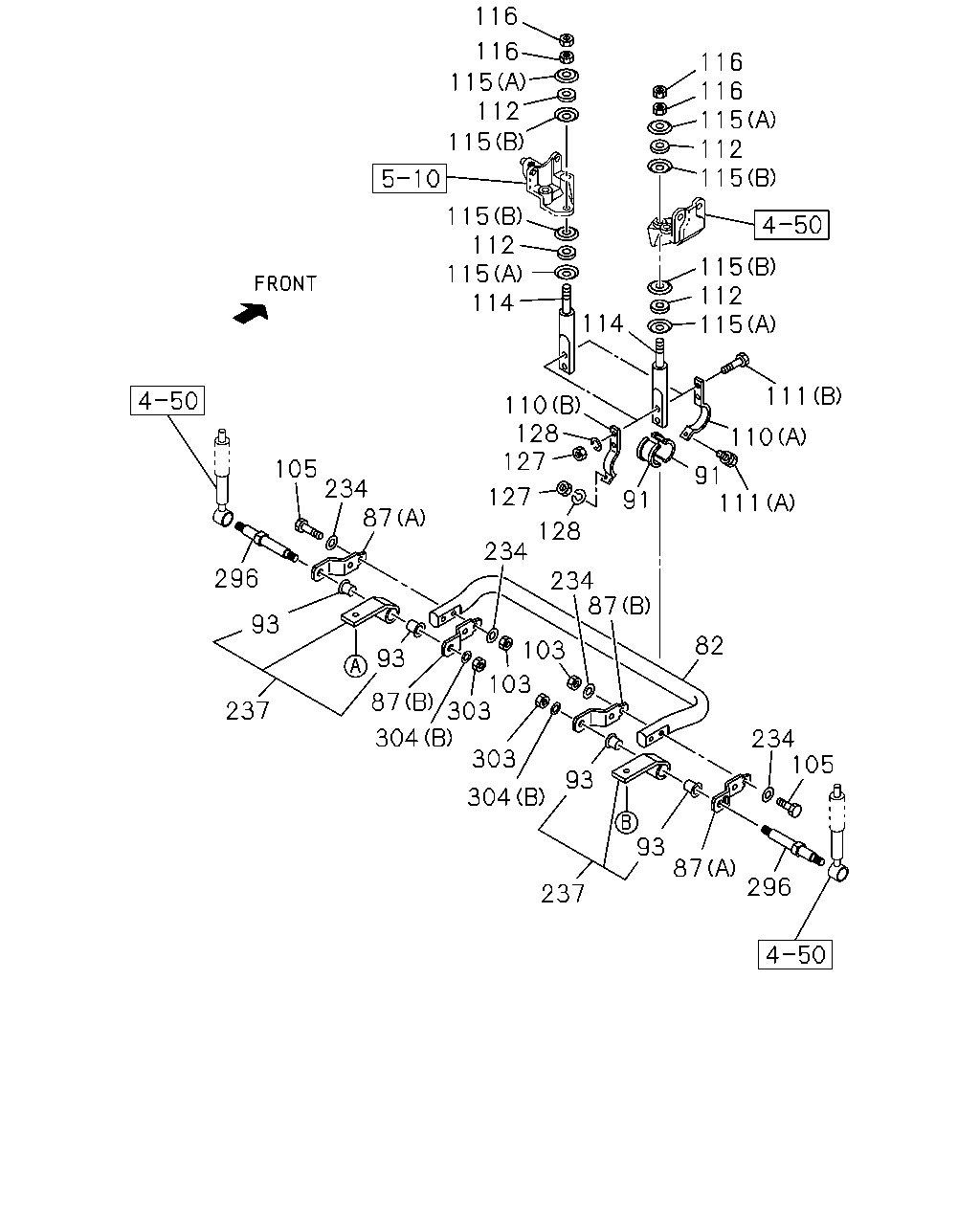

çizim 189876
296 105 234 87 93 82 87 234 234 128 91 91 103 103 93 303 303 304 237 87 93 304 87 234 105 127 127 128 110 111 110 111 115 112 115 115 112 115 116 116 237 93 296 114 114 115 112 115 115 112 115 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-136-1 01 1 1009- ●
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-134-1 01 1 1009- ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1009- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1009- ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-087-1 04 1 1009- ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1009- ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1009- ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1009- ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1009- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1009- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1009- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1009- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1009- ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 1009- ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-072-2 02 1 1009- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 1009- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=20.8 		9-51631-041-0 04 1 1009- ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1009- ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1009- ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1009- ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1009- ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1009- ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1009- ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1009- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1009- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1009- ● ●
