0-81 — GOVERNOR; INJECTION PUMP (#7191) — 171 parça

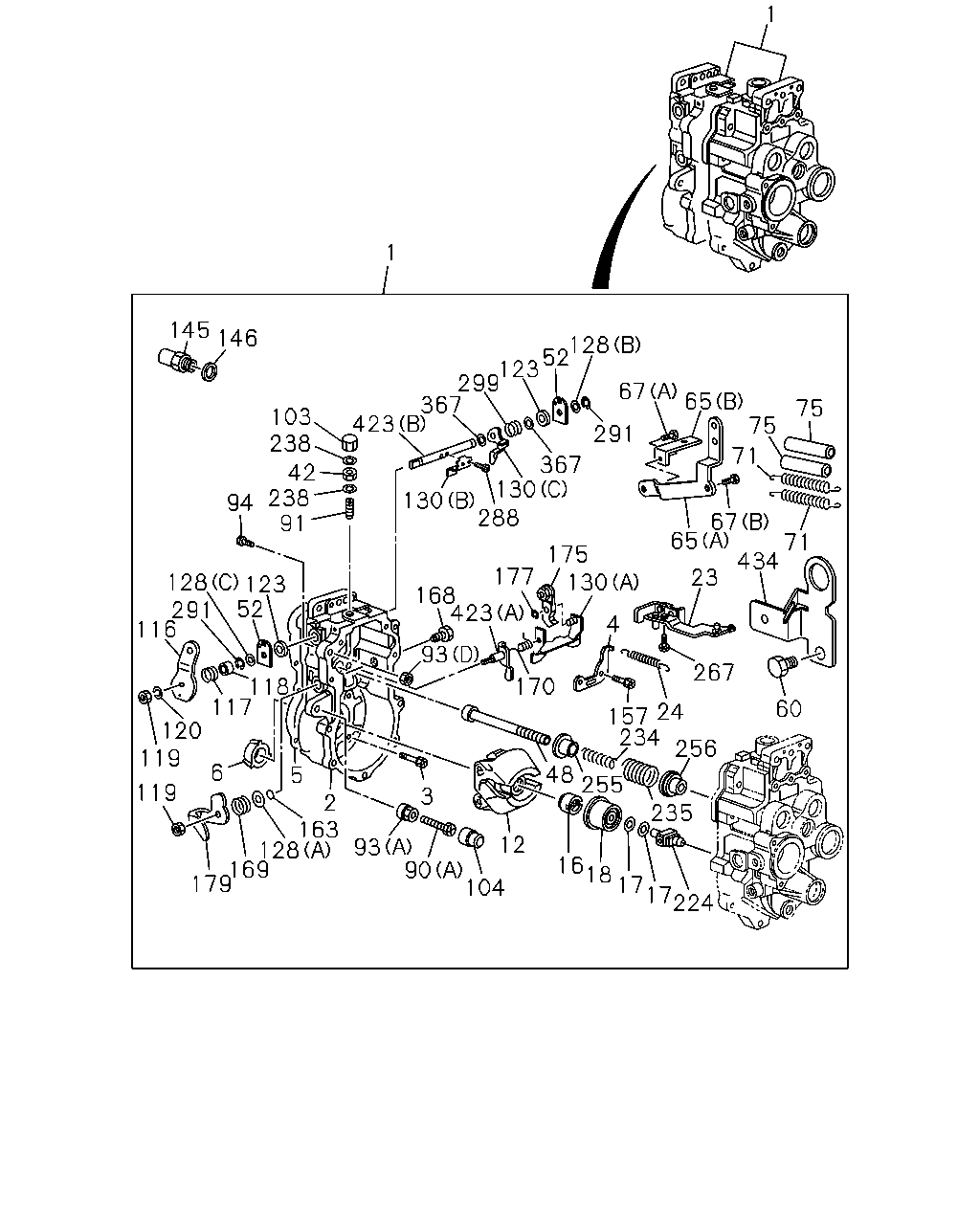

1 1 145 146 128 52 123 299 367 423 67 65 75 75 103 238 291 71 367 130 130 288 42 238 91 94 67 65 71 434 175 130 177 23 128 123 291 52 116 168 423 4 93 267 170 118 117 60 24 157 234 120 119 256 48 255 6 5 119 3 2 163 128 169 179 235 12 93 90 16 18 17 17 224 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-209-1	1-15770-978-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-209-1	1-15721-307-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 1-15603-209-1	1-15779-226-0	06	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-209-1	1-15779-294-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-209-1	1-15779-297-0	01	1	-
6	IMPELLER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-209-1	9-81315-207-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-209-1	1-15722-029-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-209-1	1-15779-396-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-209-1	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-209-1	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-209-1	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-209-1	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-209-1	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-209-1	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-209-1	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-209-1	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-209-1	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-209-1	5-15729-372-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-209-1	1-15725-795-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-209-1	1-15723-524-0	01	1	-
42	NUT; SPRING CAPSULE,IDLE CONT,GOV ASM PART: A = 1-15603-209-1	9-81393-204-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15603-209-1	1-15779-240-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 1-15603-209-1	1-15779-269-0	02	1	-
60	BOLT; COVER FIX,GOV COVER ASM PART: A = 1-15603-209-1	1-15619-039-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: A = 1-15603-209-1	1-15779-253-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: A = 1-15603-209-1	1-15779-254-0	01	1	-
67	BOLT; SPRING BRKT,GOV (A) ASM PART: A = 1-15603-209-1	1-15729-555-0	01	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: A = 1-15603-209-1	1-15729-818-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 1-15603-209-1	1-15723-457-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15603-209-1	1-15779-284-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 1-15603-209-1	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 1-15603-209-1	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 1-15603-209-1	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15603-209-1	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: A = 1-15603-209-1	1-15779-296-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV ASM PART: A = 1-15603-209-1	1-15723-455-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-209-1	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-209-1	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 1-15603-209-1	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-209-1	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: A = 1-15603-209-1	1-15779-233-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV ASM PART: A = 1-15603-209-1	1-15779-249-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-209-1	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-209-1	1-15725-776-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-209-1	1-15723-443-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-209-1	1-15779-389-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-209-1	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-209-1	1-83579-492-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-209-1	1-15779-282-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 1-15603-209-1	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 1-15603-209-1	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 1-15603-209-1	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 1-15603-209-1	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 1-15603-209-1	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 1-15603-209-1	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 1-15603-209-1	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 1-15603-209-1	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 1-15603-209-1	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 1-15603-209-1	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 1-15603-209-1	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 1-15603-209-1	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 1-15603-209-1	1-15725-774-0	01	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 1-15603-209-1	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (C) ASM PART: A = 1-15603-209-1	1-15725-801-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: A = 1-15603-209-1	1-15729-465-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: A = 1-15603-209-1	9-81325-528-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: A = 1-15603-209-1	1-15779-226-0	02	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15603-209-1	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15603-209-1	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15603-209-1	1-15723-458-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15603-209-1	1-15723-132-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15603-209-1	1-15725-793-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15603-209-1	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15603-209-1	1-15725-773-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15603-209-1	1-15779-390-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15603-209-1	1-15723-500-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15603-209-1	1-15723-523-0	01	1	-
238	GASKET; SPRING CAPSULE CAP,GOV ASM PART: A = 1-15603-209-1	8-94144-588-0	02	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15603-209-1	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 1-15603-209-1	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-209-1	1-15749-747-0	01	1	-
288	BOLT; LEVER ASM PART: A = 1-15603-209-1	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15603-209-1	1-15779-196-0	02	1	-
299	SPRING; LEVER ASM PART: A = 1-15603-209-1	1-15723-463-1	01	1	-
367	SHIM; SHAFT T=0.5 ASM PART: A = 1-15603-209-1	9-88410-122-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 1-15603-209-1	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 1-15603-209-1	1-15779-387-0	01	1	-
434	HANGER; GOV ASM PART: A = 1-15603-209-1	1-15779-545-0	01	1	-

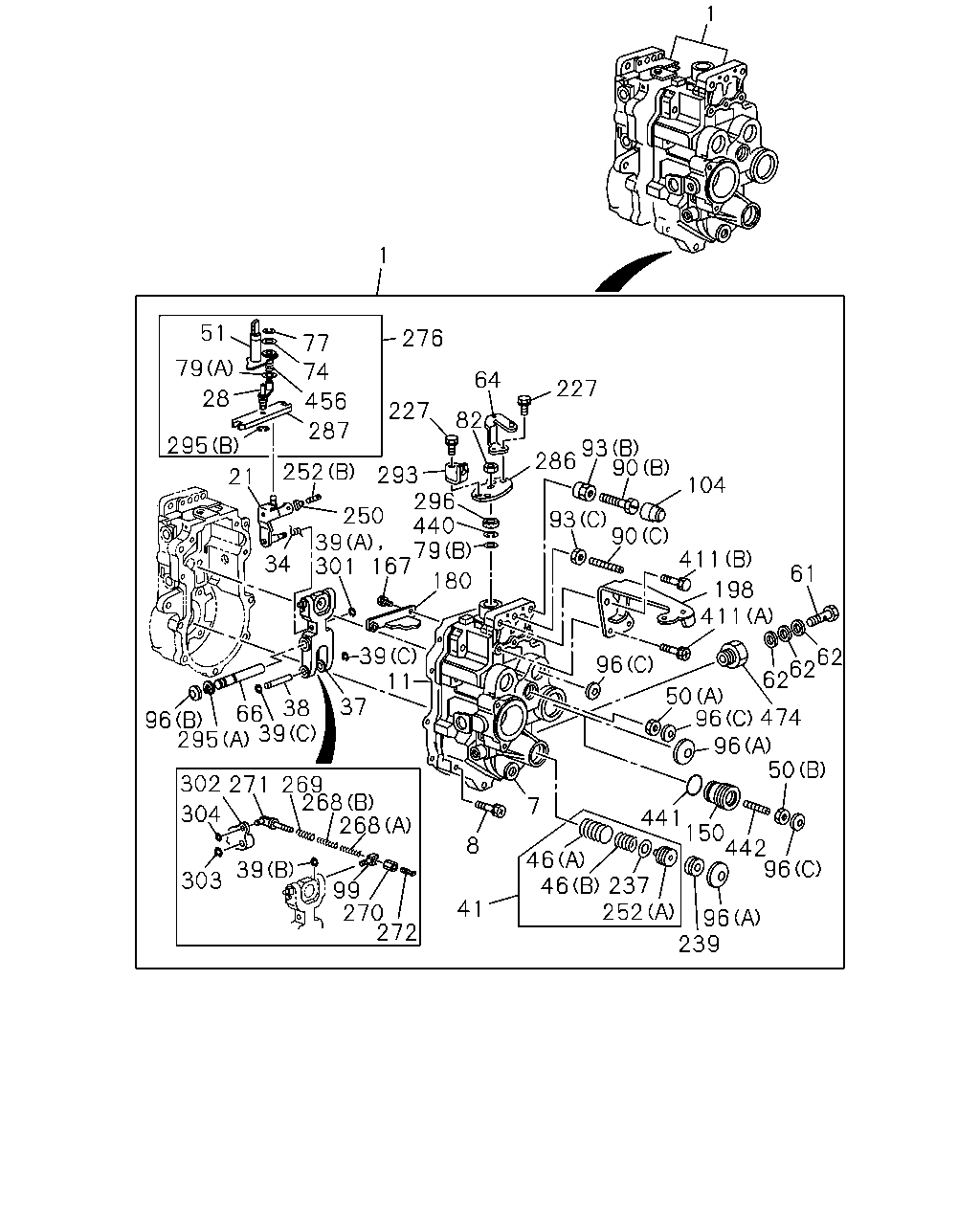

1 1 51 276 77 79 74 64 227 28 456 227 82 287 295 93 286 90 252 293 296 250 440 39 79 301 167 21 104 93 90 411 34 61 180 198 411 39 11 62 62 62 96 50 96 37 38 66 96 39 295 50 269 268 268 7 304 441 150 442 96 8 46 252 39 99 270 272 303 41 96 239 46 237 96 474 271 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-209-1	1-15770-978-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-209-1	1-15721-340-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 1-15603-209-1	5-15729-033-0	09	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-209-1	1-15779-251-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-209-1	1-15725-779-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-209-1	1-15725-798-1	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-209-1	1-15723-444-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-209-1	1-15725-874-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-209-1	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 1-15603-209-1	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: A = 1-15603-209-1	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (A), ID=4 ASM PART: A = 1-15603-209-1	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-209-1	1-15723-451-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 1-15603-209-1	1-15723-460-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 1-15603-209-1	1-15723-461-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP (A) ASM PART: A = 1-15603-209-1	8-94171-147-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP (B), M5 ASM PART: A = 1-15603-209-1	9-99110-405-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-209-1	1-15779-369-0	01	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-209-1	1-15779-421-0	01	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: A = 1-15603-209-1	1-15729-066-0	03	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-209-1	1-15725-799-0	01	1	-
66	SHAFT; LEVER ASM PART: A = 1-15603-209-1	1-15779-234-0	01	1	-
74	WASHER; LEVER SPR ASM PART: A = 1-15603-209-1	1-15779-232-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-209-1	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 1-15603-209-1	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 1-15603-209-1	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15603-209-1	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 1-15603-209-1	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 1-15603-209-1	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 1-15603-209-1	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 1-15603-209-1	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: A = 1-15603-209-1	1-15779-296-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-209-1	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-209-1	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 1-15603-209-1	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-209-1	9-88410-525-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 1-15603-209-1	1-15779-293-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 1-15603-209-1	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 1-15603-209-1	8-94171-148-0	04	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-209-1	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-209-1	8-97085-022-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-209-1	1-15779-370-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: A = 1-15603-209-1	5-15729-071-0	02	1	-
180	PLATE; GOV COVER ASM PART: A = 1-15603-209-1	1-15779-257-0	01	1	-
198	BRACKET; COVER ASM PART: A = 1-15603-209-1	1-15779-315-0	01	1	-
227	BOLT; GOV LEVER ASM PART: A = 1-15603-209-1	1-15719-005-0	04	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15603-209-1	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 1-15603-209-1	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 1-15603-209-1	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15603-209-1	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15603-209-1	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15603-209-1	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15603-209-1	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15603-209-1	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15603-209-1	9-81325-553-0	AR	1	-
239	SCREW; GOV ASM PART: A = 1-15603-209-1	1-15779-239-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15603-209-1	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 1-15603-209-1	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 1-15603-209-1	1-15779-288-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 1-15603-209-1	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 1-15603-209-1	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15603-209-1	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15603-209-1	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15603-209-1	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15603-209-1	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15603-209-1	1-15725-825-0	01	1	-
286	LEVER; GOV ASM PART: A = 1-15603-209-1	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15603-209-1	1-15725-781-0	01	1	-
293	LEVER; CONT ASM PART: A = 1-15603-209-1	1-15725-803-0	01	1	-
295	RING; SNAP (A) ASM PART: A = 1-15603-209-1	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 1-15603-209-1	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-209-1	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: A = 1-15603-209-1	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15603-209-1	1-15779-498-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15603-209-1	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15603-209-1	9-09185-404-0	01	1	-
411	BOLT; BRKT (A) ASM PART: A = 1-15603-209-1	1-15619-187-0	02	1	-
411	BOLT; BRKT (B) ASM PART: A = 1-15603-209-1	5-15729-208-0	01	1	-
440	RING; SNAP,LEVER ASM PART: A = 1-15603-209-1	1-15729-989-0	01	1	-
441	GASKET; ADAPTER ASM PART: A = 1-15603-209-1	8-97037-290-0	01	1	-
442	SCREW; ADJ ASM PART: A = 1-15603-209-1	1-15779-371-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 1-15603-209-1	1-15723-462-0	01	1	-
474	ADAPTER; GOVERNOR,INJ PUMP ASM PART: A = 1-15603-209-1	1-15779-558-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
